Waveshare 2-DOF Pan-Tilt HAT, Compatible with Raspberry Pi Series Motherboards/Jetson Nano

• Designed for Raspberry Pi 40PIN GPIO interface, suitable for Raspberry Pi series motherboards/Jetson Nano
• I2C interface control, only 2 signal lines are needed to realize pan-tilt rotation and light intensity detection
• The onboard PCA9685 chip can output PWM with 12-bit resolution to control the rotation of the gimbal; the onboard TSL25911FN has a built-in ADC, which can obtain a response similar to the human eye to light to assist with module work

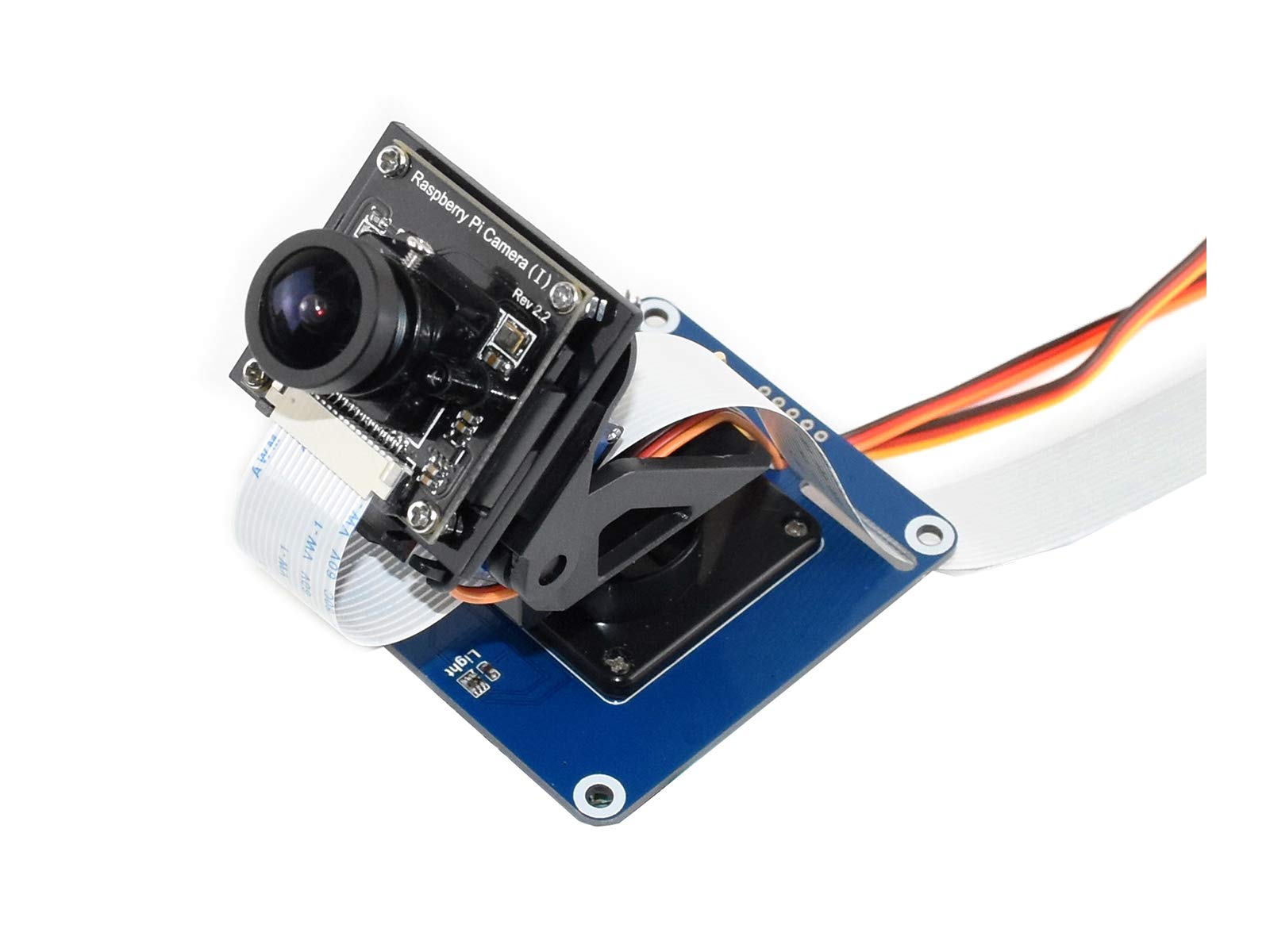

• The onboard level conversion circuit is for 3.3V/5V working level. The special acrylic board is used to fix camera, and the installation is simple and convenient
• Some assembly work is required to use the 2-DOF Pan-Tilt HAT, but it is easy to do, please ask customer service for assembly instructions if needed

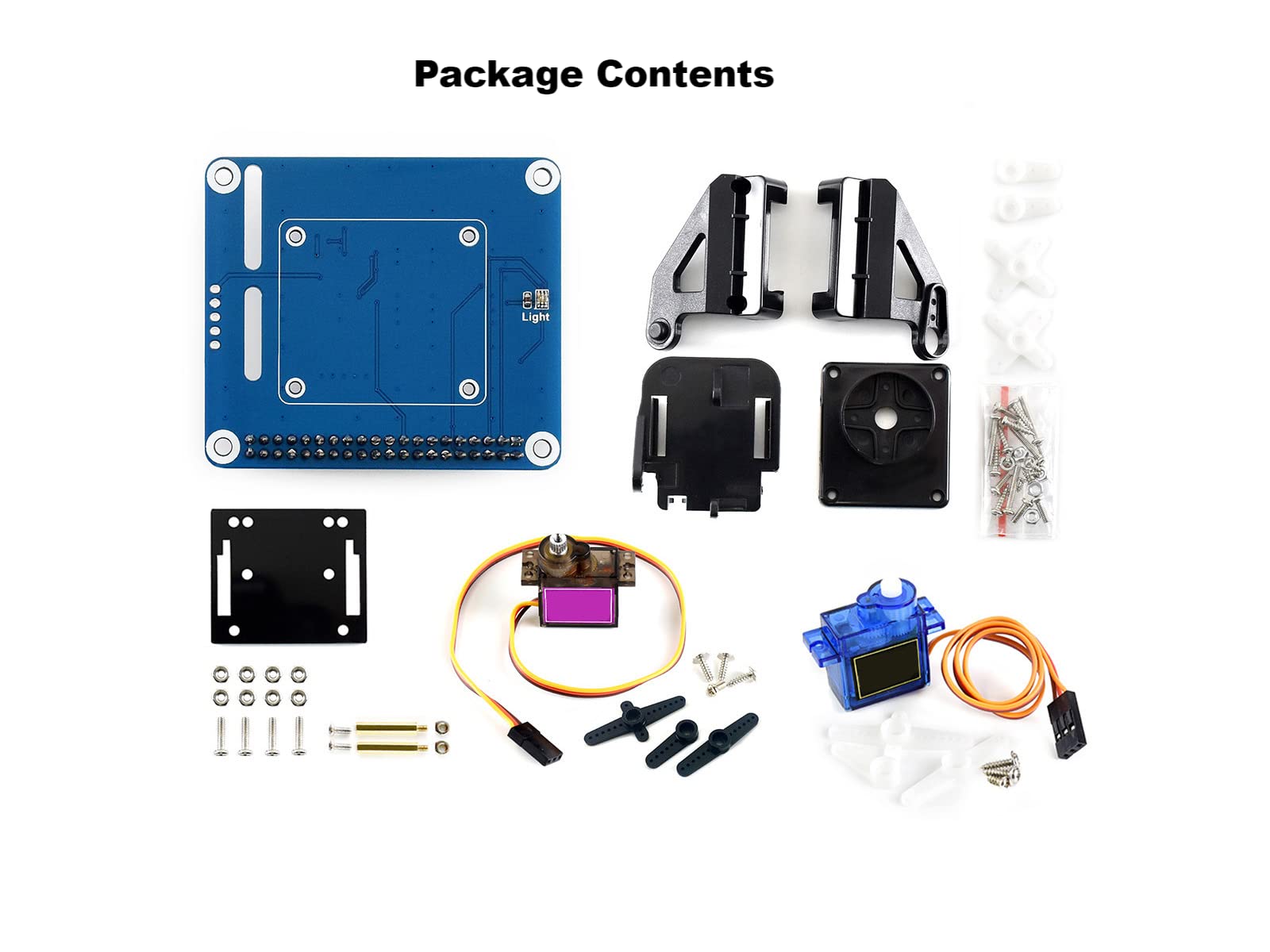

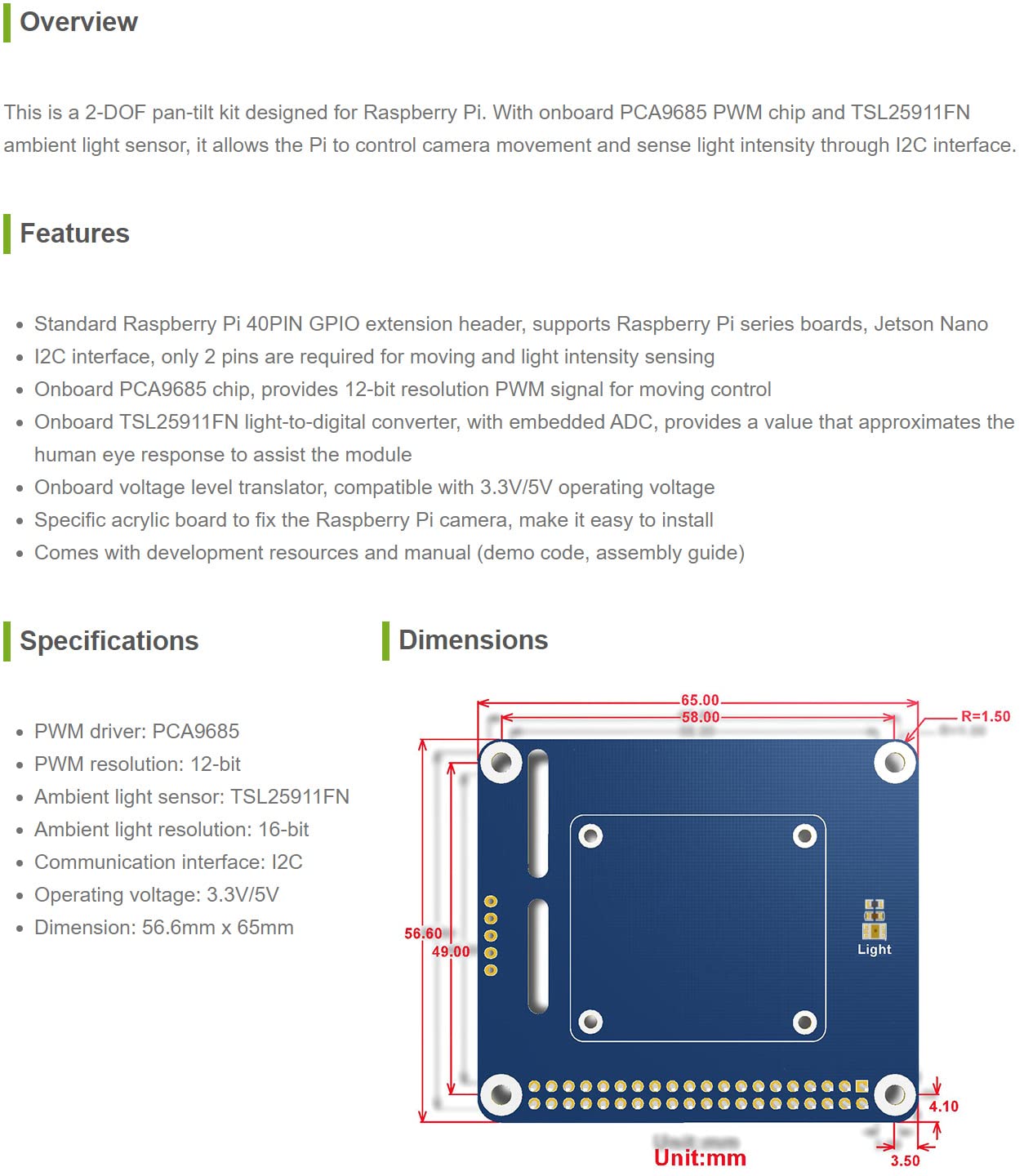

Features: A two-degree-of-freedom gimbal expansion board specially designed for Raspberry Pi, onboard PCA9685 chip and TSL25911FN ambient light sensor, can realize gimbal rotation and light intensity detection through I2C interface control. Specifications PWM driver: PCA9685 PWM resolution: 12-bit Ambient light sensor: TSL25911FN Ambient light resolution: 16-bit Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 56.6mm x 65mm Package Contents: Pan-Tilt HAT x1 2-DOF pan-tilt kit x1 SG servo x1 MG servo x1 Acrylic board x1 M2 screws pack x1 RPi screws pack (2pcs) x1 User Manual: waveshare.com/wiki/Pan-Tilt_HAT?amazon
