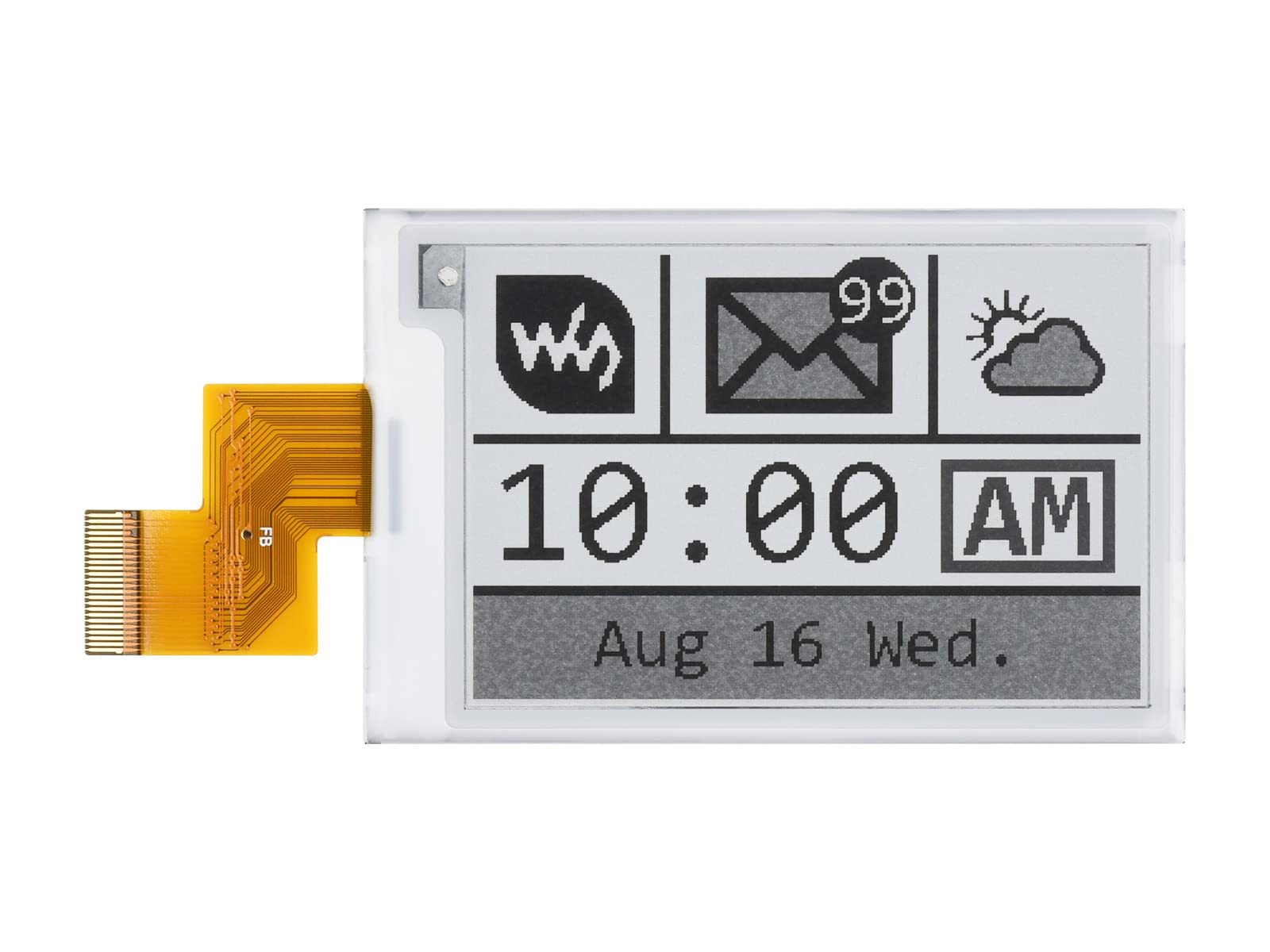

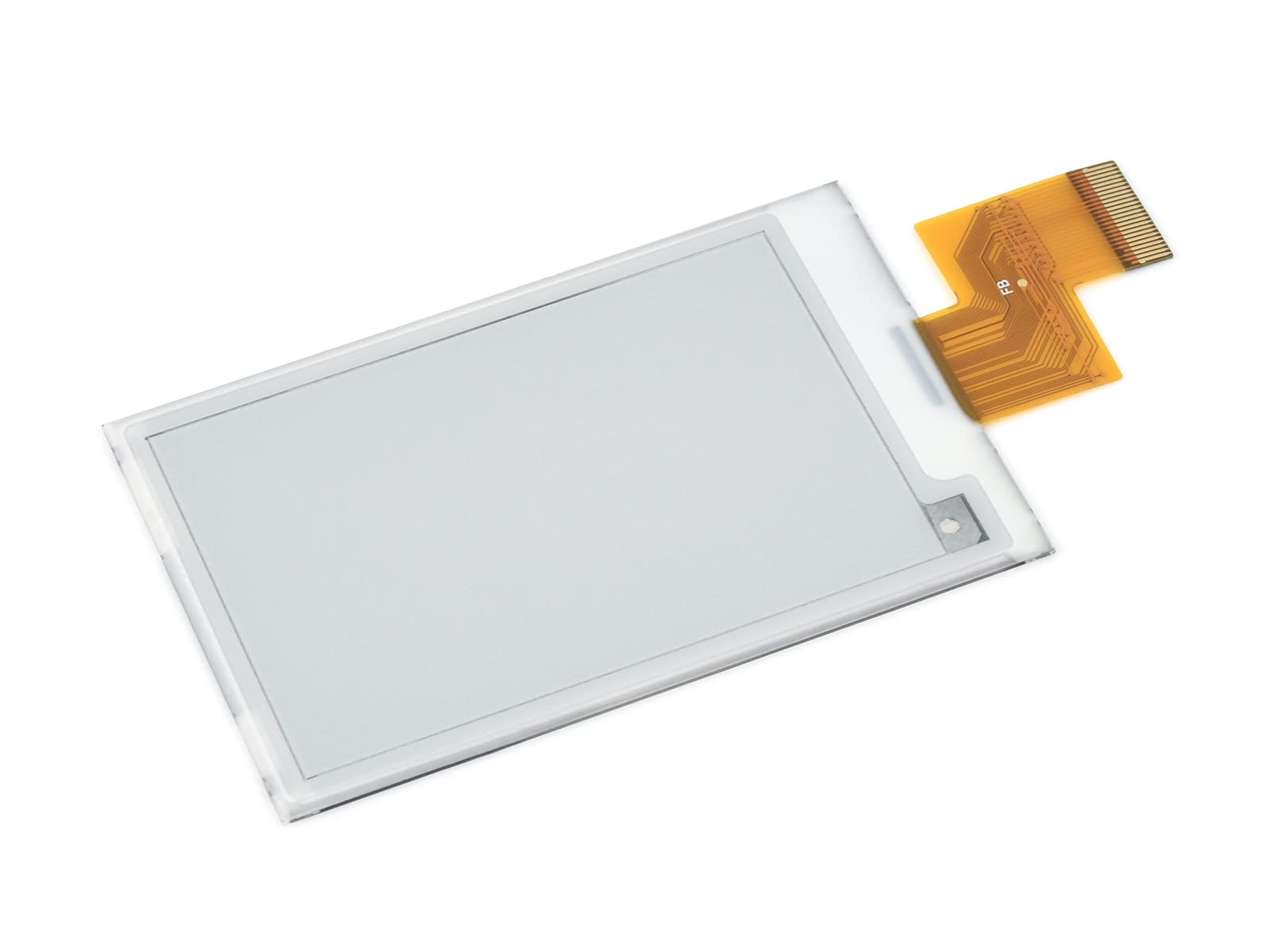

Waveshare 2.7 Inch E-paper Raw Display Panel 264x176 Resolution 3.3v E-Ink Electronic Paper Screen without PCB with Embedded Controller,Communicating via SPI Interface

• This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface.
• Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32) Specifications

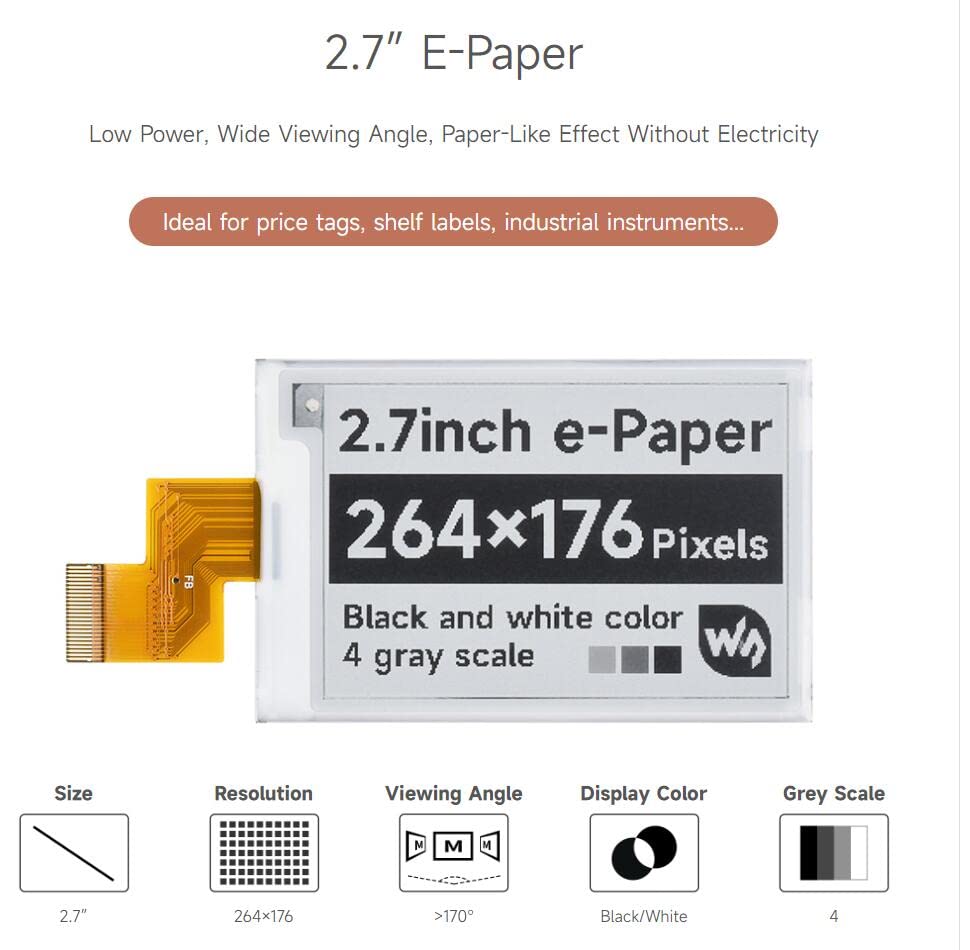

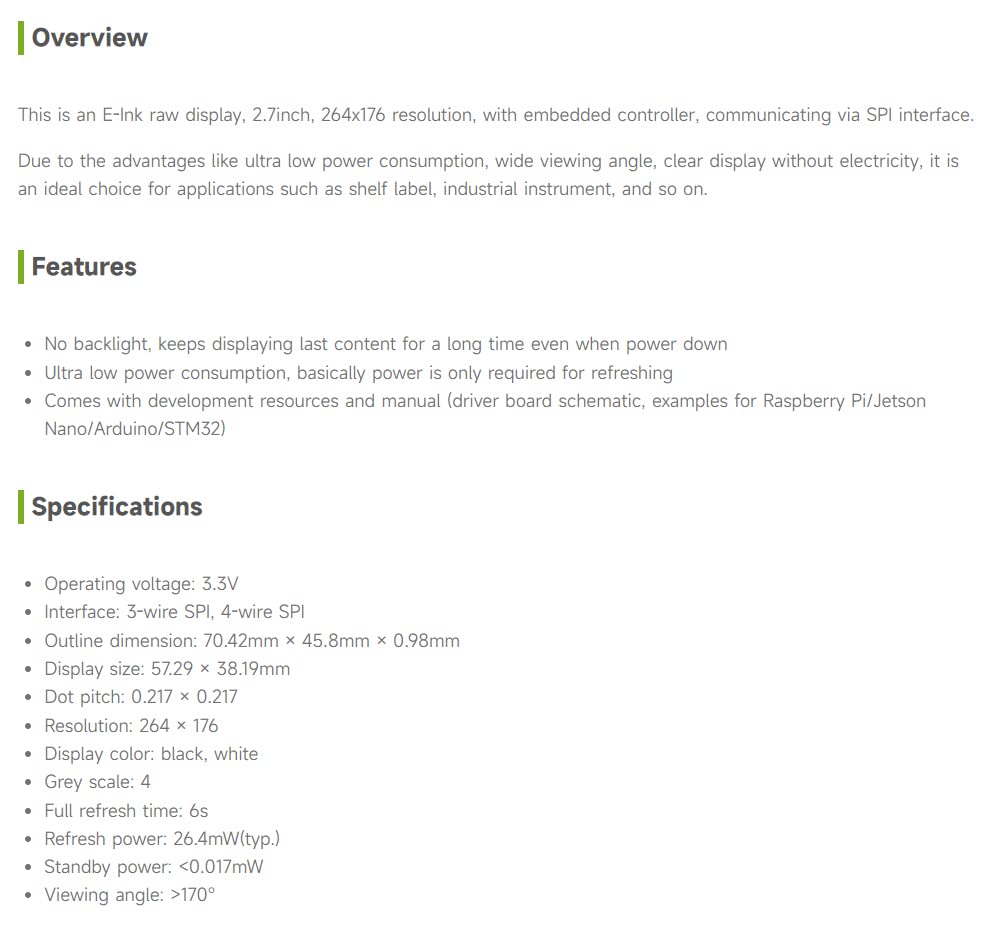

264x176, 2.7inch E-Ink raw display, SPI interface, without PCB Overview This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 70.42mm × 45.8mm × 0.98mm Display size: 57.29mm × 38.19mm Dot pitch: 0.217 × 0.217 Resolution: 264 × 176 Display color: black, white Grey level: 2 Full refresh time: 6s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Development Resources Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT?amazon Package Content 2.7inch e-Paper x1 Development Resources Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(D)
