Waveshare 2.4inch LCD, Compatible with Raspberry Pi 4B/3B+/3A+/3B/2B/1B+/1A+/Zero 2 W/Zero W/Zero

• 2.4inch LCD Display Module, 65K RGB Colors, 240X320 Resolution, SPI Interface
• 240X320 resolution, 65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/STM32
• Comes with development resources (examples for Raspberry Pi/STM32)

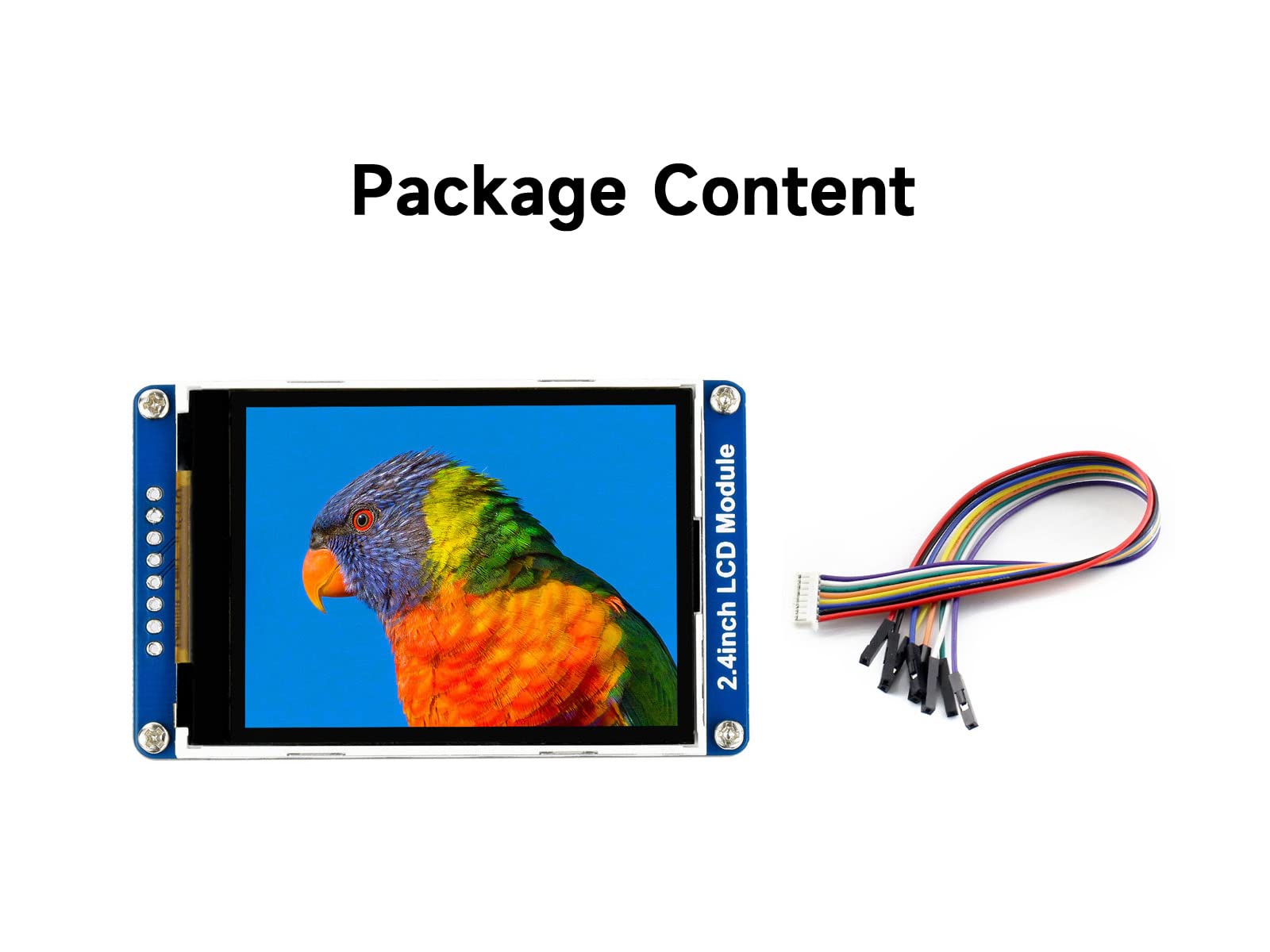

PACKAGE CONTENT 1. 2.4inch LCD Module x1 2. cable x1 Features At A Glance 240×320 resolution, 65K RGB colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/STM32 Comes with development resources (examples for Raspberry Pi/STM32) Introduction As a 2.4inch TFT display module with a resolution of 240 * 320, it uses the SPI interface for communication. LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures. We provide complete supporting Raspberry Pi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and demos. Specification Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V; When using 3.3V power supply, the logic voltage is 3.3V) Interface: SPI LCD Type: TFT Controller: IL9341 Resolution: 240(V) x 320(H)RGB Display Size: 36.72（H）x 48.96（V）mm Pixel Size: 0.153（H）x 0.153（V）mm Dimension: 70.5 x 43.3(mm)
