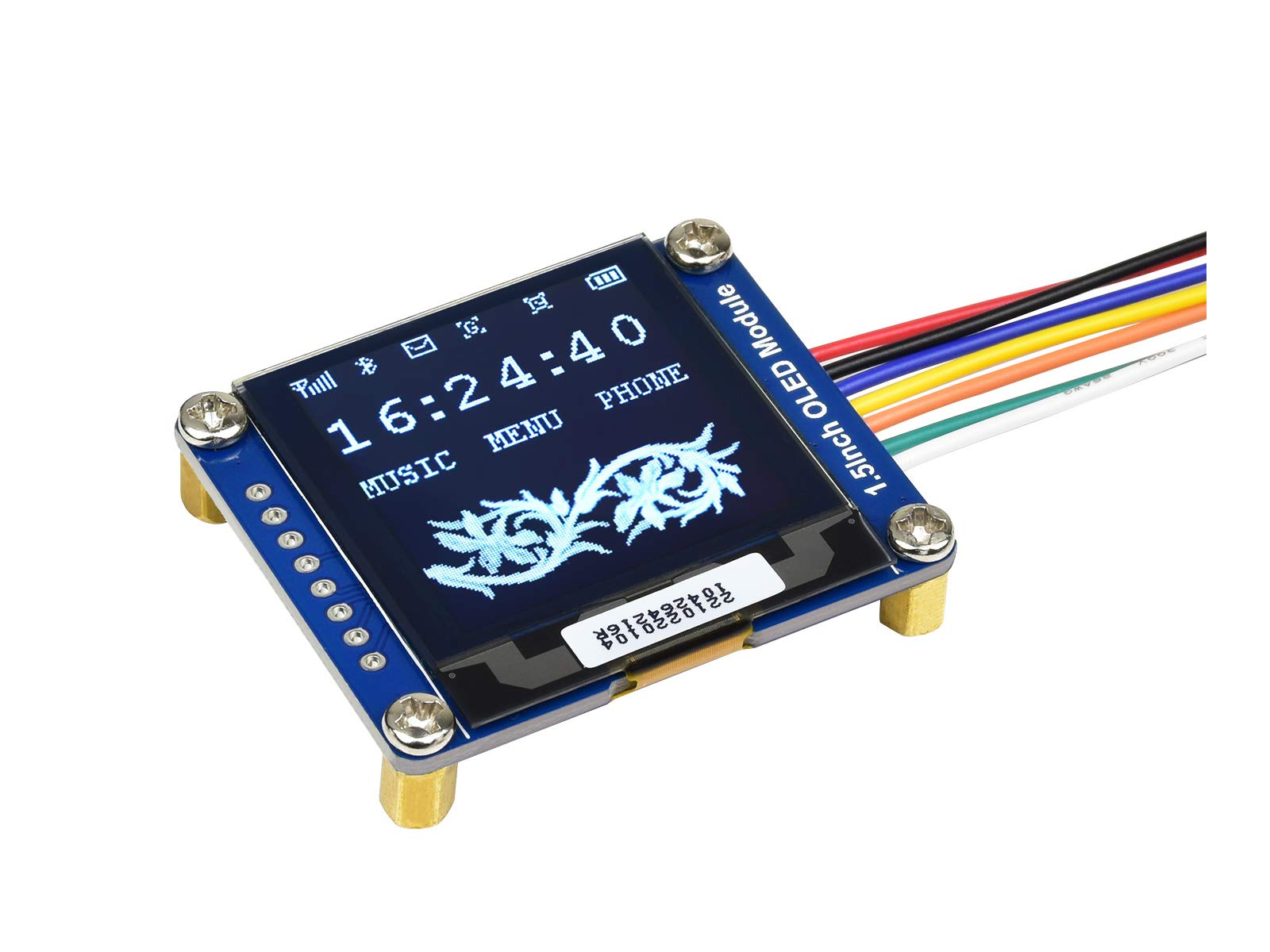

Waveshare 1.5inch OLED Module, 128x128 Pixels, Display Module, Compatible with Raspberry Pi
About this item
- 128ร128 high resolution for clearer display
- Support 16 grayscale display, the picture layer is stronger and more realistic
- Supports SPI and I2C interfaces, and the communication method can be selected through resistance
- Provide complete supporting information manual (example program for Raspberry/Jetson Nano/STM32)
- OLED has no backlight, and the display is self-illuminating. Only connect VCC and GND, the OLED will not light up. Program control is required to brighten the OLED
Product description

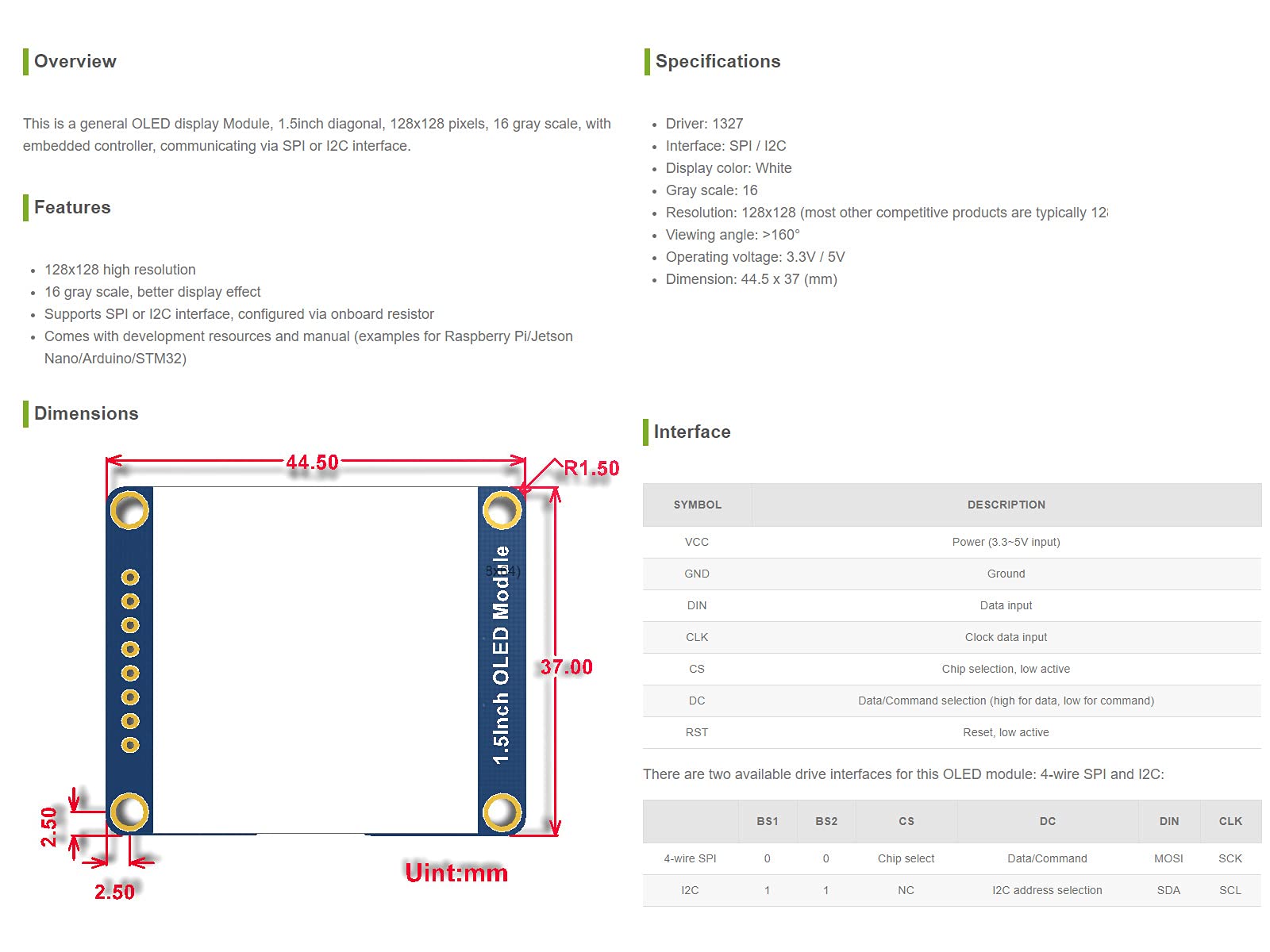

Features A general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface. Specifications Driver: 1327 Interface: SPI/I2C Display color: White Gray scale: 16 Resolution: 128x128 (Others are usually 128x64) Viewing angle: >160ยฐ Operating voltage: 3.3V/5V Dimension: 44.5 x 37 (mm) Package Contents 1.5inch OLED Module x1 7Pin x1 User Manual:waveshare.com/wiki/1.5inch_OLED_Module?amazon
