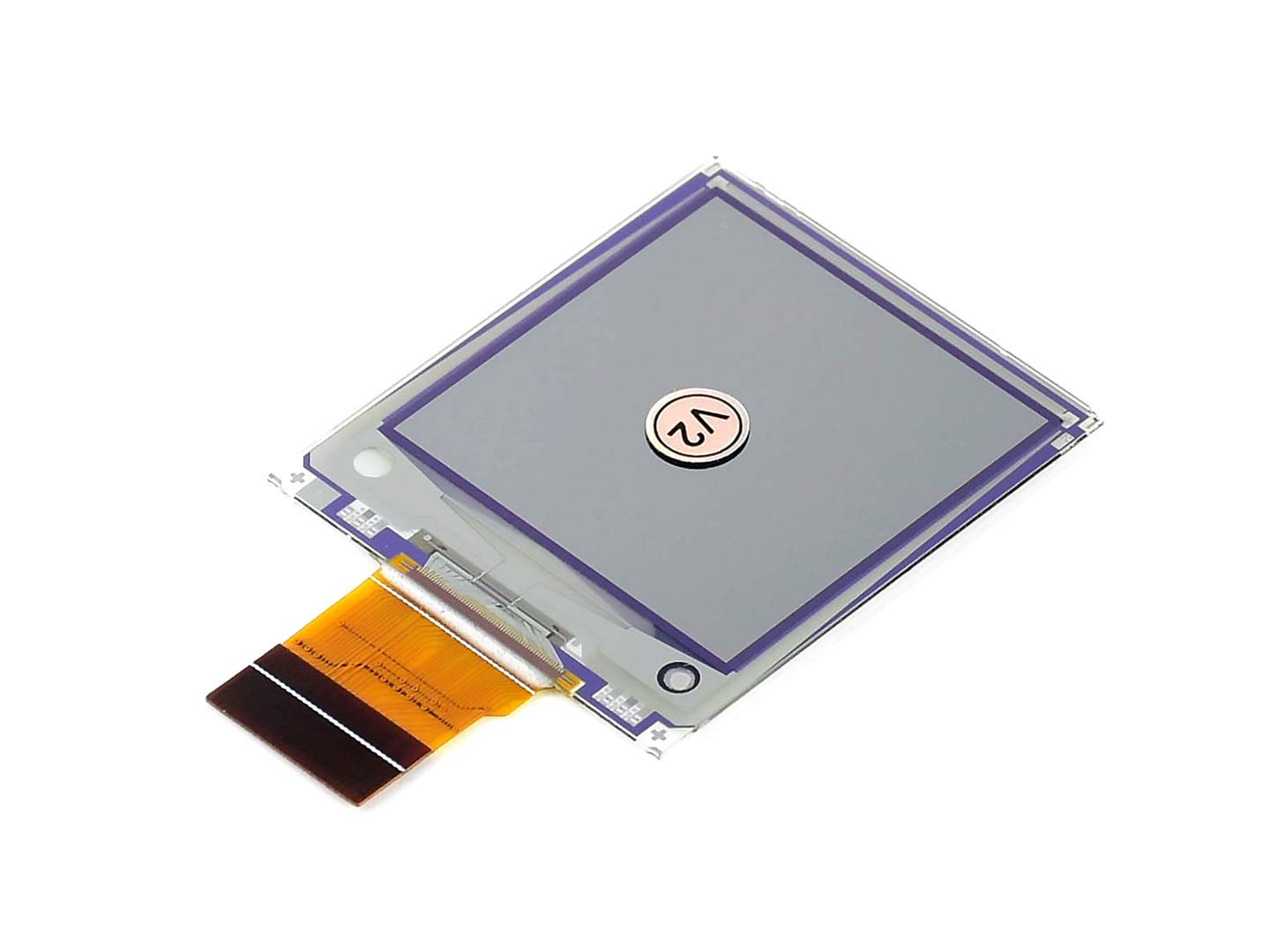

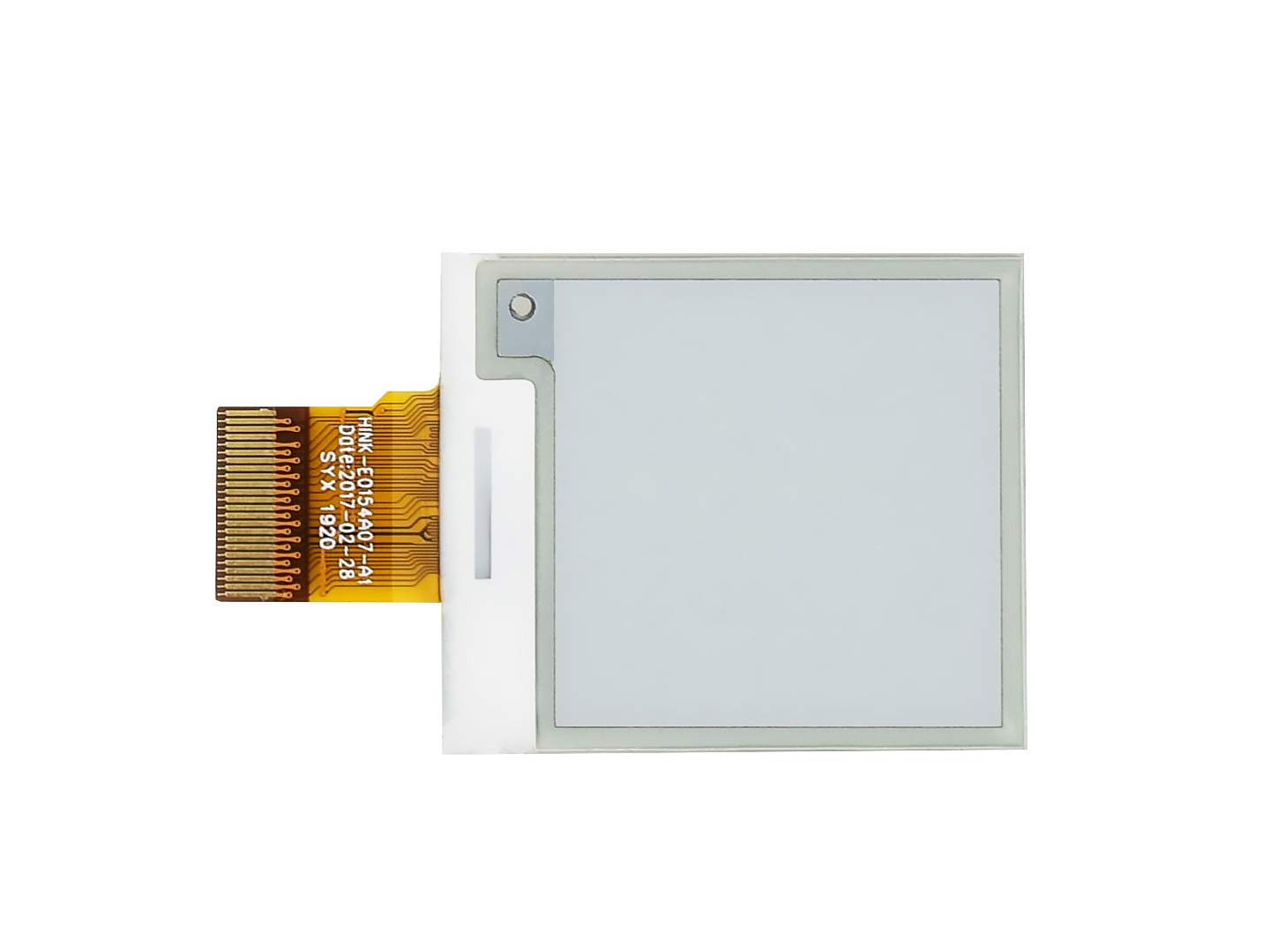

Waveshare 1.54 Inch E-paper Raw Display Panel V2 200x200 Resolution 3.3V E-Ink Electronic Paper Screen without PCB with Embedded Controller Support Partial Refresh,Communicating via SPI interface

• Note:Version 2 please use corresponding demo code in wiki.This is an E-Ink raw display, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
• Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

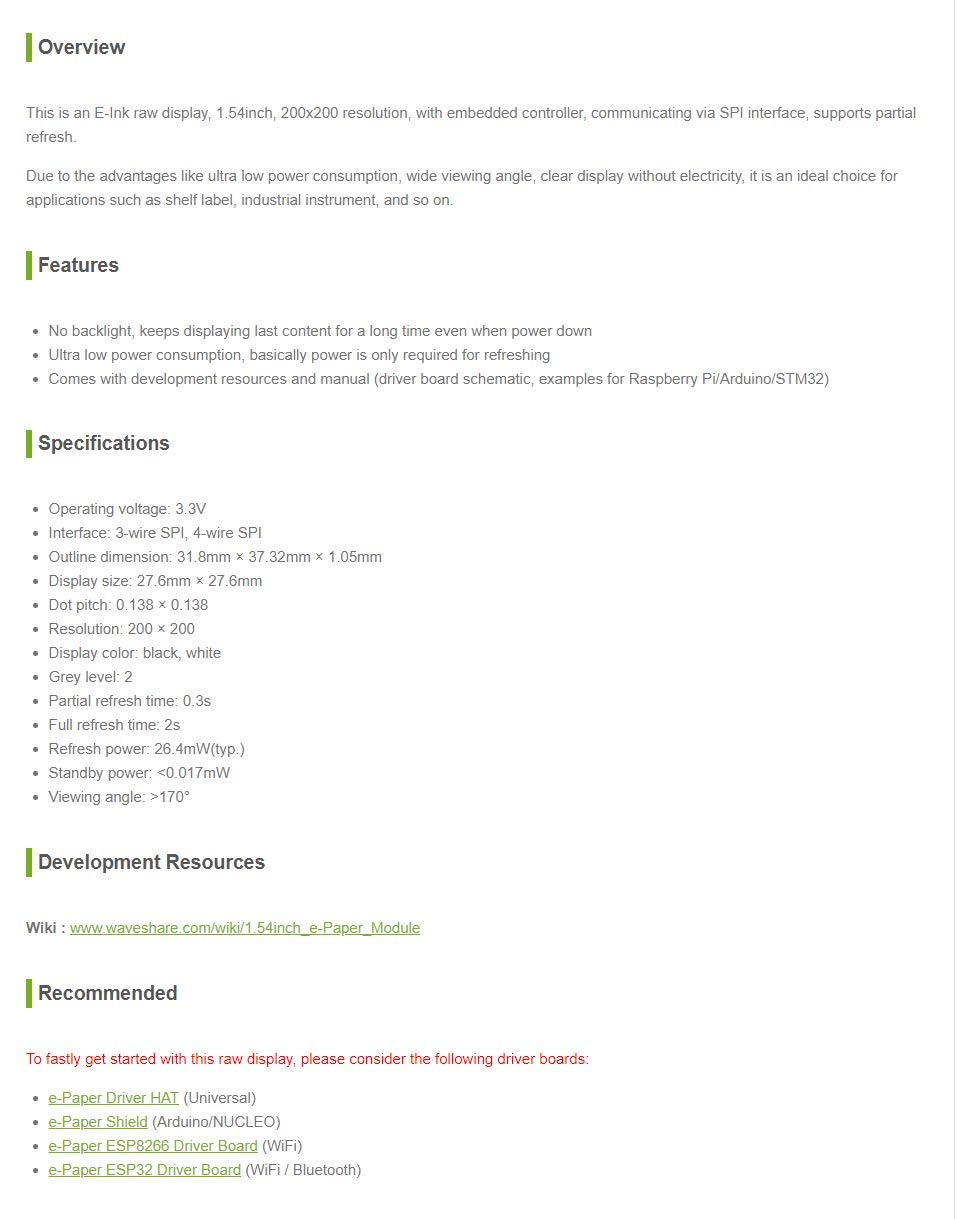

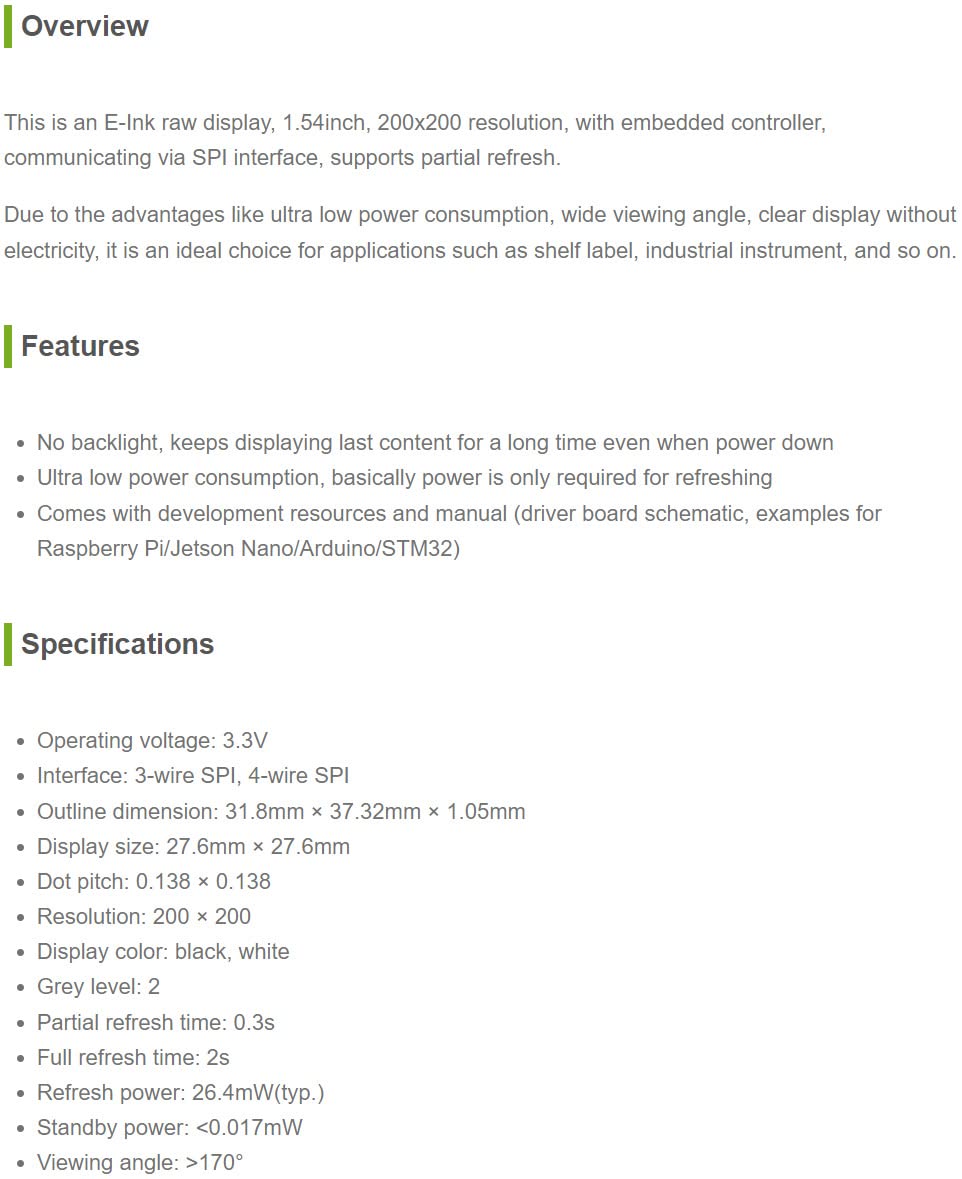

Description 200x200, 1.54inch E-Ink raw display, SPI interface, without PCB Specifications Operating voltage: 3.3V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 31.8mm × 37.32mm × 1.05mm Display size: 27.6mm × 27.6mm Dot pitch: 0.138 × 0.138 Resolution: 200 × 200 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mV(typ.) Standby power: <0.017mW Viewing angle: <170° Package Contains 1.54inch e-Paper x1 Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing:1.54inch e-Paper Module Development Resources Wiki : www.waveshare.com/wiki/1.54inch_e-Paper_Module
