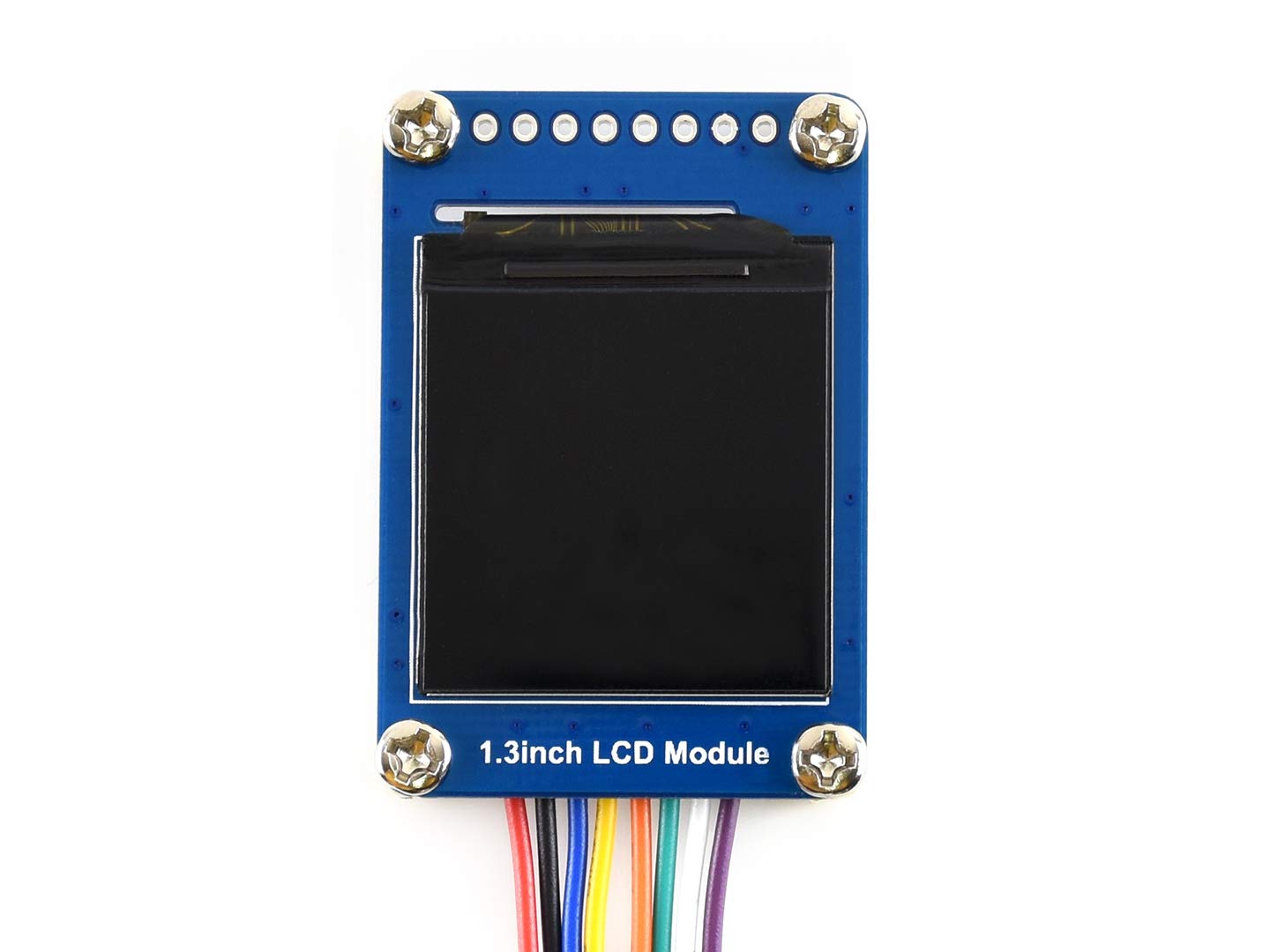

Waveshare 1.3inch LCD Module, 240x240 Resolution, IPS Screen, Compatible with Raspberry Pi
About this item
- A general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface
- Use SPI control to ensure that it does not take up too many interface pins
- Provide complete supporting information manual (example program for Raspberry/Jetson Nano/STM32)
Product description

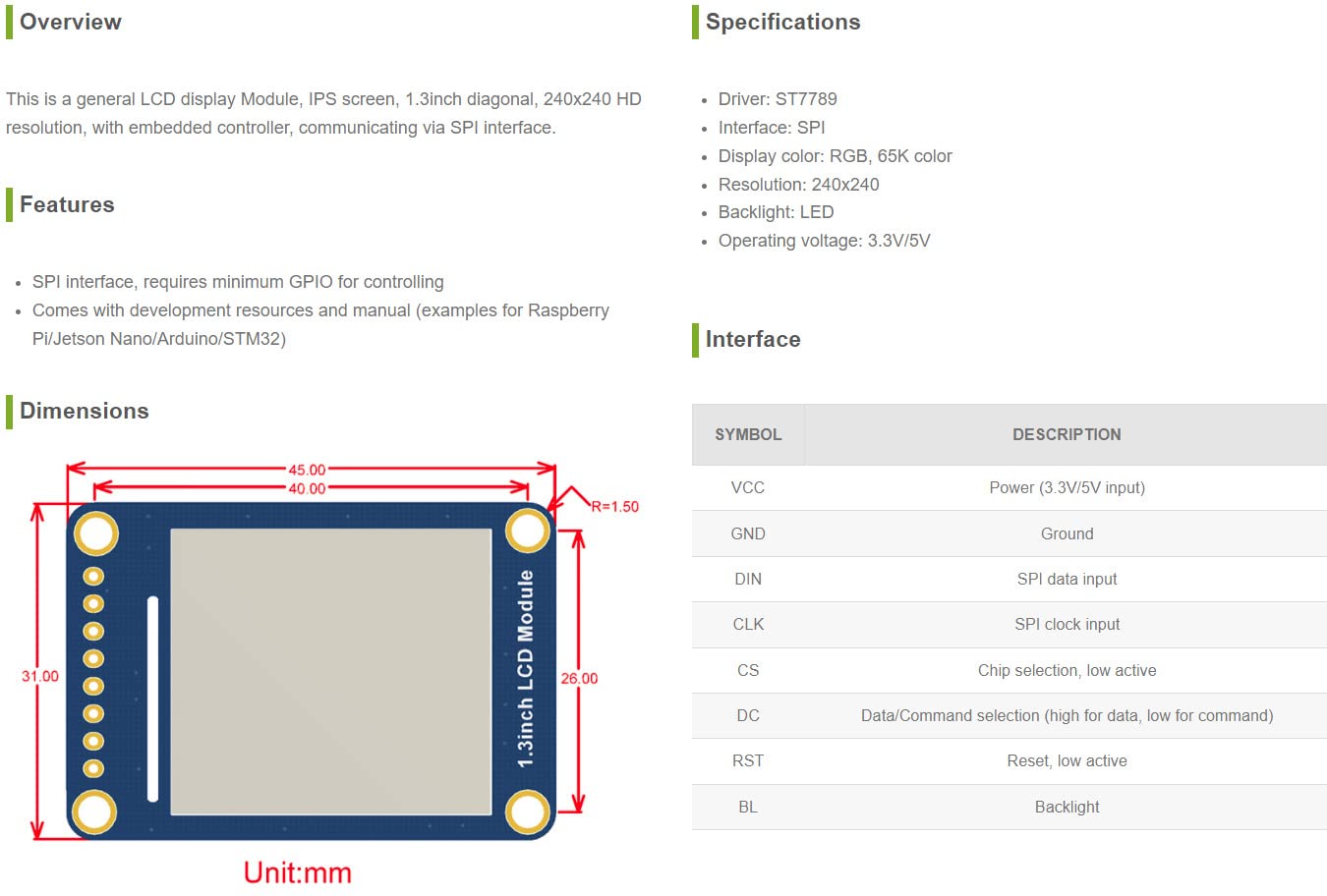

Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) Interface: SPI LCD type: IPS Controller: ST7789 Resolution: 240(H)RGB x 240(V) Display area: 23.4(H)x 23.4(V)mm Pixel size: 0.0975(H)x 0.0975(V)mm Dimension: 45 x 31(mm) Package Contents 1.3inch LCD Module x1 Cablex1 User Manual:waveshare.com/wiki/1.3inch_LCD_Module?amazon
Product details
