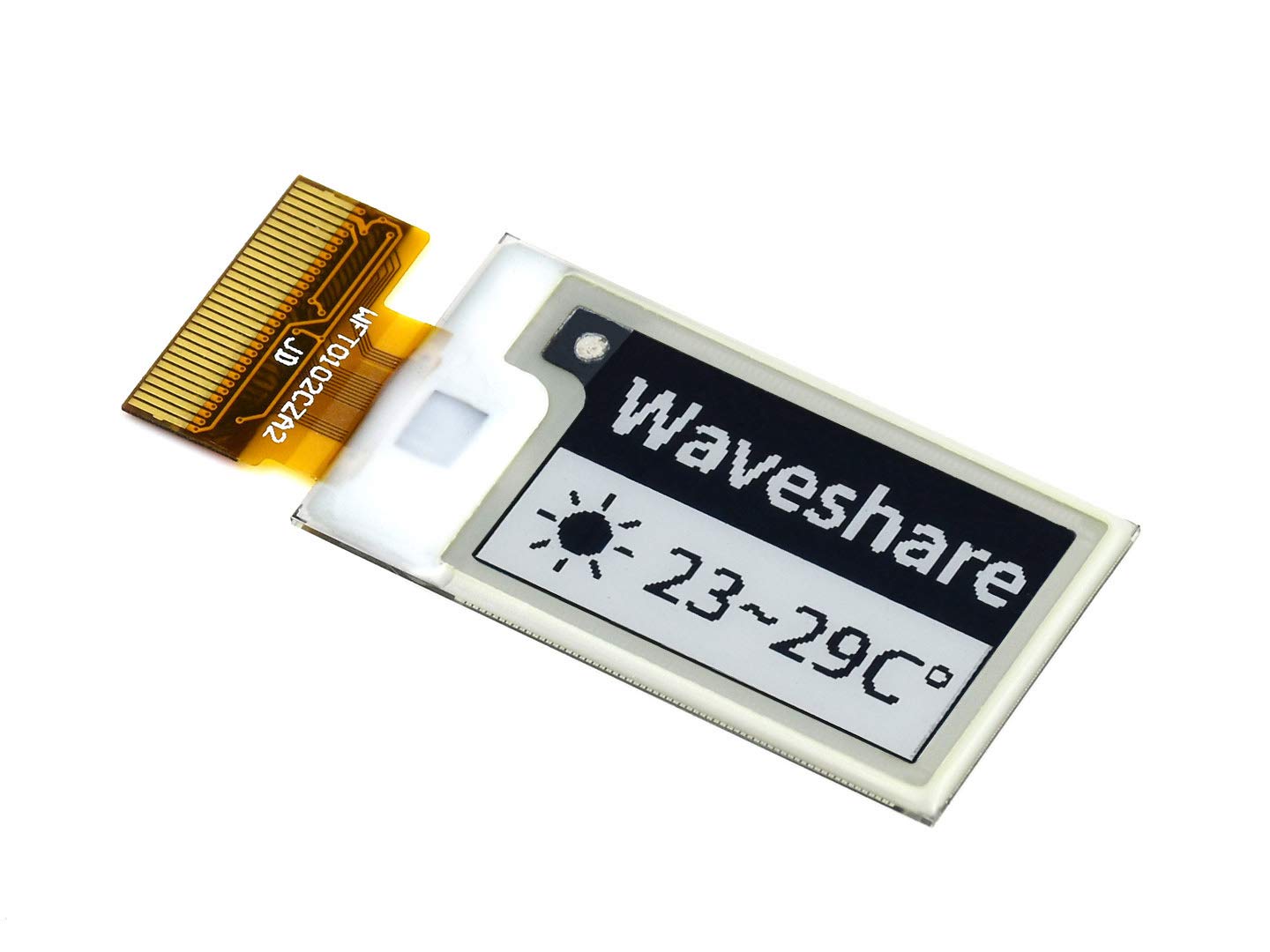

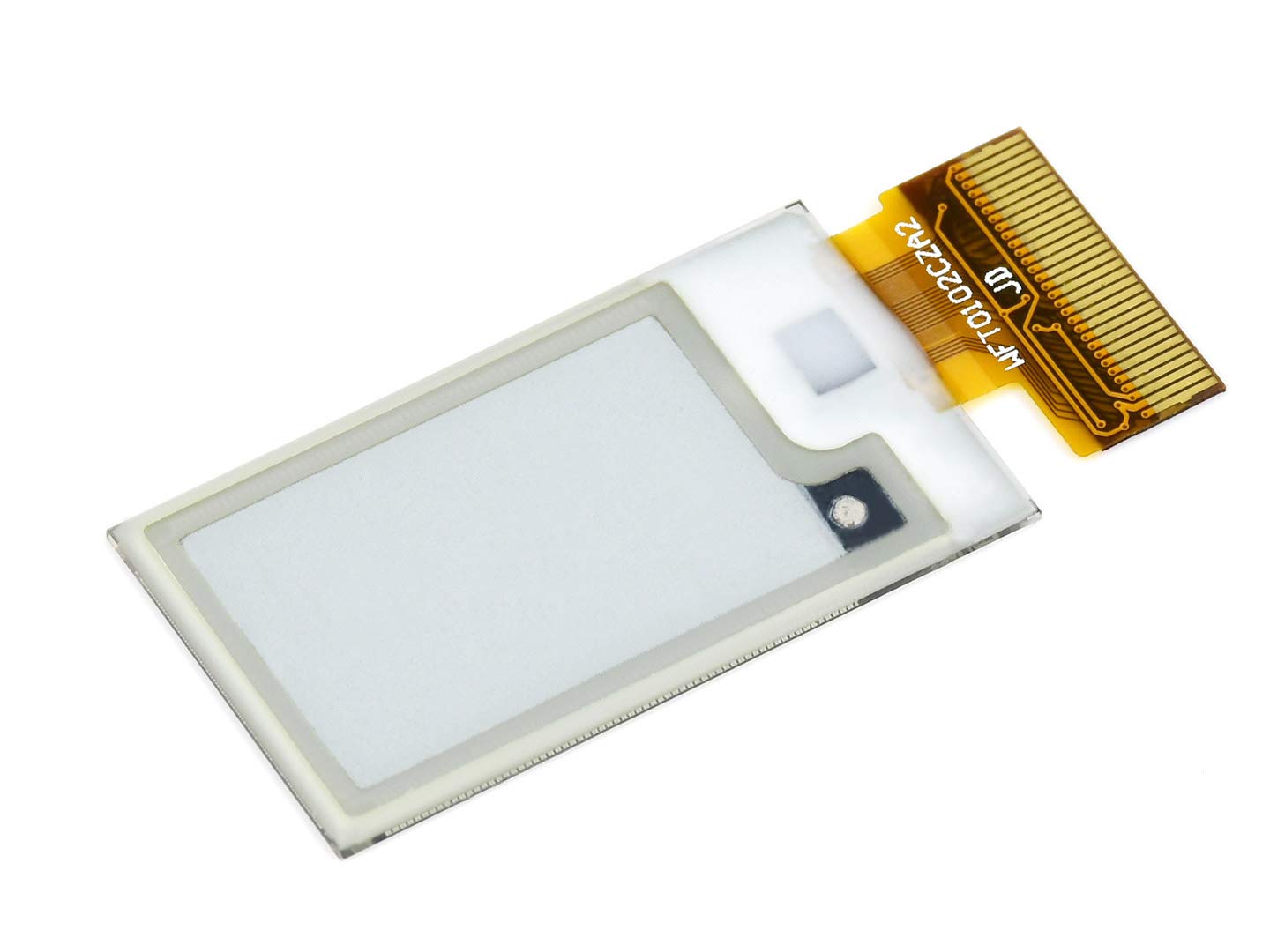

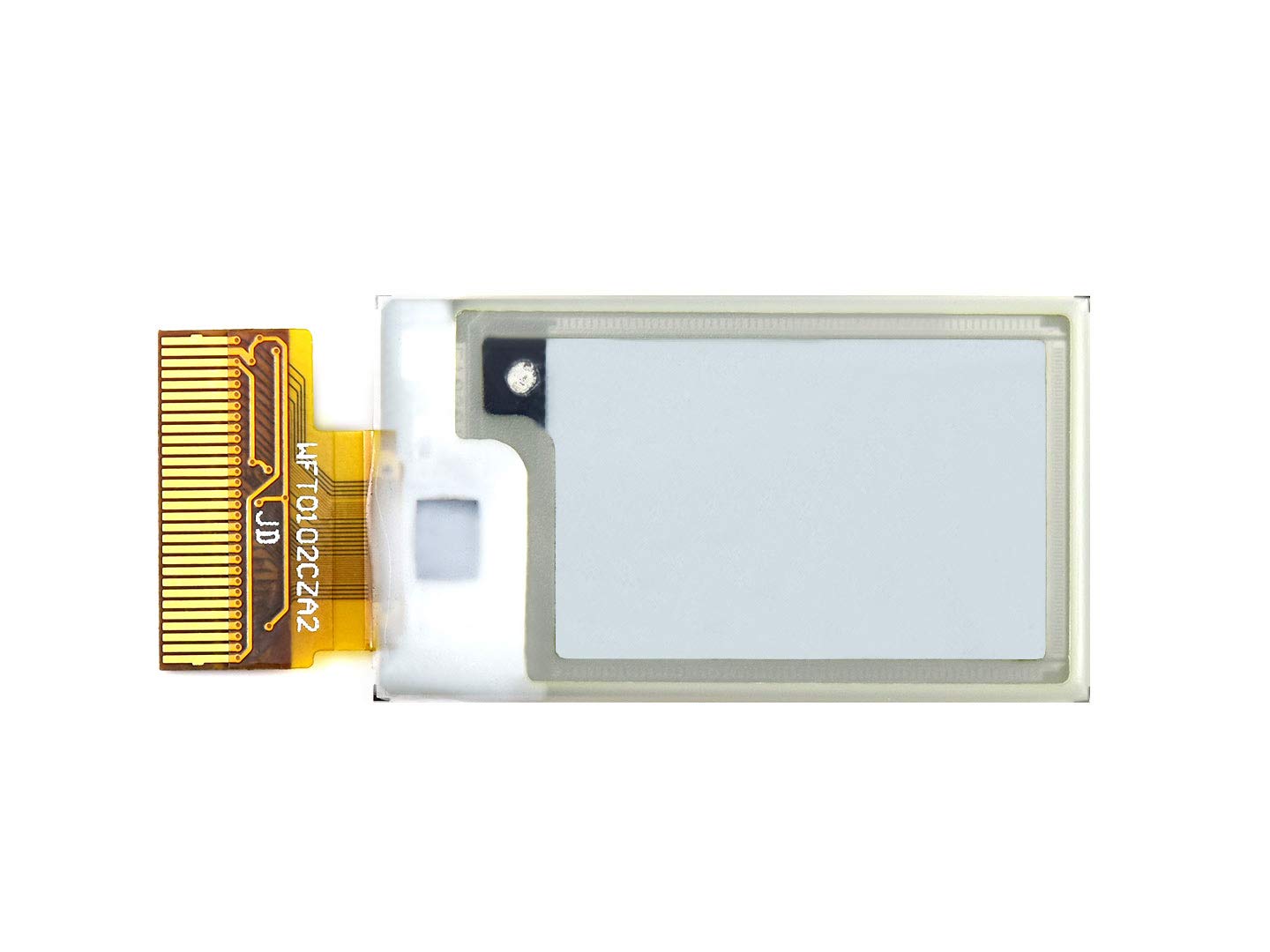

Waveshare 1.02inch E-Paper, 128×80 Resolution, Raw Display(Without PCB), Compatible with Jetson Nano/Raspberry Pi 4B/3B+/3A+/3B/2B/1B+/1A+/Zero 2 W/Zero W/Zero

• 128 X 80, 1.02inch E-Ink Raw Display, Supports Black/White 2-Color, SPI Interface, Without PCB
• This is an E-Ink raw display, 1.02inch, 128X80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

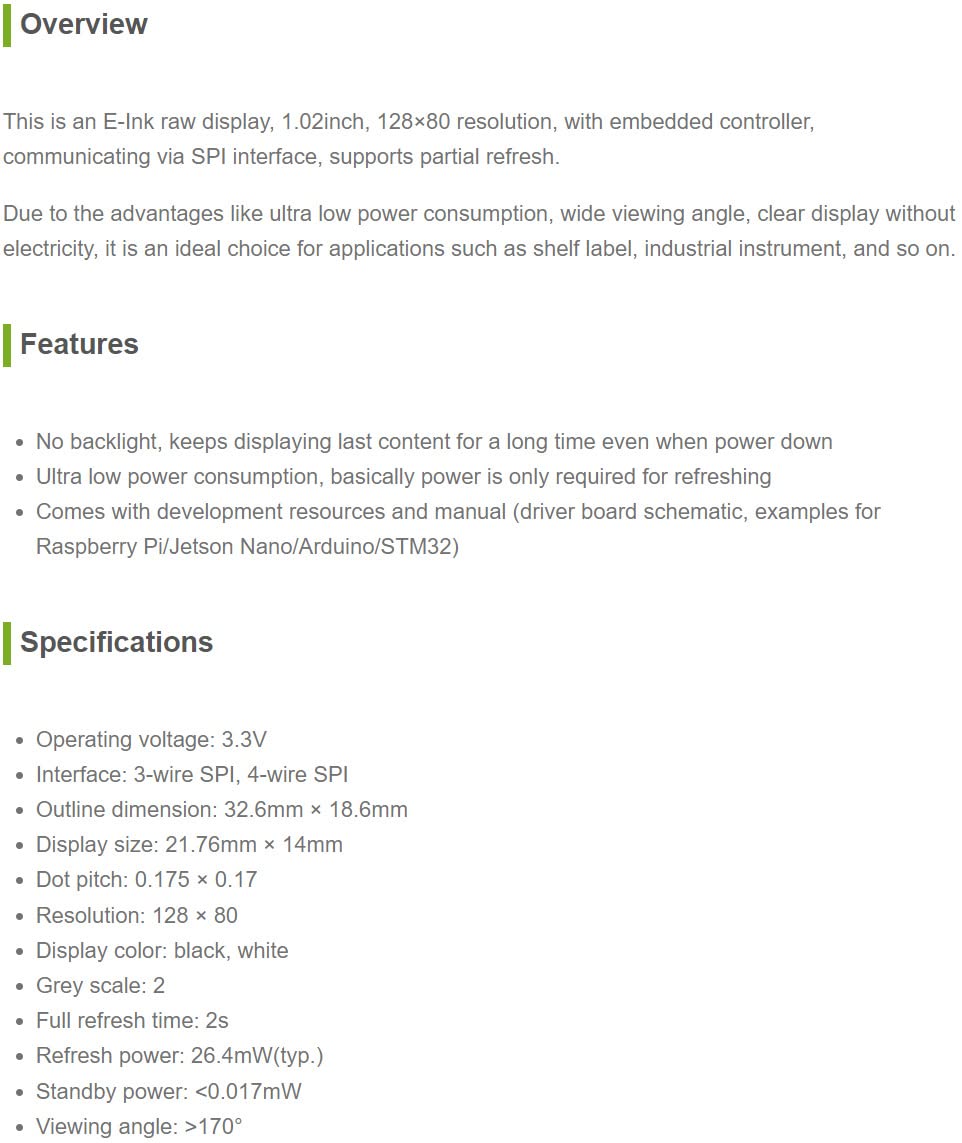

PACKAGE CONTENT 1. 1.02inch e-Paper x1 Overview This is an E-Ink raw display, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32) Specifications Operating voltage: 3.3V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 32.6mm × 18.6mm Display size: 21.76mm × 14mm Dot pitch: 0.175 × 0.17 Resolution: 128 × 80 Display color: black, white Grey scale: 2 Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170°
