Walfront 5PCS NE555 Pulse Duty Cycle Adjustable Module DC5-15V Squares Rectangular Wave Signal Generator Adjustable Output Wave Electronic Components

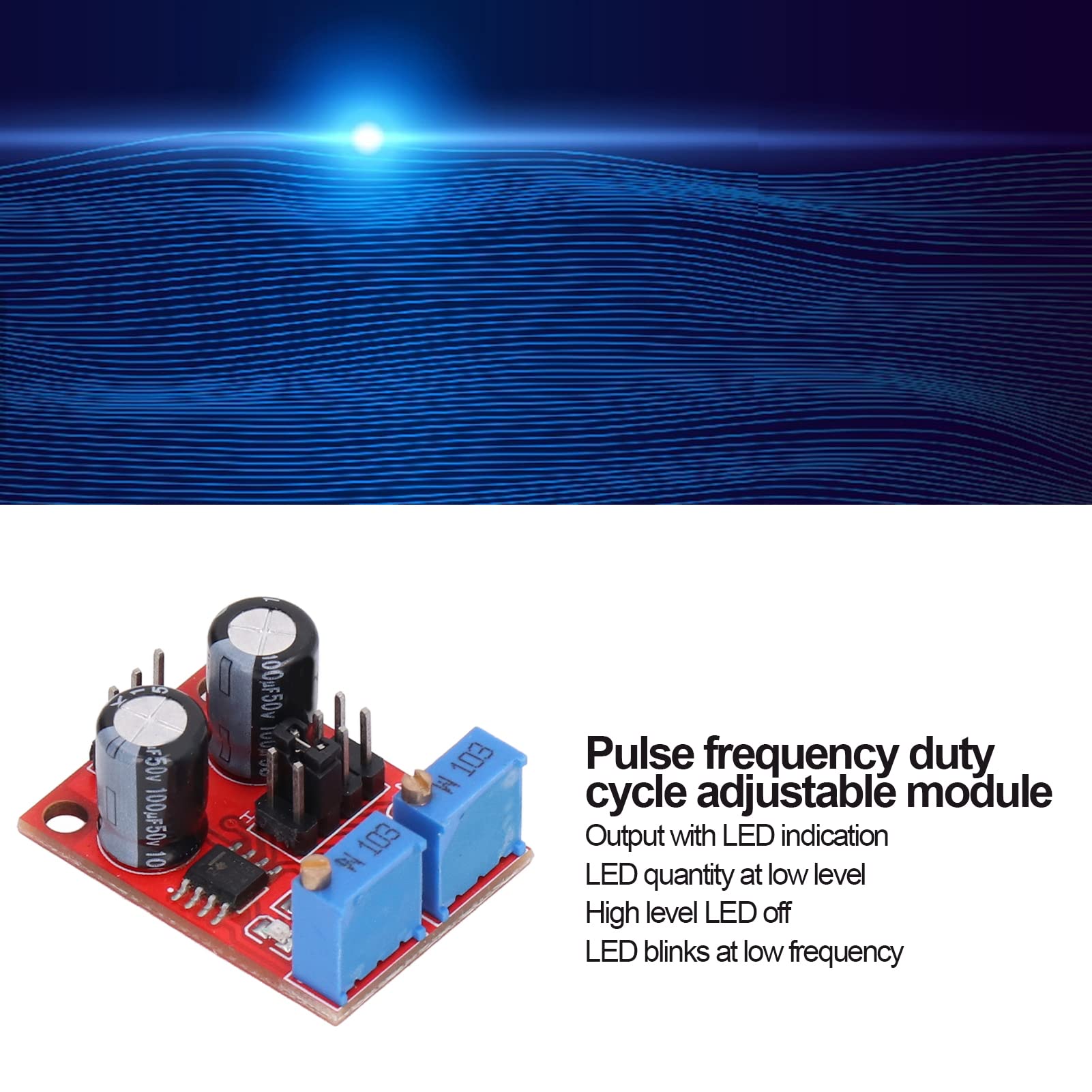

• LED Indicator Light -- The output has LED indication, and clear whether there is output (the amount of LED when the level is low, the LED is off when the level is high, and the LED flashes when the frequency is relatively low)

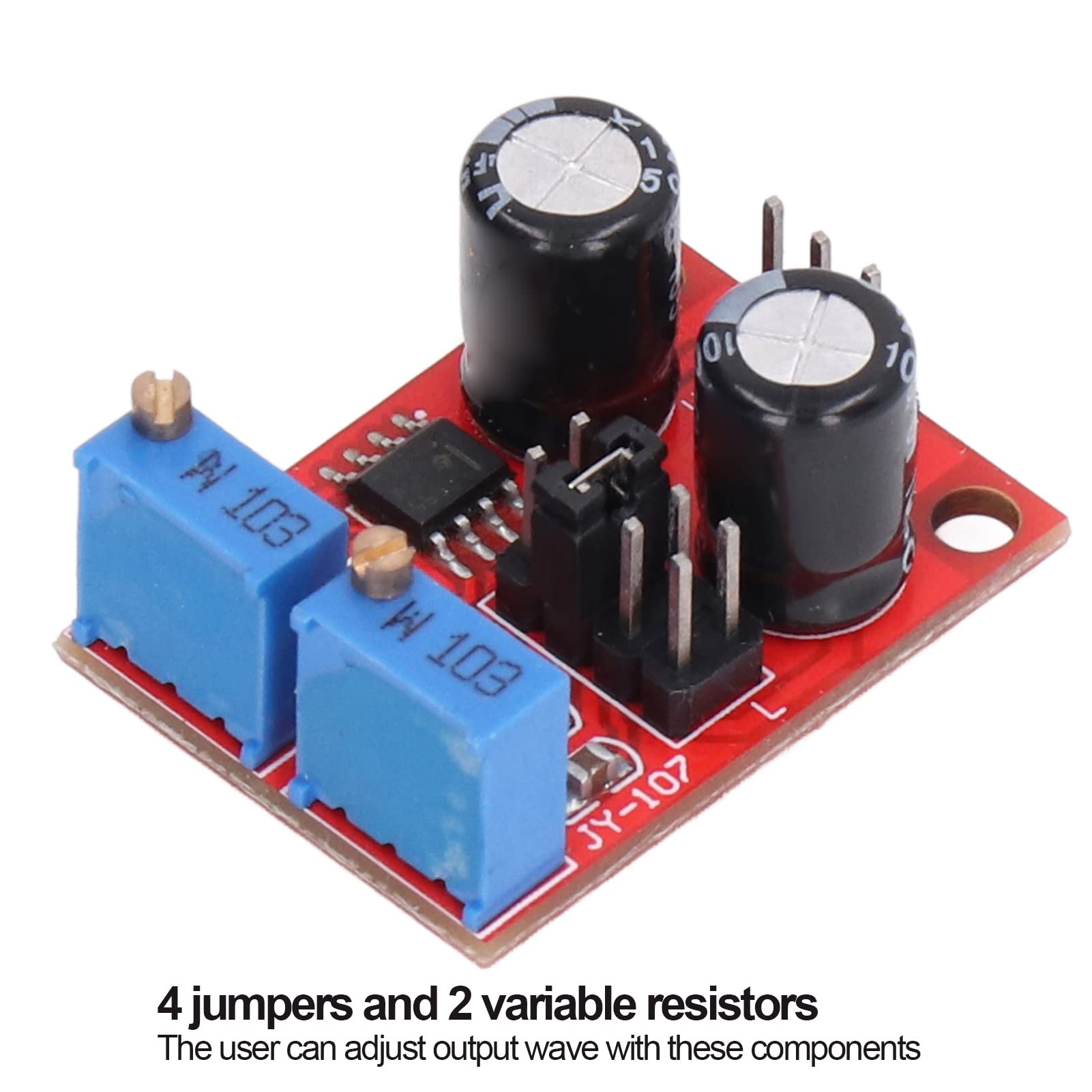

• Adjust Output Wave -- There are 4 jumpers and 2 variable resistors on the module, users can adjust the output wave with these components to easily achieve the ideal wave

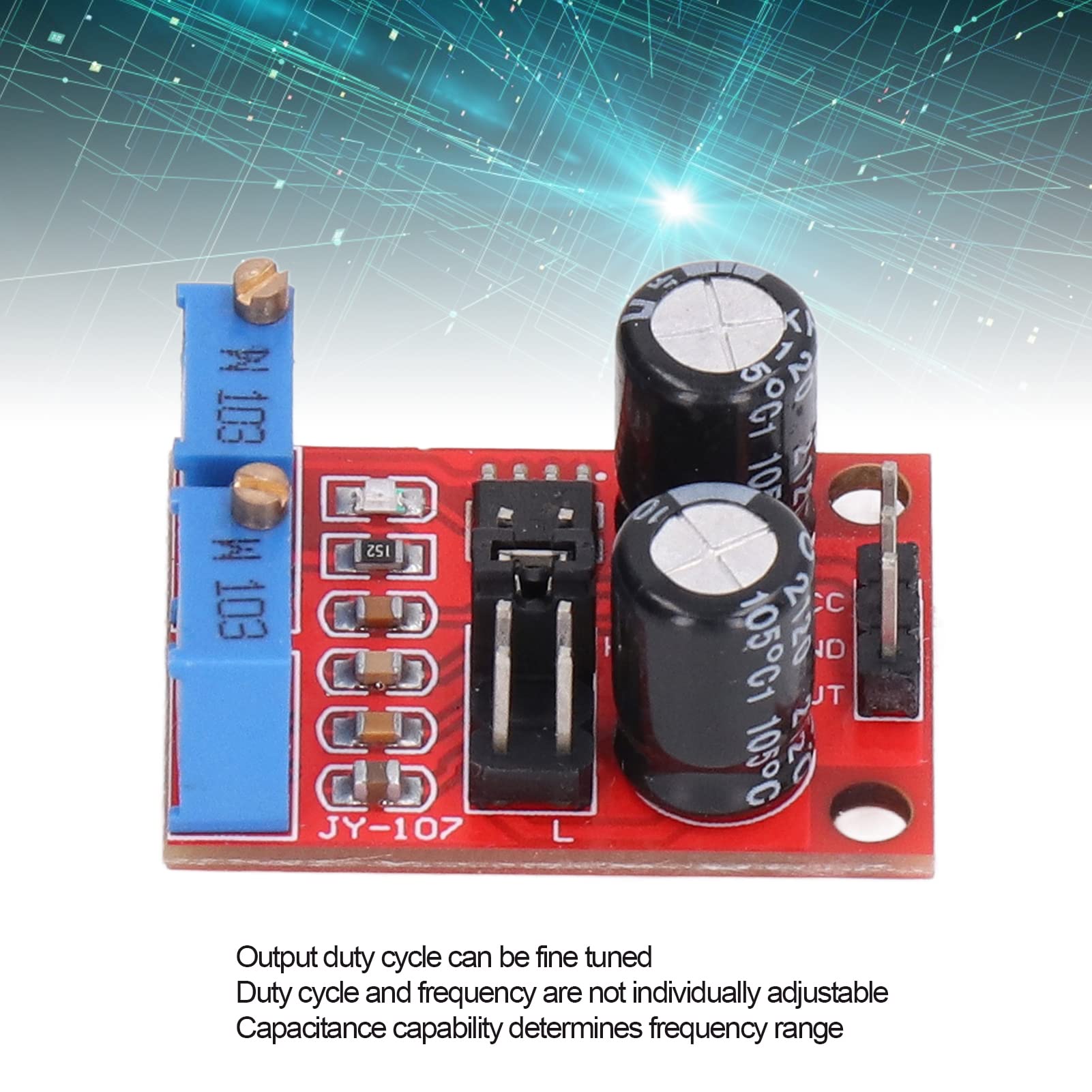

• Work Cycle Adjusted -- The output working cycle can be fine tuned, and the working cycle and frequency cannot be adjusted separately. Adjusting the working cycle will change the frequency
• Frequency Range -- The capacitance capacity of this pulse frequency adjustment module determines the frequency range, and users can calculate and adjust according to their own needs
• Basic Specifications -- Input voltage is 5V-15VDC, when 5V power supply, the output current can be around 15MA, when 12V power supply, the output current can be around 35MA

Specification: Item Type: Pulse Duty Cycle Adjustable Module Main Chip: NE555 Input Voltage: 5V-15VDC (When powered by 5V, the output current can be around 15MA, when powered by 12V, the output current can be around 35MA) Input Current: ≥100MA Output Amplitude: 4.2V V PP to 11.4V V PP (Depending on the input voltage, the output amplitude will be different) Maximum Output Current: ≥15MA (5V power supply, when V-PP is greater than 50%), ≥35MA (12V power supply, when V-PP is greater than 50%) Output with LED indicator Output Frequency Adjustable: T=0.7(RA+2RB) x C, RA and RB can be adjusted (0-10k) Low Frequency: C=0.001UF Intermediate Frequency: C=0.01UF High Frequency: C=1UF Higher Frequency: C=100UF The output frequency range is optional, making the output frequency more continuously adjustable Low Frequency File: 1Hz~50Hz Medium Frequency File: 50Hz~1kHz Medium And High Frequency File: 1KHz~10kHz High Frequency File: 10kHz~200kHz Material: Electronic Components Package List: 5 x Pulse Duty Cycle Adjustable Module
