VSDISPLAY VGA DVI LCD Controller Board for 10.3" 1920x720 HSD103KPW2-A10 JJ103IA-03E JJ103IA-03G LCD Screen

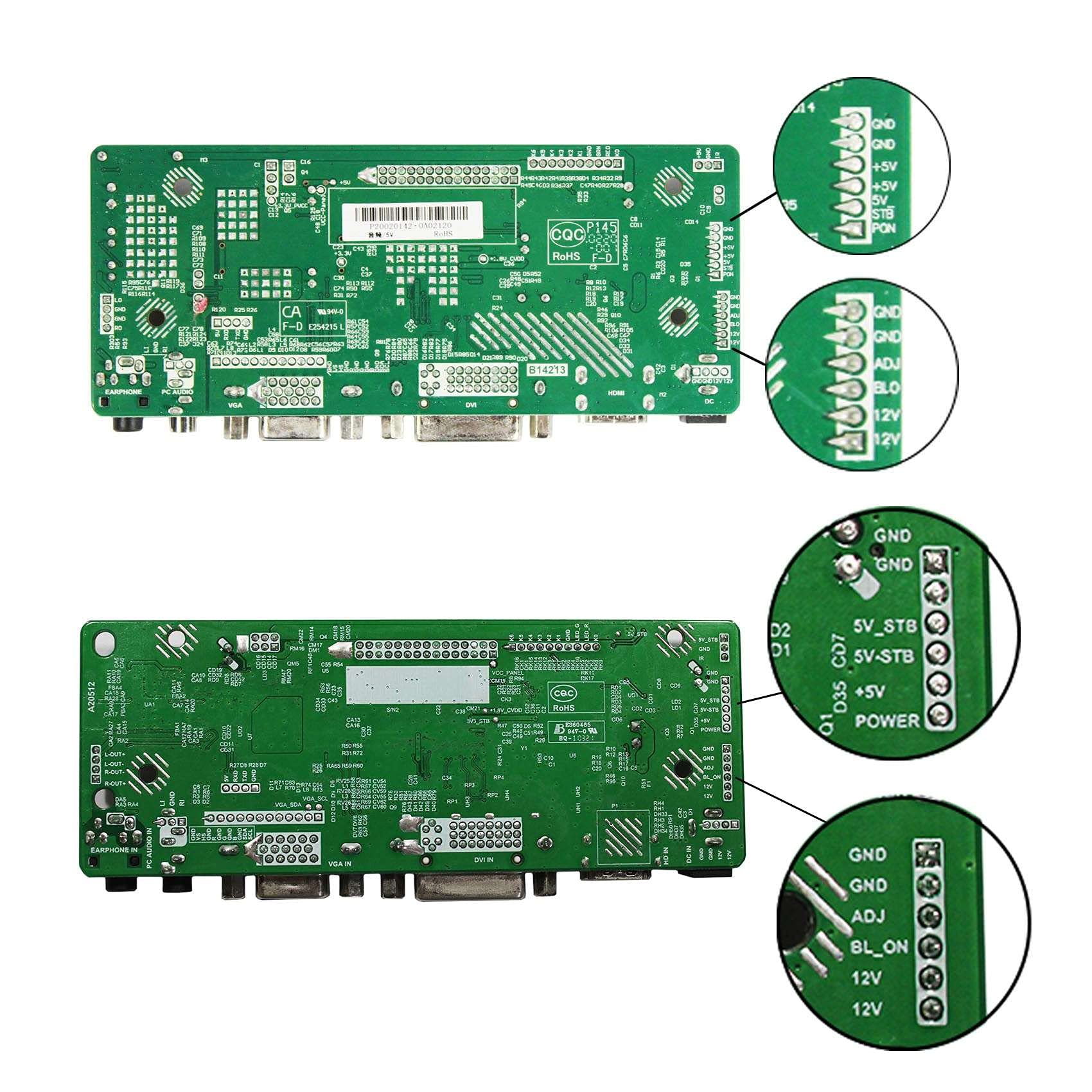

• 【LCD Controller Board】 Work for 10.3" 1920x720 50pin LVDs LED LCD Screen ,Video Input: HDMI VGA DVI,Audio Input: HD-MI,Audio Output: Speaker Connector(Speaker 8ohm 2W 4Pin PH2.0 connection).Input Power Adapter: 12Vdc more than 2A.Port size :5.5x2.1mm. (power adapter not included in package ,should be prepared by yourself) .
• 【Compatible screen】10.3inch 1920x720 850 cd/m² brightness HSD103KPW2-A10 ,LVDS (2 ch, 8-bit) , 50 pins IPS LCD wide strip Screen.
• 【Plug and play】No need driver installed ,directly connecting the cables and ports according to link picture details ,Power on ,keyboard LED light will become green .Then enter into signal ,with correct resolution :1920x720,the screen can work well .If there is any problem,Pls provide some connecting pictures,we will solve in 12 hours.
• 【Important】 The function for this board is to light up the screen. Please use in insulated environment. This board is used to work with screen on DIY Monitor displaying,Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

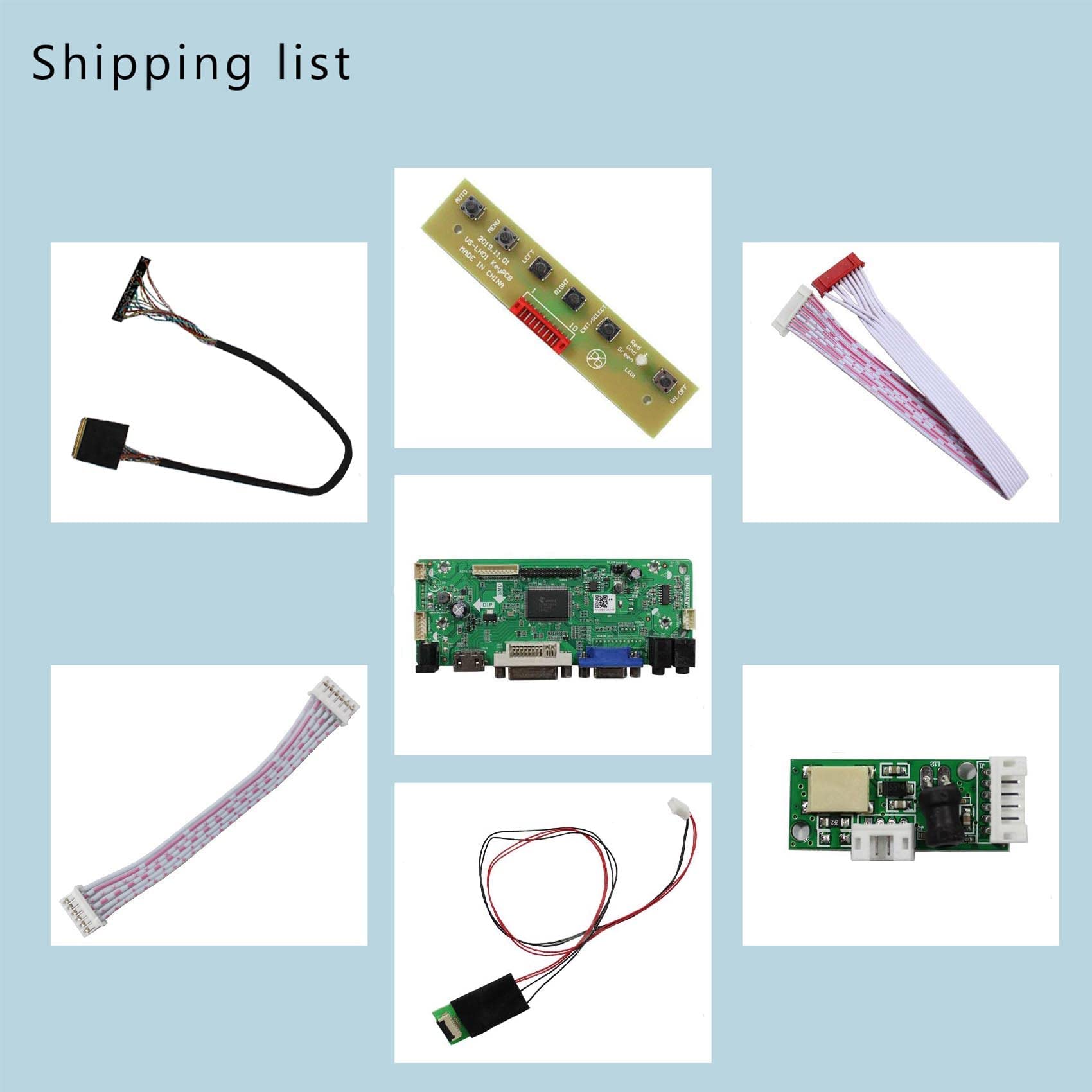

• 【Packing lists】1× HD-MI VGA DVI LCD Controller Board M.NT68676,1× LVDS Cable ,1× Inverter Board,1× Keyboard With Cable

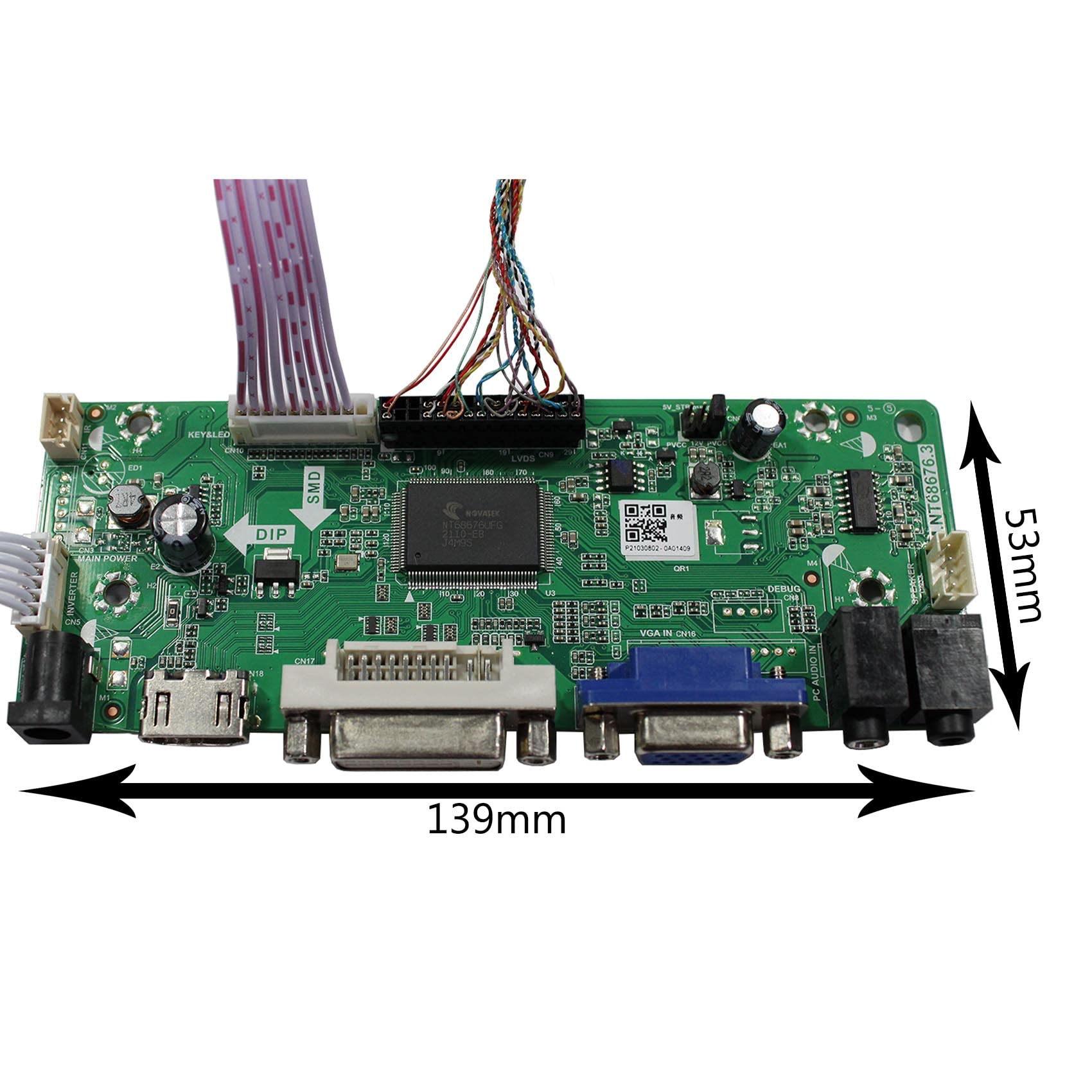

LCD Controller Board: HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HD-MI DVI VGA Audio Input: HD-MI Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 125mm x 58mm x 17mm Compatible Work With: 10.3inch 1920x720 HSD103KPW2-A10 Packing list: 1× HD-MI VGA DVI LCD Controller Board M.NT68676 1× LVDS Cable 1× Inverter Board 1× Keyboard With Cable
