VSDISPLAY 4.3 inch VS043T-006A 800x480 1000nit IPS LCD Screen and mini Controller Board TTL 40 pin

• 【1000nit high brightness Screen】Small 4.3 inch 800x480 IPS LCD display ,transmissive ,display area :95.04 × 53.86(H×V) mm, with wled backlight ,interface parallel RGB (1 ch, 8-bit) 40 pins FPC.
• 【LCD Controller Board 】 Video input:,Please use in insulated environment.
• 【Input Power Supply】DP 5V-9V dc More than 20W,Pls prepare power adapter by yourself.also,if the power is not enough,the brihtness can't be reached to 1000nit .

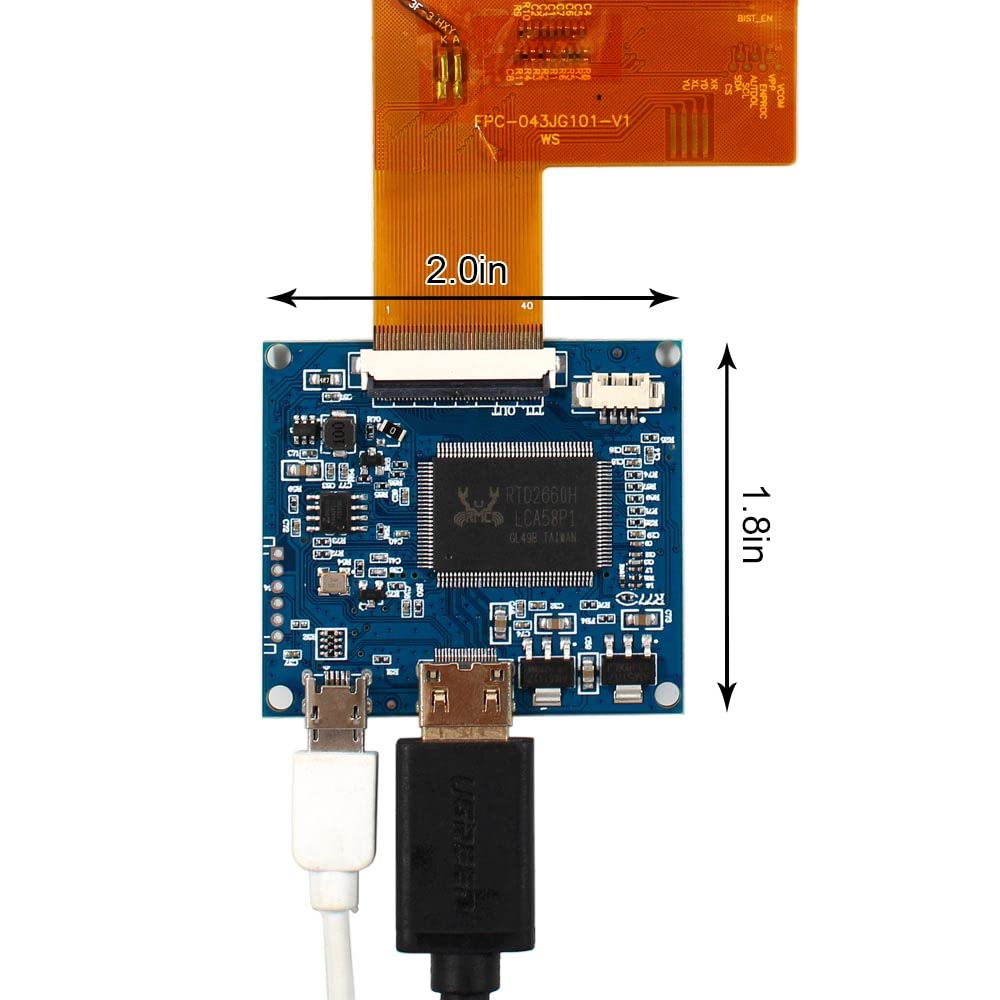

• 【Plug and play】Connecting the cables and port as link picture details ,power on ,enter into ,the screen can work well,for DIY monitor using.

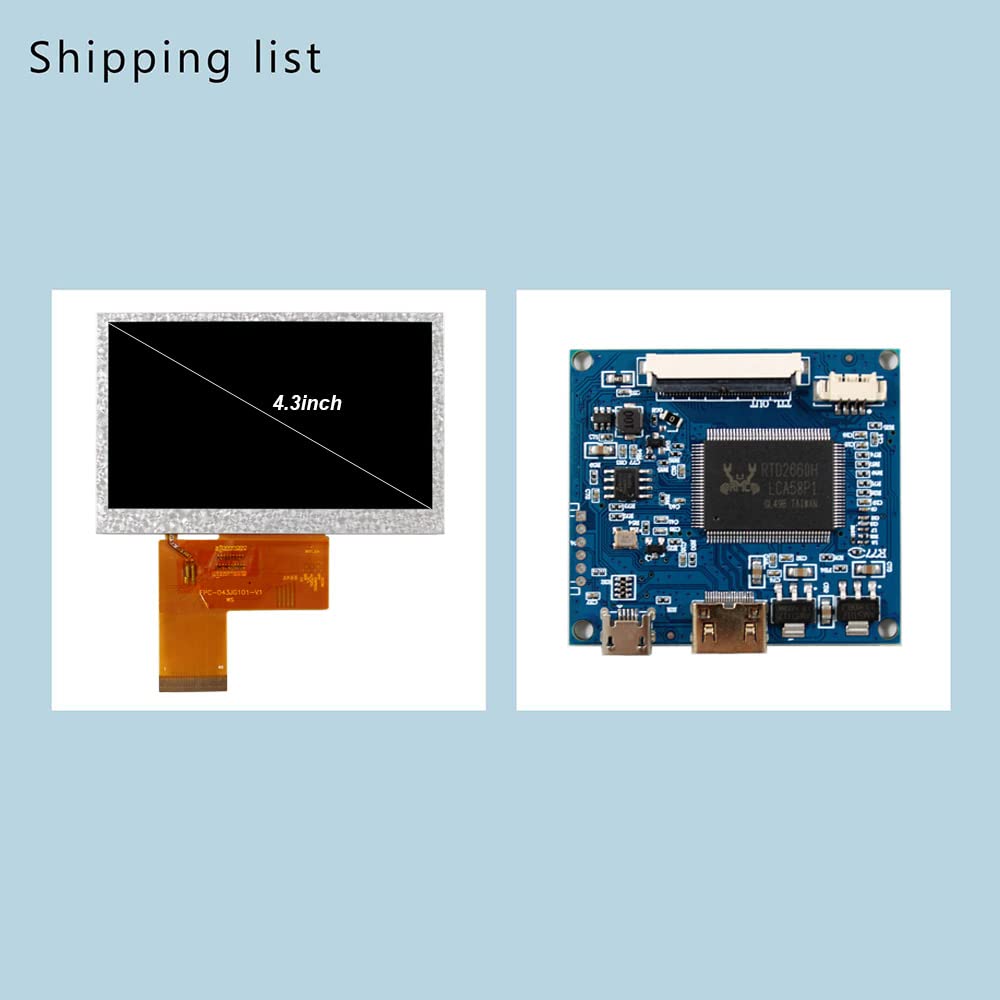

• 【Packing lists】1×LCD Controller Board ,1× 4.3 inch VS043T-006A 800X480 1000nit IPS LCD Screen

LCD Controller Board: LCD Board Work for 40Pin TTL LCD Screen Input Power Adapter: DP 5V-9V dc More than20W. Come In Standby Model When Not Input Signal Video Input:ni OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:52mm x 46mm x 6mm 4.3" VS043T-006A 800X480 IPS LCD Screen: Display Mode IPS, Normally White, Transmissive Resolution 800RGB)×480 Outline Size 105.5 × 67.2×3.1 (H×V×D) Display Area 95.04 × 53.86 (H×V) Brightness 800 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1×LCD Controller Board 1× 4.3inch VS043T-006A 800X480 LCD Screen
