VSDISPLAY 12.3inch 1920x720 HSD123KPW2-D10 IPS LCD Screen and VGA AV LCD Controller Board KYV-N5 V3

• 12.3" long strip wide screen,Transmissive, full view angle ,display area :292.032×109.512(H×V)mm,high brightness 850cd/m2,contrast ratio 1000:1,interface:LVDS (2 ch, 8-bit),50 pins,Backlight:WLED.
• LCD controller board video input: VGA AV, Pls use in insulated environment.
• Input power adapter: 12Vdc more than 2A, Port size : 5.5x2.1mm.( power adapter not included in package ,should be prepared by yourself) .
• Applications: This wide screen with board is widely used to work for DIY advertising monitor/gaming playing panel/car gauge cluster display,etc..

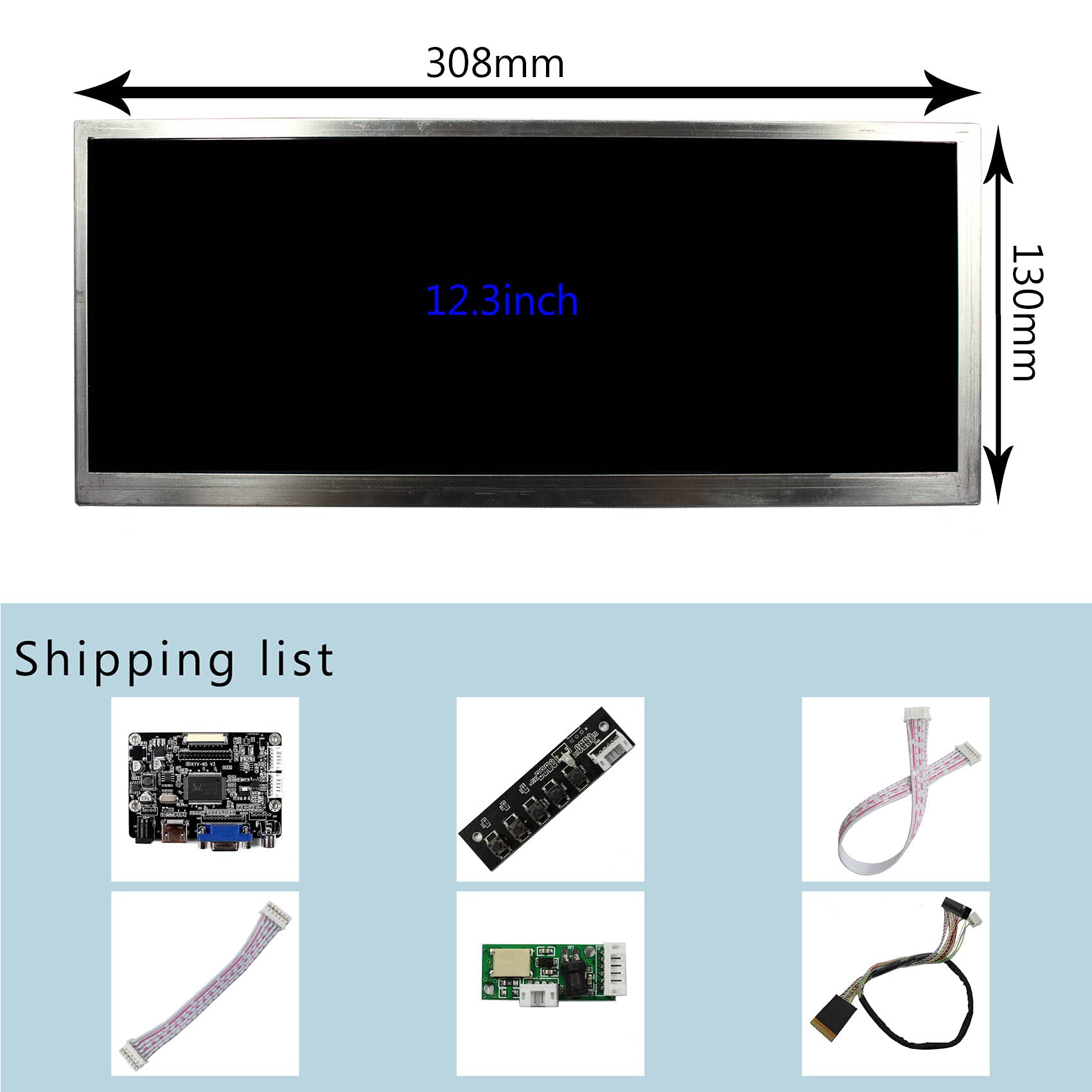

• Packing lists: 1x VGA AV LCD Controller Board KYV-N5 V3,1×12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 LCD Screen,1× Converter Board,1× Cable,1× Keyboard With Cable

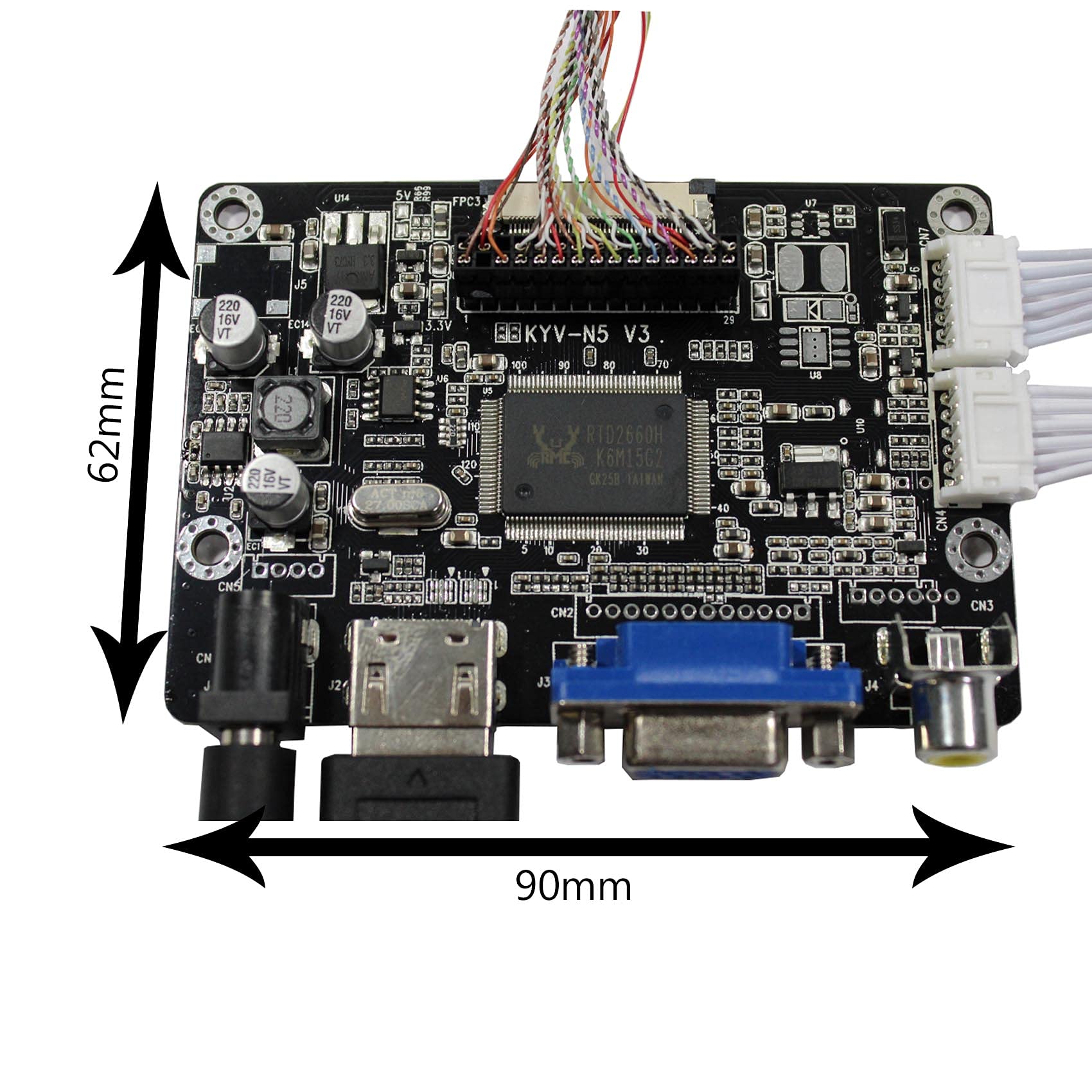

LCD Controller Board: VGA AV LCD Board Work for LVDS Interface LCD Screen 40Pin TTL Connector for 7inch~10.1inch LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA AV OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 90mm x 62mm x 15mm 12.3" HSD123KPW1-A30 1920X720 LCD Screen: Display Mode IPS Pro, Normally Black, Transmissive Resolution 1920RGB)×720 Outline Size 308.1 × 130×15.6 (H×V×D) Display Area 292.032 × 109.512 (H×V) Brightness 850 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (2 ch, 8-bit) , Connector , 50 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× VGA AV LCD Controller Board KYV-N5 V3 1×12.3inch HSD123KPW1 1920X720 LCD Screen 1× Inverter Board 1× LVDS Cable 1× Keyboard With Cable
