VSDISPLAY 12.3" HSD123KPW2-D10 1920X720 IPS DIY LCD Strip Bar Screen and VGA DVI LCD Controller Board NT68676

• 12.3" IPS wide screen with tempered protective glass,Transmissive, full view angle with good color showing effect,Display Area :292.032×109.512(H×V)mm,High Brightness 850cd/m2,ContrastRatio 1000:1,interface:LVDS (2 ch, 8-bit),50 pins,Backlight:WLED.
• 68676 control board,video input: VGA DVI,Audio Output: Speaker Connector(Speaker 8ohm 2W 4Pin PH2.0 connection)
• Input Power Adapter: 12V dc more than 2A.Port size: 5.5x2.1mm. Pls use in insulated environment.

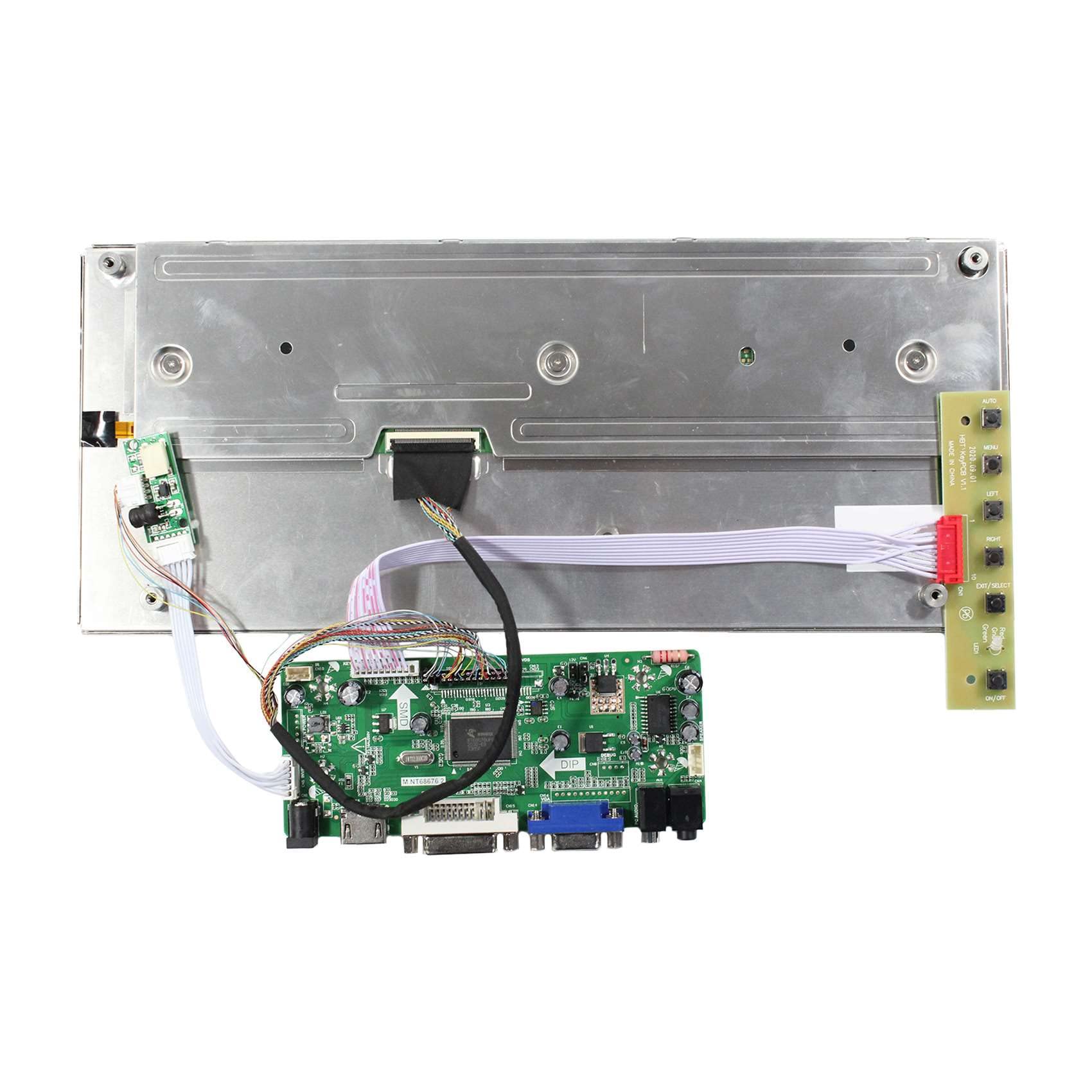

• No need driver installed ,directly connecting the cables and ports according to link picture details ,Power on ,keyboard LED light will become green .Then enter into ,with correct resolution :1920x720,the screen can work well 。
• If there is any problem,Pls provide some connecting pictures,we will solve in 12 hours.

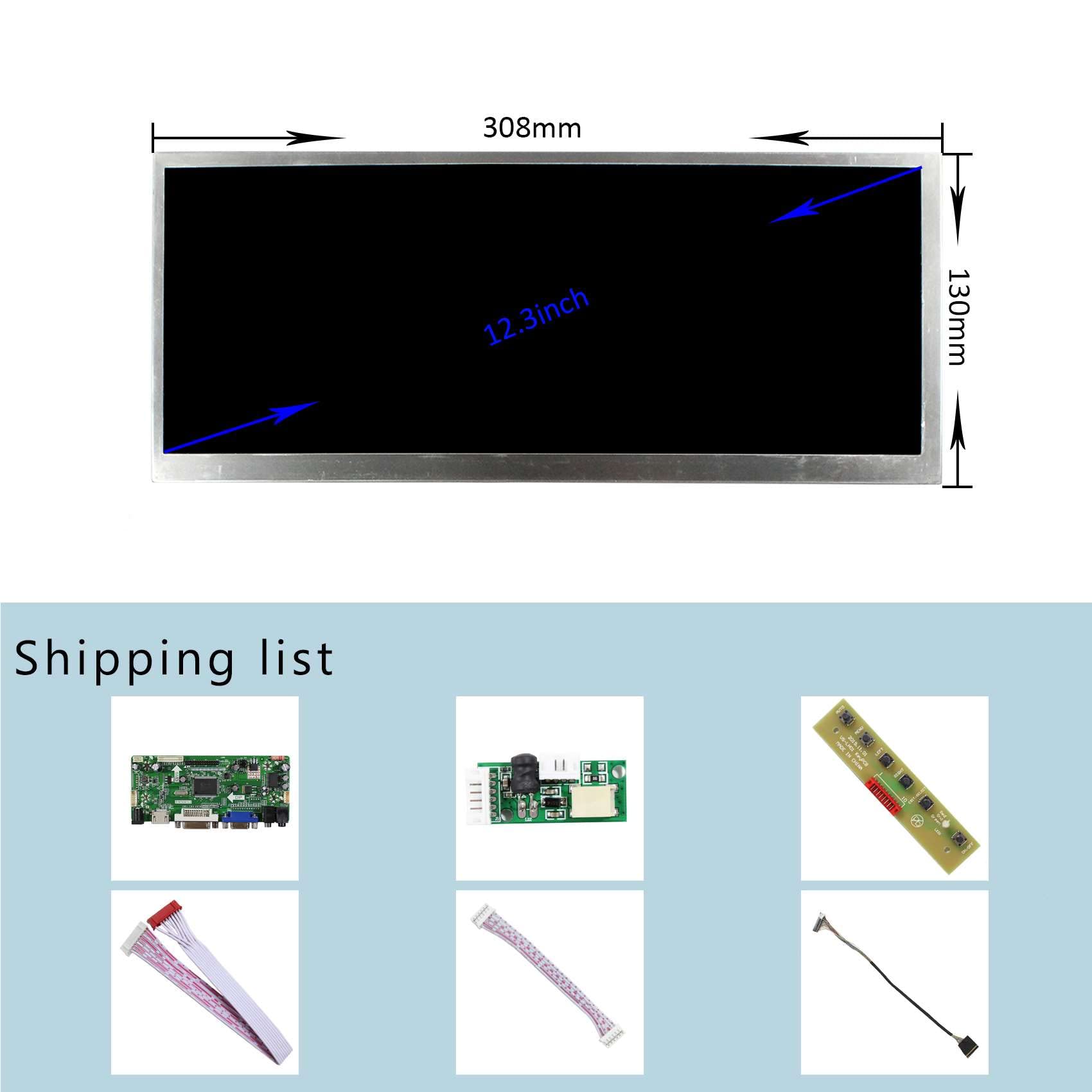

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 125mm x 58mm x 17mm 12.3" HSD123KPW2-D10 1920X720 LCD Screen: Display Mode IPS Pro, Normally Black, Transmissive Resolution 1920RGB)×720 Outline Size 308.1 × 130×15.6 (H×V×D) Display Area 292.032 × 109.512 (H×V) Brightness 850 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (2 ch, 8-bit) , Connector , 50 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× VGA DVI LCD Controller Board 68676 1×12.3inch HSD123KPW2-D10 1920X720 LCD Screen 1× Converter Board 1× Cable 1× Keyboard With Cable
