VSDISPLAY 10.4 inch 1024X768 4:3 600nit VS104T-004A IPS LCD Screen and USB Automatic Brightness Adjustment LCD Control Board,for DIY Monitor Display

• Display area 210.43 × 157.824 (H×V)mm,high brightness 600nit ,contrast ratio 1000:1,LVDs 30pin connector,WLED backlight ,With left and right location holes,you can located it according to your demands.Replacement for screenn monitor G104XVN01.0 G104X1-L03.
• Video input: USB ,Audio: Speaker Support 8ohm 2W/ 4ohm 2W, Please use in insulated environment.
• Photoresistors Input Support Automatic brightness adjustment,External human body induction template, automatic startup and shutdown of human body induction.
• Input power supply :12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

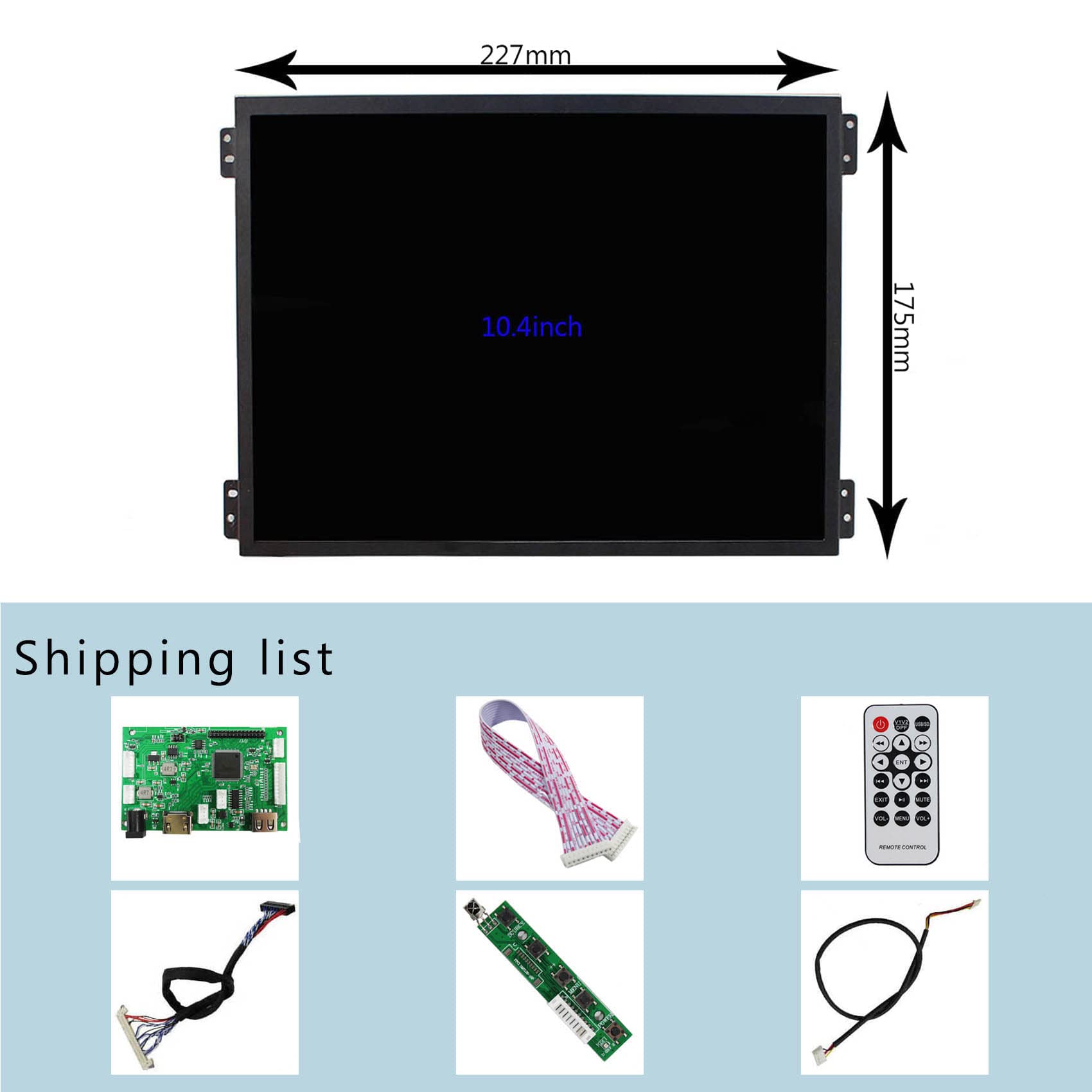

• Packing lists:1× USB LCD Board VS-TY2660HU-823 ,1×10.4inch VS104T-004A 1024X768 LCD Screen,1× 40Pin Cable,1× Keyboard With Cable

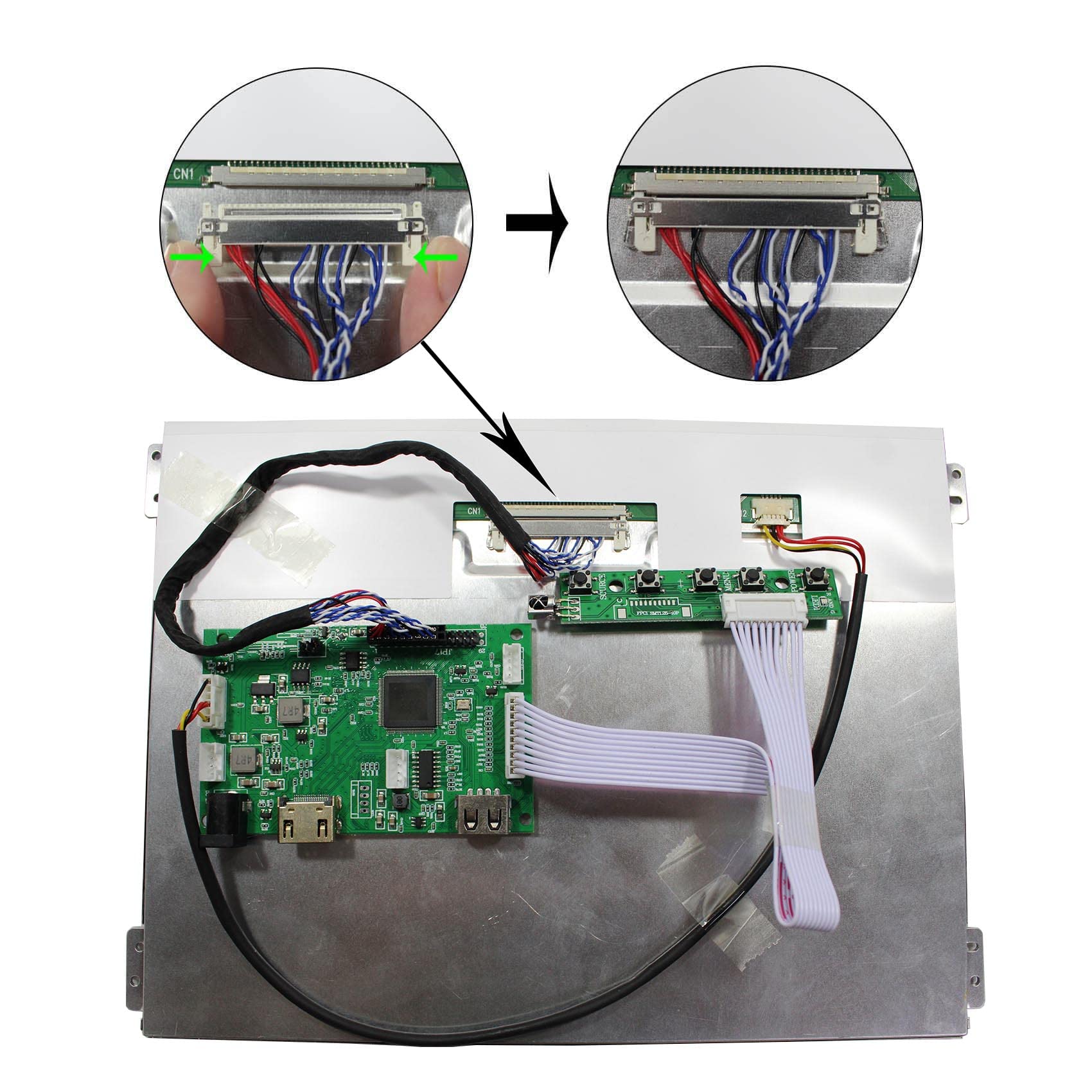

LCD Controller Board: USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional) Photoresistors Input Support Automatic brightness adjustment External human body induction template, automatic startup and shutdown of human body induction Video Input: USB USB: Support Video Playback, Picture Playback, Text Playback Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed) Audio: Speaker Support 8ohm 2W/ 4ohm 2W OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 90mm x 51mm x 14mm 10.4" VS104T-004A 1024X768 LCD Screen: Replacement screen for G104XVN01.0,G104X1-L03 Display Mode IPS Pro, Normally Black, Transmissive Resolution 1024×768 Outline Size 227.00×175.80×7 (H×V×D) Display Area 210.43 × 157.824 (H×V) Brightness 600 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (1 ch, 8-bit) , Connector , 30 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× LCD Board for 30Pin VS-TY2660HU-823 1×10.4inch VS104T-004 1024X768 LCD Screen 1× Converter Board 1× LVDS Cable 1× Keyboard With Cable
