VSDISPLAY 10.3“ HSD103KPW2-A10 1920x720 850nit IPS LCD Screen and USB SD Card AV Controller Board,Multimedia support MP4

• 【10.3" wide IPS LCD screen】Outline Size 259.8×112×15.7(H×V×D)mm, Display Area 243.6×91.4 (H×V),high brightness 850 cd/m² (Typ.) ,Contrast Ratio 1000:1 ,with full viewing angle .
• 【LCD Controller Board】 Video input :HD-MI USB SD card input ( AV default unavailable ) ,Multimedia supports MP4,OSD: Support Menu Contrast Brightness,Audio Output: Speaker Earphone.
• 【Plug and play】No need driver installed ,directly connecting the cables and ports as the picture ,power on ,then LED light will be green,then enter into signal ,Screen will show pictures normally .
• Input Power Supply： 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Packing list】 1× HD-MI USB SD LCD Controller Board Work for LVDS LCD Screen ( AV default unavailable ) 1×10.3" HSD103KPW2-A10 1920X720 LCD Screen ,1× Converter Board ,1× Signal Cable ,1× Keyboard With Cable

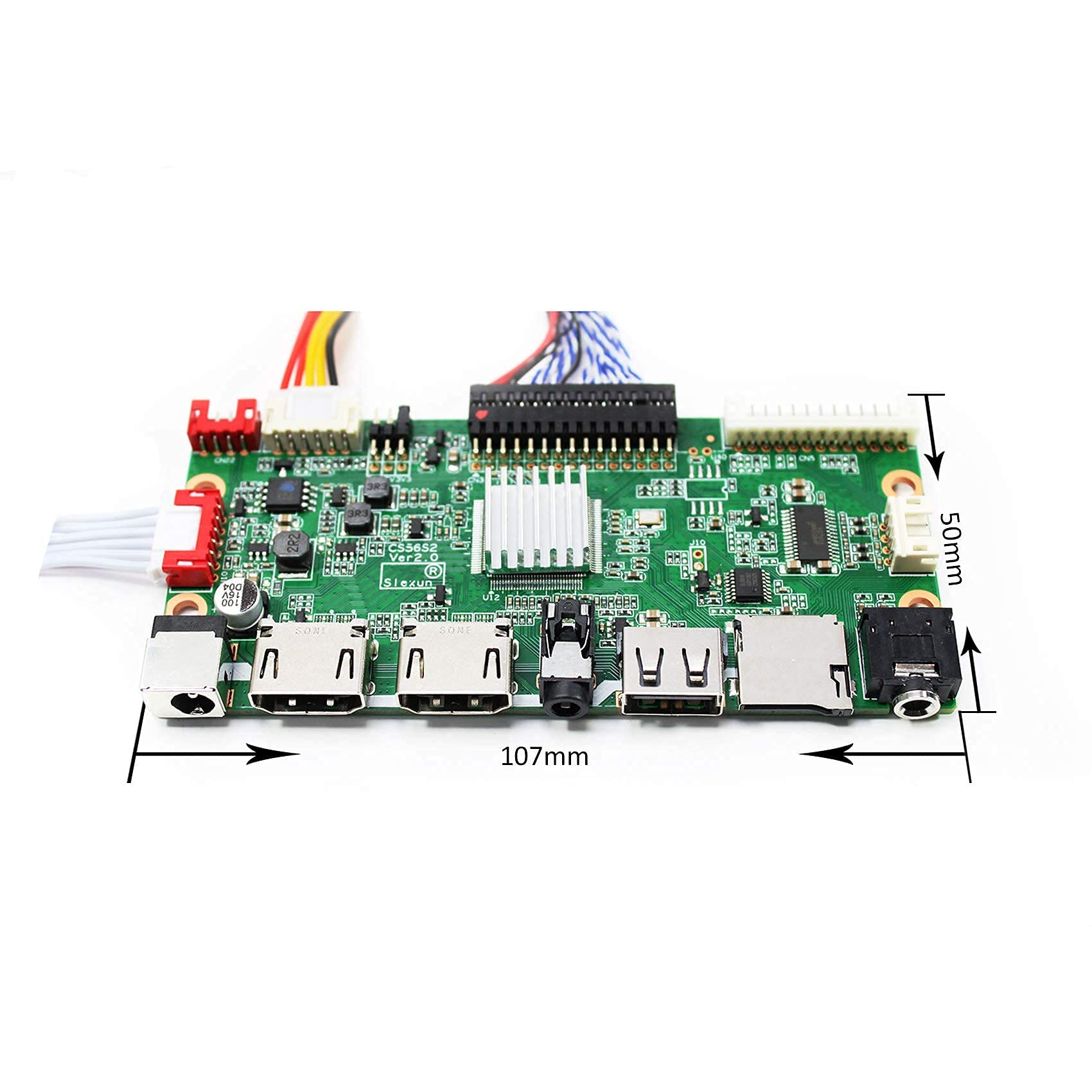

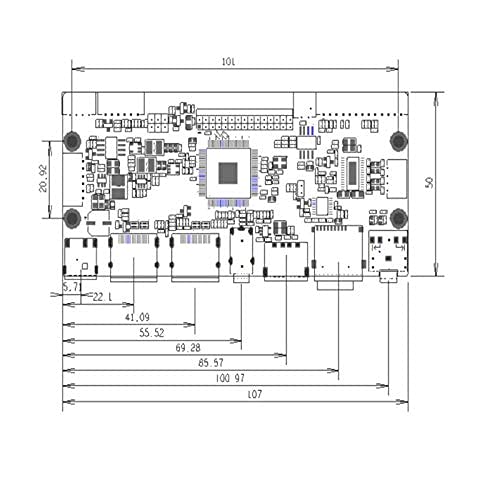

LCD Controller Board: HD-MI USB SD AV LCD Controller Board Work for LVDS LCD Screen Input Power Adapter: 12Vdc more than 2A Come In Standby Model When Not Input Signal Standby Model <0.3W Multimedia supports MP4 OSD: Support Menu Contrast Brightness Audio Input: HD-MI USB SD AV Audio Output: Speaker Earphone Key Board: Power Menu Up Down Exit Language: English Board Size: 107mm x 50mm x 15mm 10.3" 1920X720 LCD Screen: Display New Mode IPS Pro, Normally Black, Transmissive Resolution 1920(RGB)×720 Outline Size 259.8×112×15.7(H×V×D) Display Area 243.6×91.4 (H×V) Brightness 850 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins Backlight 9S4P WLED Input Voltage 3.3V (Typ.) Packing list: 1× HD-MI USB SD AV LCD Controller Board 1×10.3" HSD103KPW2 JJ103IA 1920X720 LCD Screen 1× Converter Board 1× Signal Cable 1× Keyboard With Cable 1× Remote Control (Battery Not included)
