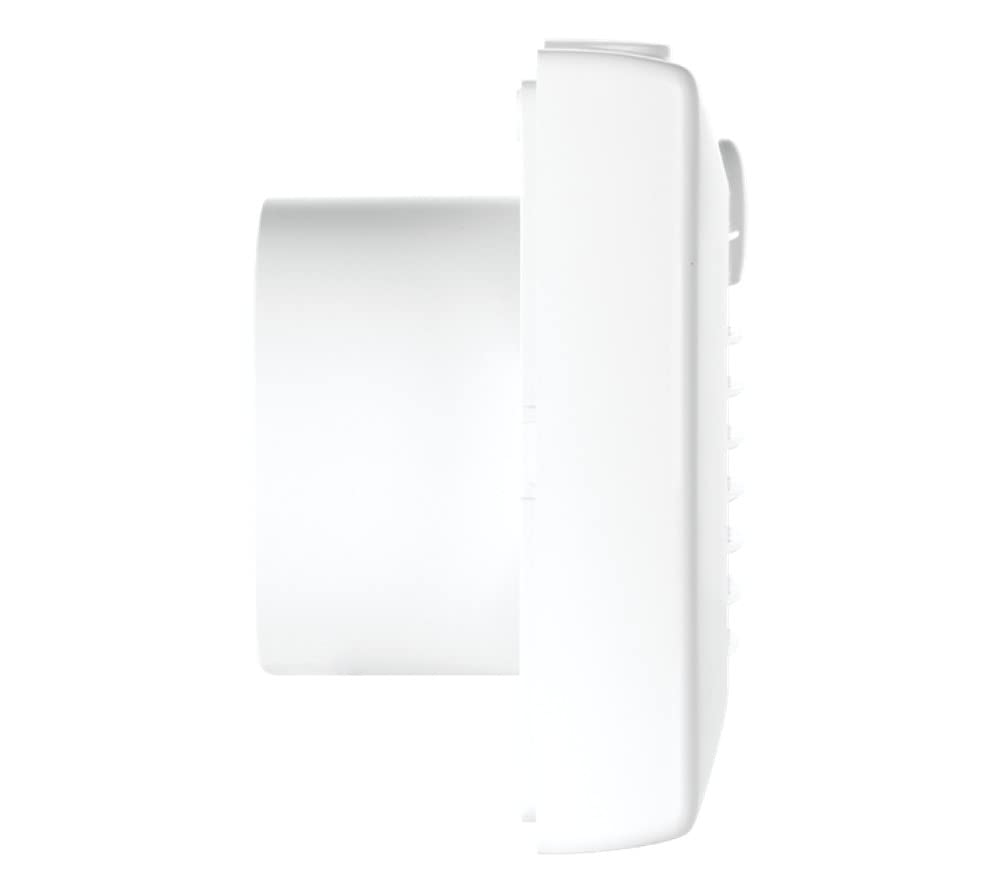

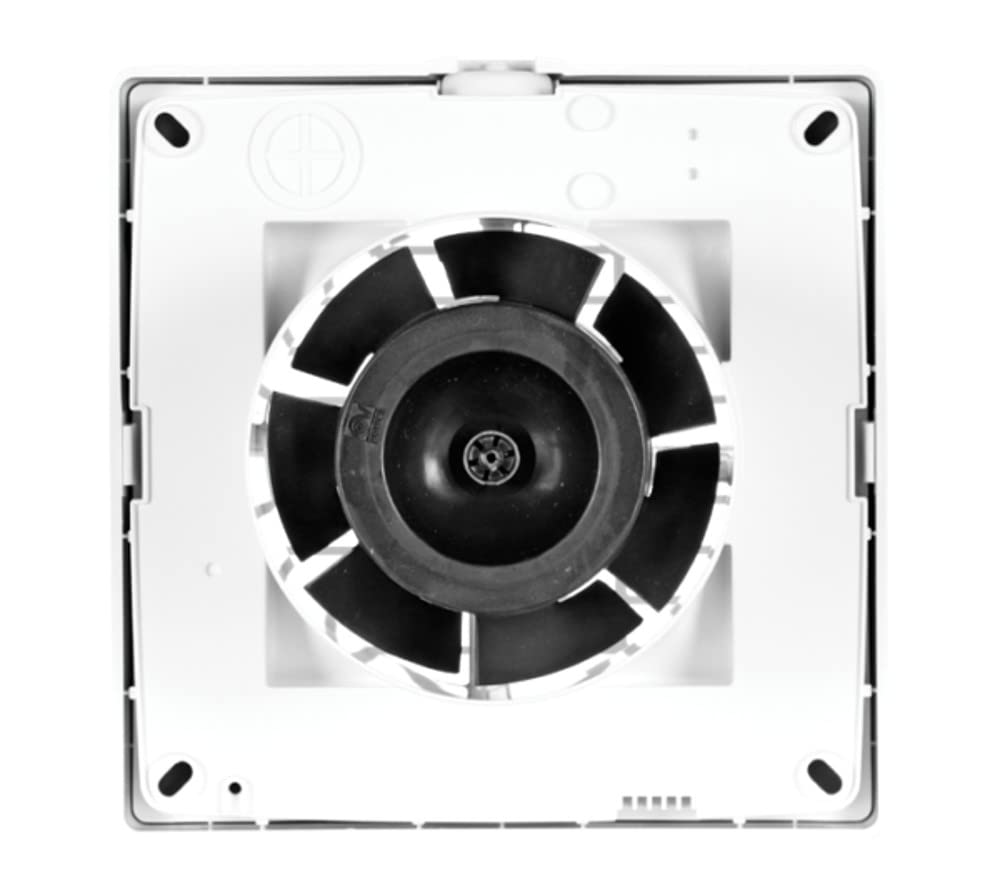

Vortice Punto 4" Axial Fan M100/4" T HCS Humidity & Timer

• Mains voltage 220 - 240V AC 50Hz. See product description for important information on electrical connection requirements
• 18 watts power consumption. Extraction rate 25 litres per second, 90 cubic metres per hour. Sound output 37.5 dB(A) @ 3m
• Humidistat has 4 pre-set thresholds: 60%, 70%, 80%, 90%, selectable during installation. Timer adjustable between 3 and approximately 20 minutes
• Class II - double insulated (no earth connection required). IPX4 rated
• Dimensions: 159mm wide x 160mm tall x 47mm deep (beyond installed surface). 99mm diameter spigot, extends for 56mm. For connection to 100mm diameter ducting
• Ducting, grilles and accessories sold separately. This listing is for the extractor fan as pictured

This model is normally used in bathroom locations. Built in humidity (condensation) sensor automatically switches fan on when condensation is detected, then off after a pre-set time. Additionally the fan can be connected to run in conjunction with the room light switch, so that when the room light is switched on the fan starts, then after a pre-set time the fan switches off. IMPORTANT INFORMATION ON ELECTRICAL CONNECTION REQUIREMENTS If using the timer option permanent live, switched live + neutral (3 cores, excluding earth) connections are required. If using only the humidistat function then the switched live connection can be omitted. This fan must be connected with a permanent supply to function correctly. Suitable for location in zones 2 and 3. If located in zone 2 the circuit must be protected by a RCD or RCBO type circuit breaker.
