VONETS Wifi Module 2.4G Wifi Bridge Wireless Repeater Mini Router Wifi Hotspot Adapter RJ45 Ethernet with Antenna for DIY Engineering Network Device VM300-H

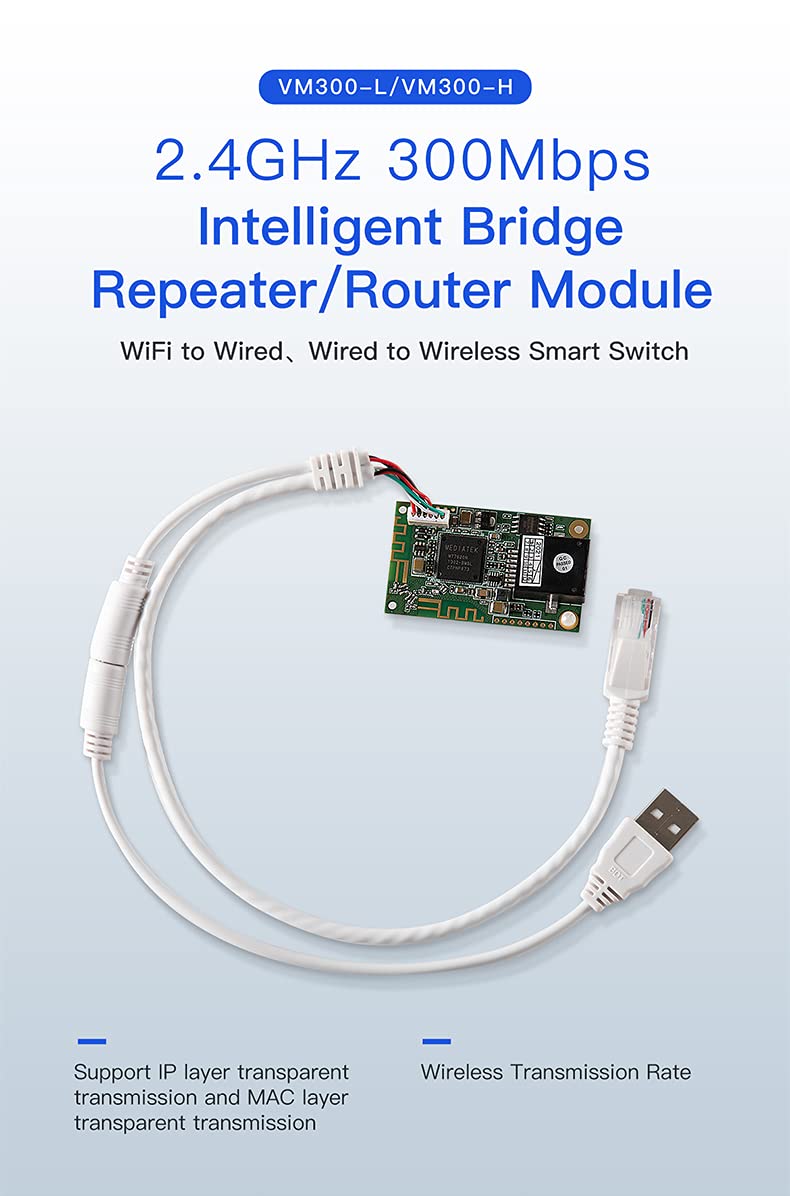

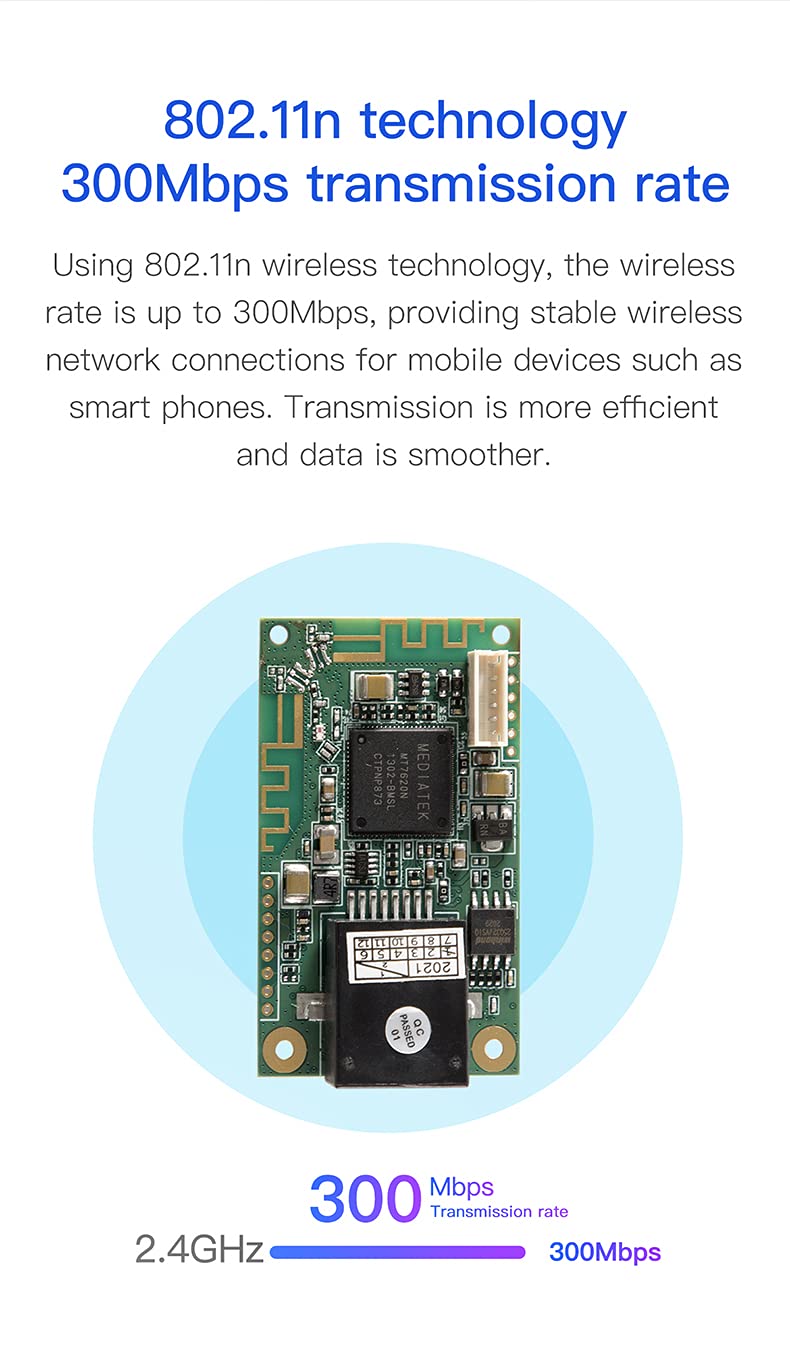

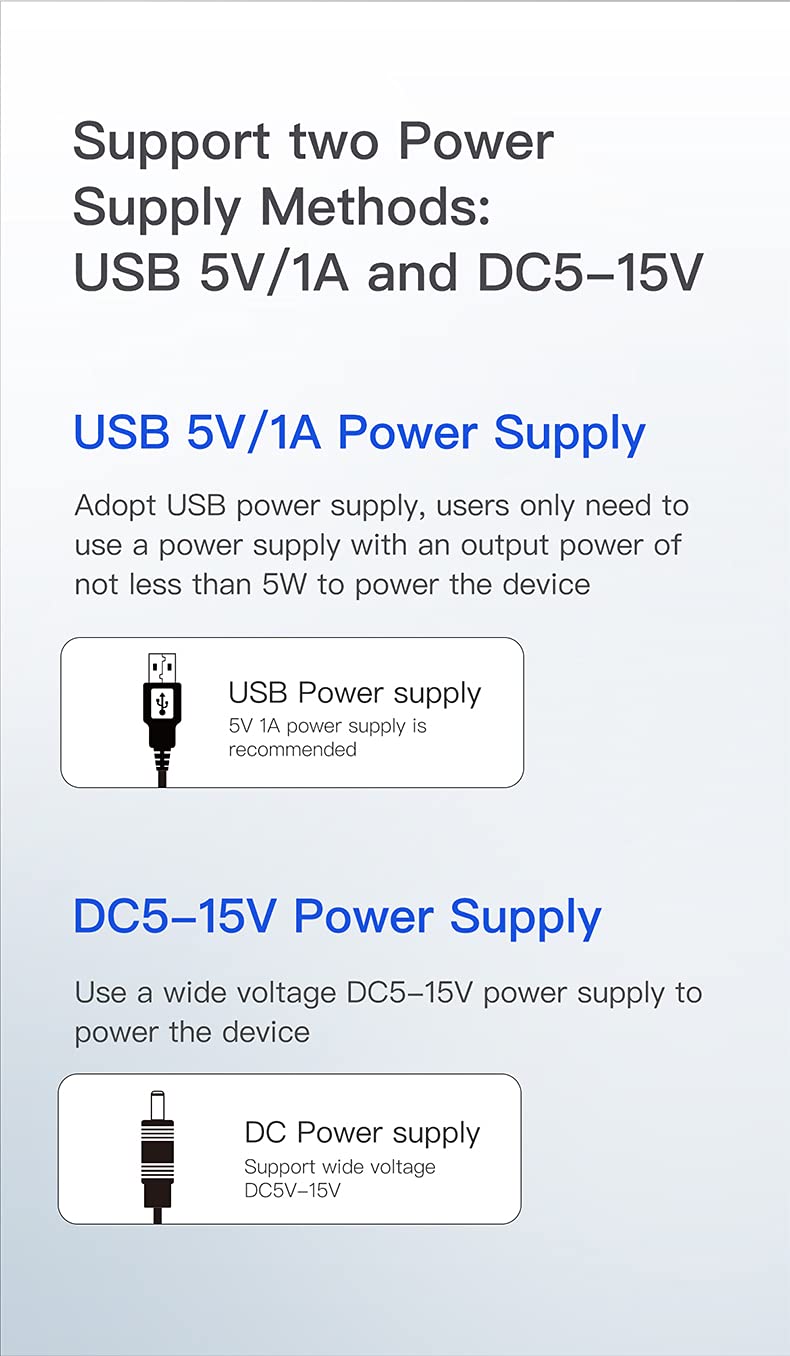

• 【WiFi to Ethernet or Ethernet to WiFi convert】Industrial Mini 2.4GHz WiFi Module/Mini WiFi Router/Wireless Ethernet Bridge/Repeater (small size); Can achieve WiFi to Wired or Wired to WiFi function; Support WiFi 802.11b/g/n, WiFi rate:300Mbps; 2 Ethernet ports 10/100Mbps adaptive (USB/DC power supply cable;10/100M Adaptive Ethernet cable:30CM;10/100Mbps Adaptive Ethernet port)；

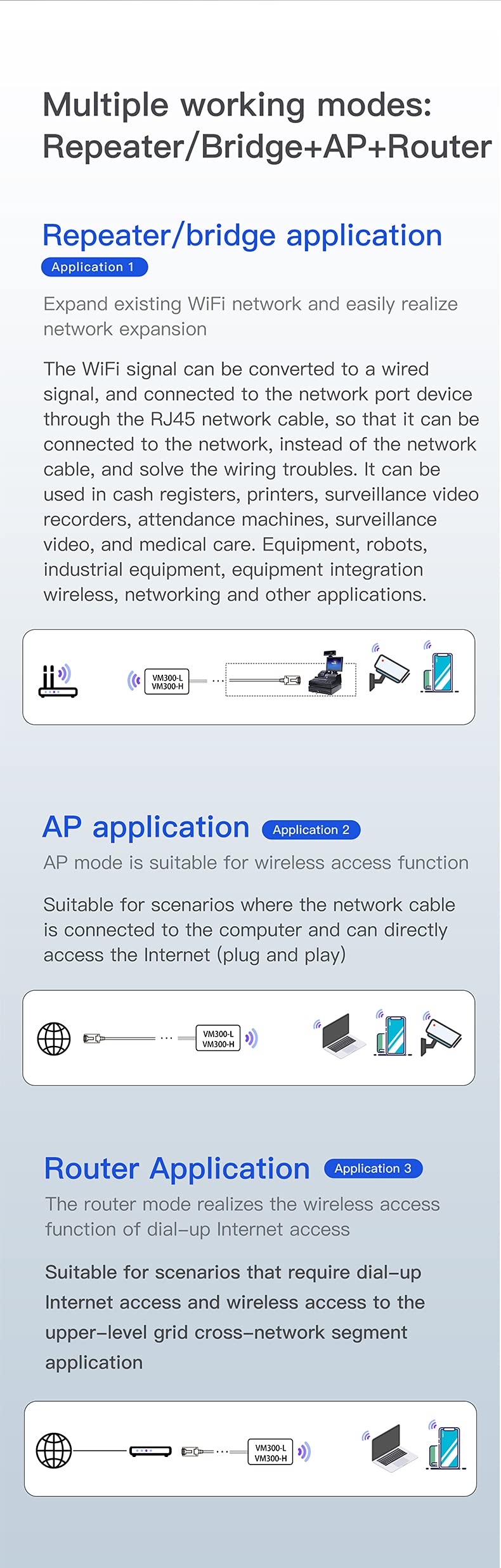

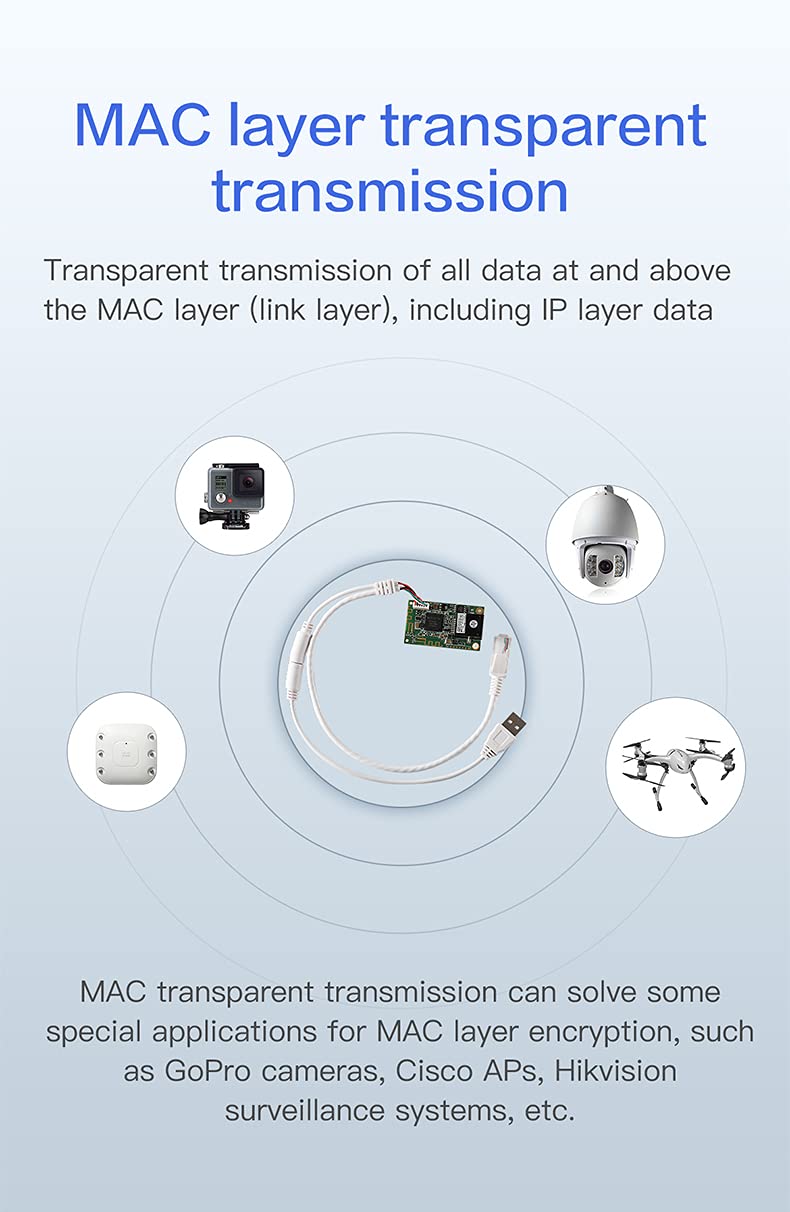

• 【Support Bridge and Router application methods】: Router mode; WiFi Bridge ( IP layer or MAC layer transparent transmission); WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance; WiFi access point (AP);
• 【Good Partner for WiFi or Wired Network Devices】Great ideal for Medical devices, IoT devices, Video transmission, Industrial PLC, PS3, Network Printer, Robot, Doll Machine and more DIY Network application.Point-to-point transmission distance:maximum can be up to 100 meters when without obstacle and small data, less than 20-50 meters when used for video transmission; 2x2.4GHz external antennas;
• 【WiFi hotspot automatic reconnection】two hotspot matching methods: Full match authentication mode, SSID and password authentication mode, Support SSA signal strength detection reporting function, motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications; Hotspot connection parameter support import and export function;
• 【WiFi hotspot automatic reconnection】two hotspot matching methods: Full match authentication mode, SSID and password authentication mode, Support SSA signal strength detection reporting function, motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications; Hotspot connection parameter support import and export function;

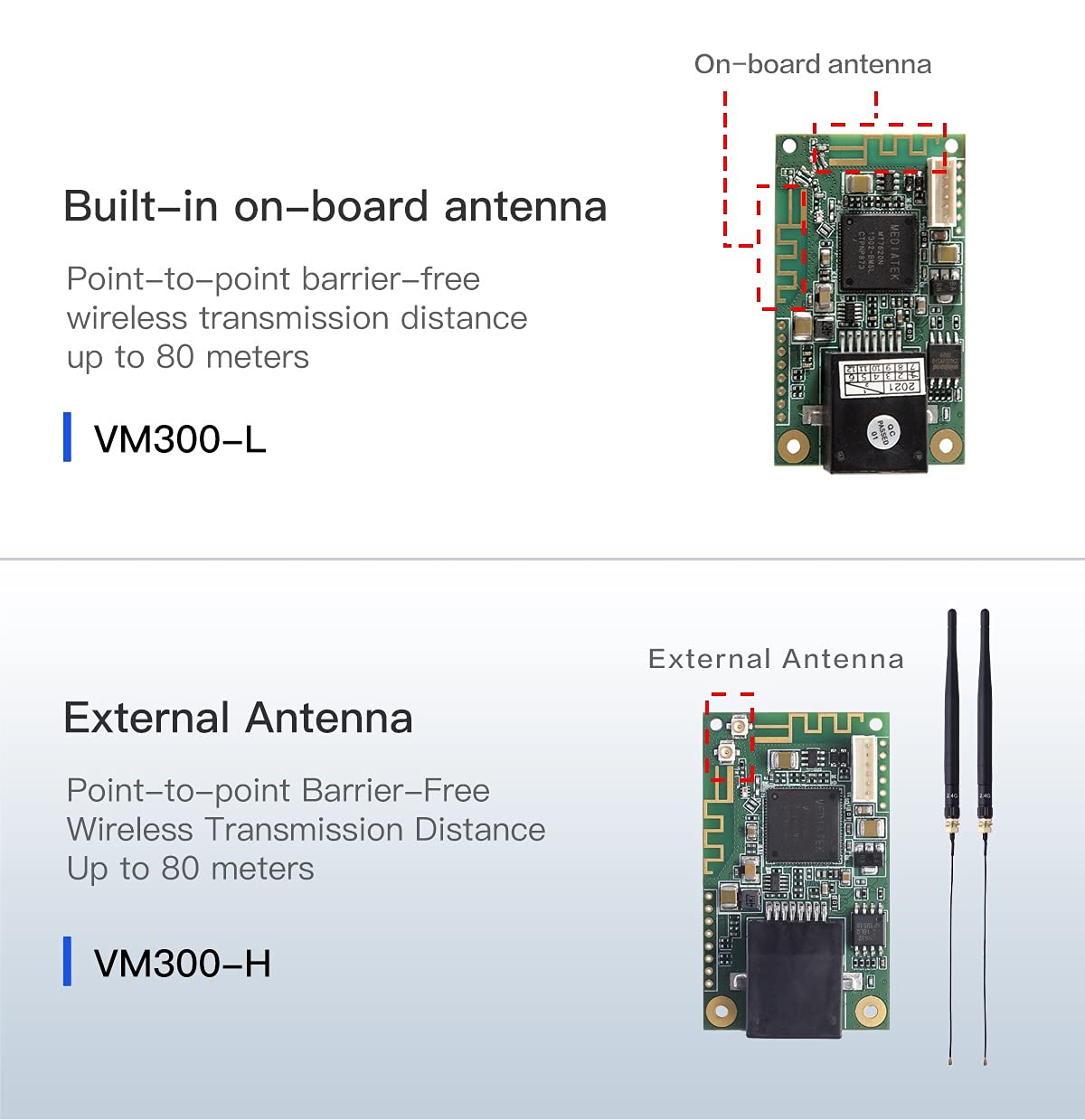

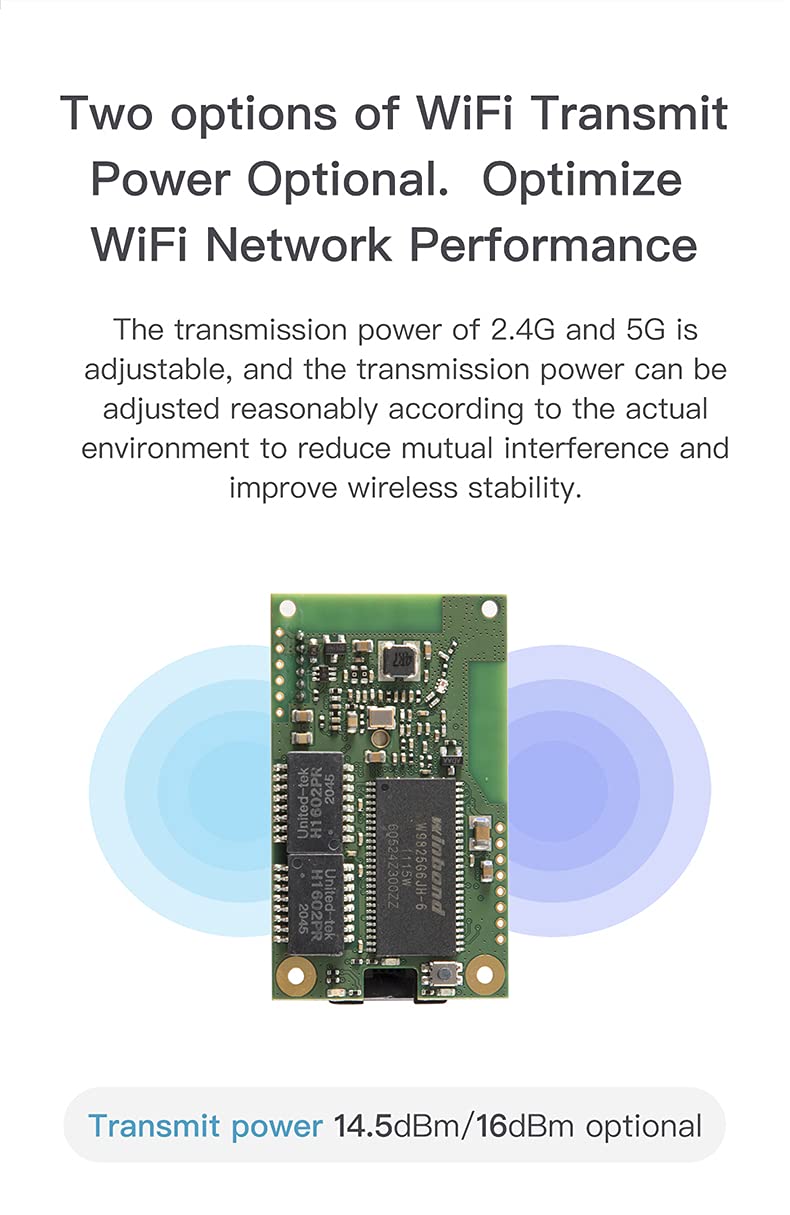

VM300-H WiFi Module is the great ideal for Fish Finder, Electronic monitoring, IP camera, PS3, Network Printer, Industrial Scale PLC, Robot, Medical instruments, DIY Network Devices, etc network applications. Function Features: 1. Two software-controllable working modes: Router mode, Bridge + Repeater mode 2. Support smart transparent bridge mode, and support AP Client and AP Station at the same time. 3. WiFi working frequency band: 2.4GHz, 2T2R external antennas, two external antennas RF female sockets. 4. Support power input over-voltage protection function (automatic power-off when the power supply voltage exceeds 15.5V) 5. Support temperature compensation and frequency stabilization technology (TAFC) to ensure the stability of WiFi signal. 6. Working environment temperature: -20℃-- 50℃. 7. The software can adjust two levels of WiFi RF output power (14.5dbm/16dbm) 8. Support SSA 1.2 version signal strength remote center alarm protocol 9. Support transparent transmission of serial and network data (VONETS-UART_UDP or TCP data forwarding instructions 3.0) 10. Support VDNS technology, in bridge mode, can be configured via logging on the domain login page, solving the problem that configures and secondary development. 11. The relevant parameters of the device can be configured through the WEB page configuration or the VCC mobile phone APP Package: VM300-H *1 2.4G External Antennas *2 User Manual *1 Retail box *1 Tips: 1. After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent"; 2. If you want to use Huawei or iPhone as a hotspot for WiFi bridge when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.
