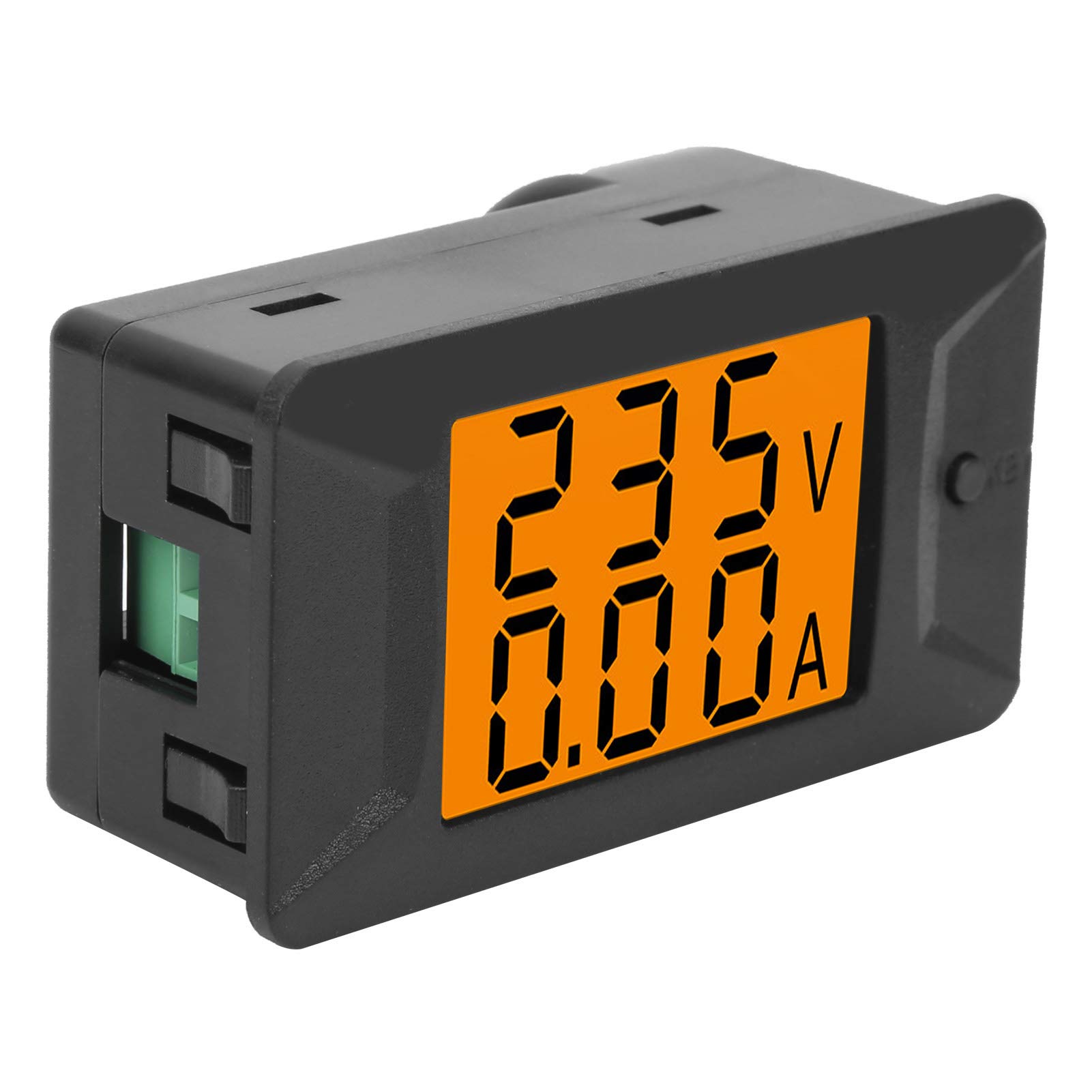

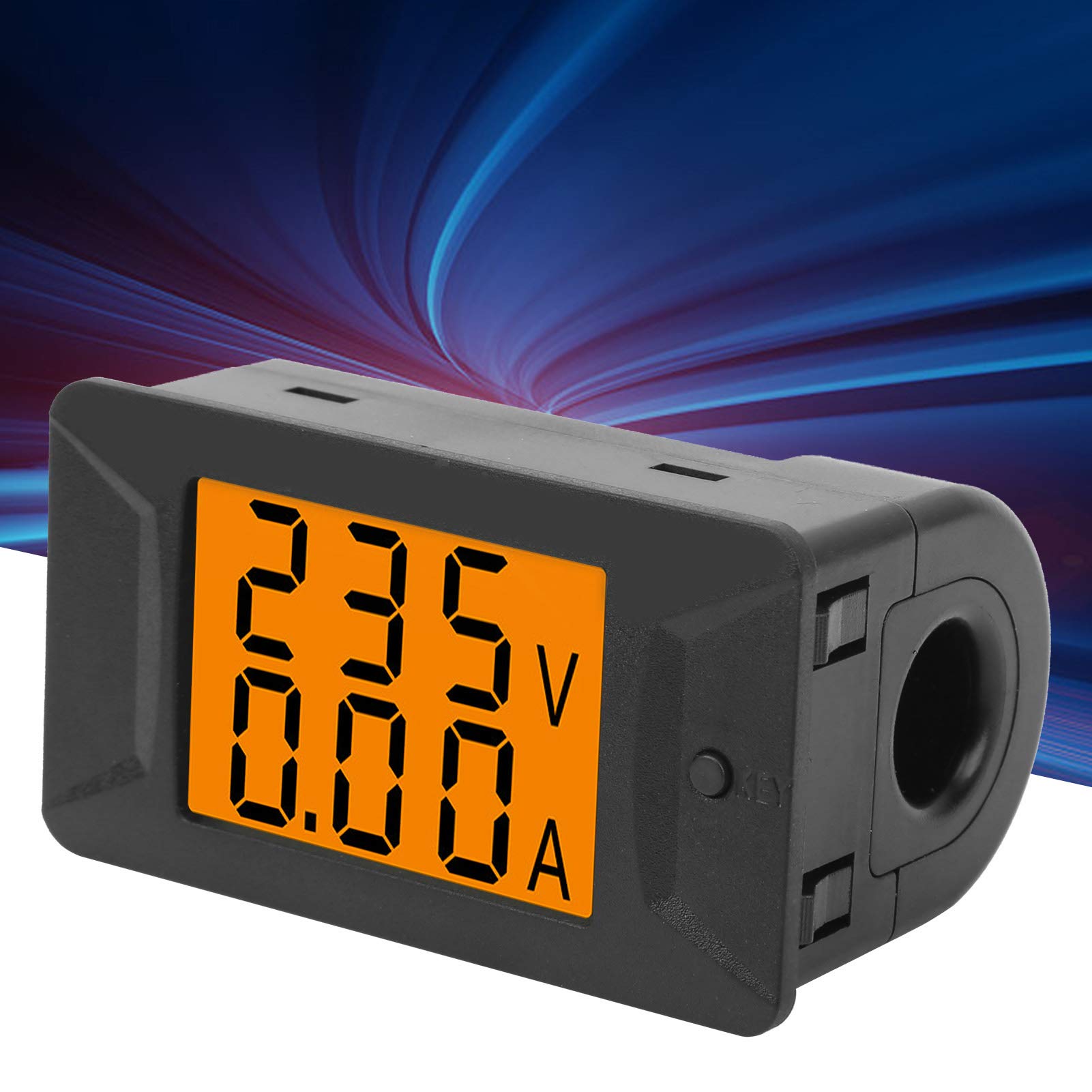

Jeanoko Voltage Ampere Meter Voltage Panel Meter non‑contact measurement backlight controling for electronic maintenance

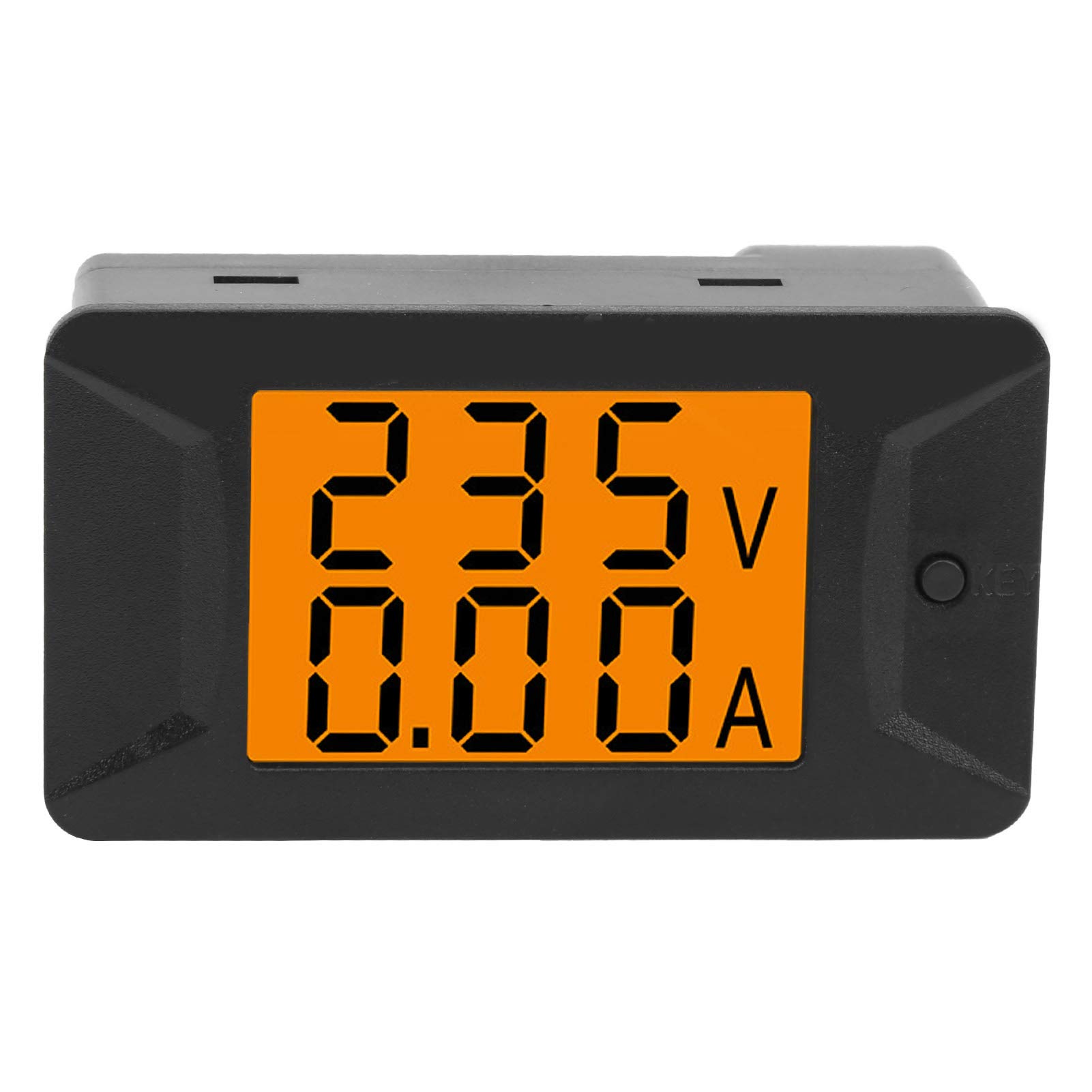

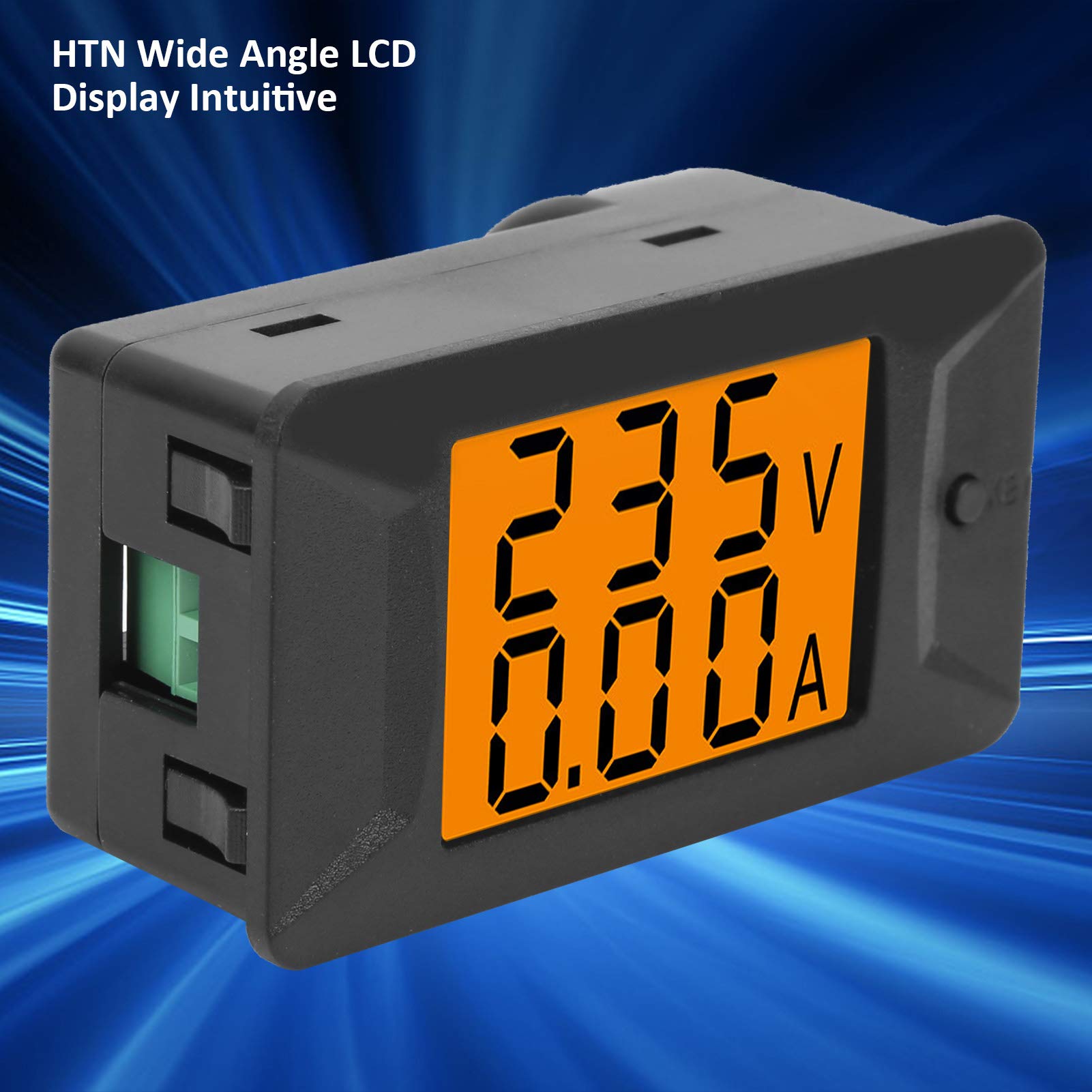

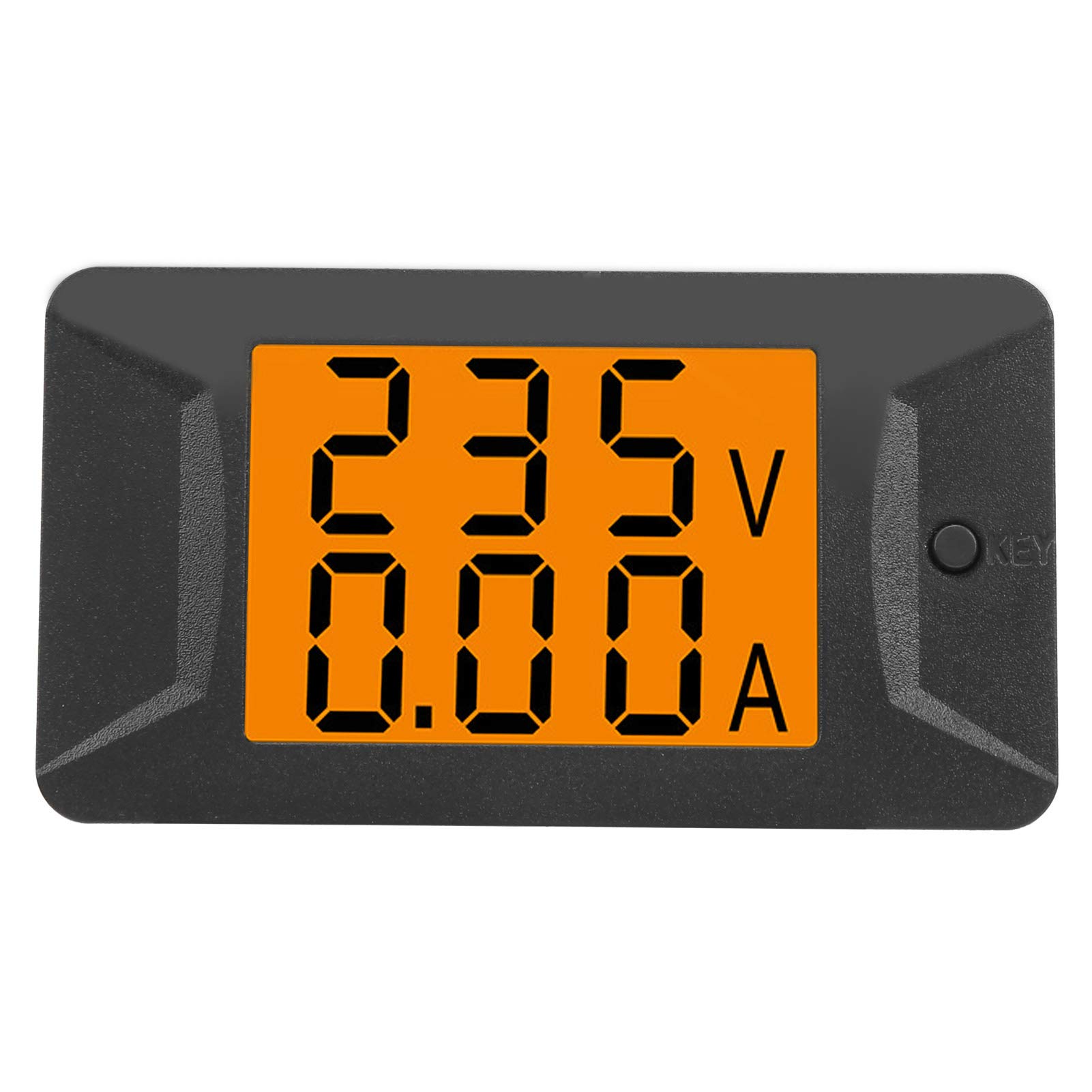

• ☁Liquid crystal display :dual digital display voltmeter is equipped with HTN wide viewing angle liquid crystal display ,which can directly display voltage and current readings
• ☁Application :PZEM 026 voltmeter is mainly used for high and low voltage power distribution cabinets ,exhibition cabinets ,photovoltaic inverters ,pipeline detection and electronic maintenance ,etc

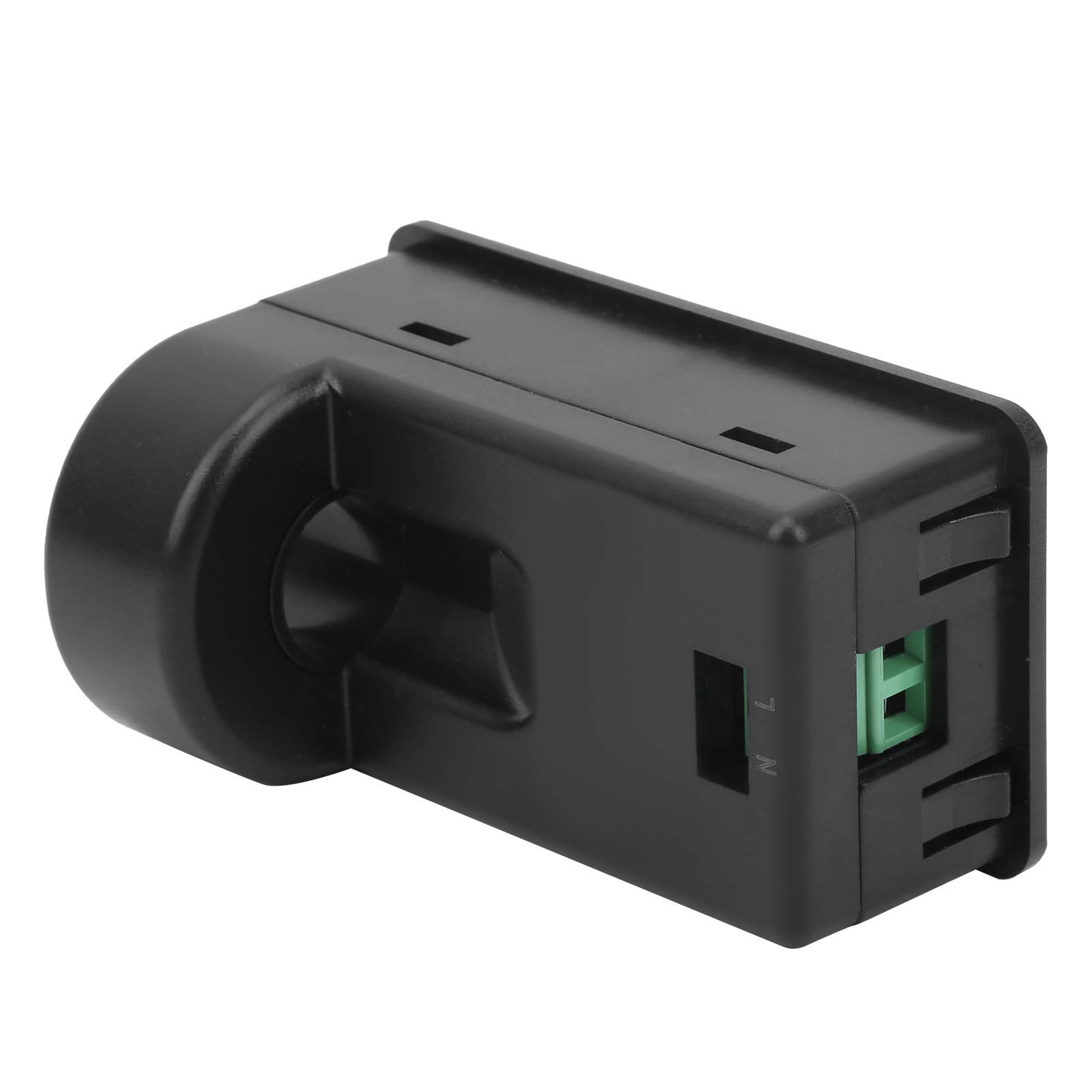

• ☁Non contact measurement :The ammeter adopts the non contact measurement method ,the measurement range is AC 0 100A ,the voltmeter has high measurement accuracy ,and the data is safe and
• ☁Backlight function :The voltmeter supports backlight control ,which can be turned on or off by a short button ,and can be used normally at night

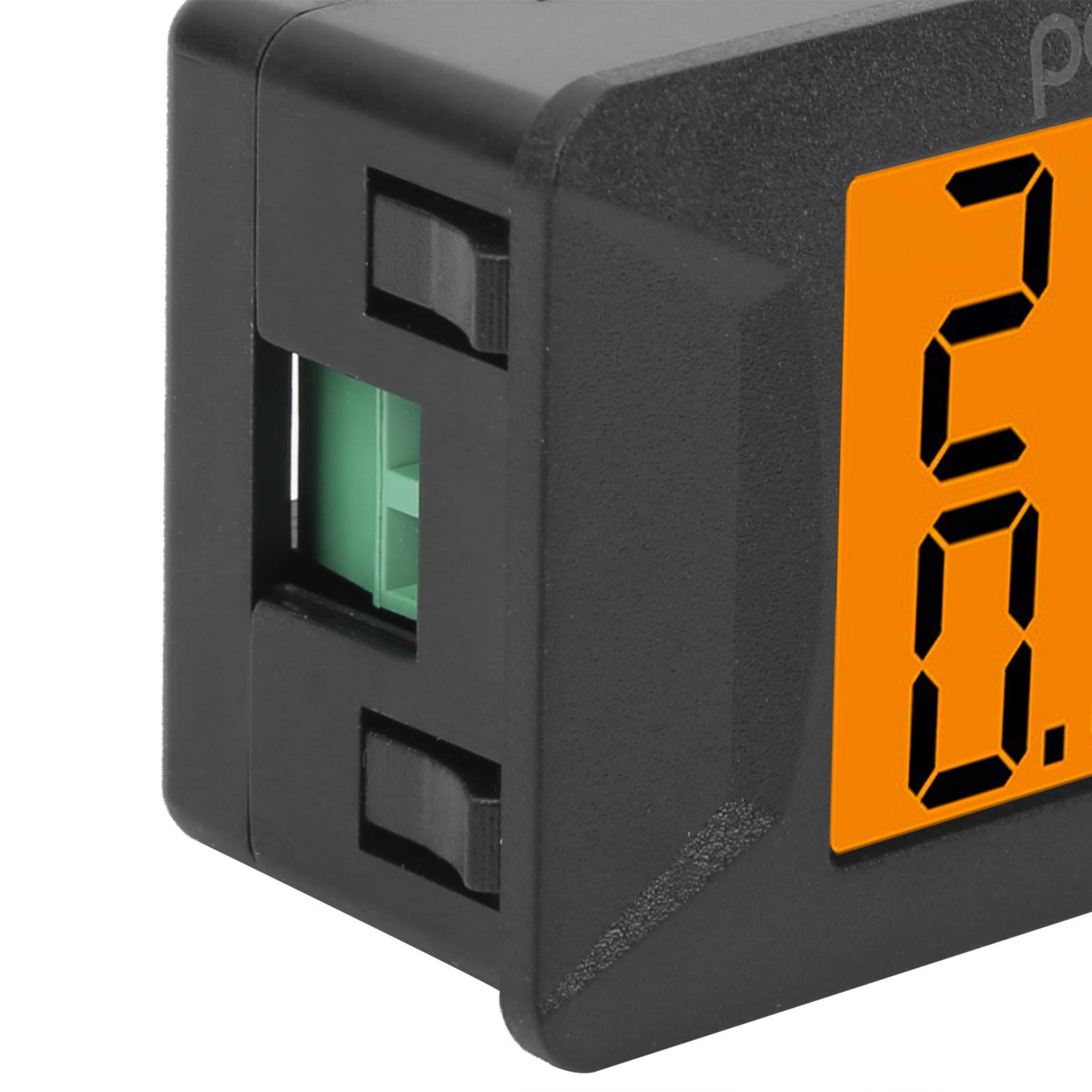

• ☁Easy installation :The dual digital display voltage and current meter adopts embedded installation ,which is flexible and convenient to install

Feature: 1. Dual digital display voltage current meter, adopts embedded installation, which is flexible and easy to install. 2. Equipped with HTN wide viewing angle LCD display, which can directly display voltage and current. 3. It supports backlight controling, which can be turned on or off by short keystrokes, and can be used normally at night. 4. Current non‑contact measurement, the measurement range is AC 0‑100A, with high accuracy, safety and reliability. 5. Mainly used in high and low voltage power distribution cabinets, showcases, photovoltaic inverters, assembly line testing, electronic maintenance, etc. Specification: Condition: 100% Brand New Item Type: Voltage Meter Material: ABS Model: PZEM-026 Voltage measurement range: AC 40-400V Display format: when <100V, display such as: 80.0V; when display ≥100V, display such as: 220V Accuracy: ±1% Current measurement range: AC 0-100A Display format: when <10A, display such as 1.00A; when <100A, display such as 10.0A; when ≥100A, display such as 100A Starting current: 0.02A Accuracy: ±1% Error Adjustment: The product has been 100% calibrated before leaving the factory, and the user can manually adjust the error, as shown below: Step 1: Long press the button (about 3 seconds) until the numbers on the screen start to flash, then release the button Step 2: The number flashing indicates that it has entered the error adjustment state, the numbers flashing cyclically, the sequence is: high voltage-medium voltage-low voltage-decimal point voltage-high current-medium current-low current- The current decimal place; flashing indicates the current adjustable number, short press the button to adjust the integer (number 0-9 cycle, decim
