VOANZO Single Channel Inductive Vehicle Loop Detector Gate Sensor for Parking Lot Access Control

• This vehicle loop detector is ideal for gates in shopping malls, hotels, companies, houses, car parks, etc...
• Electromagnetic inductive vehicle detector, which detects changes in magnetic flux when a vehicle passes by.
• Output mode - relay output, can be connected to the gate pole, to achieve the car does not drop the pole, the car passes automatically drop the pole, can achieve anti-smash, and the car goes automatically close the gate function.

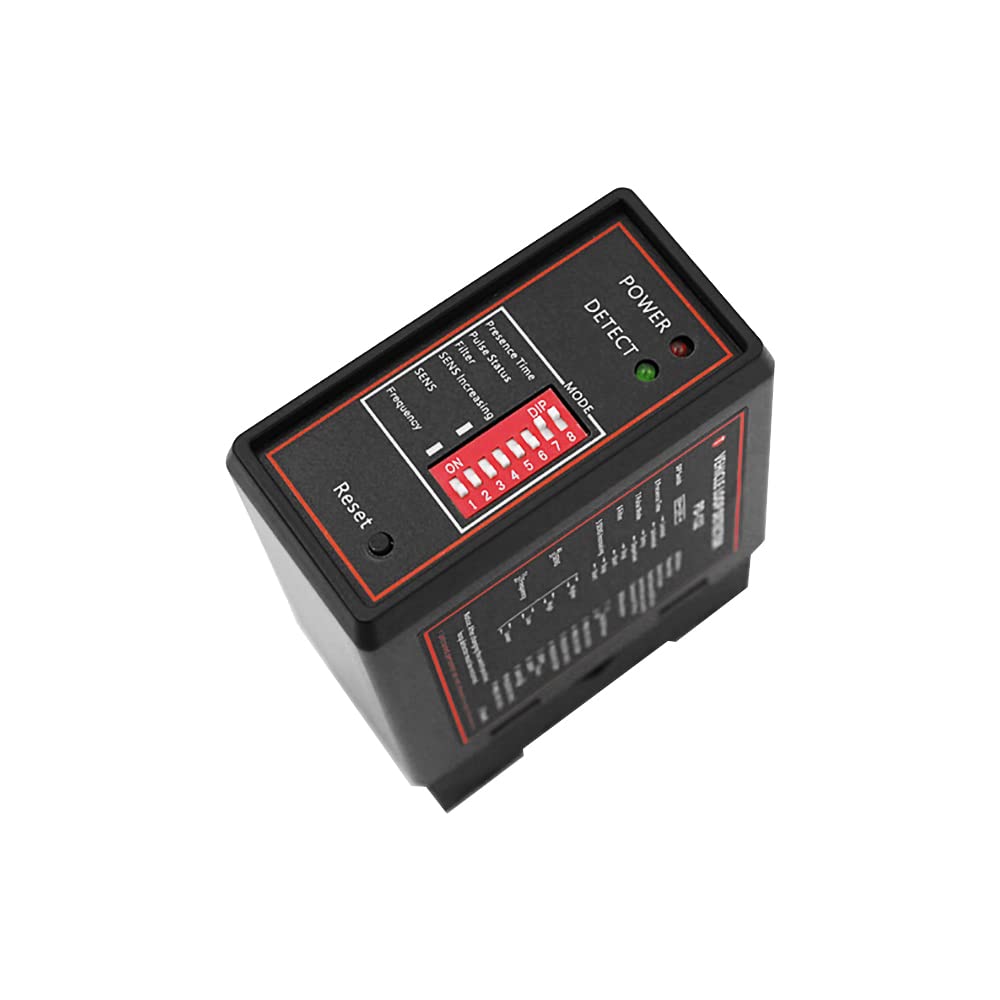

• 4 levels of sensitivity adjustment, which can be adjusted according to the actual needs, to make the work more smooth.

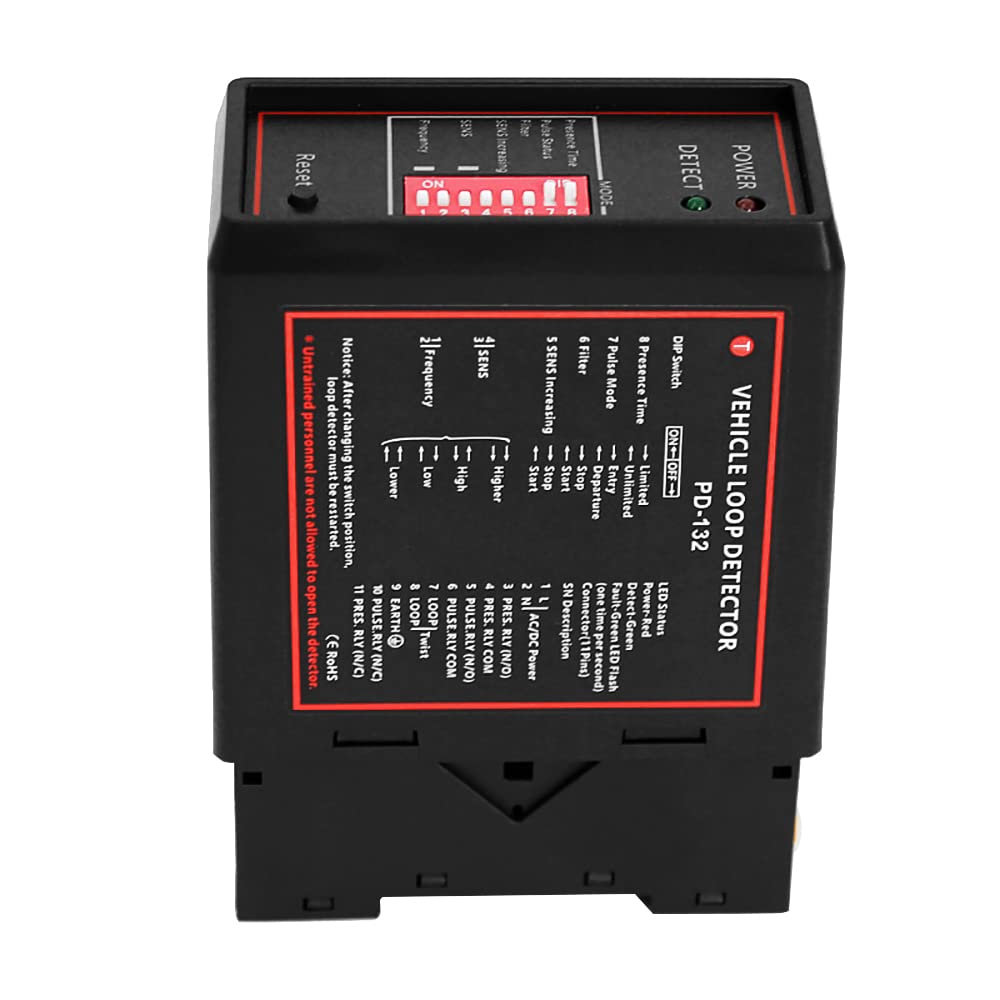

• Easy to use, simple wiring, wiring diagram on the side of the product, easy to install and use.

Description: This vehicle loop detector is ideal for gates in shopping malls, hotels, companies, houses, car parks, etc...Output mode - relay output, can be connected to the gate pole, to achieve the car does not drop the pole, the car passes automatically drop the pole, can achieve anti-smash, and the car goes automatically close the gate function. Specification: Supply voltage: 220VAC Power: 4.5W Output relays: 240V/5A Operating temperature: -20~65°C Storage temperature: -40~85°C Frequency range: 20 kHz to 170 kHz Temperature compensation: 50°C/ h Reaction time:10ms Sensitivity: Higher:0.02% high:0.05% low:0.1% lower:0.5% Loop inductance Package included: 1 x Vehicle Loop Detector 1 x Manual
