VOANZO Single Channel Inductive Loop Ground-Sensing Vehicle Detectors for Parking Lot Access Control

• This vehicle loop detector is used in a wide range of applications and is suitable for gates in shopping malls, hotels, companies, houses, factories, car parks etc.
• Ground sensing vehicle detection, by detecting changes in the magnetic flux of the coil when the vehicle passes, emits a signal.
• Relay output, can be connected to the gate lever, to achieve the car does not drop the lever, the car over the automatic drop lever, delayed drop lever can achieve anti-smash, the car away automatically close the gate function.
• 3 levels of sensitivity adjustment, which can be adjusted according to the actual needs, to make the work more smooth.

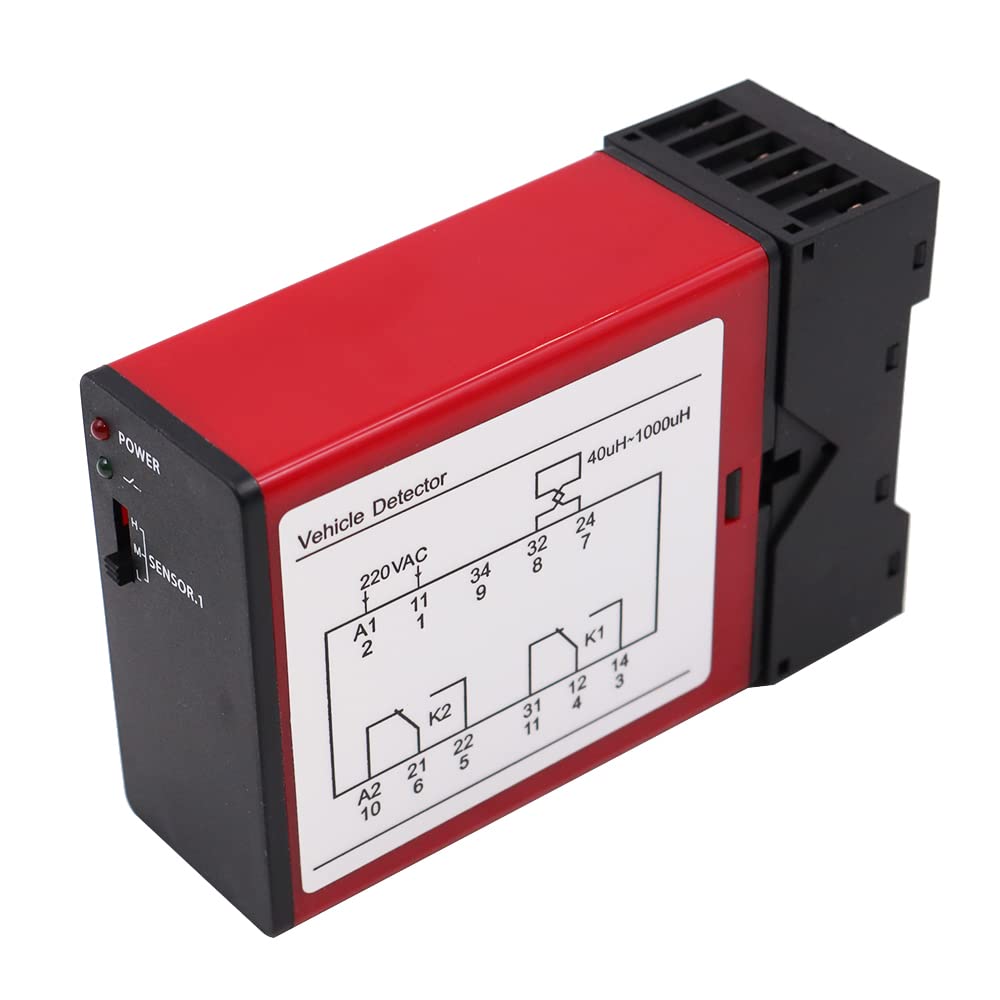

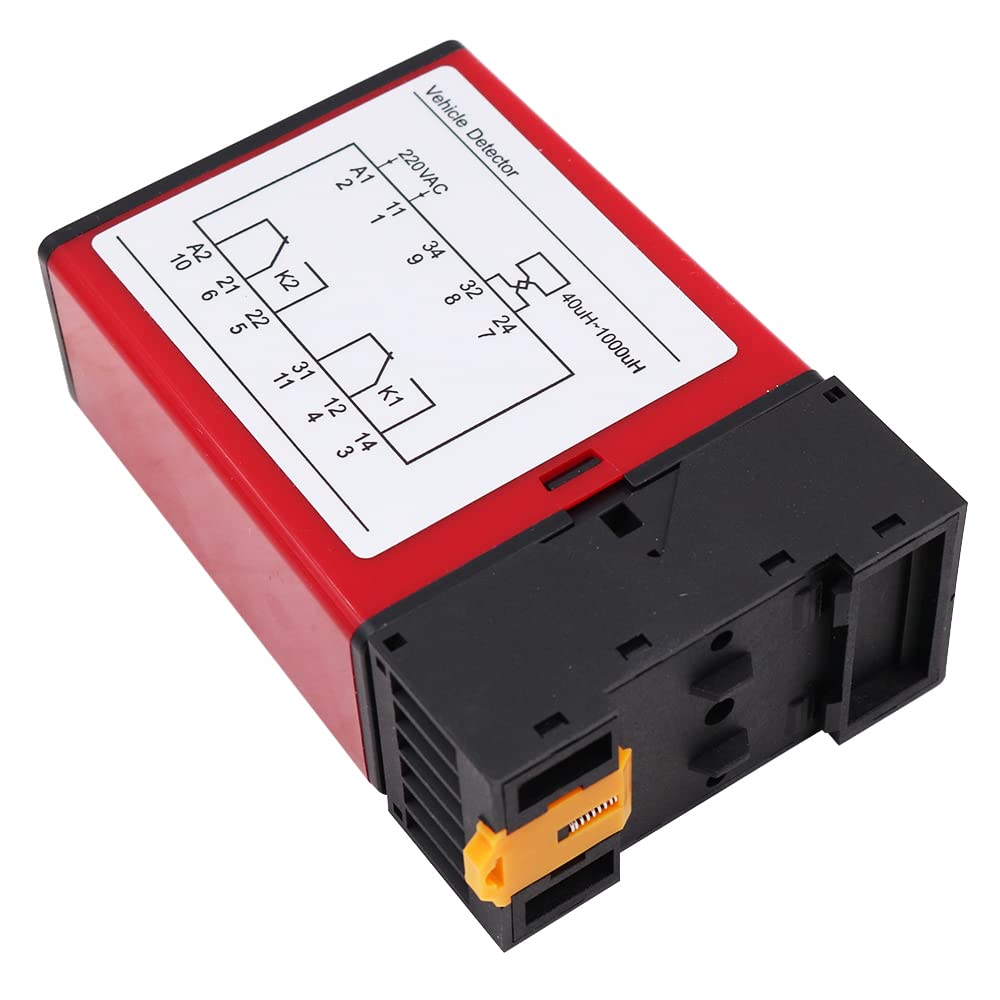

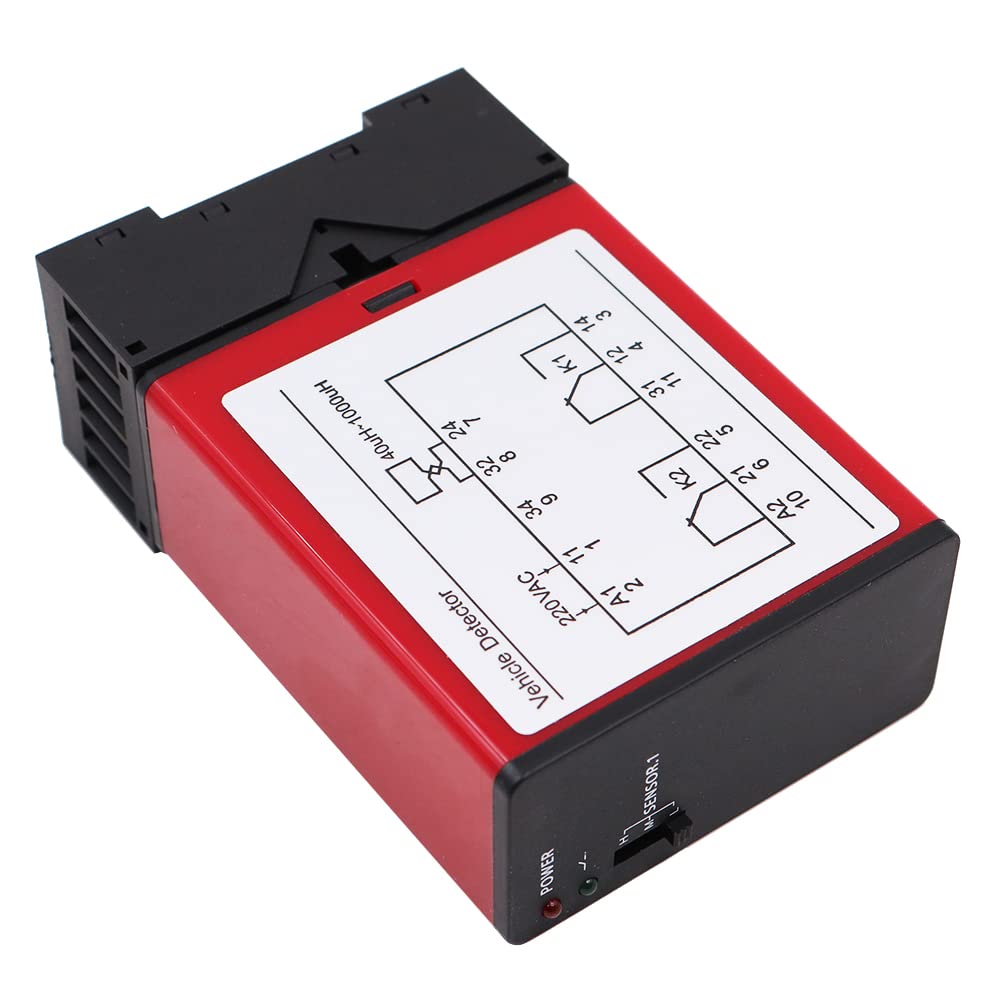

• Easy to use and simple to wire, with a wiring diagram on the side of the product for installation reference.

Description: This vehicle loop detector is used in a wide range of applications and is suitable for gates in shopping malls, hotels, companies, houses, factories, car parks etc.Relay output, can be connected to the gate lever, to achieve the car does not drop the lever, the car over the automatic drop lever, delayed drop lever can achieve anti-smash, the car away automatically close the gate function. Specification: Power supply: AC220v/50hz, 2.5W Sensitivity: 3 levels adjustable Working frequency: 100kHz Sampling time: 35ms Working environment: -40~65℃, 0-95%RH Storage temperature: -40~85℃ Maximum coil: 8m*1m Output mode: relay Detection line: within 10m Weight: Approx. 300g/10.6oz Package included: 1 x Vehicle Loop Detector 1 x Manual
