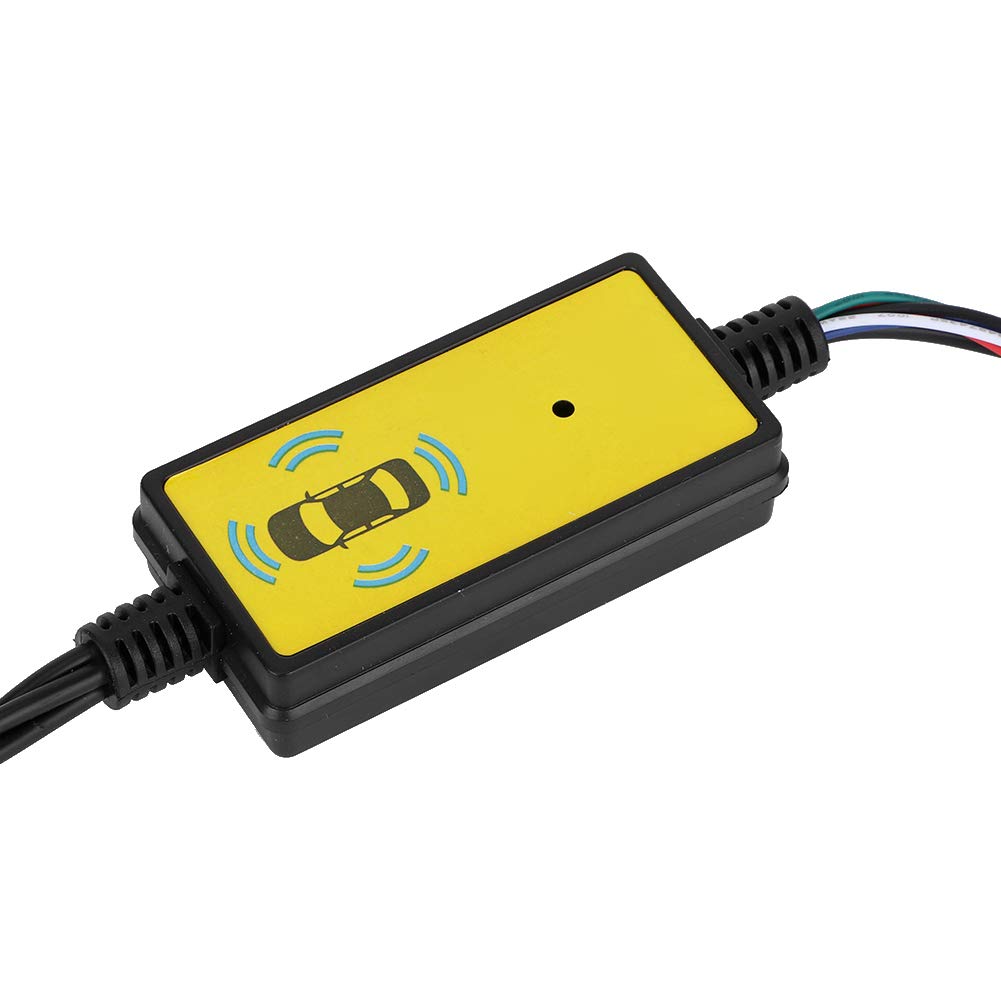

Video Switcher, Intelligent Car Video Switcher Converter 4 Input 1 Output Switch Video System Auto Parts Car Accessories Parts

• This switcher is designed to add more video inputs for cameras when it's connected with video interface for different car models.
• Four video outputs are shared with one video channel with the same power trigger line.
• When each camera receives power from the corresponding headlight, the display can show the correct video channel by turning on the left and right indicators or backup.
• The video signal switcher itself has designed the product power and the camera supply protection circuit, carries on the protection to the camera and the vehicle circuit.

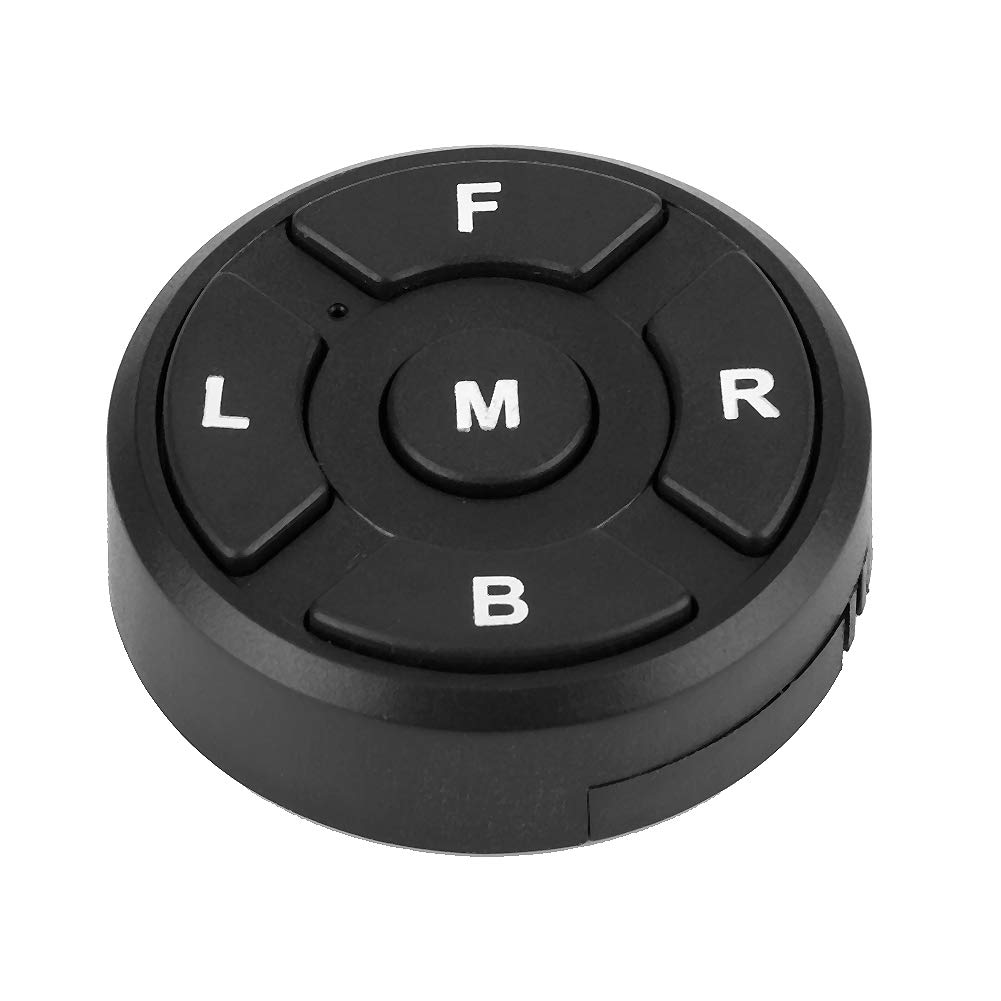

• The video converter adopt wireless remote control, which has easier operation, convenient for using.

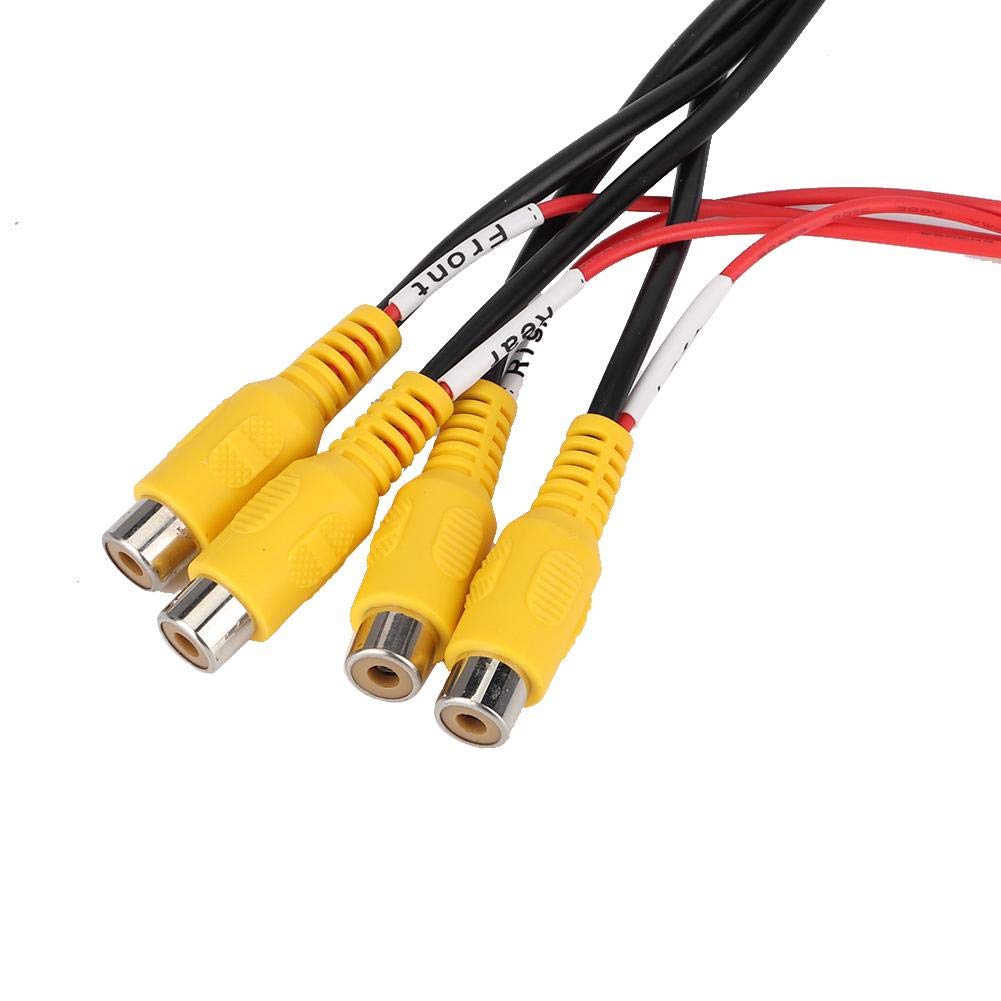

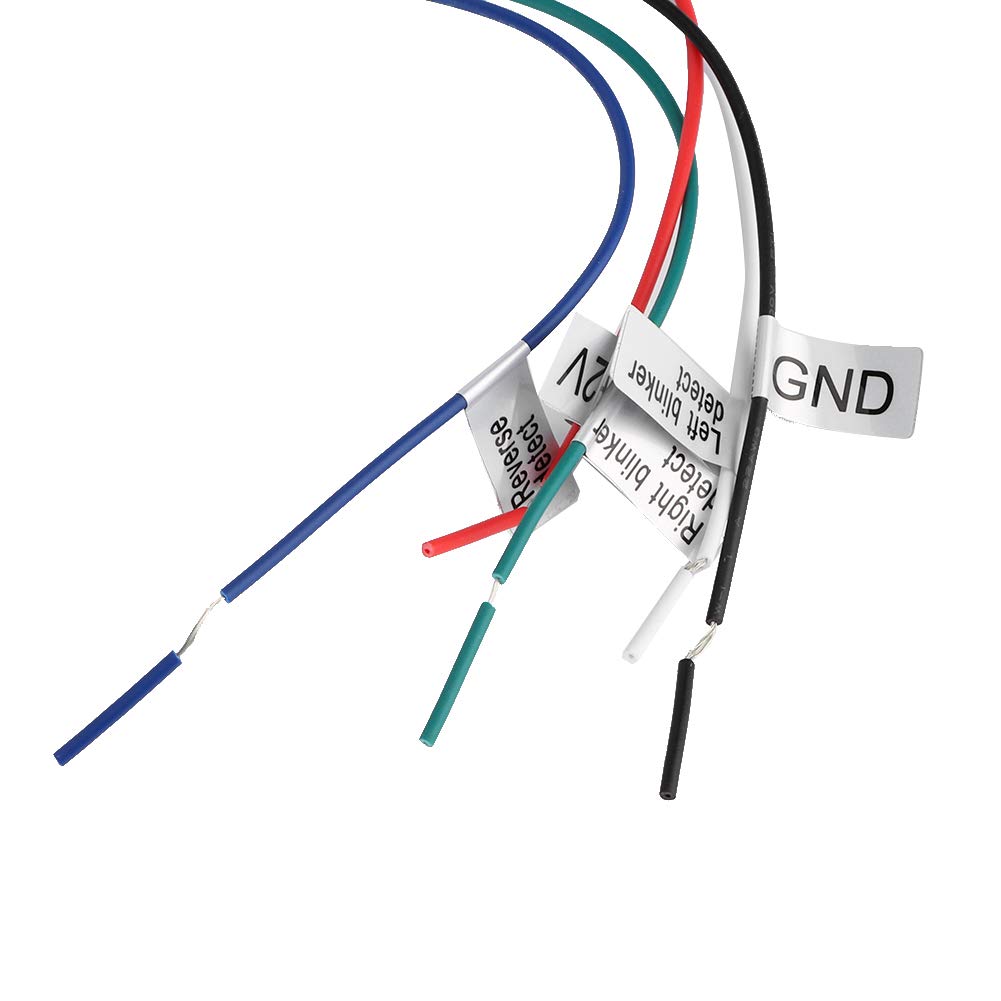

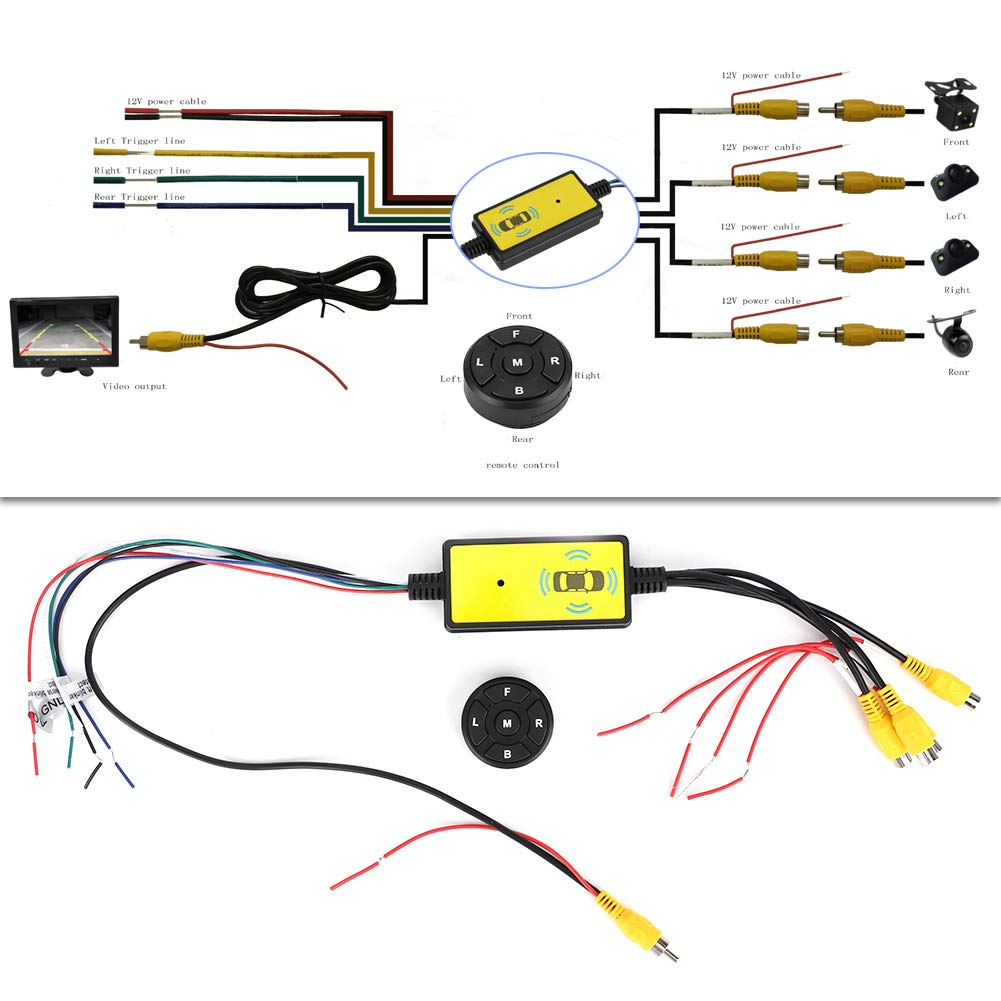

Features: 1. 4 video inputs: left view, right view, rear view and front view, each group of video inputs has a +12V camera. 2. The output shares a video channel and emits a power line that triggers the screen. 3. It can detect the left and right turns of the car and switch to the corresponding video channel. When it is out of the reverse state, the video source is switched to display the 7s front view (this function can be selected according to the situation), and then returns to the default video output state. Line color definition: power positive 12V (red line), negative GND (black line), left flashing (white line), right turn signal (green line) and rear turn signal (blue line). 4. The product has designed a product power protection circuit and a camera power protection circuit to protect the camera and the on-board circuits. 5. The product adopts wireless remote control. 6. The wide input voltage 8-16V, 24V to 12V must be equipped on a large car. 7. Remote control battery model: CR2025 (included) Specification: Condition: 100% Brand New Item Type: Video Switch Material: ABS Package List: 1 x Video Switch 1 x Remote Control 1 x user manual
