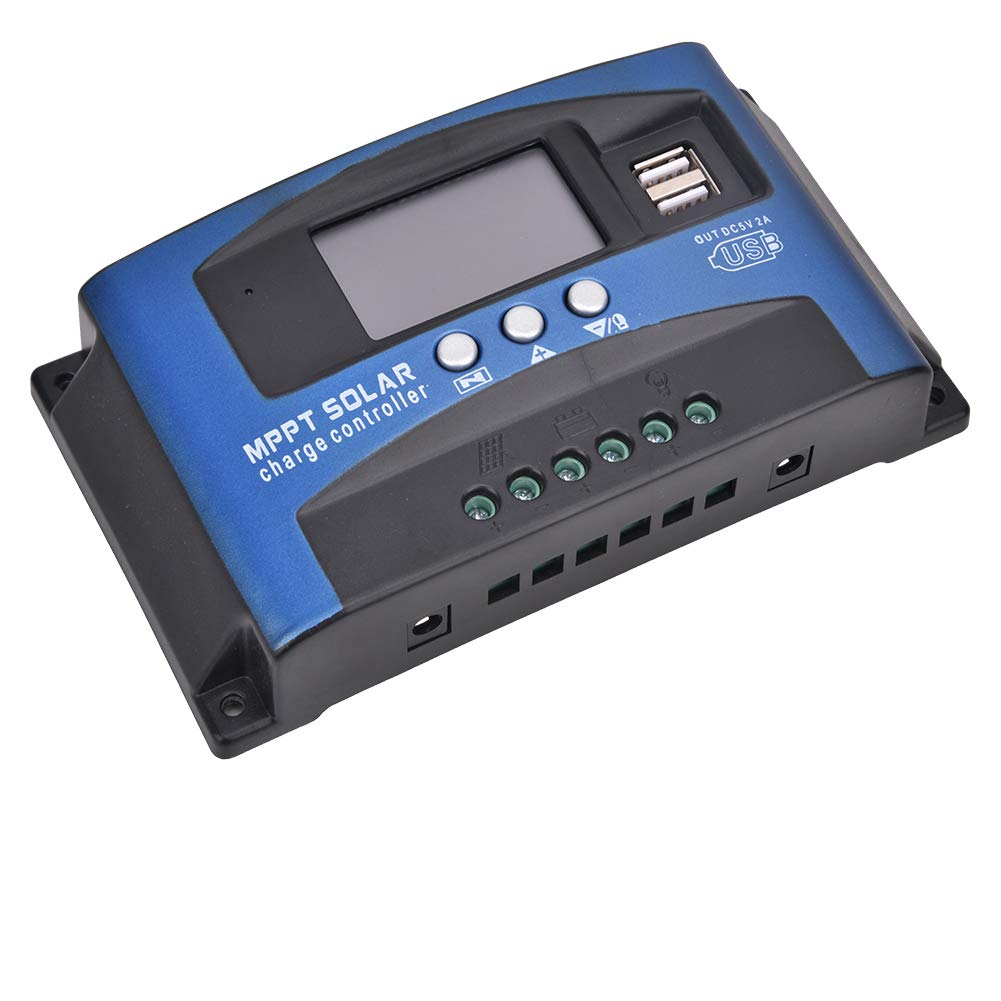

MPPT Controller, YCX-003 30-100A Large Screen MPPT Solar Panel Controller Solar Panel Battery Intelligent Regulator 12V/24V (YCX-003-100A)

• ✔【TRACKING CHARGING】--Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking.
• ✔【INDUSTRIAL-GRADE MASTER CHIP】--Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance.

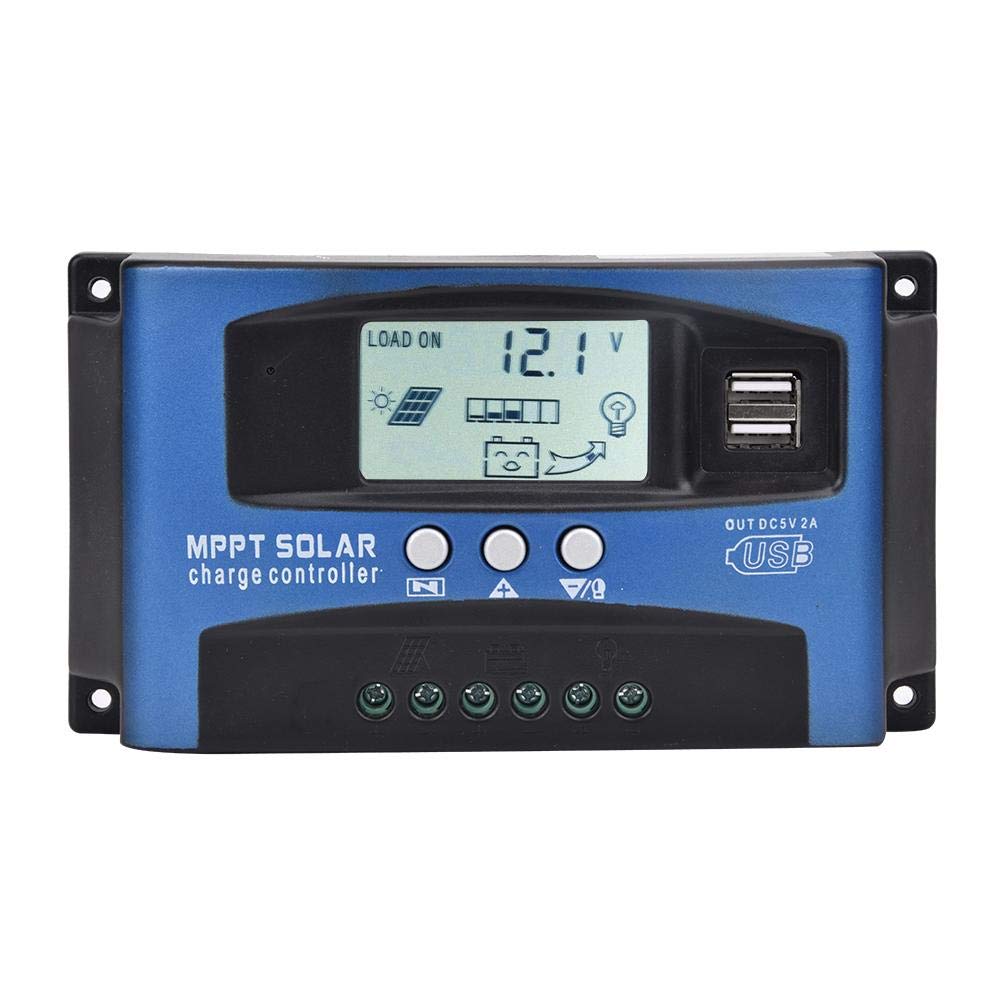

• ✔【LARGE CREEN】--Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide and discharge adjustable, you can any battery. When the output is off, the time can be adjusted, more convenient.
• ✔【HIGH PERFORMANCE】--Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller automatically recovers, does not damage the device.
• ✔【PERFECT PROTECT】--Complete three-phase management, effectively protect the battery, the battery is more durable.Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

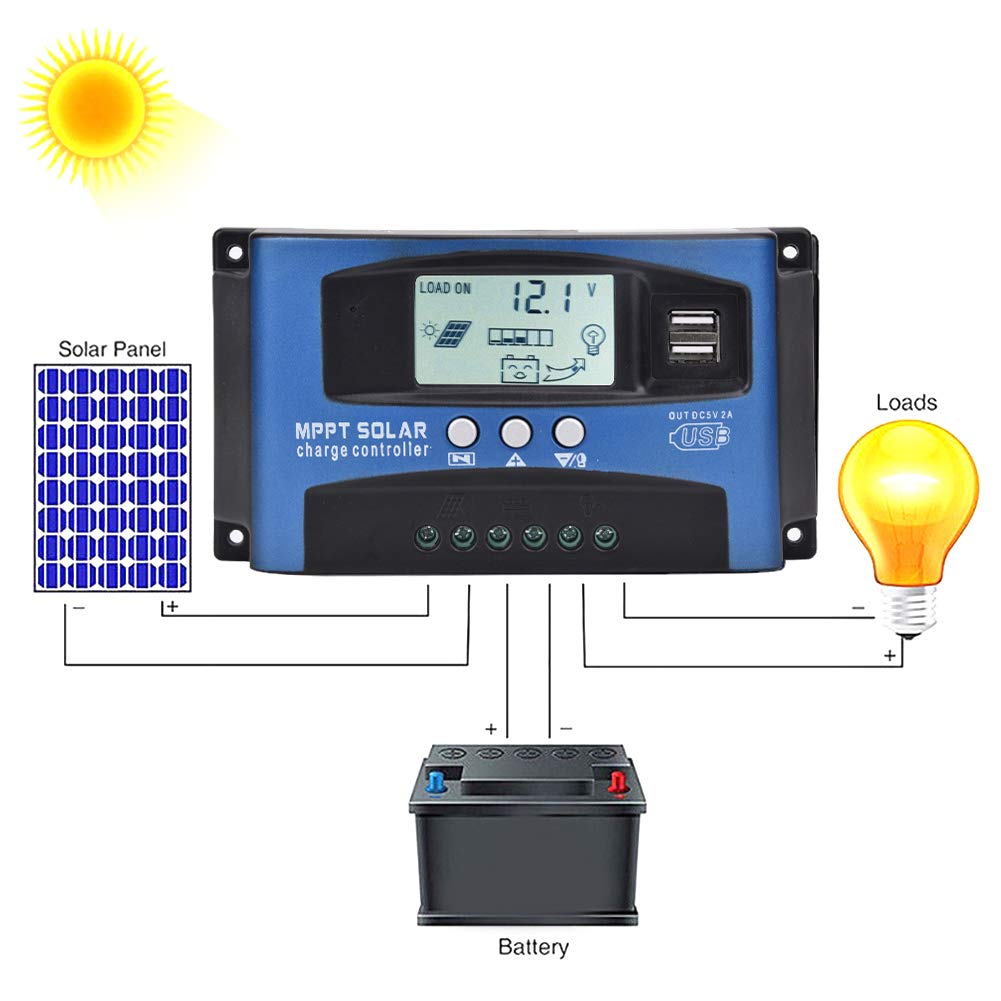

Function: 1. Always keep the battery on fill voltage condition. 2. Prevent the battery from over-charging. 3. Prevent the battery from over-discharging. 4. Prevent the battery from reverse charging to solar panels during nights. 5. Reverse Polarity Protection for Battery. 6. Reverse Polarity Protection for Solar Panels. 7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. 8. Thunder protection. 9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot adjust.) 10. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature. Specification: Condition: Brand New Material: ABS + ROHS Model: YCX-003 System Voltage: 12/24V Adaptive Solar Panel Voltage: 12V, 18V, 24V, 36V Floating Charge Voltage: 13.7V (default, adjustable) Discharge Cut-Off Voltage: 10.7V (default, adjustable) Discharge Recovery Voltage: 12.6V (default, adjustable) Standby Current: <10mA USB Output: 5V/2A Max Rated Voltage: 12/24V Optional Rated Current: 40A, 50A, 60A, 100A Max. PV Voltage: 50V Max. PV Input Power: 750W(12V) / 1500W(24V) Size: Approx. 170 x 92 x 45mm / 6.7 x 3.6 x 1.8inch Weight: Approx. 318g Package List: 1 x Solar Panels Battery Charge Controller 1 x User Manual
