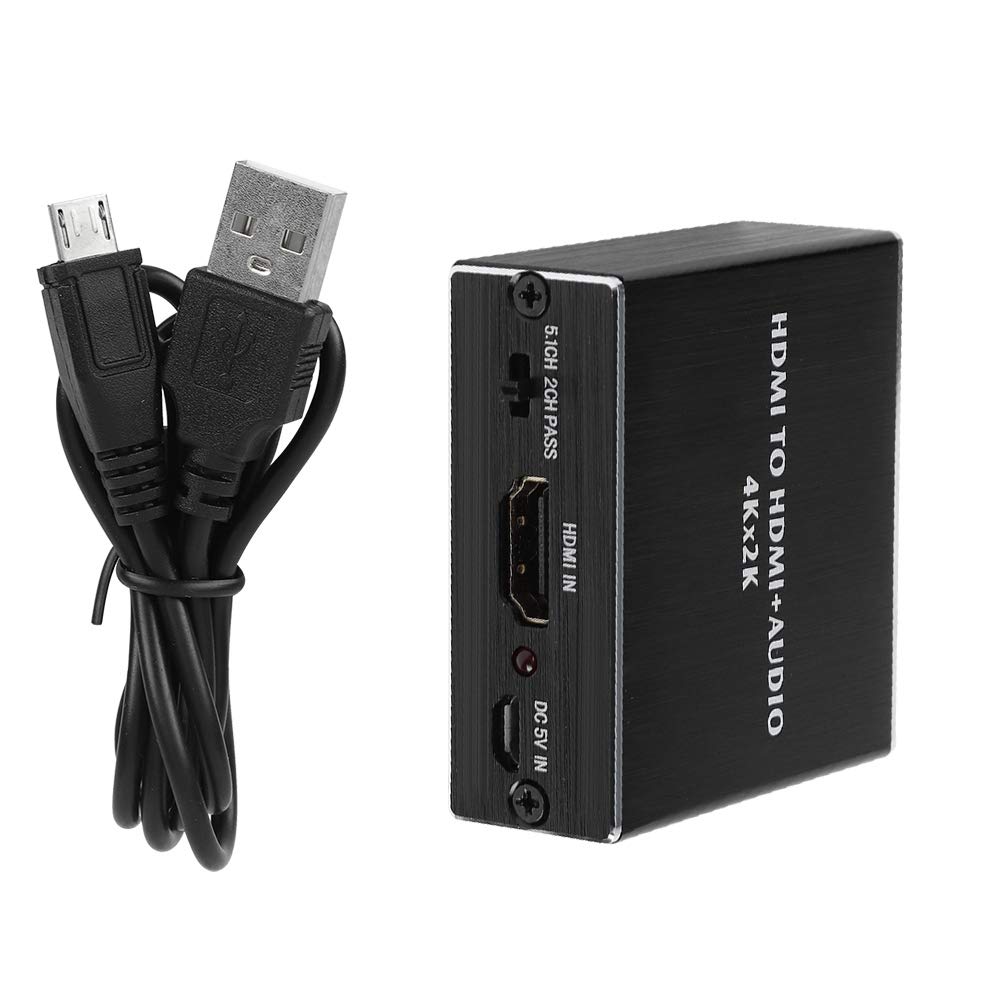

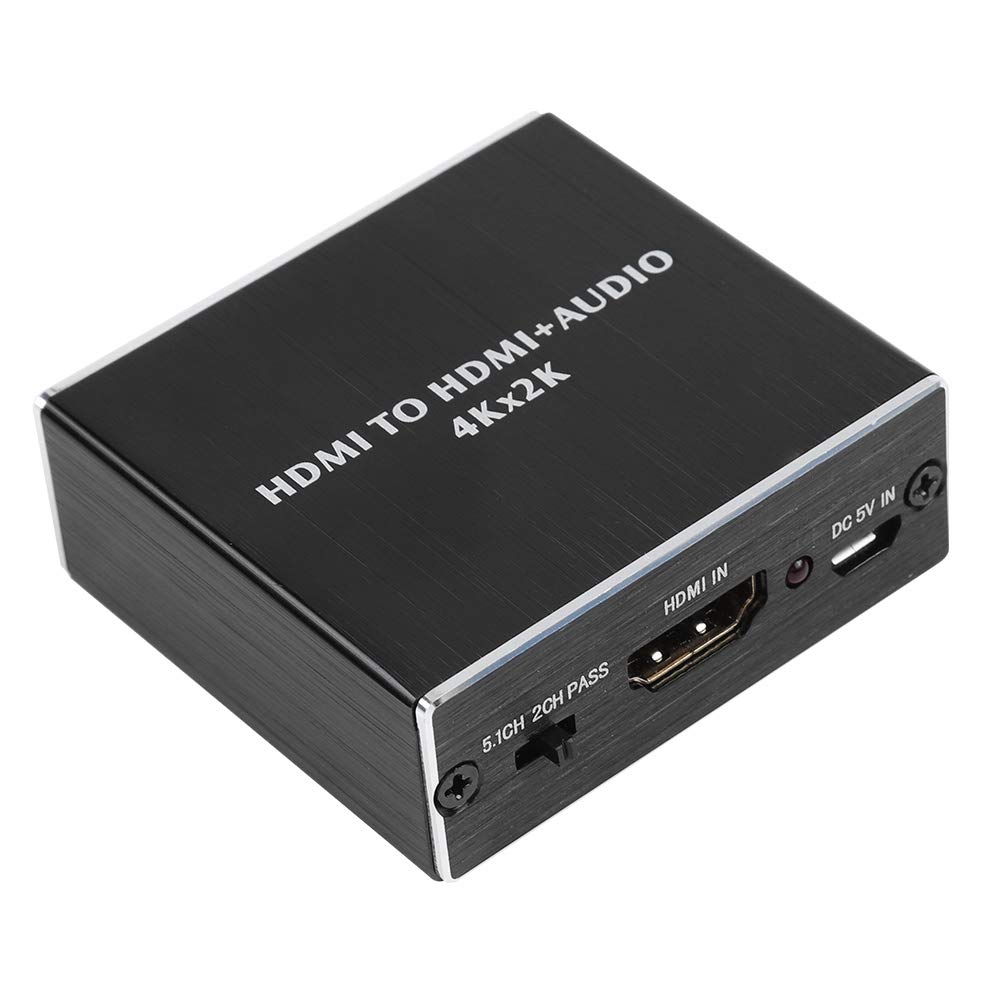

4K*2K HDMI Audio Splitter Extractor Converter HDMI to HDMI+SPDIF+3.5mm Audio Output with LED Indicator

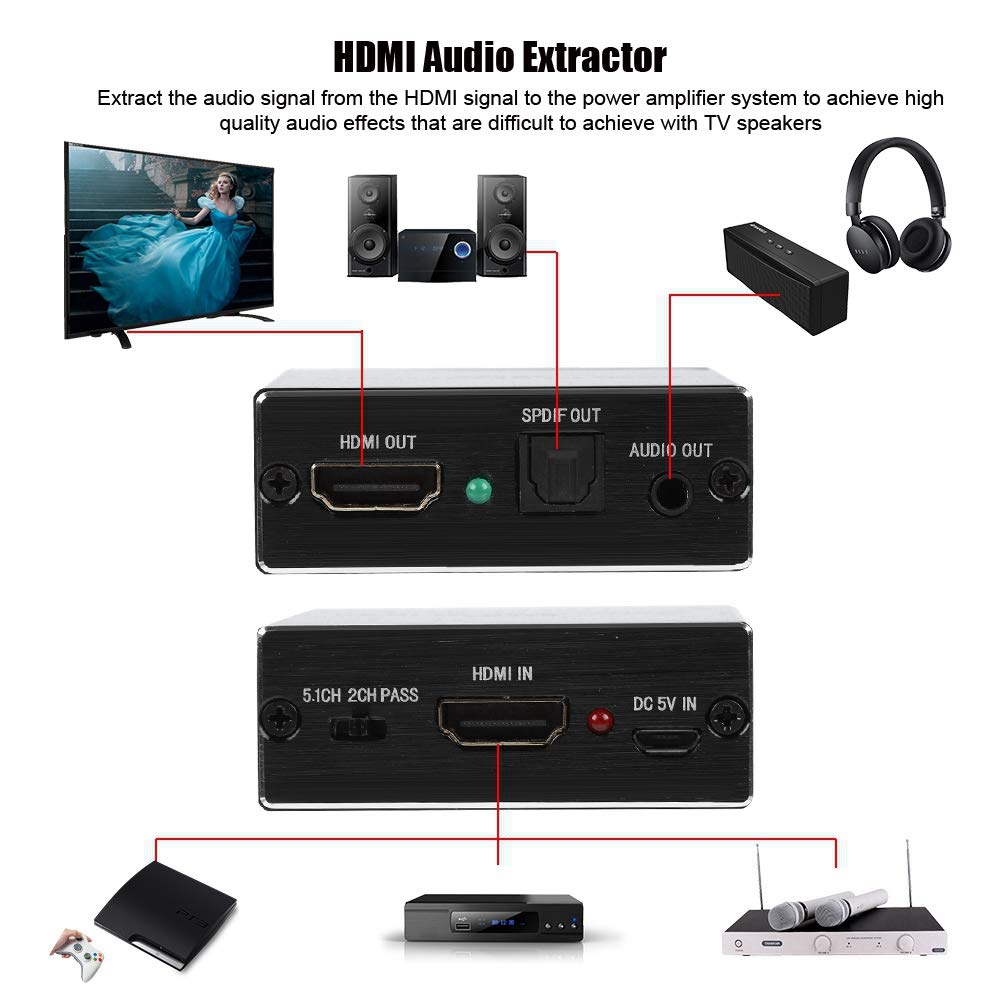

• HDMI Audio Extractor - Extract the audio signal from the HDMI signal to the power amplifier system to achieve high quality audio effects that are difficult to achieve with TV speakers

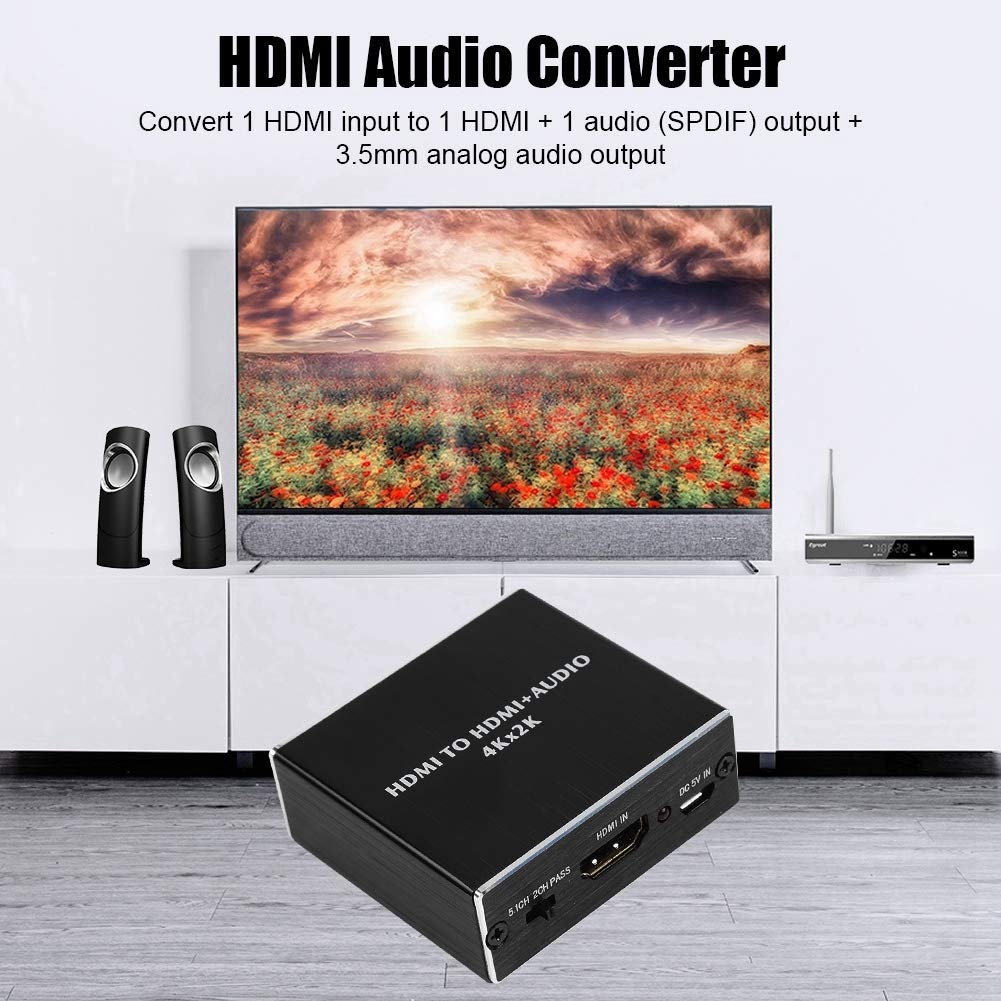

• HDMI Audio Converter - Convert 1 HDMI input to 1 HDMI + 1 audio (SPDIF) output + 3.5mm analog audio output

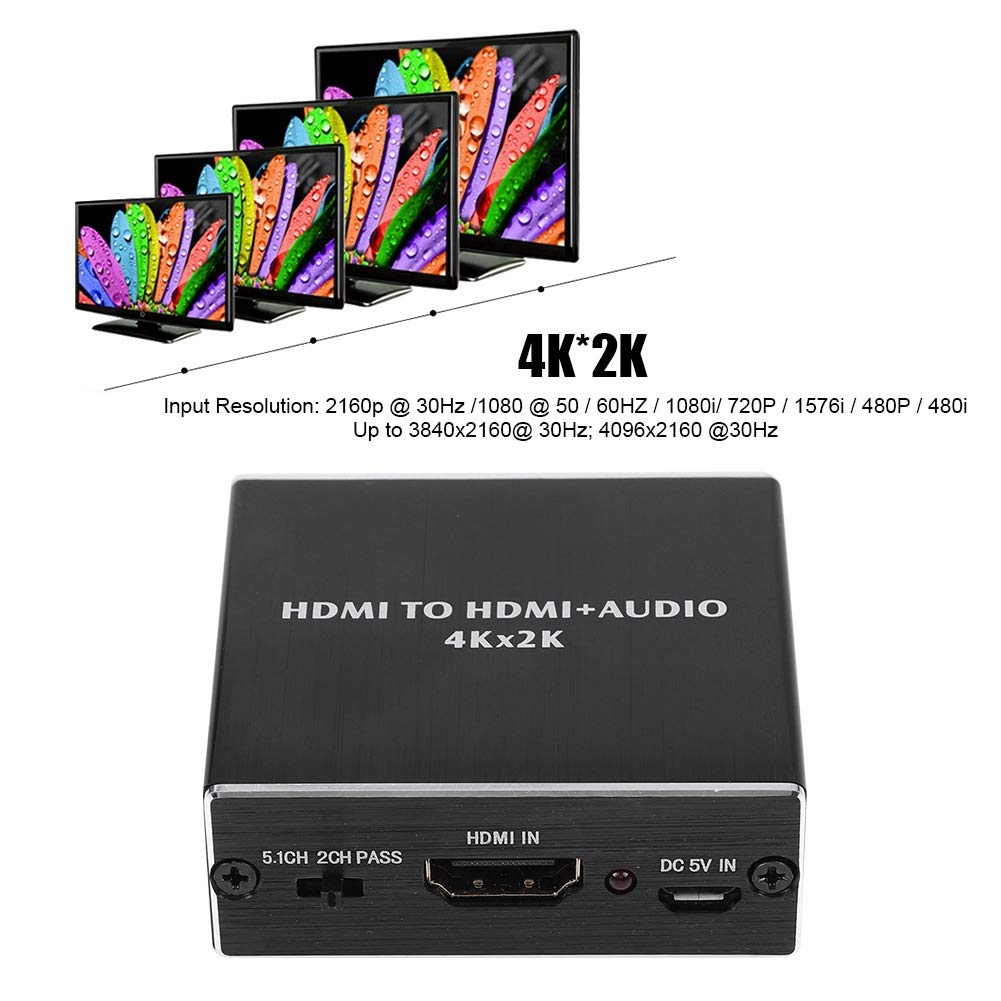

• 4K*2K - Input resolution is up to 3840x2160@ 30Hz; 4096 x 2160 @30Hz.
• 3 audio mode( PASS / 2.0CH / 5.1CH) for your selection - HDMI enables synchronization of audio signal separation.

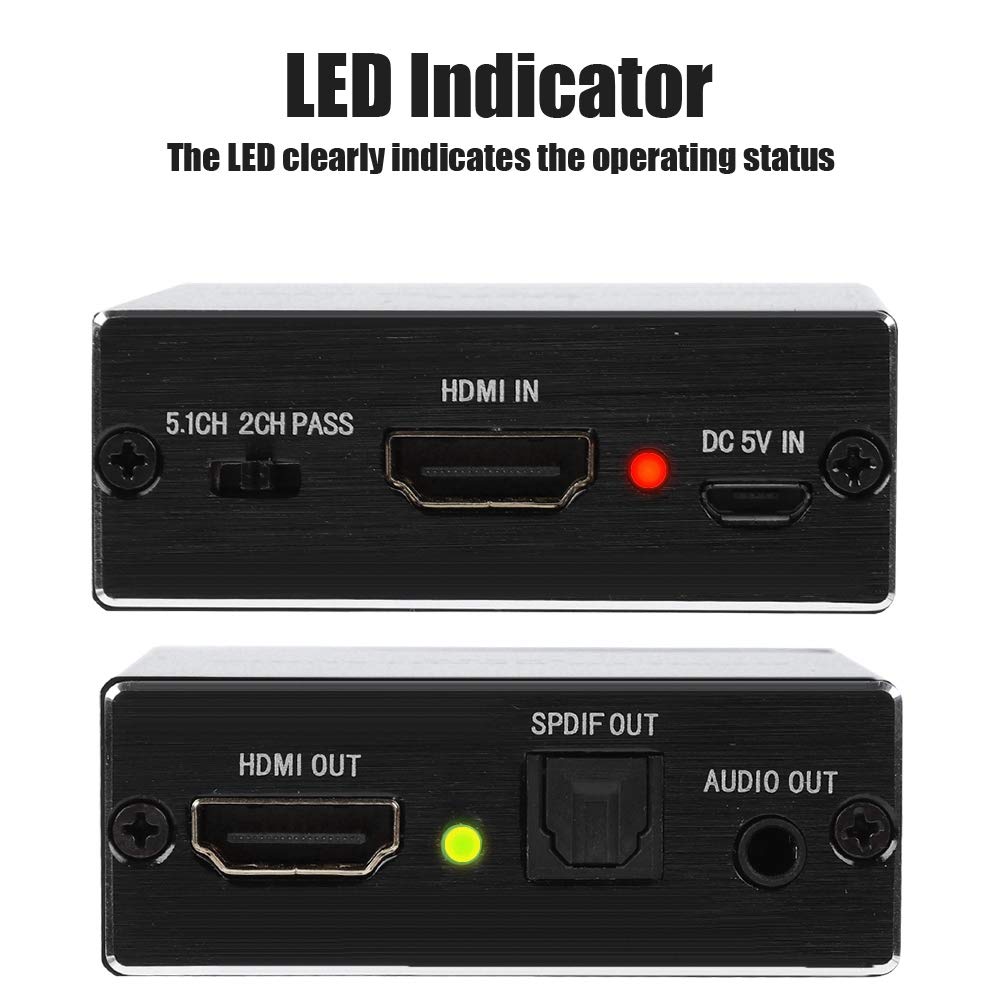

• LED indicator - The LED clearly indicates the operating status.

Specification: Type: HDMI Audio Splitter HDCP version: HDCP1.4 HDMI version: HDMI1.4b HDMI resolution: 2160p @ 30Hz /1080 @ 50 / 60HZ / 1080i/ 720P / 1576i / 480P / 480i Support Video Color Format: 24bits / Dark color 30bit, 36bit Audio Output: SPDIF + 3.5mm audio Max Band Width: 340MHz Max Baud Rate: 10.2Gbps Input/Output TMDS Signal: 0.5-1.5Volts p-pTTL Input/Output DDC Signal: 5Volts p-pTTL Input Cable Distance: 7m (AWG26 standard cable HDMI) Output Cable Distance: 8m (AWG26 standard cable HDMI) Working voltage: DC + 5V Operating temperature range: - 15 - 55 Operating humidity range: 5- 90% RH (no condensation) Weight: Approx. 100g Size: Approx. 58 x 53 x 21.9mm / 2.3 * 2.1 * 0.9in Package list: 1 * HDMI Audio Splitter 1 * Power Cable 1 * User Manual
