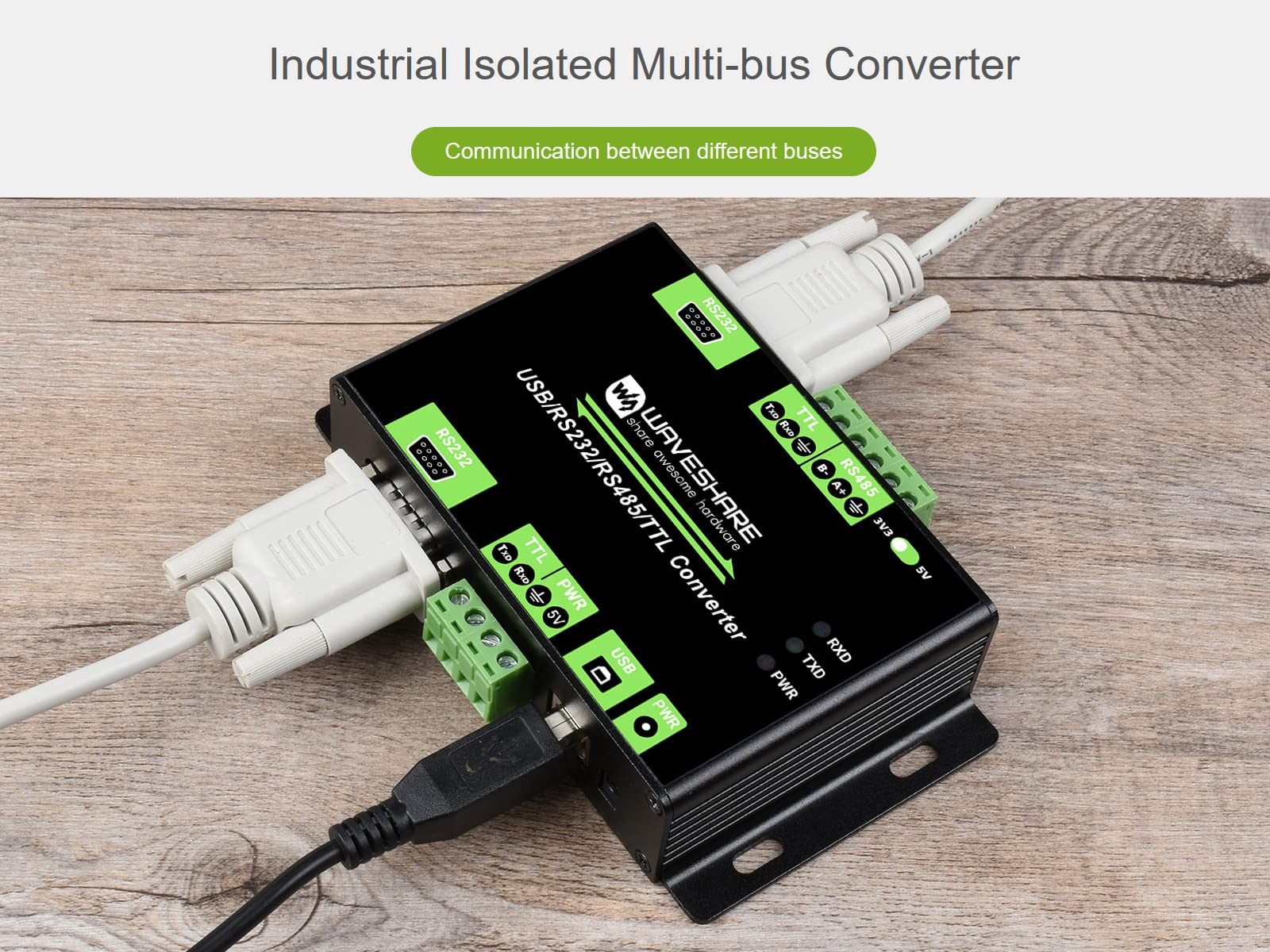

Waveshare USB/RS232/RS485/TTL Converter Industrial Isolated Multibus Converter Supports USB/RS232/TTL to RS232/485/TTL, Built-in Multi Protection Circuits, Fast Communicating, Better Compatibility

• ➤【Multi-protocol Multibus Converter】USB/RS232/RS485/TTL converter is an industrial-grade isolated converter that supports USB/RS232/TTL to RS232/485/TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode
• ➤【Better Compatibility】Adopts original FT232RL for USB communication, fast communicating, stable and reliable, supports Win11/10/8.1/8/7/XP, Mac, Linux, Android, WinCE, etc. If you encounter a system other than Windows that cannot use USB to communicate normally, you can install the corresponding system driver
• ➤【Operating Status Indicators】3x LED indicators for easily checking power connection and signal TX/RX statuses

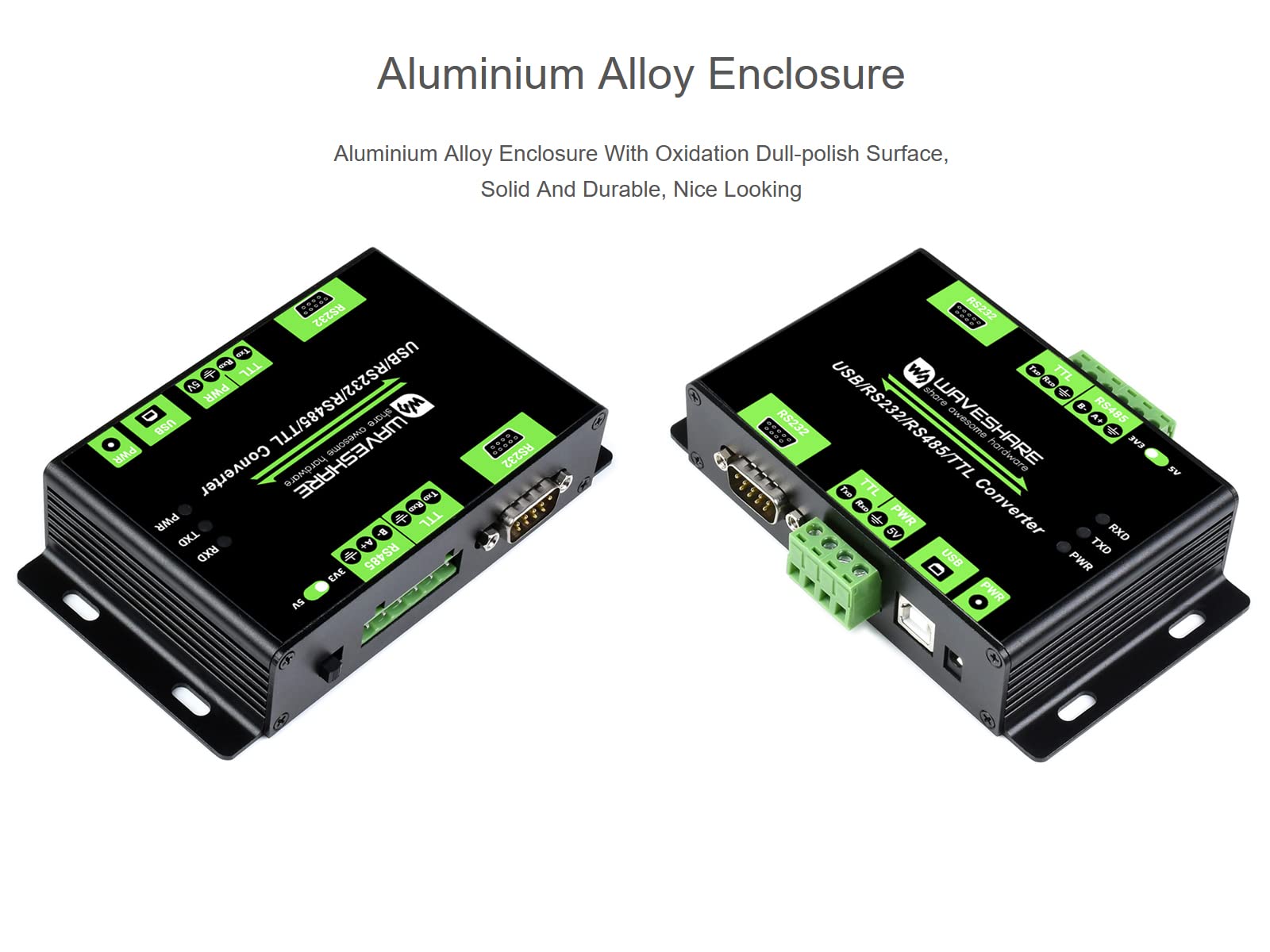

• ➤【Aluminium Alloy Enclosure】Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable, nice looking

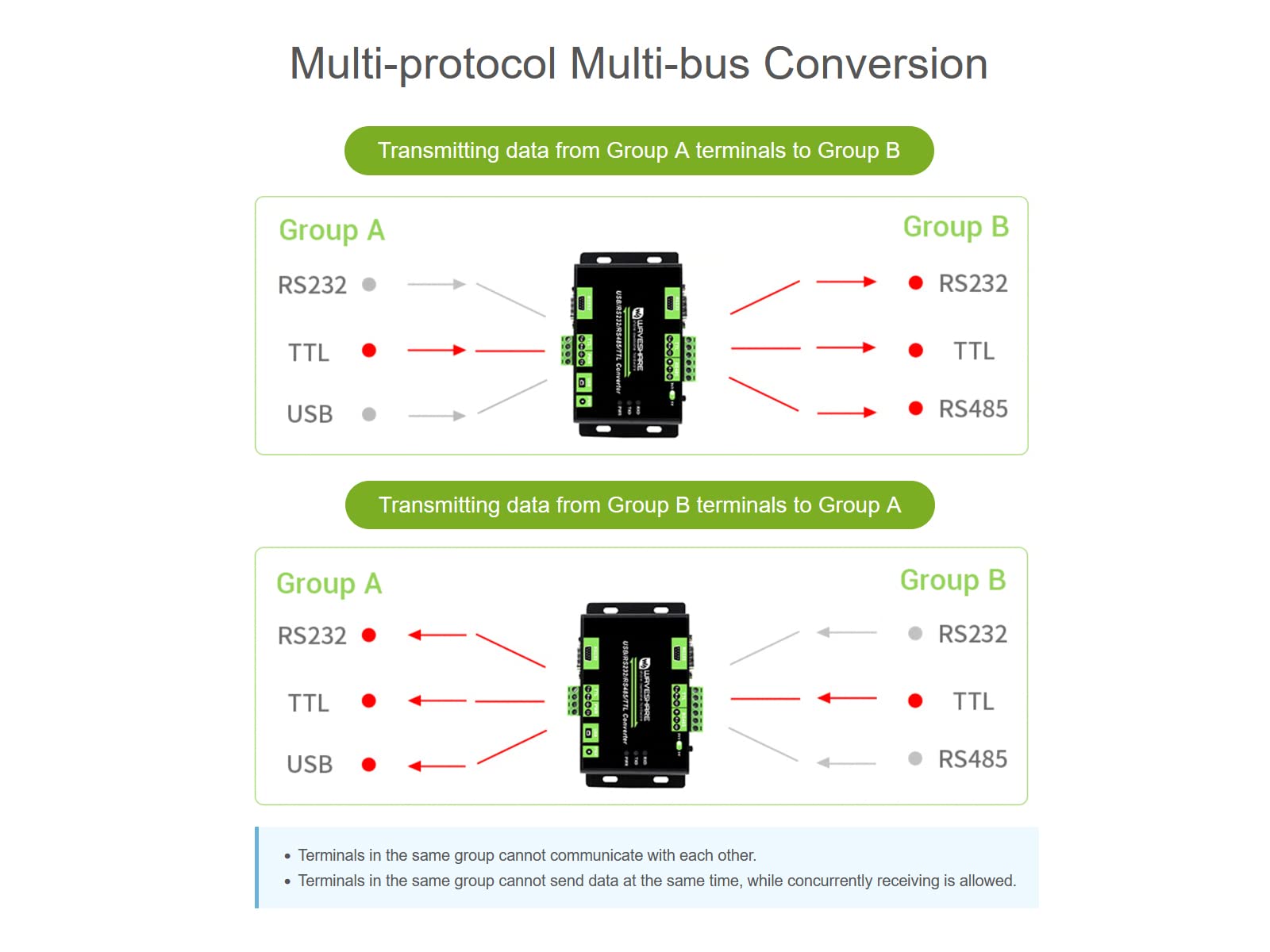

• ➤【Note】Only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time, Terminals in the same group cannot communicate with each other, Terminals in the same group cannot send data at the same time, while concurrently receiving is allowed

Overview The USB/RS232/RS485/TTL Converter is an industrial grade isolated converter that supports USB/RS232/TTL to RS232/485/TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement. Features 1. Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility 2. Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal) 3. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal 4. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption 5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic 6. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance 7. Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal 8. Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable Note 1. Development Resources and Technical Support are provided, please feel free to contact us if you have any problem! Package Content 1. Multibus Converter x1 2. USB cable (~1.2m) x1
