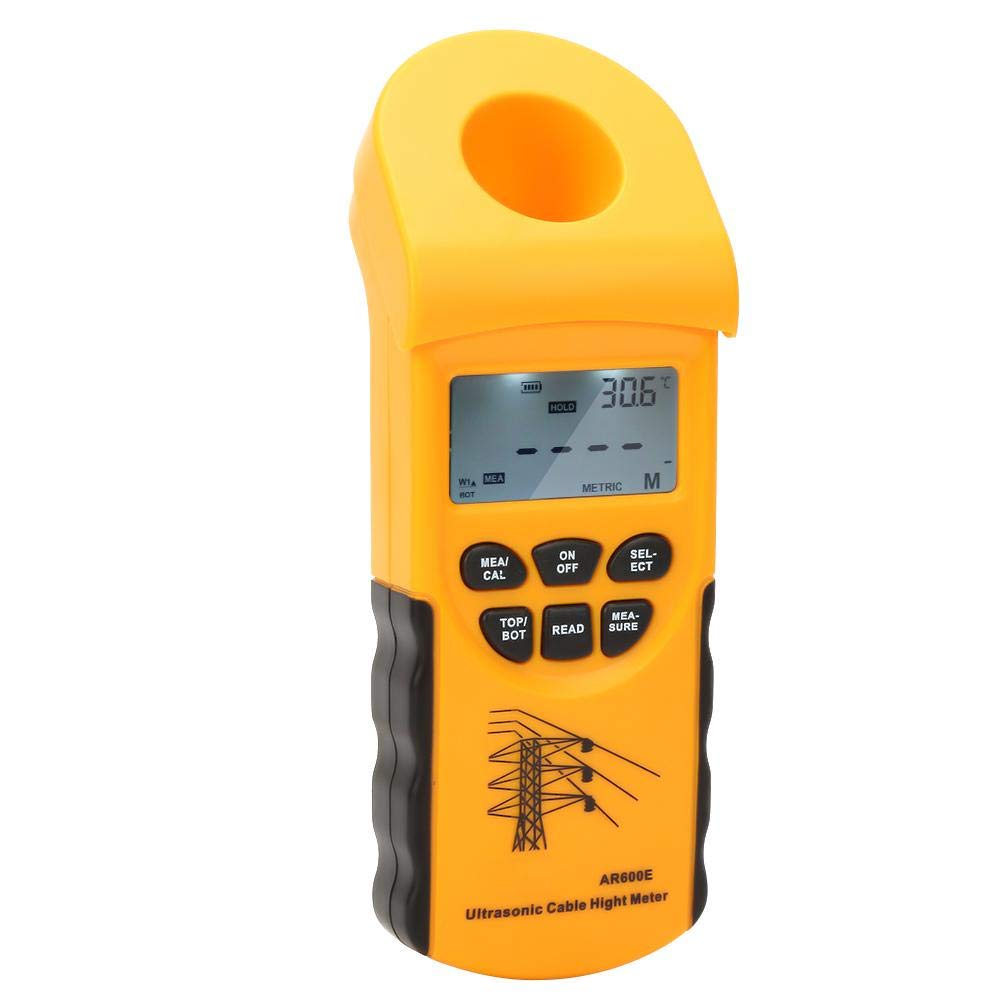

Ultrasonic Cable Height Meter, Handheld 6 Cables Measurement LCD Display Measuring Range Height Cable Tester (Height Plane AR600E

• PRODUCT SPECIFICATION: the ultrasonic cable altimeter has different measuring ranges, including for the minimum 25mm cable, for the minimum 12mm cable, for the minimum 5.5mm cable, and for the minimum 2.5mm cable.

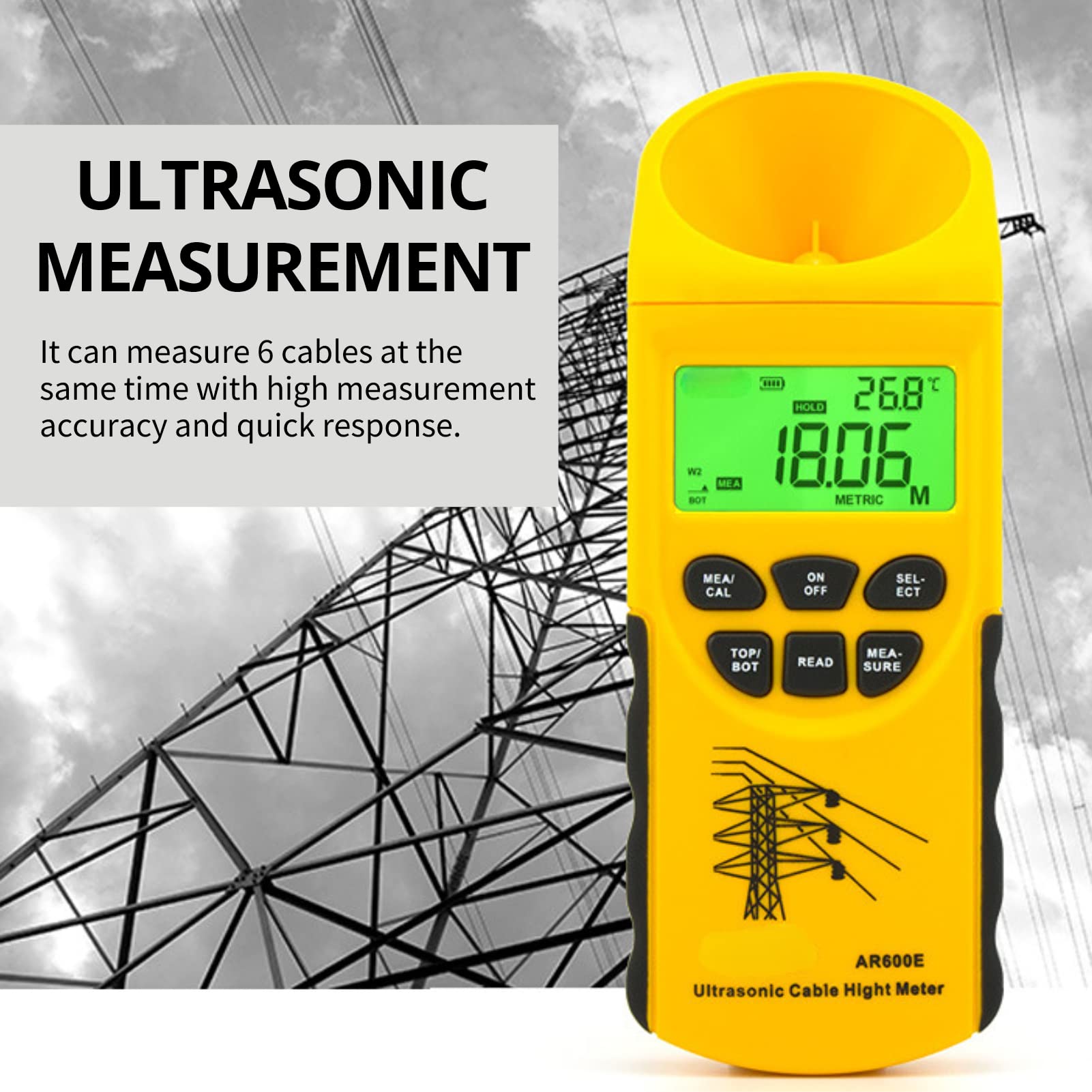

• FUNCTIONAL FEATURES: The ultrasonic cable altimeter uses large measuring sensors to simultaneously measure the height of six cables, measure the distance between cables, and use large measuring heads with high measurement accuracy. It is easy to align the cable position and watch the measurement results.
• PRODUCT DESCRIPTION: used to measure the height of up to 6 cables. The handle type level meter is easy to measure, align the measuring position and read the measuring results.

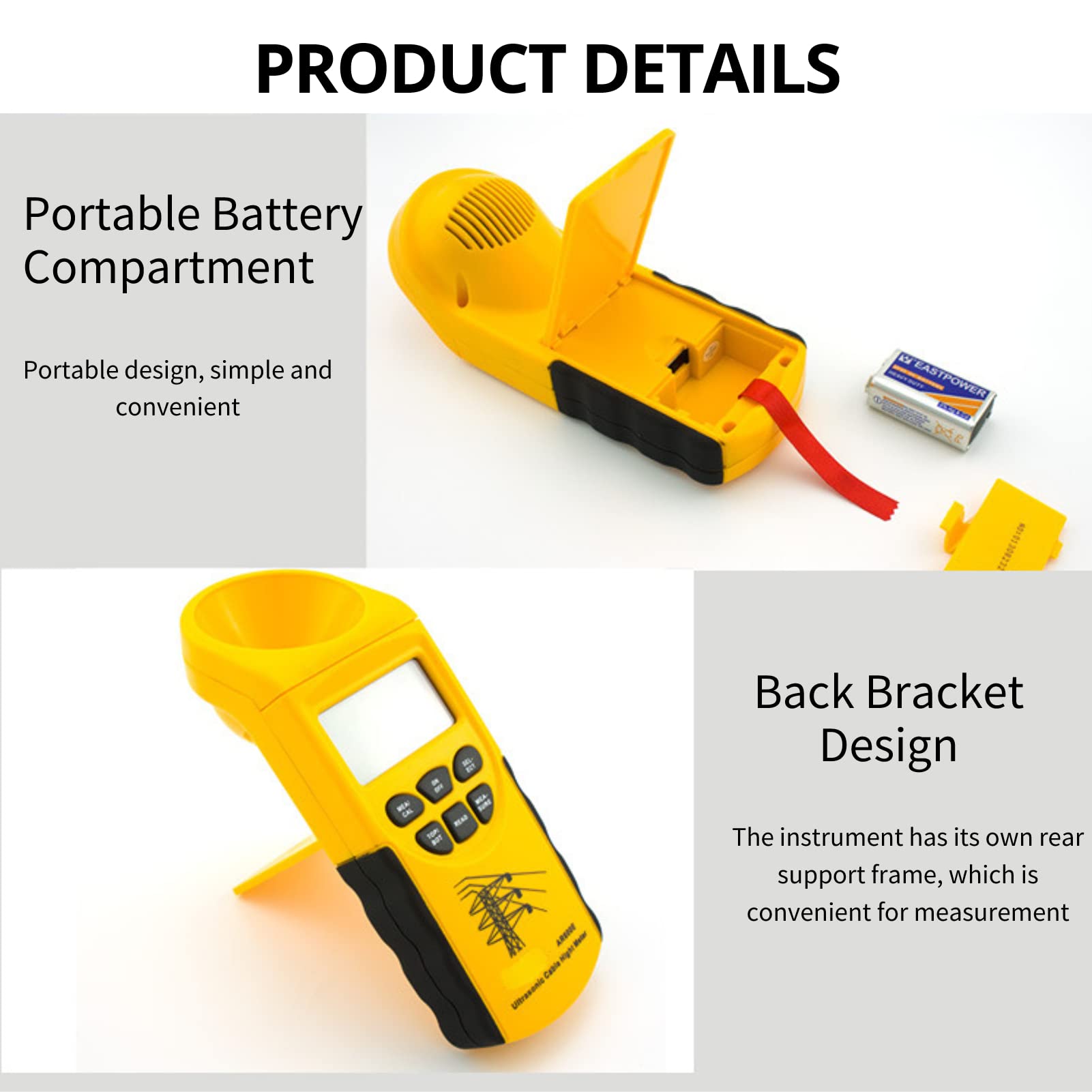

• BACK BRACKET DESIGN: The instrument is equipped with a back bracket, which is convenient for measurement, and a portable battery compartment. The portable design is simple, convenient, compact and portable.
• WIDELY APPLICABLE: it is applied to the measurement of power and communication transmission cables, electric cables for electric locomotives and trolleys, large industrial enterprises, transmission cables for power transmission and transformation, and wire and cable in different fields. As well as the construction site, trees, tower level and height measurement.

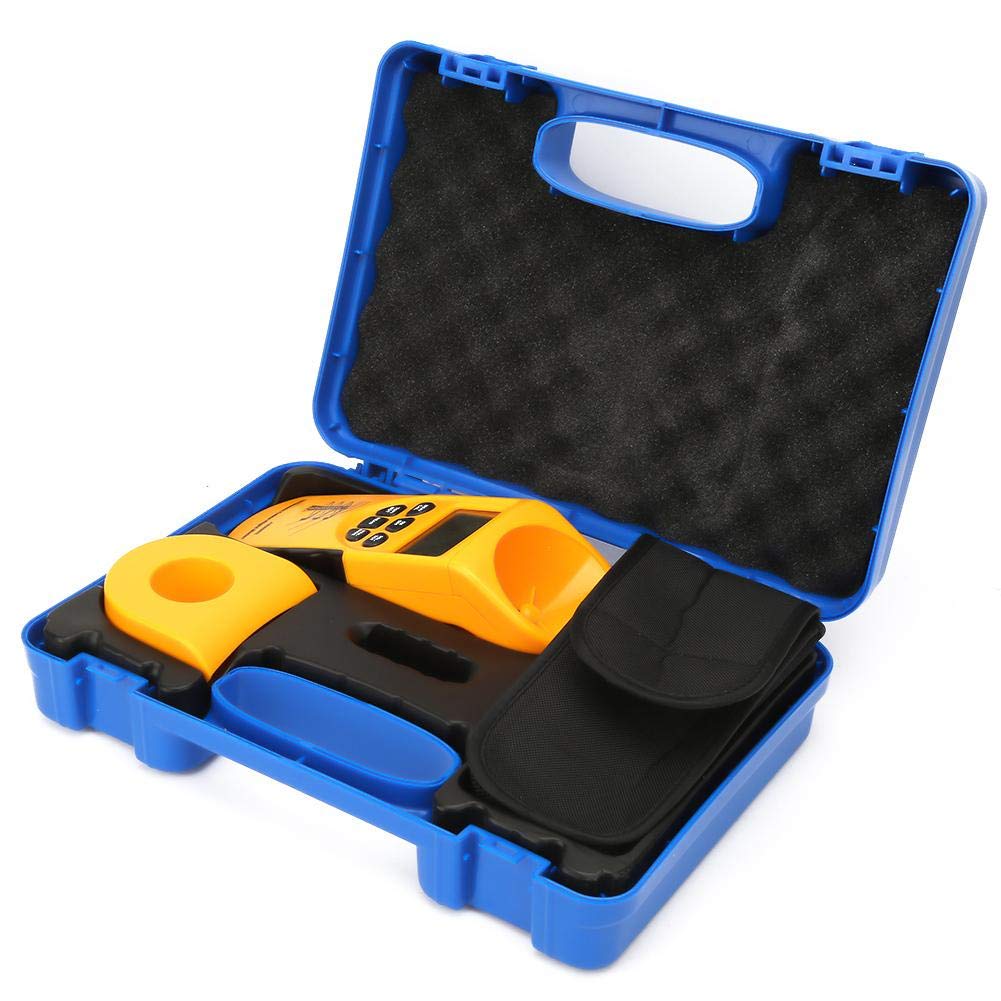

Features: 1. For measuring the height up to 6 cables together 2. It is convenient to take measurement, easy to aim at the measuring position and to read measuring results 3. Uses large measuring sensor, it has high accuracy. 4. Suitable for measuring the distance between wire and wire 5. Compact appearance and it is convenient to carry Specification: Condition: Brand New Technical parameter Technical specifications Range (25mm cable min) Range (12mm cable min) Range (5.5mm cable min) Range (2.5mm cable min) Horizontal measuring range Operating temperature range -10¡æ-40¡æ Resolution (range<10m) 5mm Resolution (range>10m) 10mm Measuring accuracy 0.5%¡À2d Minimum space between wires 150mm BOT mode: measuring the height of the the most lower 6 cables Yes TOP mode: measuring the height of the most higher 6 cables Yes Auto power off delay 120S Low battery alarm 7.2V¡À0.2V Imperial & metric unit transition Yes Displays real time temperature. Yes Operating voltage 9V 6F22(not included) Size: Approx. 75 * 72 * 200mm / 3.0 * 2.8 * 7.9in Weight: Approx. 896g / 31.6oz Package List: 1 * Cable Height Meter 1 * Bracket 1 * Black Bag 1 * Plastic Box
