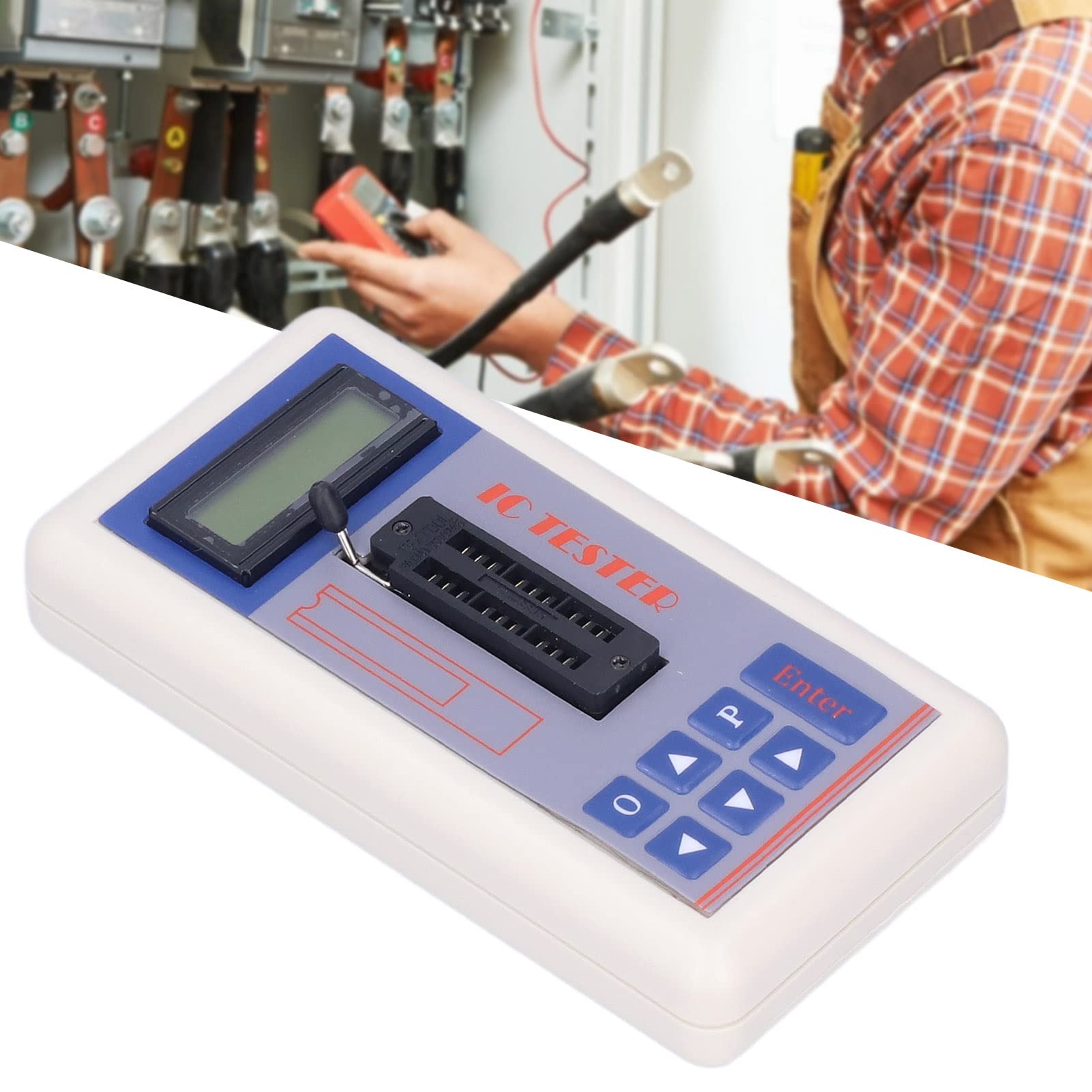

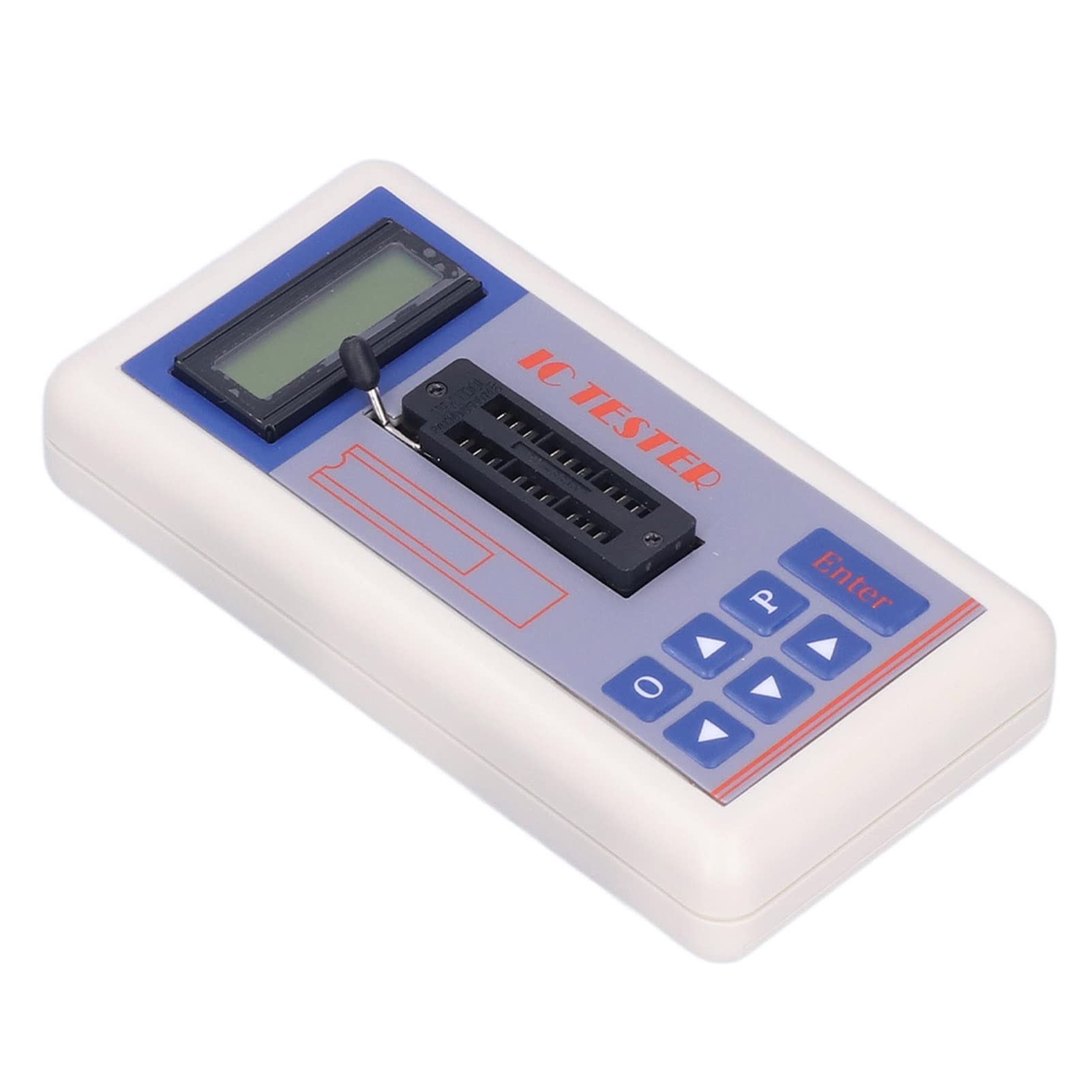

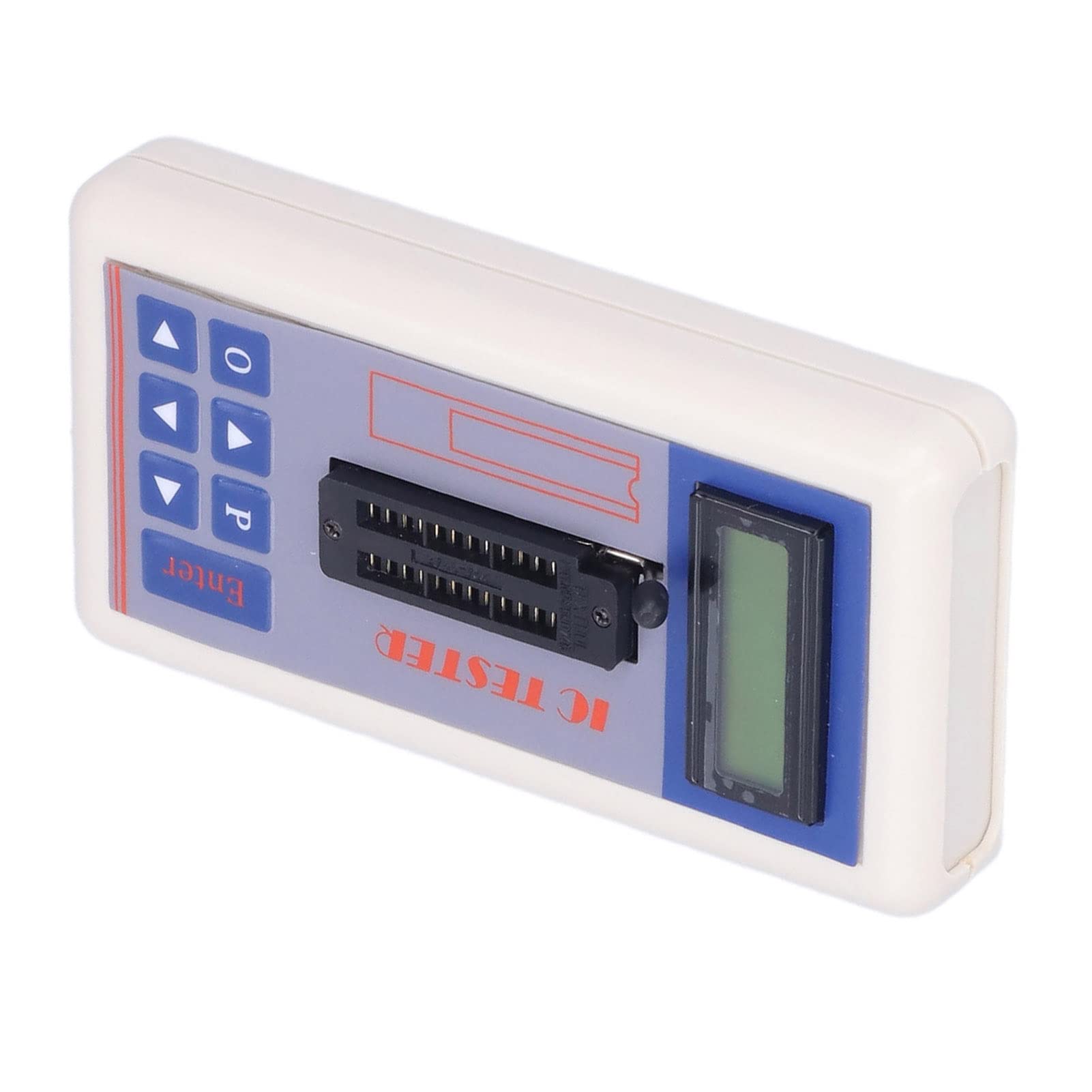

TSH‑06F Integrated Circuit Tester Multi Functional IC Transistor Meter with 5V 3.3V AUTO Modes for Microelectronics Engineers Maintenance (no terminal)

• Multiple Measurement Modes: Multifunctional integrated circuit tester is a professional instrument designed for microelectronics engineers and maintenance personnel. Different test modes can be selected, such as 5V mode, 3.3V mode, AUTO mode, etc.
• Main Uses: 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifier, interface chip, optical coupler, automatic transistor identification, voltage regulator identification, etc.

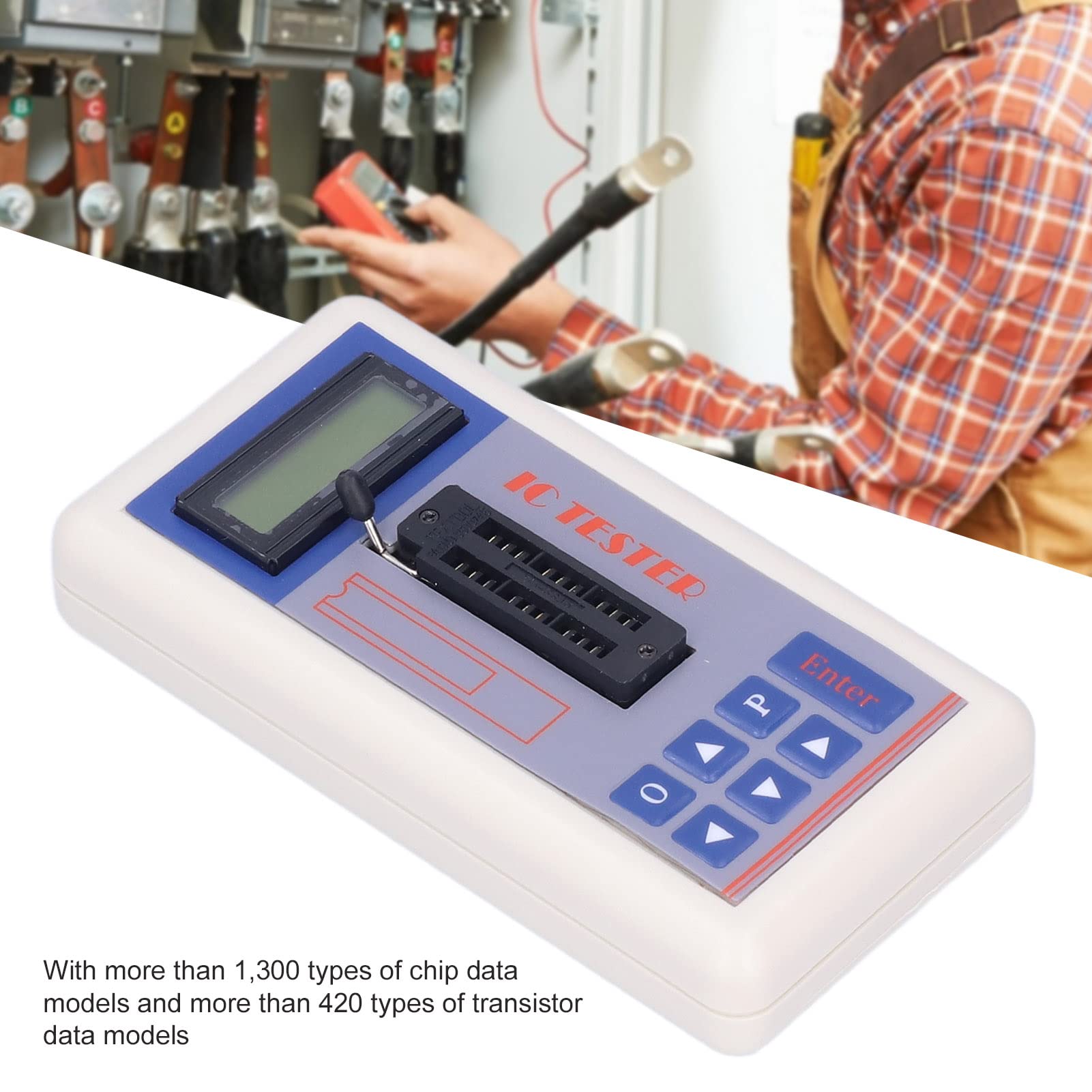

• Efficient Testing: The integrated circuit meter includes more than 1300 types of built-in chip data models and more than 420 types of transistor data models, covering most common devices within 24 pins, greatly reducing workload and improving work efficiency.
• Various Applications: Test types include logic device test, interface driver device test, operational amplifier, comparison test, transistor identification, voltage regulator value test, optical coupler.
• Automatic Shutdown: The integrated circuit tester automatically shuts down after 60 seconds without any operation. Compact and portable design, suitable for circuit testing.

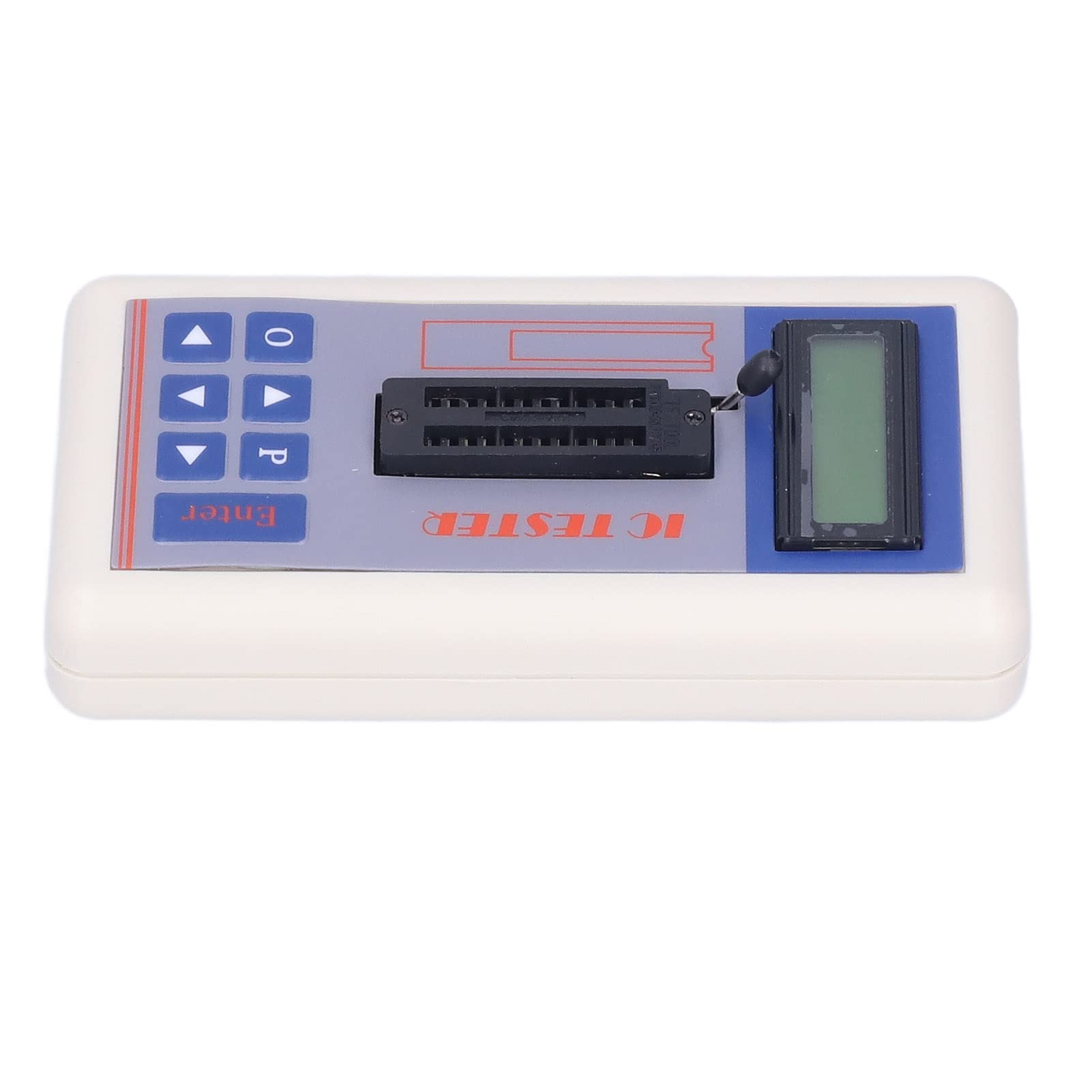

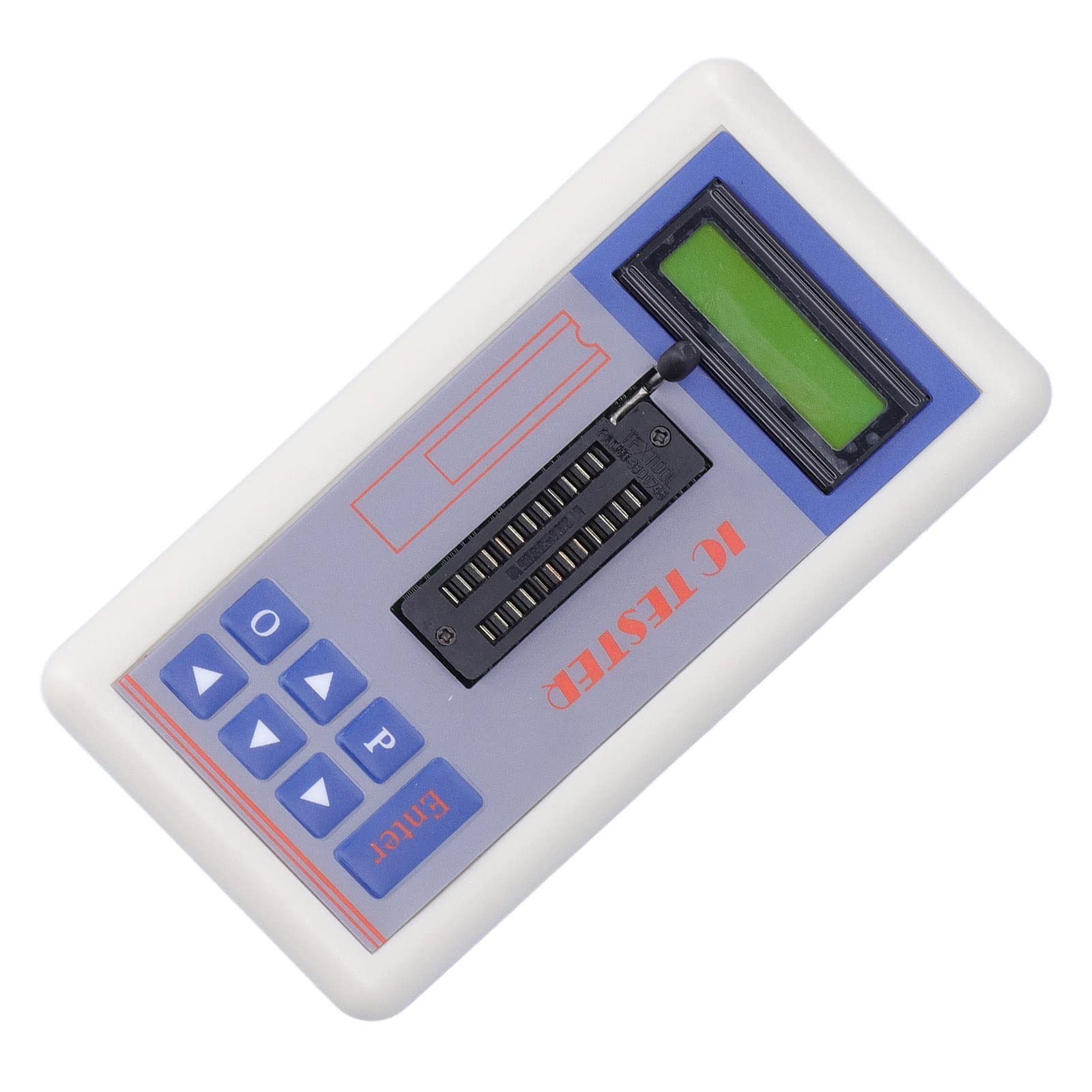

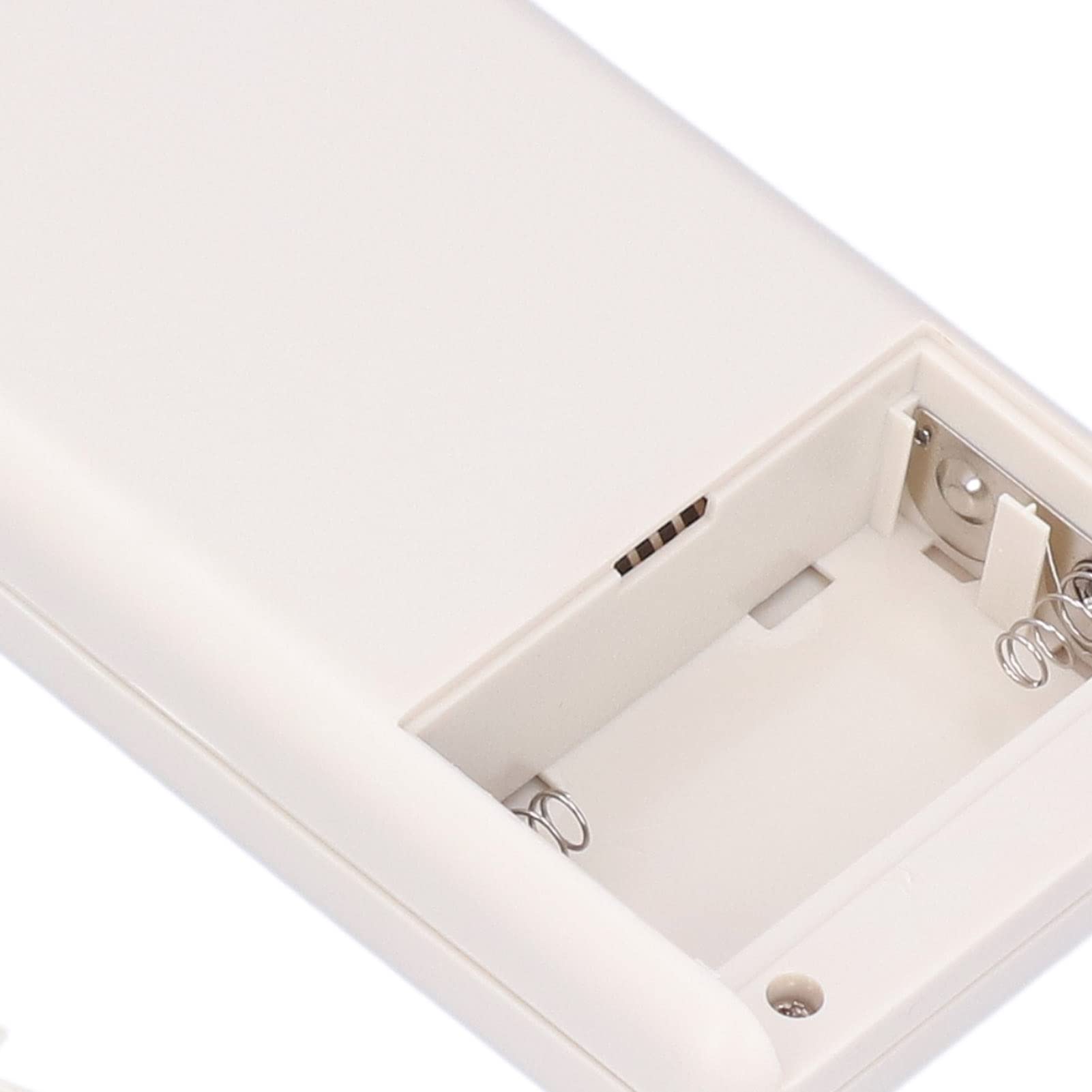

Specification: Item Type: Integrated Circuit Meter Material: ABS Model: TSH-06F Battery: 2 x 1.5V AA Battery (Battery Not Included) How to Use: With7buttonsonthepanelwhichareup,down,left,rightandEnter,andshortcutkeysOandP. Upanddownkeysareusedtoadjustthecatalogandchangethemodelnumber,leftandrightkeysareusedtomovethecursorleftandrighttoselecttheitemtobechanged.Enterkeyisusedtoswitchthemachineandexecutetestcommands.Openthebatterybackcover,putin2pcsAA1.5Vbatteries(batterynotincluded),andthenclosethebatterycover.PresstheEnterkeyformorethan2secondstoboot,andthecurrentbatteryvoltagewillautomaticallybedisplayedwhenthebatteryisturnedon.Pleasereplacethebatterywhenthebatterypoweristoolow.Thelowvoltagewillaffectthereliabilityandprotectionofthetestresultsandautomaticallyshutdown. PowerOn:PresstheEnterkeyformorethan2secondstopoweron. Package List: 1 x Tester (Battery Not Included) 3 x Terminal 1 x Manual or 1 x Tester (Battery Not Included) 1 x Manual
