TRAMILY Solar Panel Adaptor Cable Y Branch Connector Solar Cable Connector M/FFF & F/MMM Solar 1 to 3 Branch Adapter (1 Pair)

• Y Branch Parallel Connector: 1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM). It is compatible with solar connectors in 10AWG to 14AWG. Fast and easy parallel wiring solution for solar panels

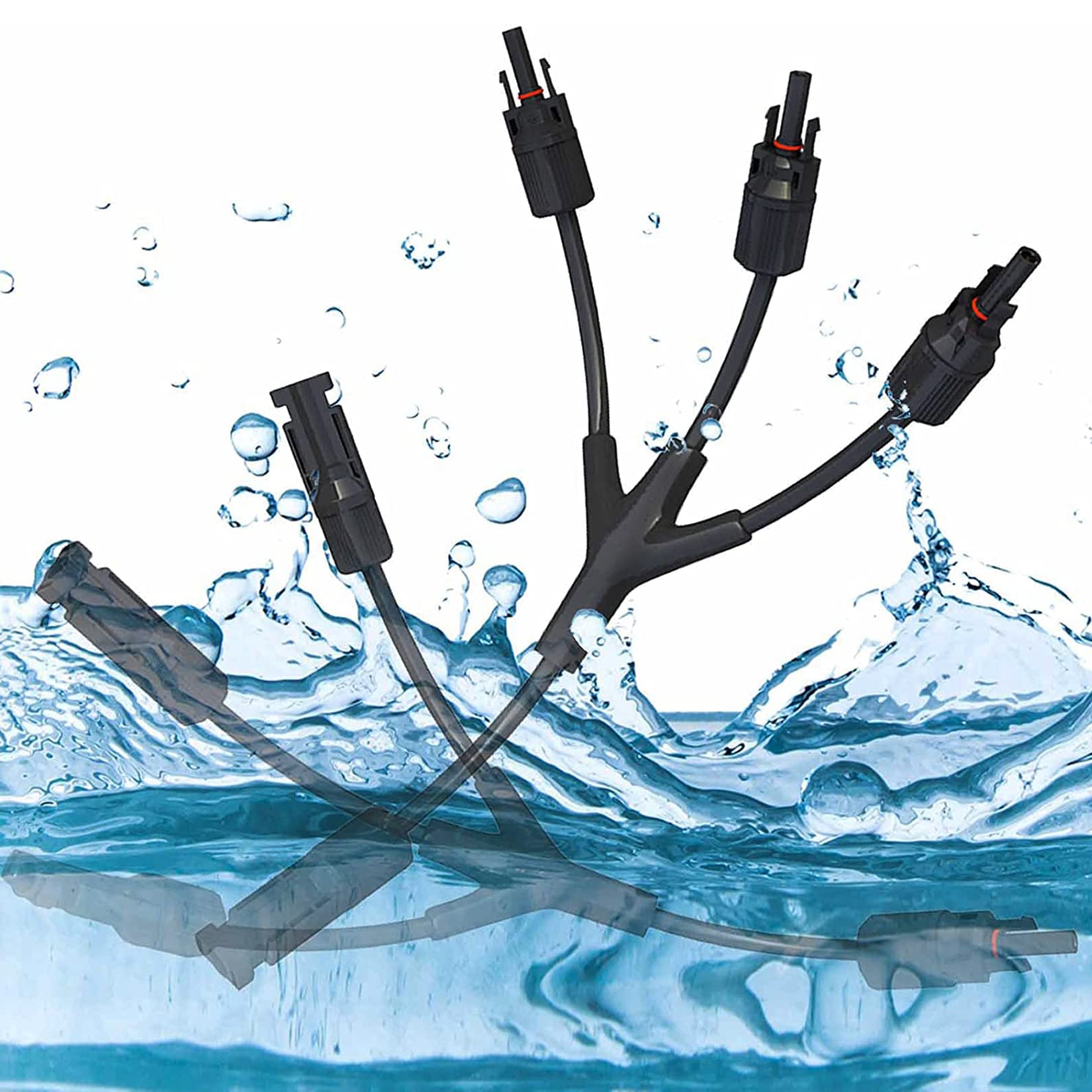

• Excellent Property: The waterproof ring on the connection is ideal for insulating water and dust to prevent corrosion. IP67. Rated Voltage: 1000VDC. Contact Material: Copper, Tin Plated with excellent aging resistance and UV resistance, can be used in harsh environments
• Special Design: The connector is connected by riveting. Designed with a stable self-locking structure. A stable self-locking system that is easy to lock and open
• Easy to Install: Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. Suitable Single Core Cable Section: 14-10AWG (1.5mm² -- 6mm²)
• Complete packaging: TRAMILY is dedicated to provide customers with superior quality product through constantly improvement, package includes 1 pair of 1 to 3 Extra Long Solar Y Branch cable connectors

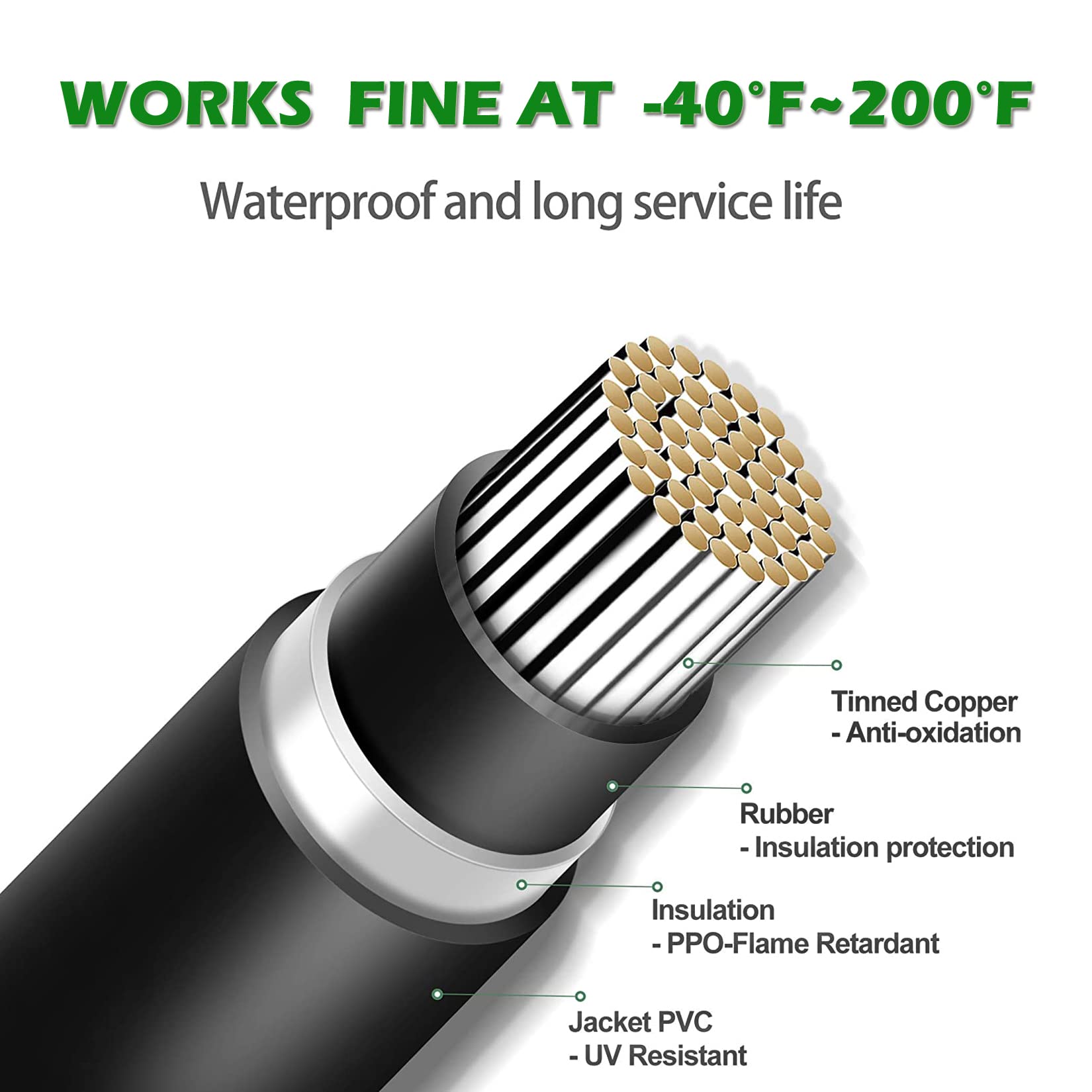

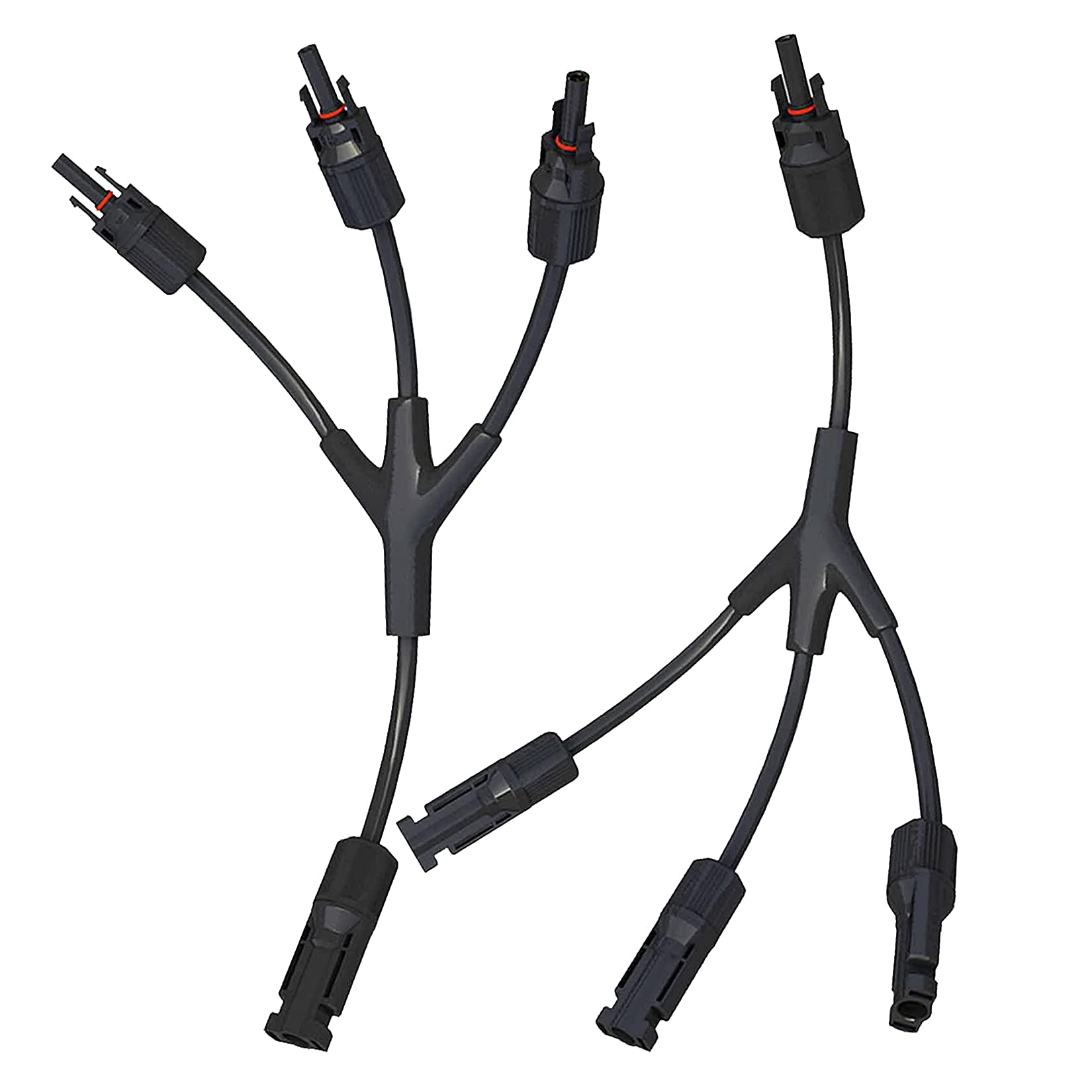

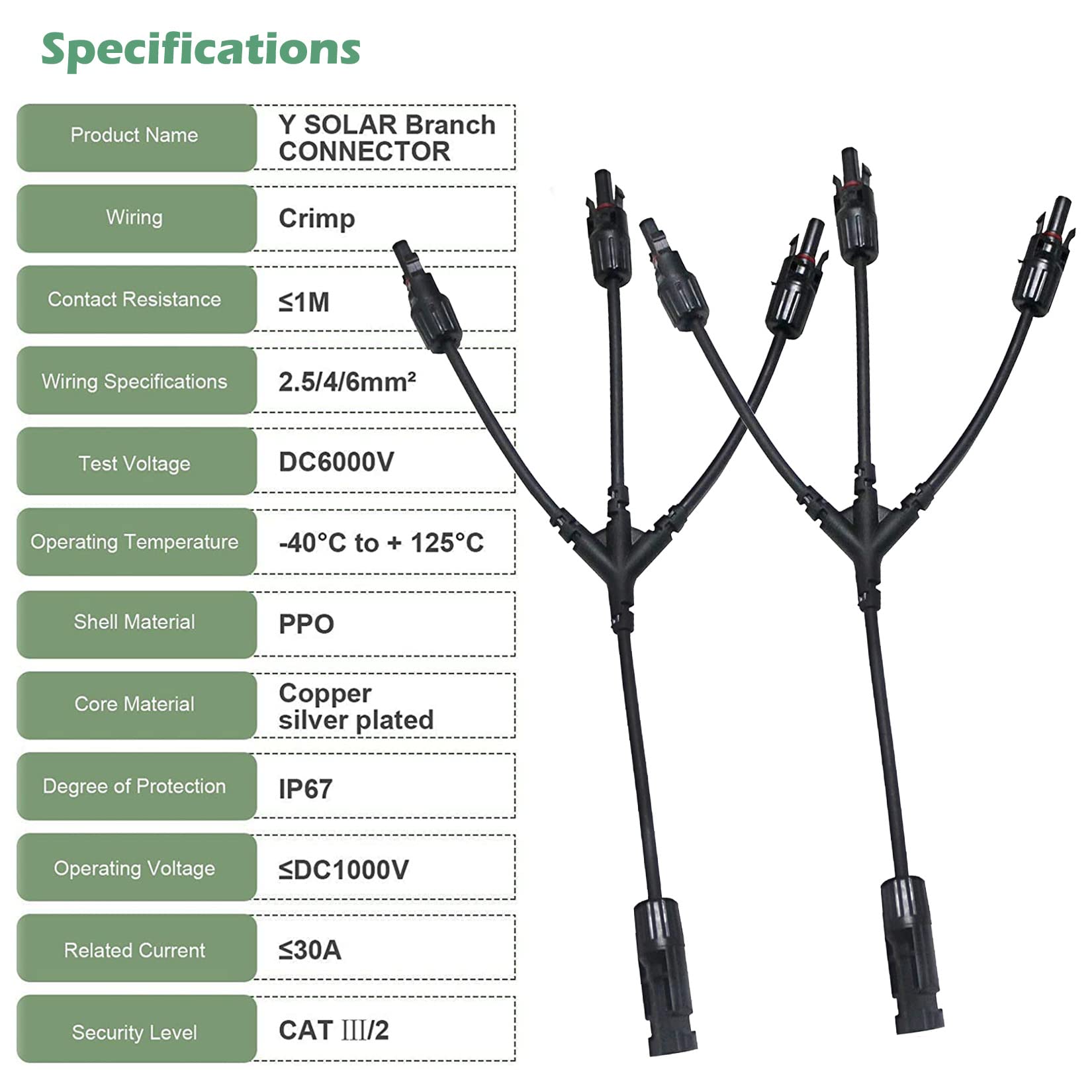

Feature: 1 Pair of Y Type Connectors :1 female to 3 male (F/M/M/M) and 1 male to 3 female (M/F/F/F) It can be used in harsh environment, with excellent aging resistance and UV endurance. The extension cable takes over the crimp connection terminal with good abrasion resistance and excellent softness. Load capability with big current and high voltage Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument Resistance of extra high & low temperature and fireproof Specification: Rated Current: 30A Rated voltage: 1000VDC Contact resistance: ≤1mmΩ Waterproof degree：IP67 Flame class: UL94-VO Safety Class: Ⅱ Withdrawal force: ≥50N Insertion force: ≤50N Insulation material: PPO + PA Connecting system: crimping connection Contact material: copper, tin plated Temperature range: -40 ℃ ~ +90 ℃
