Tosuny Power Amplifier,45W 40db SSB Linear HF/FM/CW/HAM Power Amplifier DIY Kit for DIY enthusiasts.

• 【Basic use】ommonly used in SSB, AM linear power amplifier, CW, FM, power amplifier, and the most basic signal amplification.

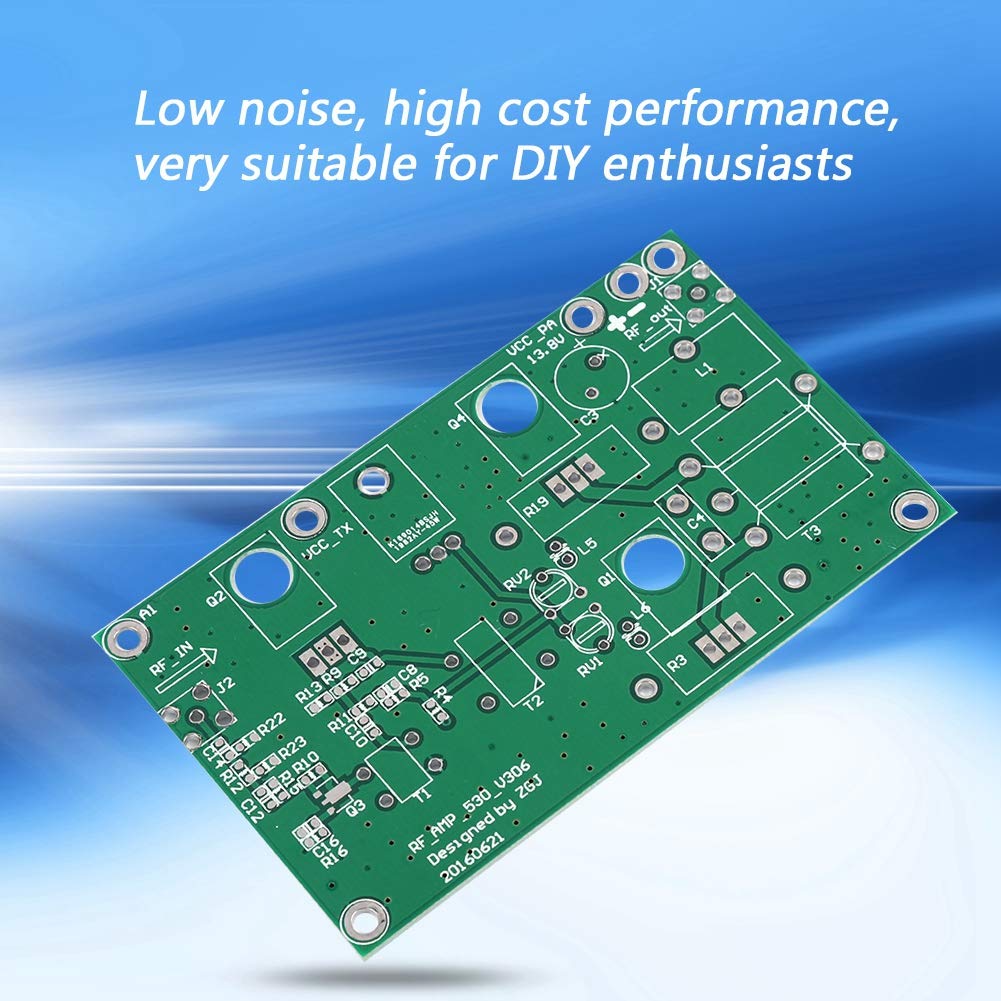

• 【Suitable for DIY】Low noise, high cost performance, very suitable for DIY enthusiasts.
• 【Easy to use】Easy to install and operate.

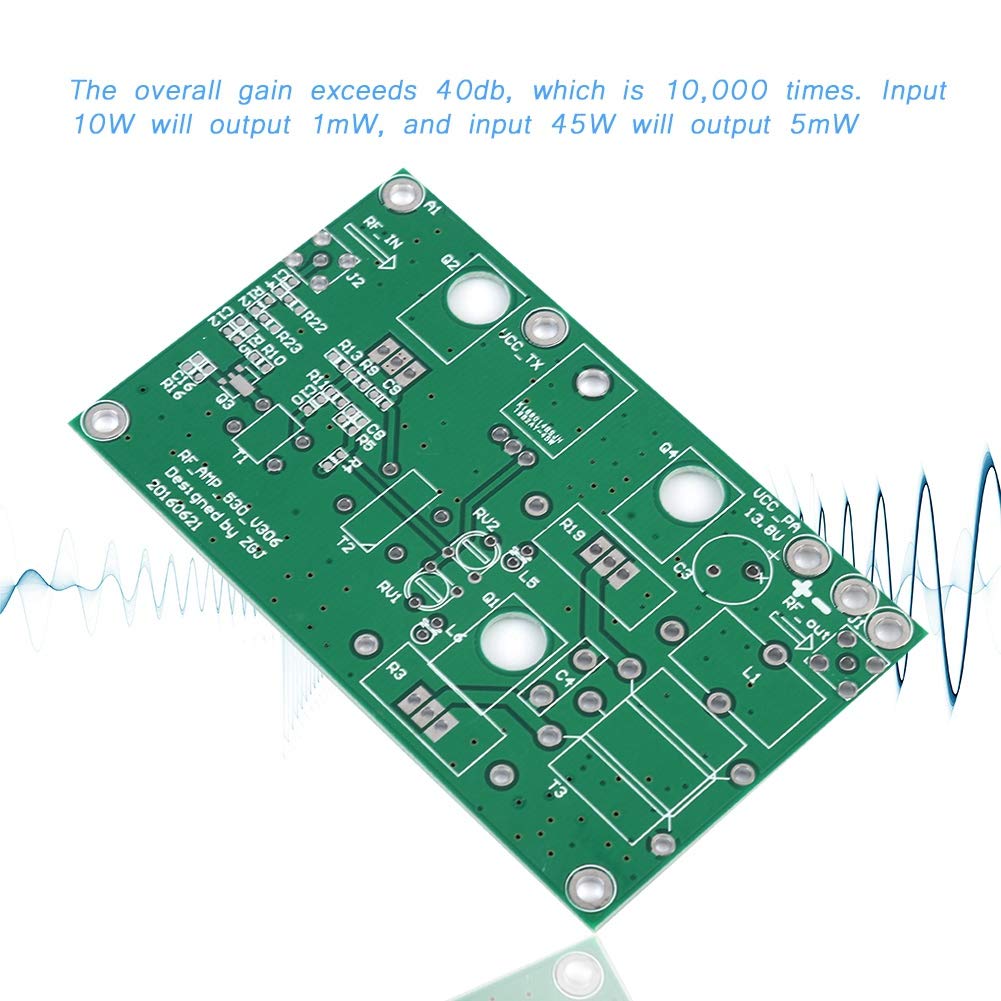

• 【Linear power amplifier for ssb】The overall gain exceeds 40db, which is 10,000 times. Input 10W will output 1mW, and input 45W will output 5mW.

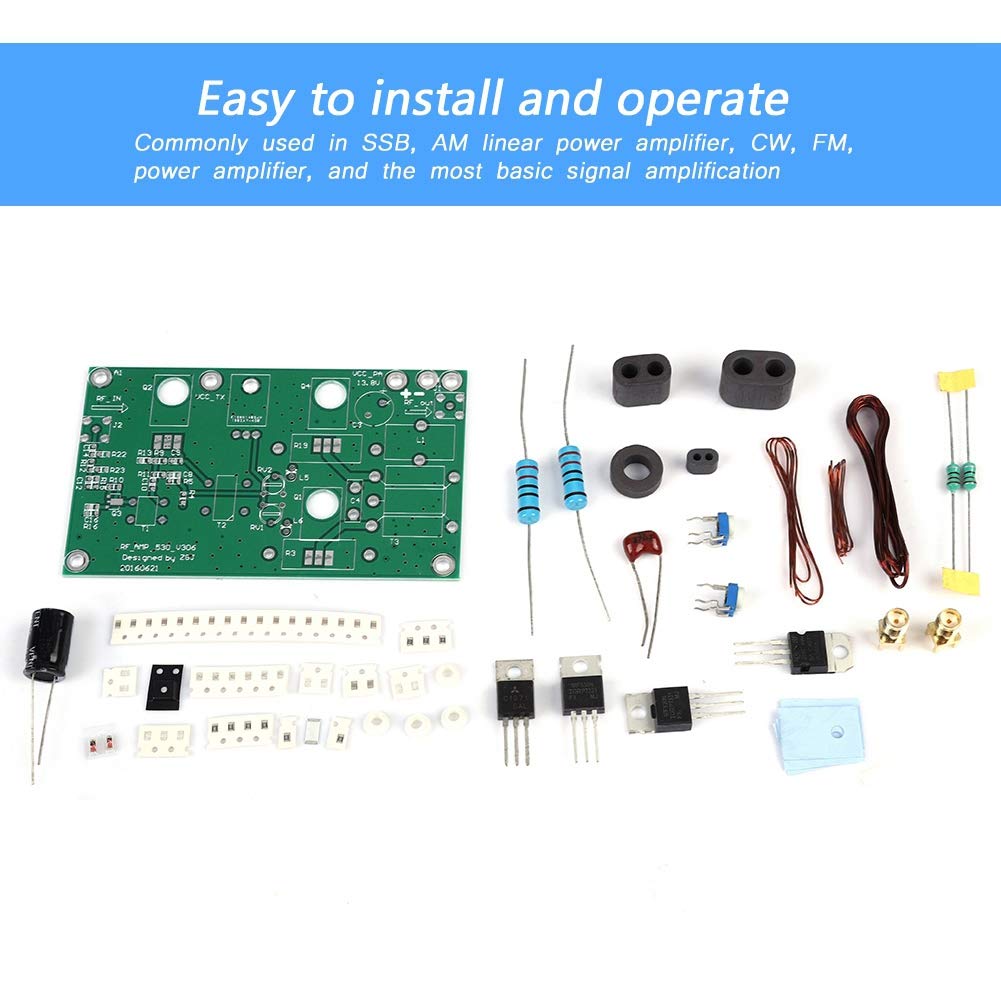

• 【Please assemble by yourself】Our products are shipped as parts, not including radiators, please assemble them yourself.

Features: 1. Commonly used in SSB, linear power amplifier AM, CW, FM, power amplifier and amplification of the most elementary. 2. Easy to install and use. 3. Low noise and high cost performance, very suitable for DIY enthusiasts. 4. The overall gain exceeds 40 dB, which is 10,000 times.The 10W input will produce 1mW and the 45W input will produce 5mW. 5. Our products are shipped in spare parts, not including radiators, please assemble them by yourself. Specification: Input power: 1-5 mW Output power: 45 W (maximum) Input voltage: DC 13.8V 10A or more Maximum output power: 57 W (without heatsink) Output impedance: 50 ohms, adjustable between 10-200 ohms as required Input frequency range: -30 MHz (HF channel) Input/Output Interface: Standard SMA Interface, External Threaded Hole Output power of frequency input range: 3.500MHz ---- 54W. 7.050MHz ---- 56W 10,000 MHz ---- 57 W. 14.270MHz ---- 55W 21.400MHz ---- 41W 24,000 MHz ---- 37 W. 28.100MHz ---- 25W. 29.600MHz ---- 20W Weight: approx. 62 g. Package list: 1 x DIY power amplifier kit.
