Terminal Strip Blocks, 4-level Junction Box 407 Terminal Distribution Box 125A 500V 4 Input 24 Output Din Rail Terminals Case with Transparent Cover

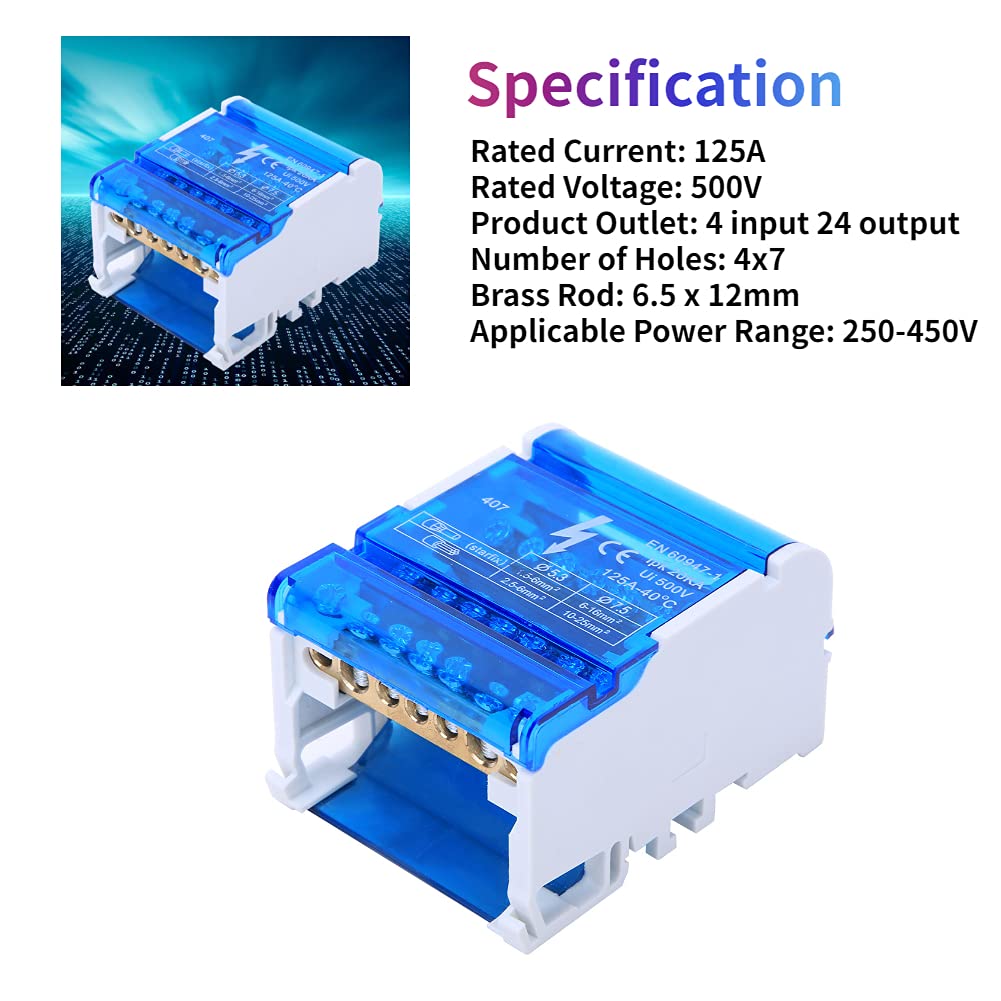

• ❀❀❀『Specification』Model: 4-level junction box 407; Rated Current: 125A; Rated Voltage: 500V; Product Outlet: 4 input 24 output; Number of Holes: 4x7; Brass Rod: 6.5 x 12mm; Applicable Power Range: 250-450V

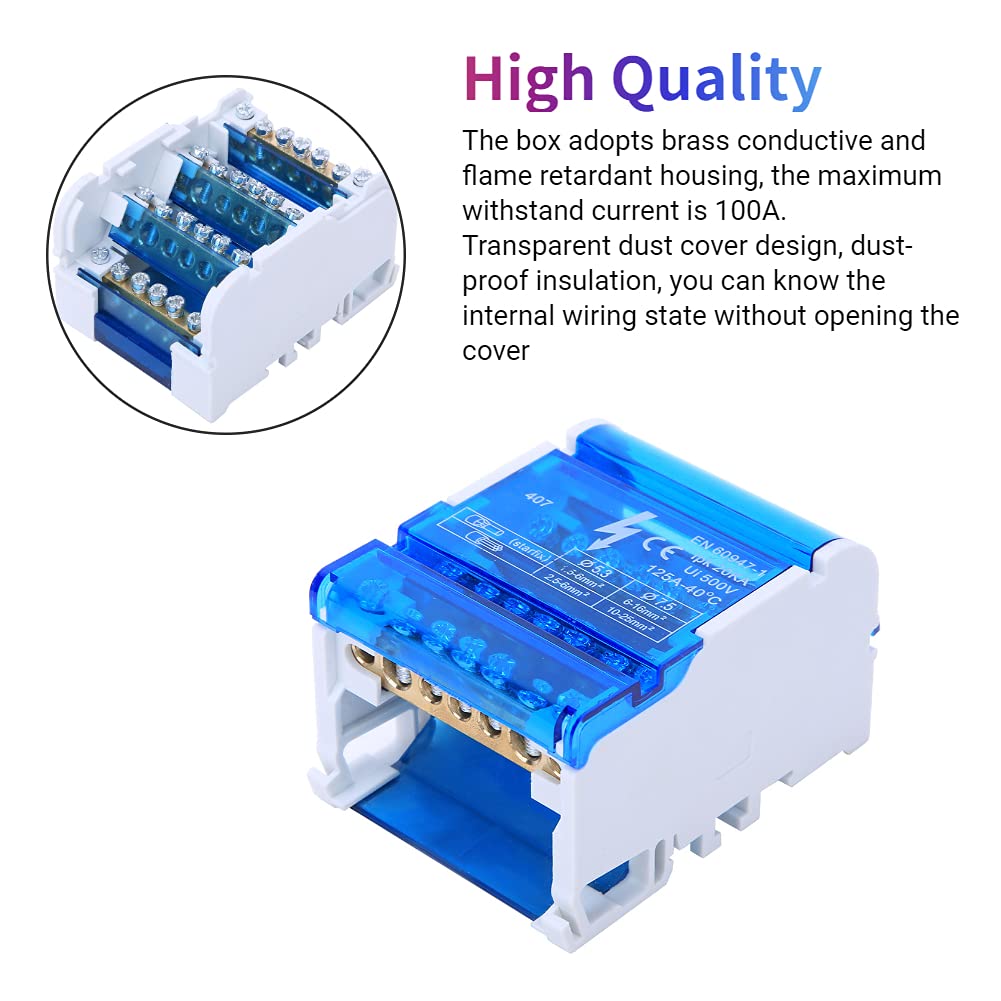

• ❀❀❀『High Quality』The box adopts brass conductive and flame retardant housing, the maximum withstand current is 100A. Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover

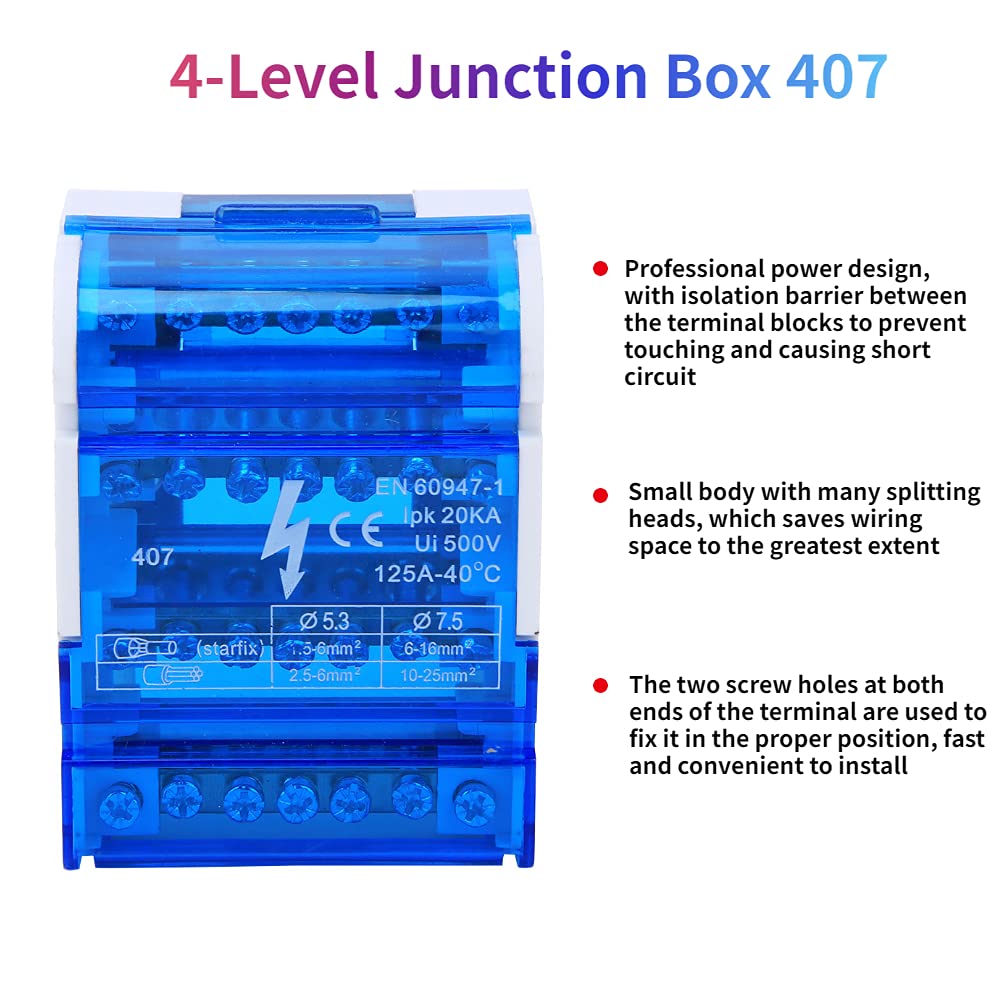

• ❀❀❀『Safe and Reliable』Professional power design, with isolation barrier between the terminal blocks to prevent touching and causing short circuit
• ❀❀❀『Save Space』Small body with many splitting heads, which saves wiring space to the greatest extent

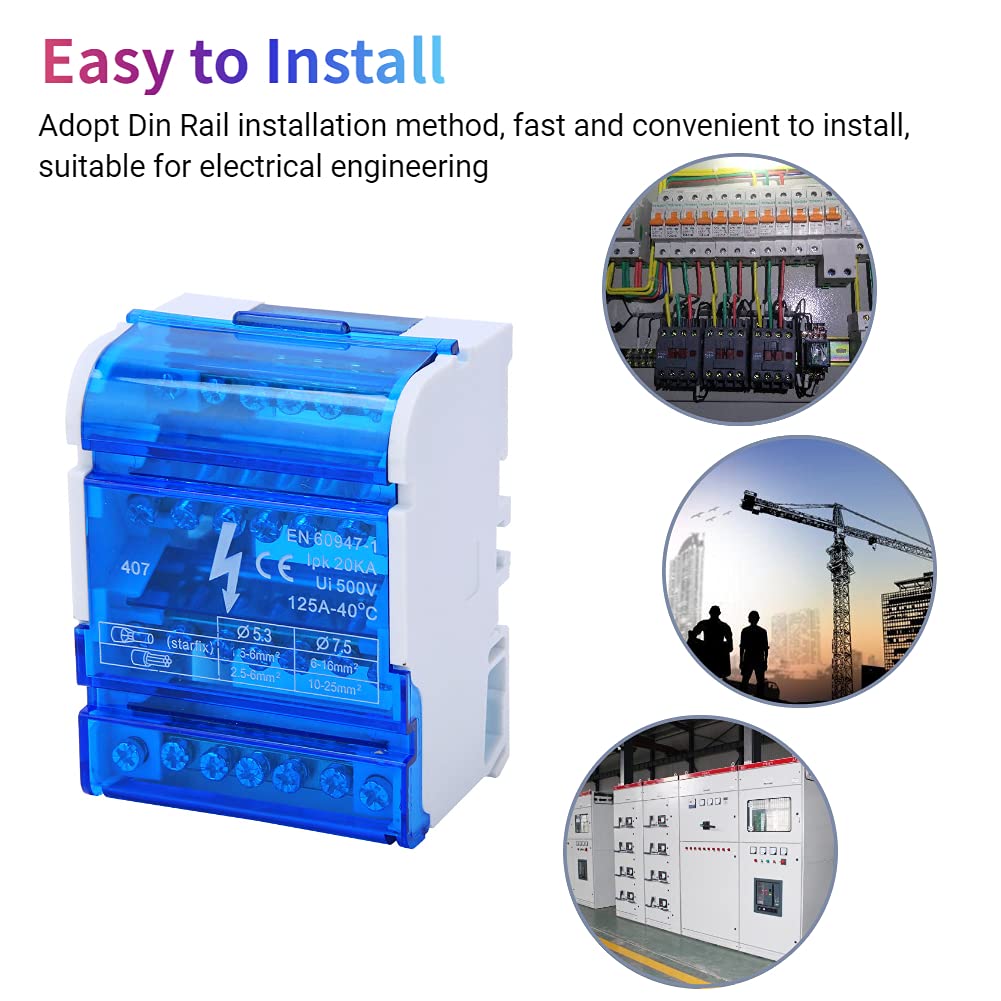

• ❀❀❀『Easy to Install』Adopt Din Rail installation method, and the two screw holes at both ends of the terminal are used to fix it in the proper position, fast and convenient to install, suitable for electrical engineering

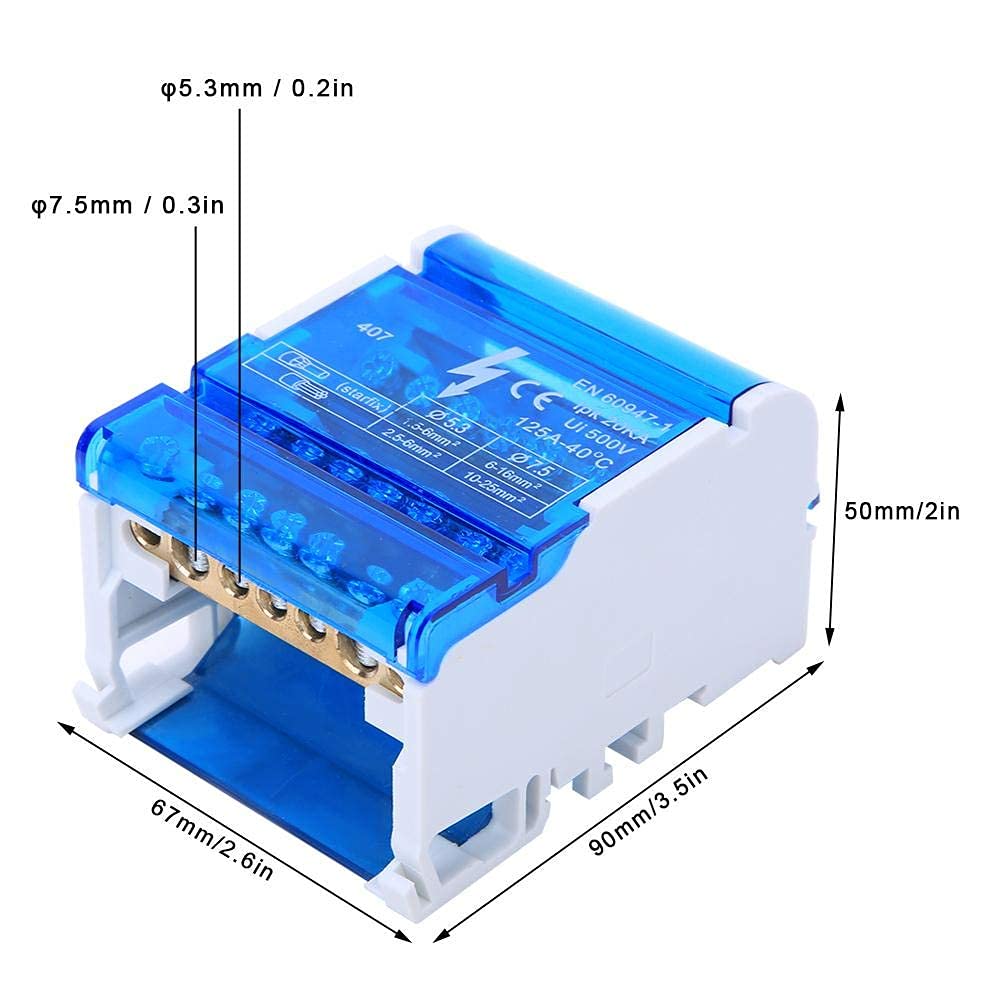

Specification: Item Type: Terminal Distribution BoxModel: 4-level junction box 407 Rated Current: 125A Rated Voltage: 500V Type: Terminal block / Wiring block (strip) Product Outlet: 4 input 24 output Number of Holes: 4x7 Brass Rod: 6.5 x 12mm Metal Material: Brass, primary color Shell Material: High quality PA nylon material Installation: Din Rail Application: Cabinet Application Area: Electrical engineering Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance Working Temperature: -30 ~ 110 Applicable Power Range: 250-450V Size: Approx. 67 x 90 x 50mm / 2.6 x 3.5 x 2in Package List: 1 x Terminal Distribution Box
