Temperature/humidity sensor, easy to install Accurate 0-10V analog thermometer Hygrometer Connect the housing plug to the rail

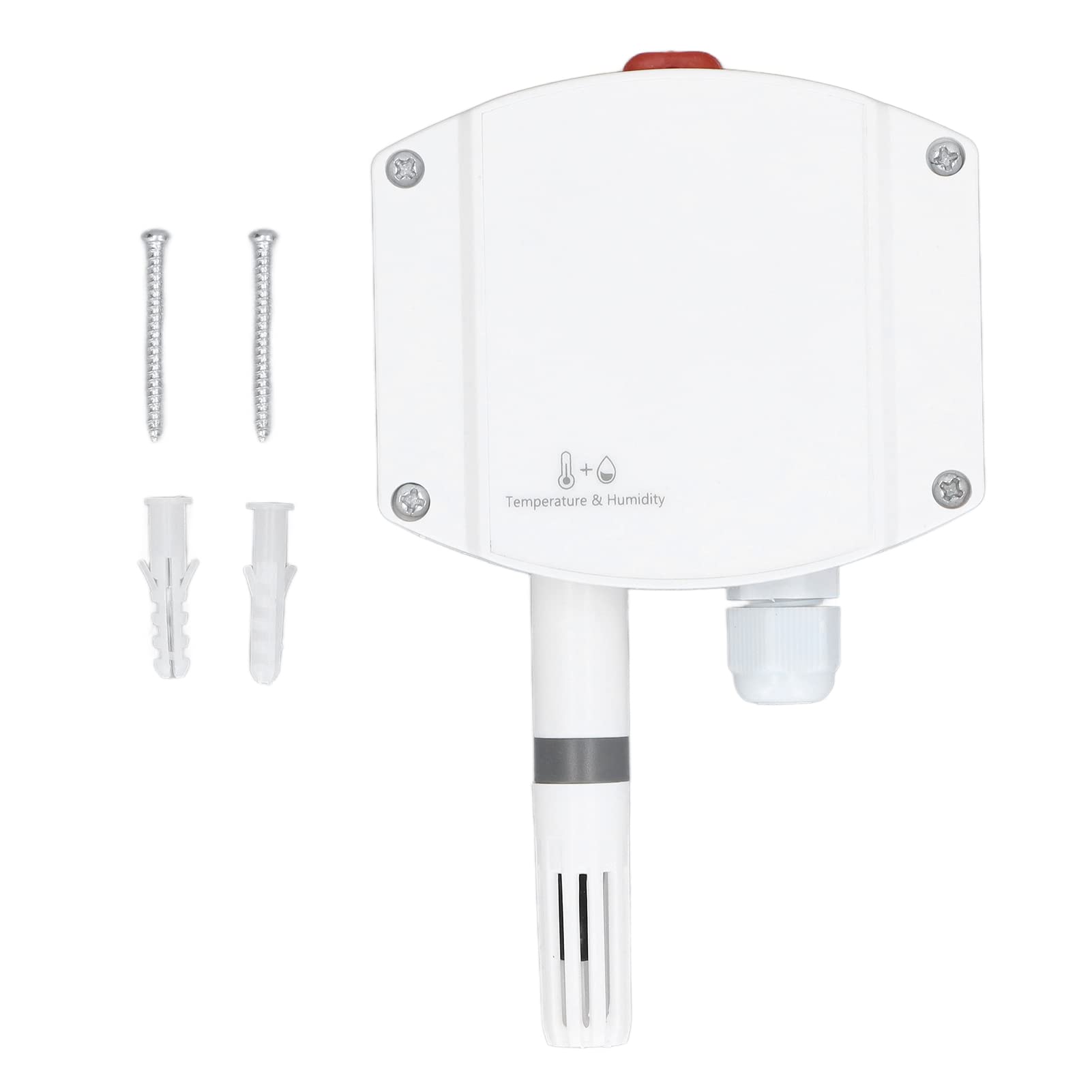

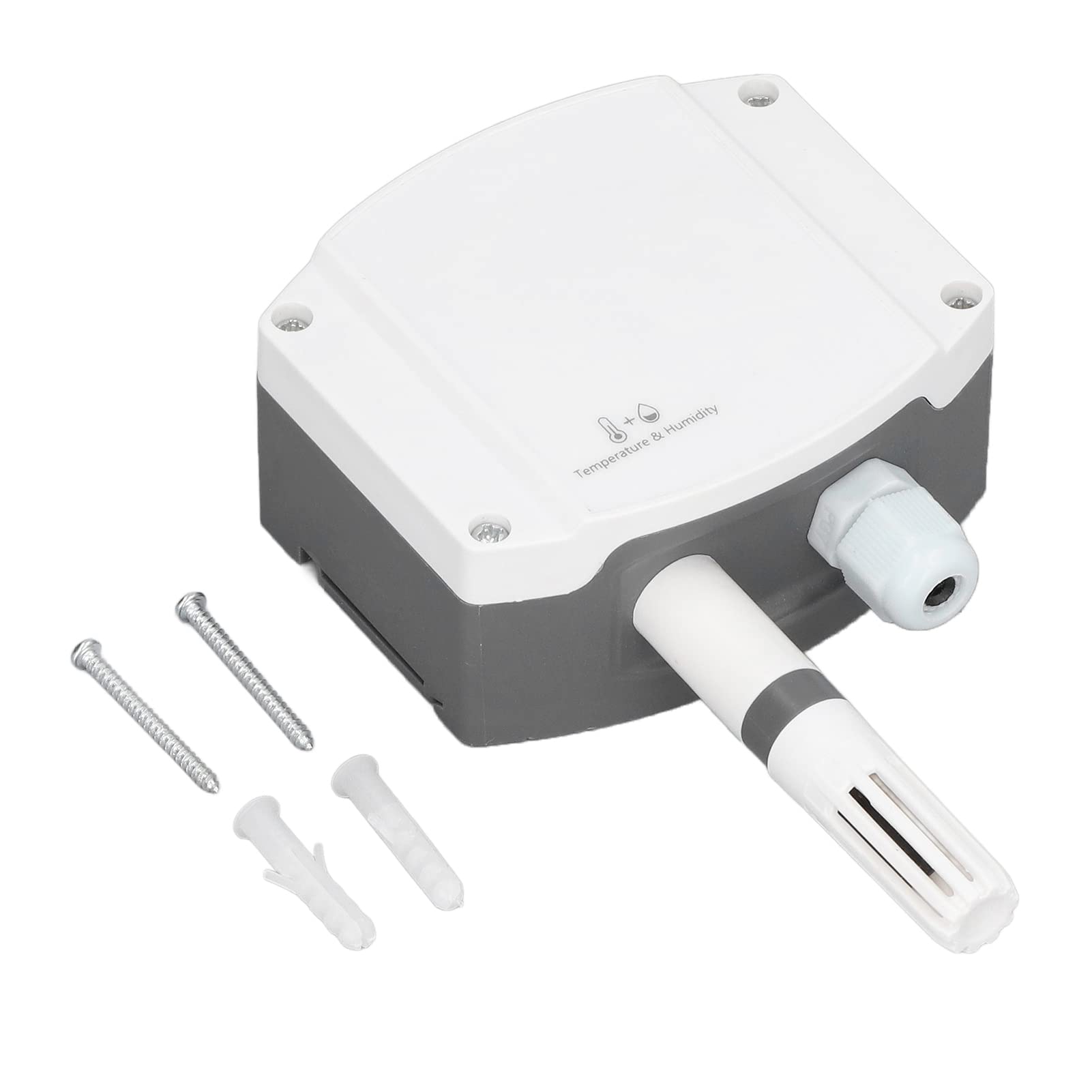

• WALL OR RAIL MOUNT: Temperature humidity transmitter is easy to install, support wall mounted or rail mounted, possess IP65 high dust resistance, rain and snow protection with good breathability
• CONNECT TO VARIOUS EQUIPMENT: Adopt standard industrial interface 0~10V analog signal output, can be connected to on site digital display, PLC, inverter, industrial control host and other equipment, safe and reliable, possess beautiful appearance, easy in
• WIDE RANGE: Using a dedicated analog circuit, the use range is wide, come with 10~30V wide voltage range power supply, very practical
• INDUSTRIAL GRADE CHIPS: The circuit adopts industrial grade microprocessor chips and imported high accuracy temperature and humidity sensors to ensure excellent reliability, high accuracy and interchangeability
• STABLE AND SMALL: The sensor adopt high accuracy temperature and humidity measurement unit, possess long term stability and small size

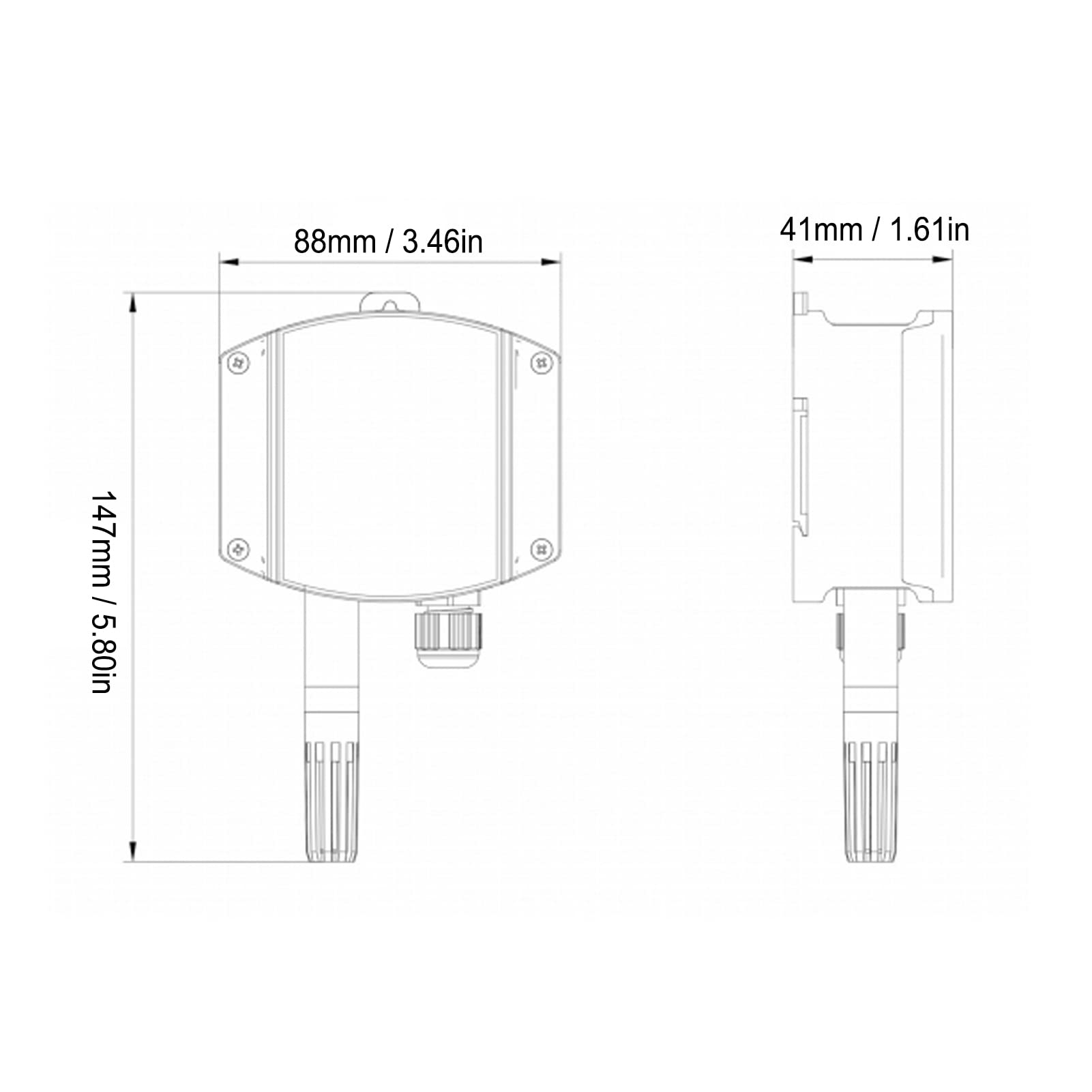

Specification: Item Type: Temperature Humidity Transmitter Product Size: Approx. 147 x 88 x 41mm / 5.79 x 3.46 x 1.61in Dust Proof Protection Grade: IP65 Power Supply Wiring: Wide voltage 10~30V DC power input, for 0-10V output devices, only 24V can be used Output Interface Wiring: The standard configuration of the device is to have 2 independent analog outputs Material: ABS Weight: 157 g / 5.5 oz(approx.) Specific Wiring: ItemCircuit identificationDescription Power supplyVCCPositive power GNDNegative power / negative signal OutputTHPositive temperature signal RHPositive humidity signalParameter: DC power supply (default) DC 10~30V Maximum power consumption Current output 1.2W Voltage output 1.2W A accuracy Humidity ±2%RH(60%RH, 25℃) Temperature ±0.4℃(25℃) B accuracy Humidity ±3%RH(60%RH,25℃) Temperature ±0.5℃(25℃) Temperature range -40℃~+120℃,default -40℃~+80℃ Humidity range 0%RH-100%RH Transmitter circuit working temperature and humidity -20℃~+60℃, 0%RH~95%RH(non condensing) Probe operating temperature -40℃~+120℃, default-40℃~+80℃ Probe working humidity 0%RH-100%RH Long term stability Humidity ≤1%RH/y Temperature ≤0.1℃/y Response time Humidity ≤8s(1m/s wind wpeed) Temperature ≤25s(1m/s wind wpeed) Output signal Voltage output 0~10V Load capacity Voltage output Output resistance≤250Ω Current output ≤600Ω Hole Size Approx. 70mm / 2.76in Parameter settings Modify directly through software settings or buttons Product Selection: RS- Other standards WS- Temperature humidity transmitter sensor - 0~10V voltage output Common Problems and Solutions: No Output or Wrong Output Possible Causes: 1. The wrong range corresponds to the PLC calculation error. For the range, please refer to the technical specifications in the first part. 2. The
