Tecuro Ball Valve with Screw Connection (Flat-Sealing) x Internal Thread - Wing Handle

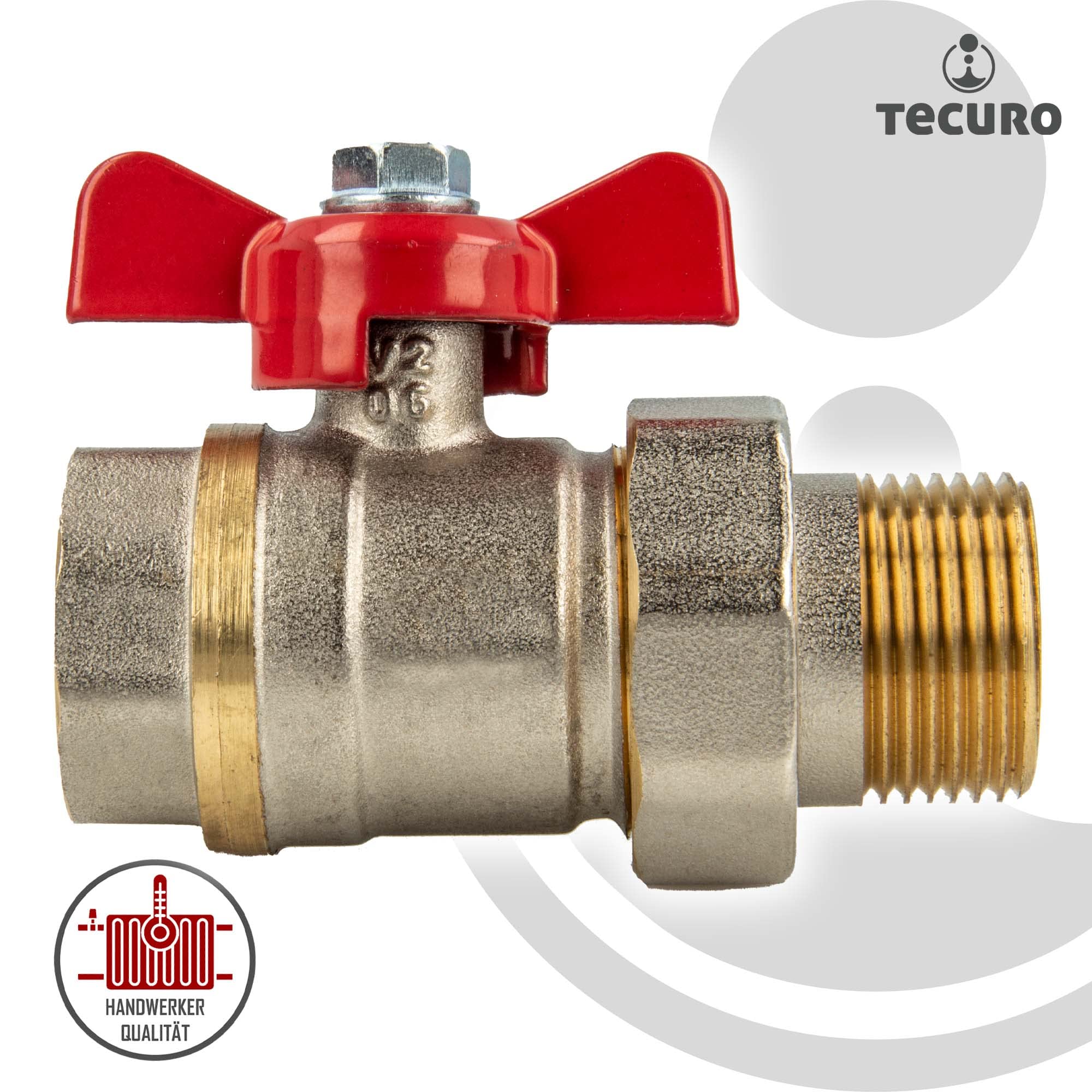

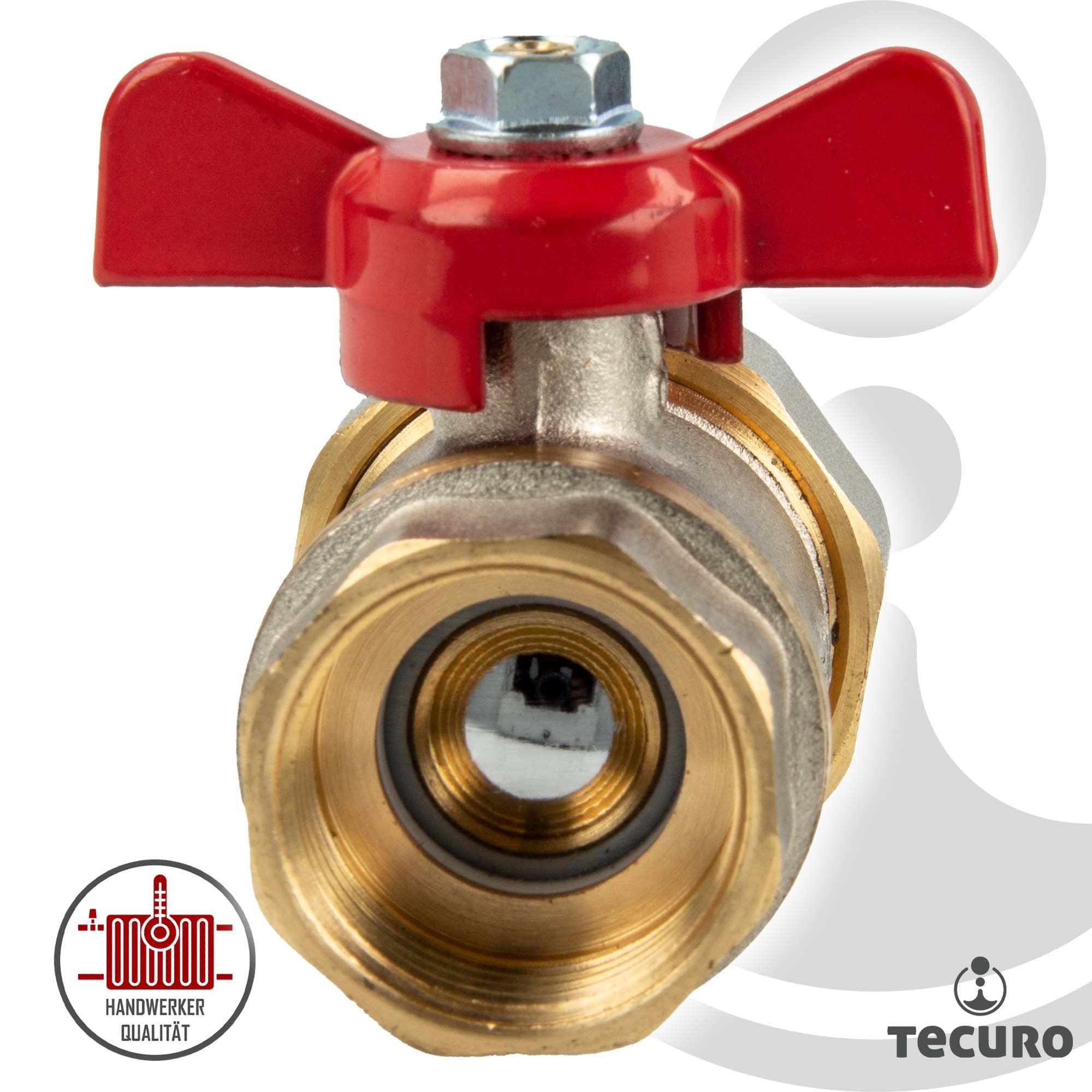

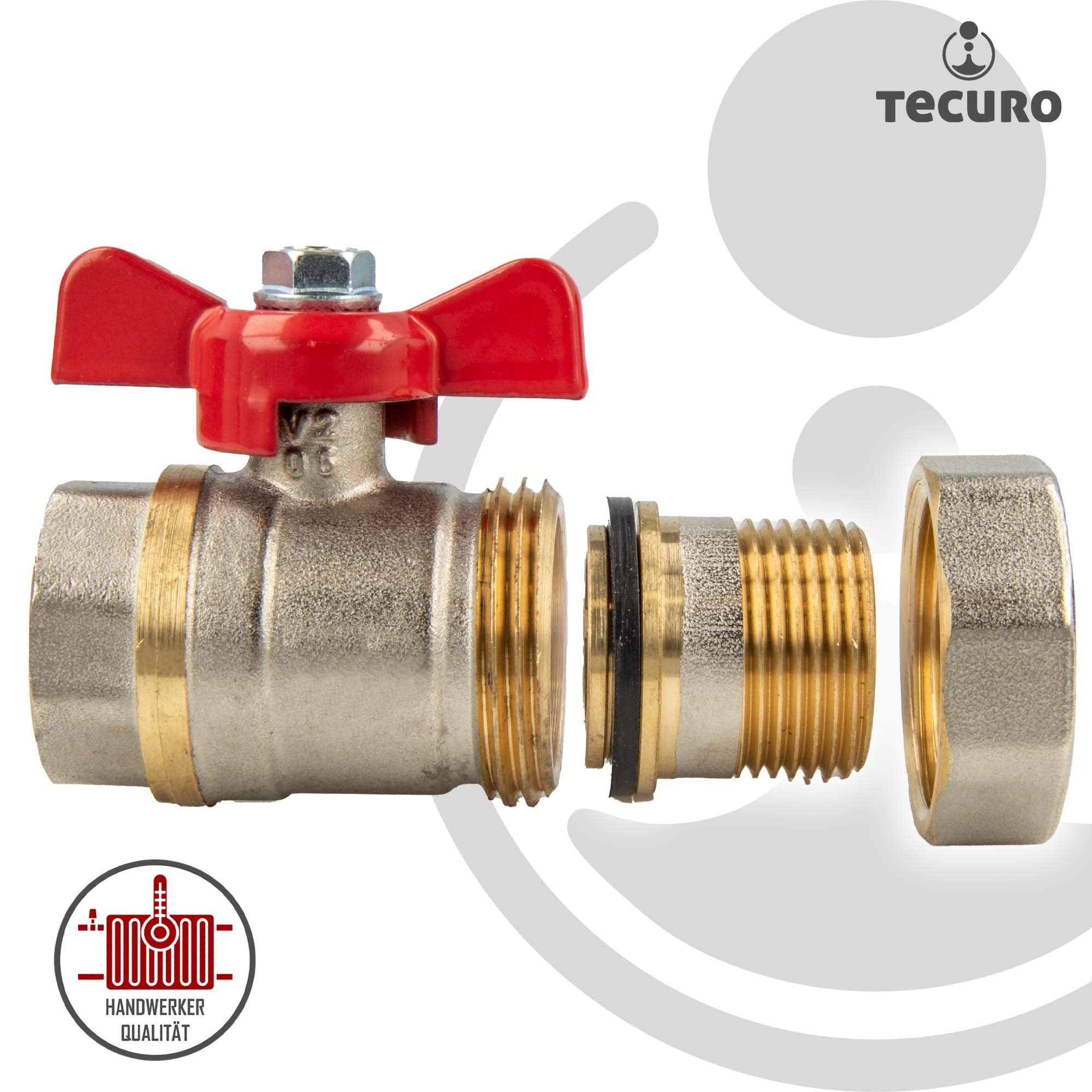

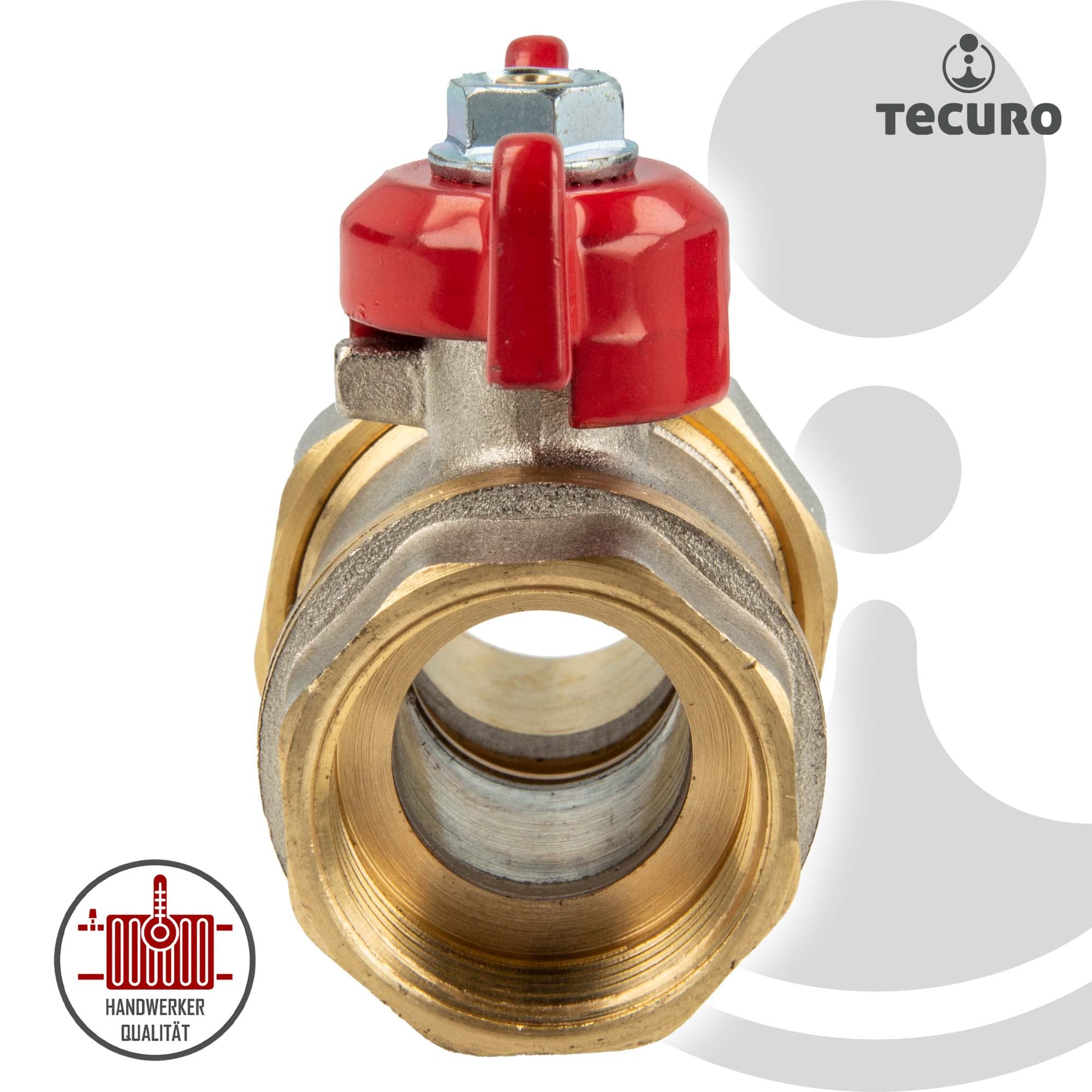

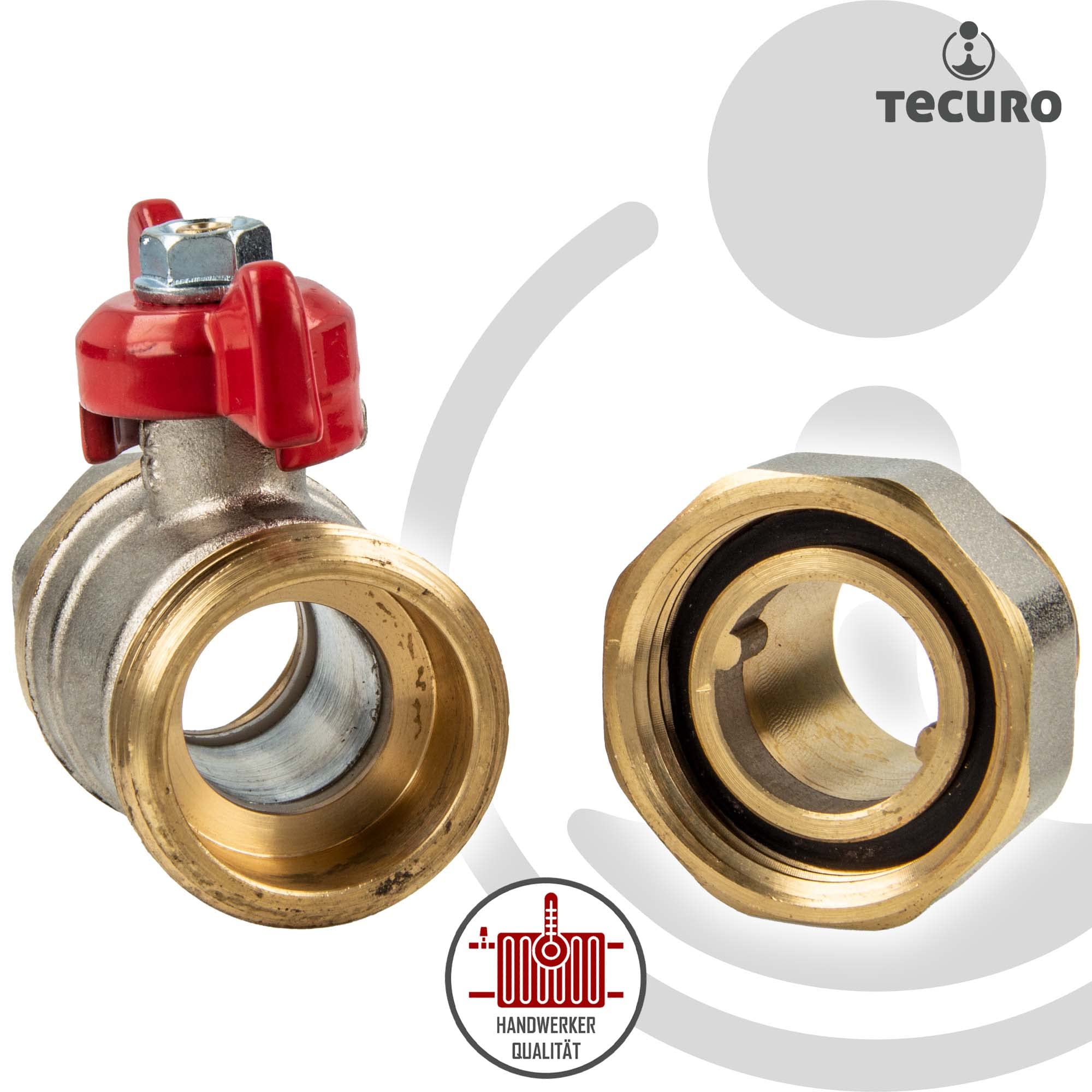

• Tecuro Brass Ball Valve with Wing Handle, with Union Nut, Flat-Sealing.
• External thread x internal thread according to ISO 228/1 // Metal wing handle in red.
• Temperature range -10 °C to + 110 °C depending on the operating pressure // Max. operating pressure at 30 °C = 25 bar // Installation: horizontal or vertical // Nickel-plated press brass, with full passage.

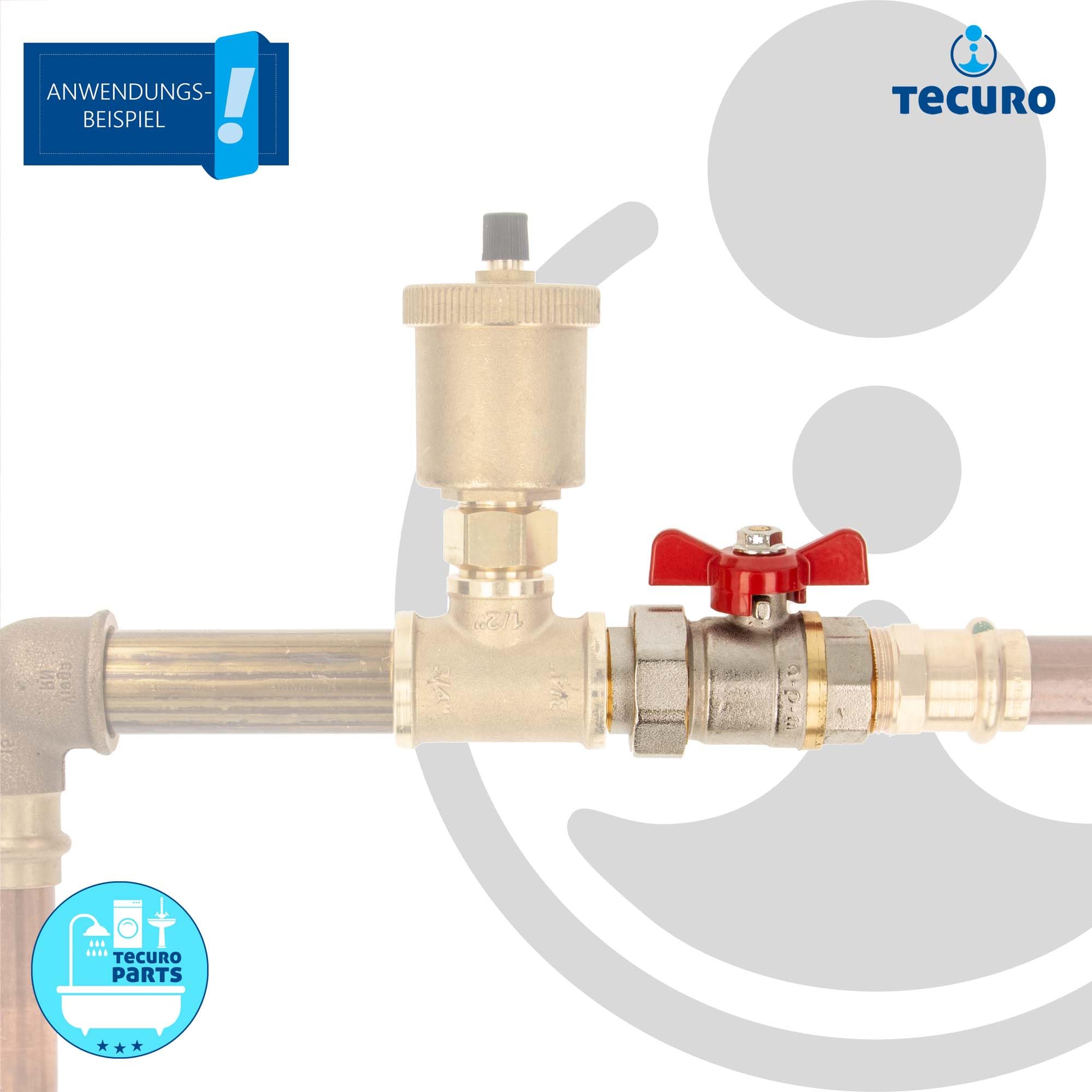

• Applications: Heating, industry, agriculture, garden and well construction, etc. (not approved for drinking water installations).
• Conversions for the measurements in inches can seen in the conversion chart in the pictures.

Brass ball valve with wing handle, with union nut, flat-sealing. With rubber sealing ring. External thread x internal thread in accordance with ISO 228/1. Red wing handle. Full bore. Temperature range -10 °C to + 110 °C depending on the operating pressure. Operating pressure at 30 °C = 25 bar. Nickel-plated brass. Can be mounted horizontally or vertically. Conversions for the measurements in inches can seen in the conversion chart in the pictures.
