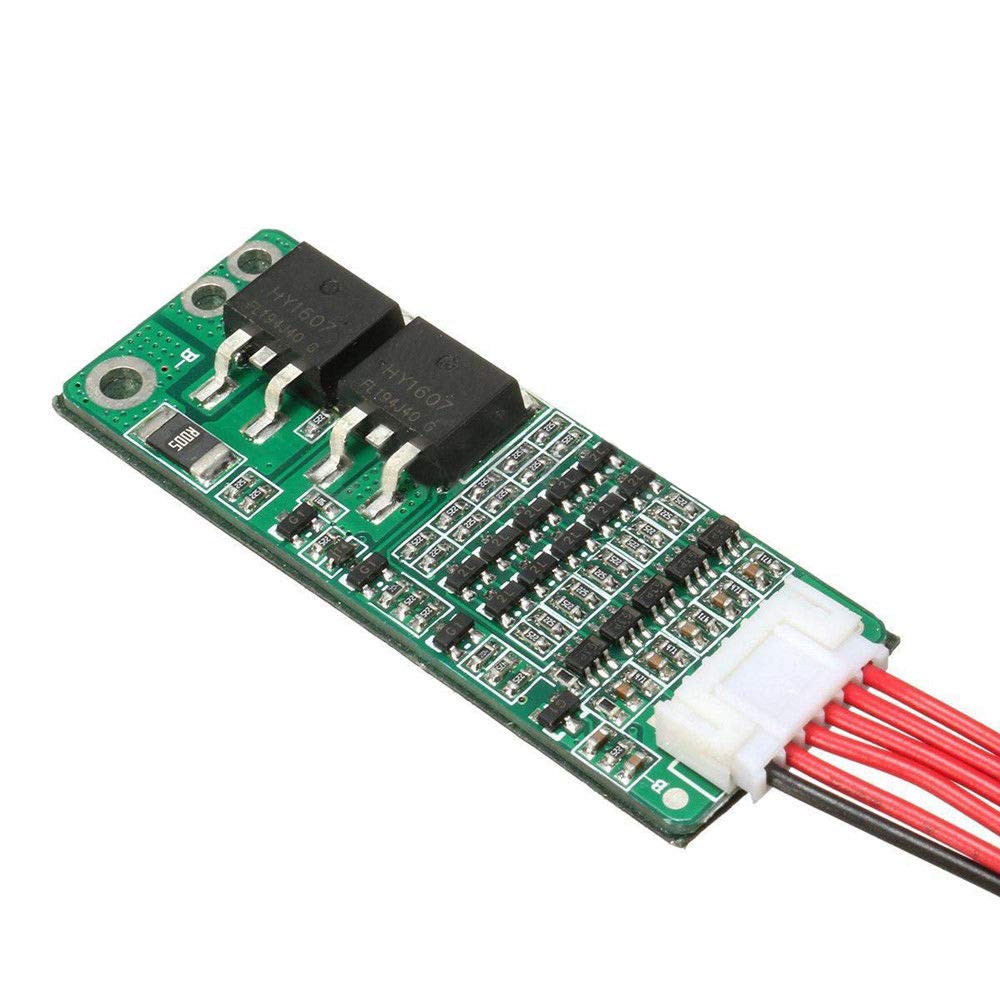

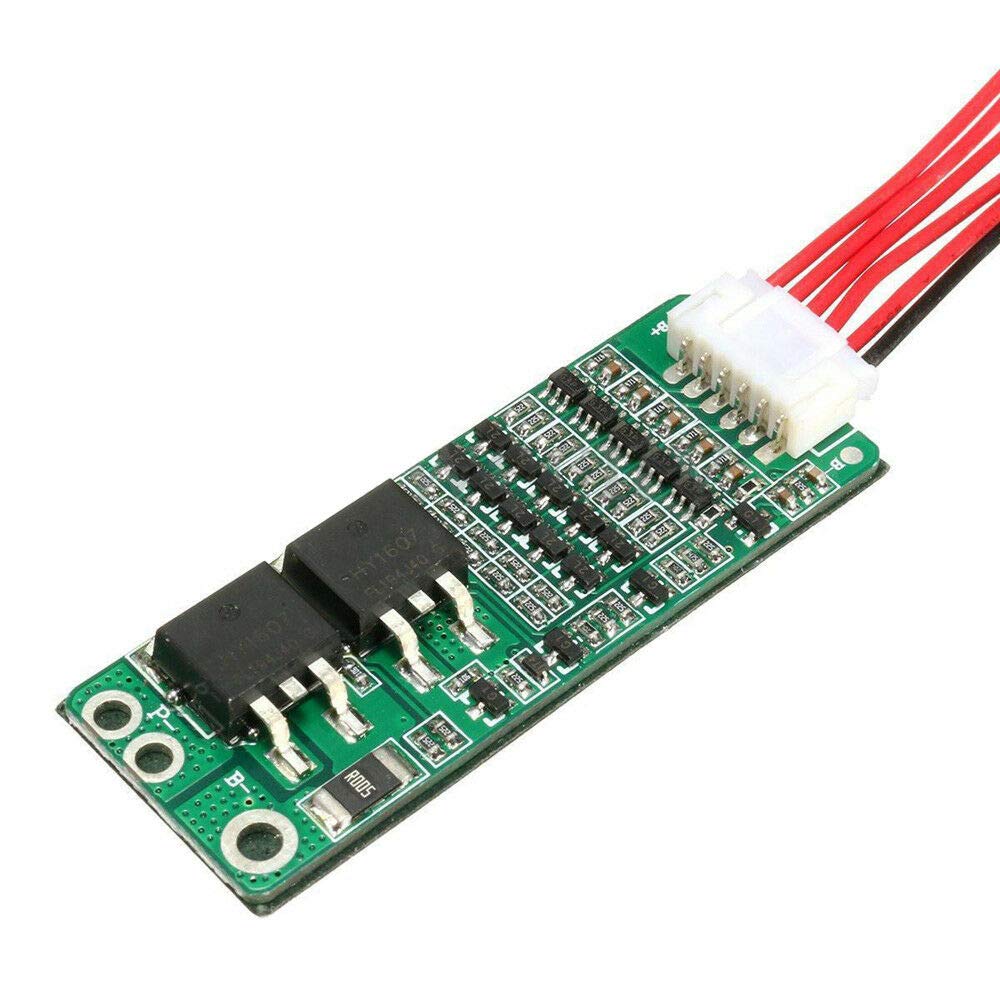

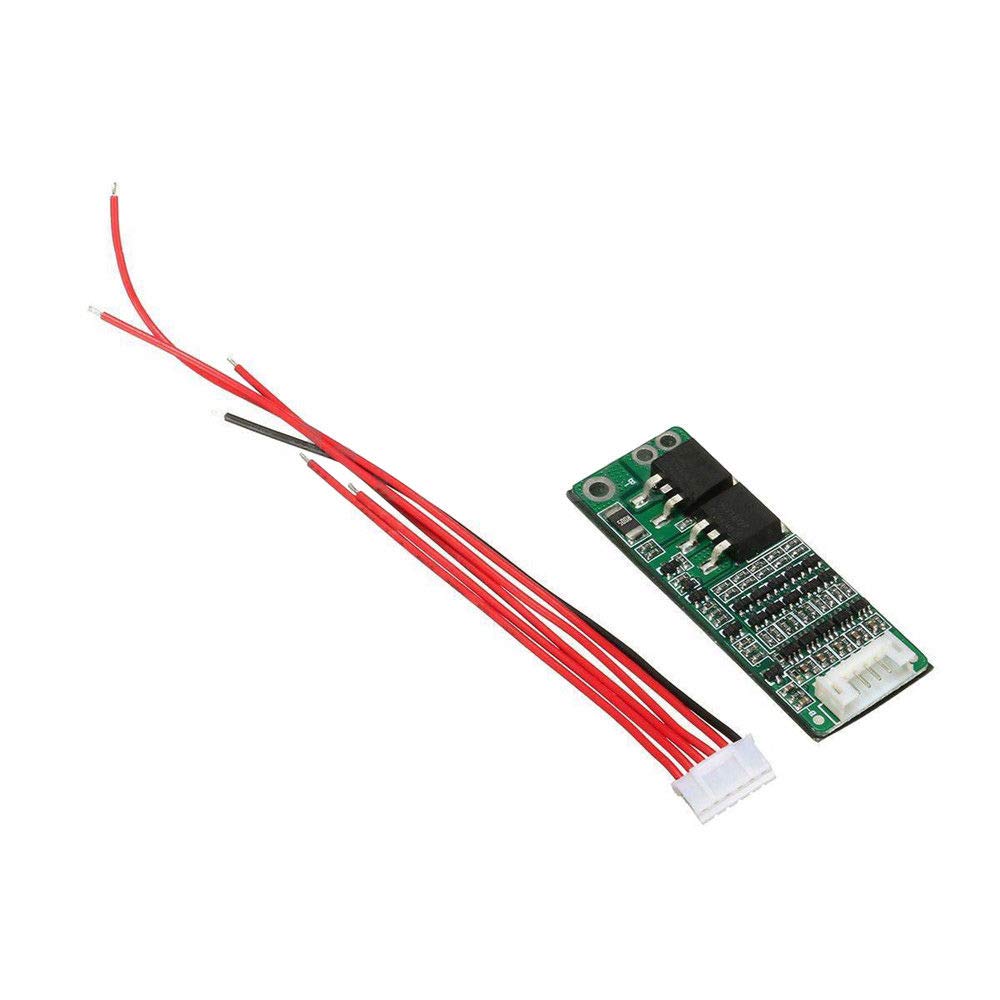

5pcs 5s 15a Li-ion litio Battery BMS 18650 18v 21v Charger Protection Board

• 【5S15A】5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18V 21V Cell Protection Circuit
• 【Design compact】Charging voltage: 21 V;Charge MOS pressure value: 35 V;Discharge MOS pressure value: 35 V;Charging current: 56 A;Continuous discharge current: 15 A; Over current protection: 50/55/60 A;Over current protection delay: 20/25/30mS.
• 【High performance】Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery; Short circuit protection delay 200/500/600uS

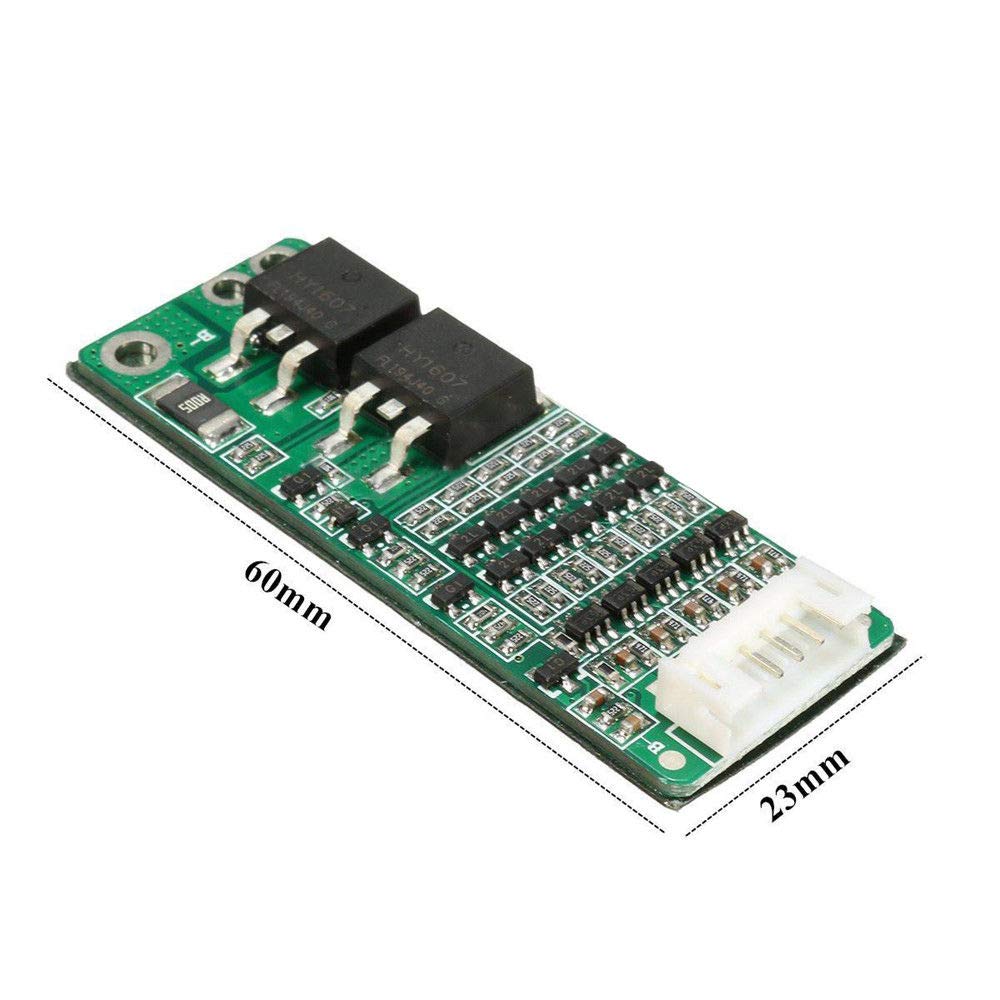

x5pcs 5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18V 21V Cell Protection Circuit Specifications: Size: approx. 60*23mm Color: as picture shows Charging voltage: 21 V Charge MOS pressure value: 35 V Discharge MOS pressure value: 35 V Charging current: 56 A Continuous discharge current: 15 A Over current protection: 50/55/60 A Over current protection delay: 20/25/30mS Single section since the power consumption: 30uA Single section between the power consumption: 3uA Single section over charge detection voltage: 4.18-4.22V Over charge recovery voltage 4.05- 4.15 V Over charge detection delay: 0.5/1.0/2.0S Single section over discharge detection voltage: 2.75-2.85 V Over discharge recovery voltage: 2.90-3.20 V Over discharge detection delay: 0.5-2.0S Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery Short circuit protection delay 200/500/600uS The normal working state of B- to P- resistance: 5m ohm Continuous 15A current maximum temperature rise: 25 degree Working environment (humidity) relative humidity: >+98% (long-term stability under the humidity) Working environment (temperature) -30 ~ 80degree(in the lower temperature range of long-term stability) Packet Contains: 5pcs x 5S 15A PCB BMS Protection Board 18V 21V Li-ion Lithium Battery
