TECNOIOT 5pcs 0.96 inch 7P SPI HD TFT ST7735 Drive IC 80 * 160 65K Full Color IPS LCD
Product description

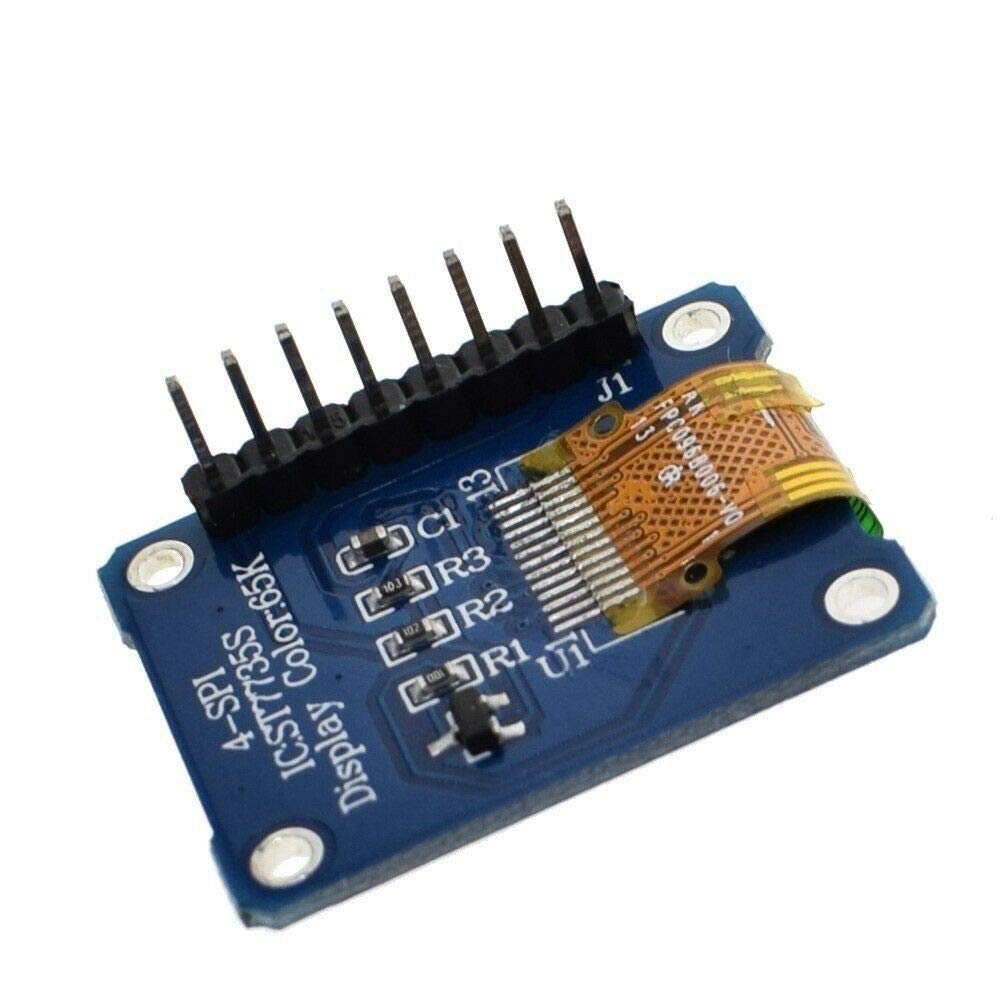

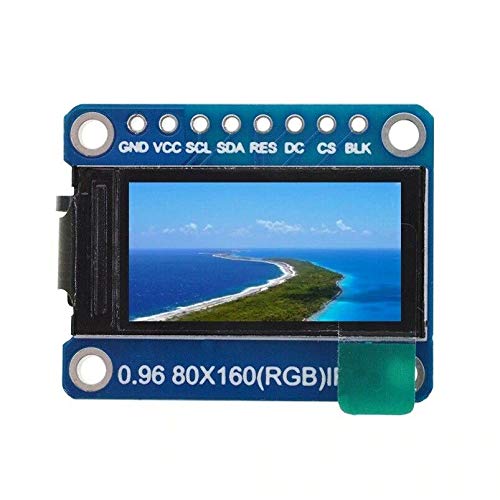

x5pcs 0.96 inch 7P SPI HD TFT ST7735 Drive IC 80*160 65K Full Color LCD Display Module Features: Size 0.96inch Display Mode Normally black IPS Display Format Graphic 80RGB*160 Dot-matrix Input Data SPI interface Drive IC ST7735S Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm Resolution 80RGB*160 Dots LCD Active area 10.8 (W)*21.7 (H) Dot pitch 0.135(H) x 0.1356(V) mm Viewing Direction All View Operating Temperature -20--70ยฐC Pin Descriptions: 1 GND Ground 2 VCC Power 3.3V 3 SCL Serial clock pin. 4 SDA Serial data input 5 RES LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. 6 DC Data/Command Control 7 CS Chip Select 8 BLK Backlight control pin Packet Contains: 5pcs x 0.96 inch IPS HD TFT Display Module
Product details
