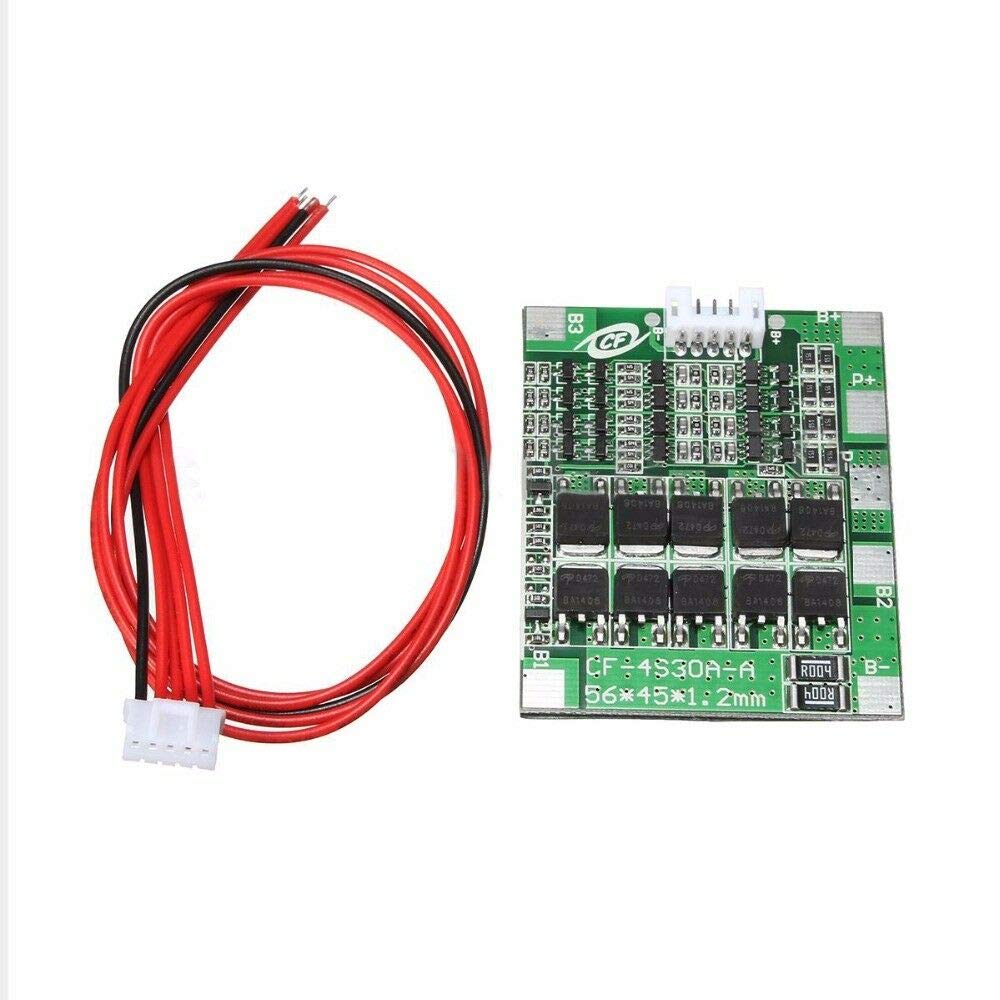

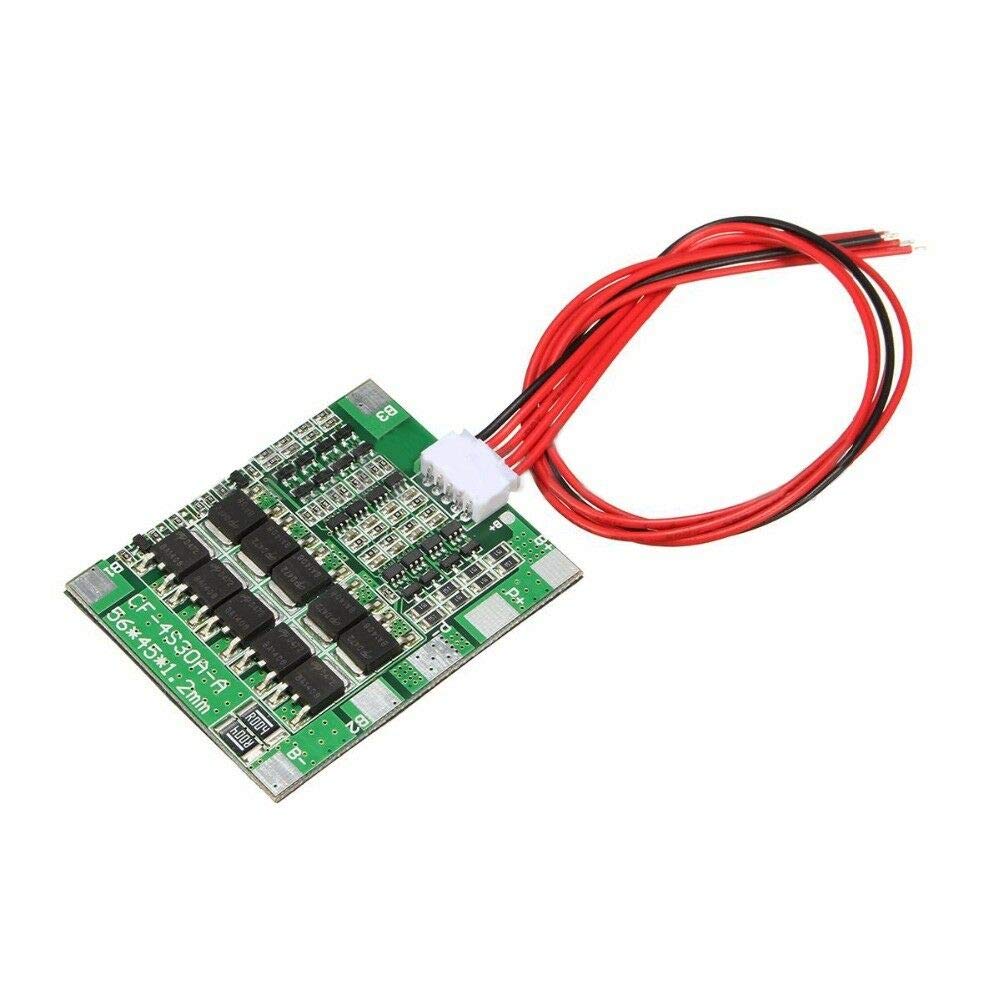

2pcs 4S 30A 14.8V Li-ion Lithium Battery PCB BMS 18650 Charger Protection Board

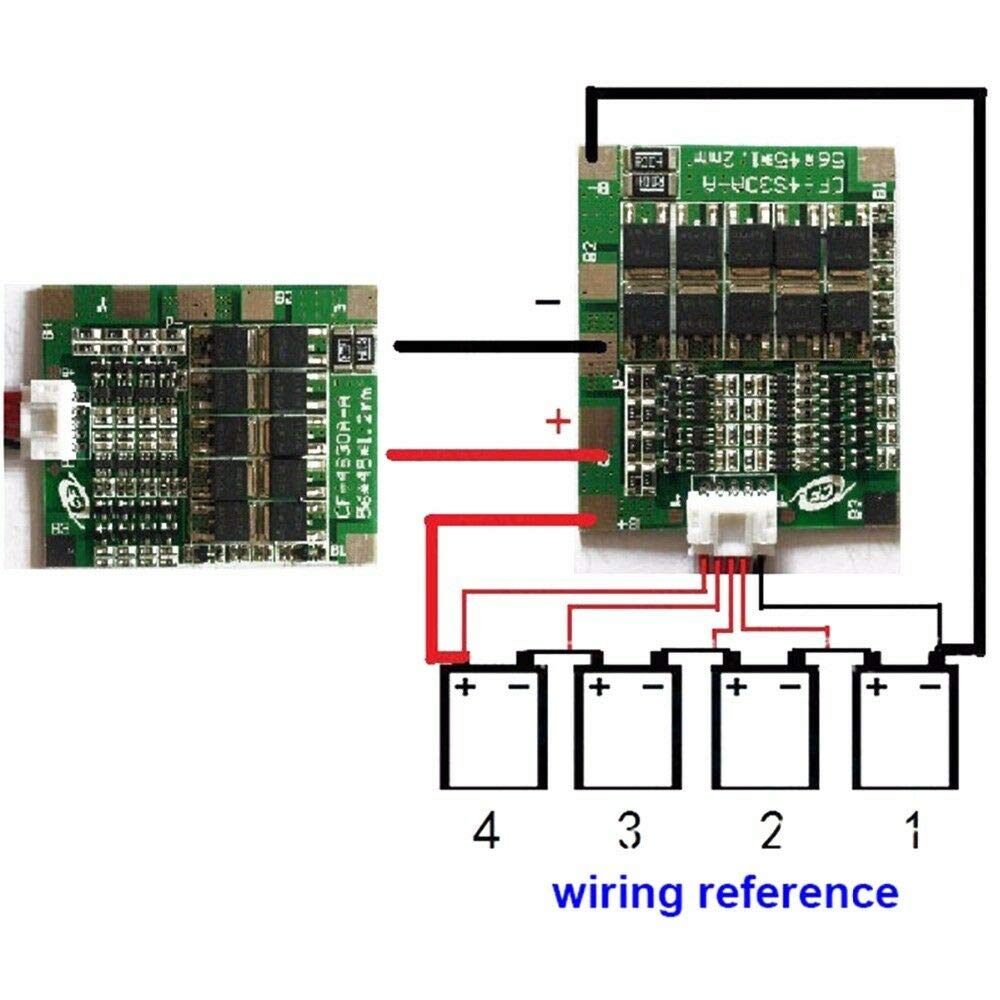

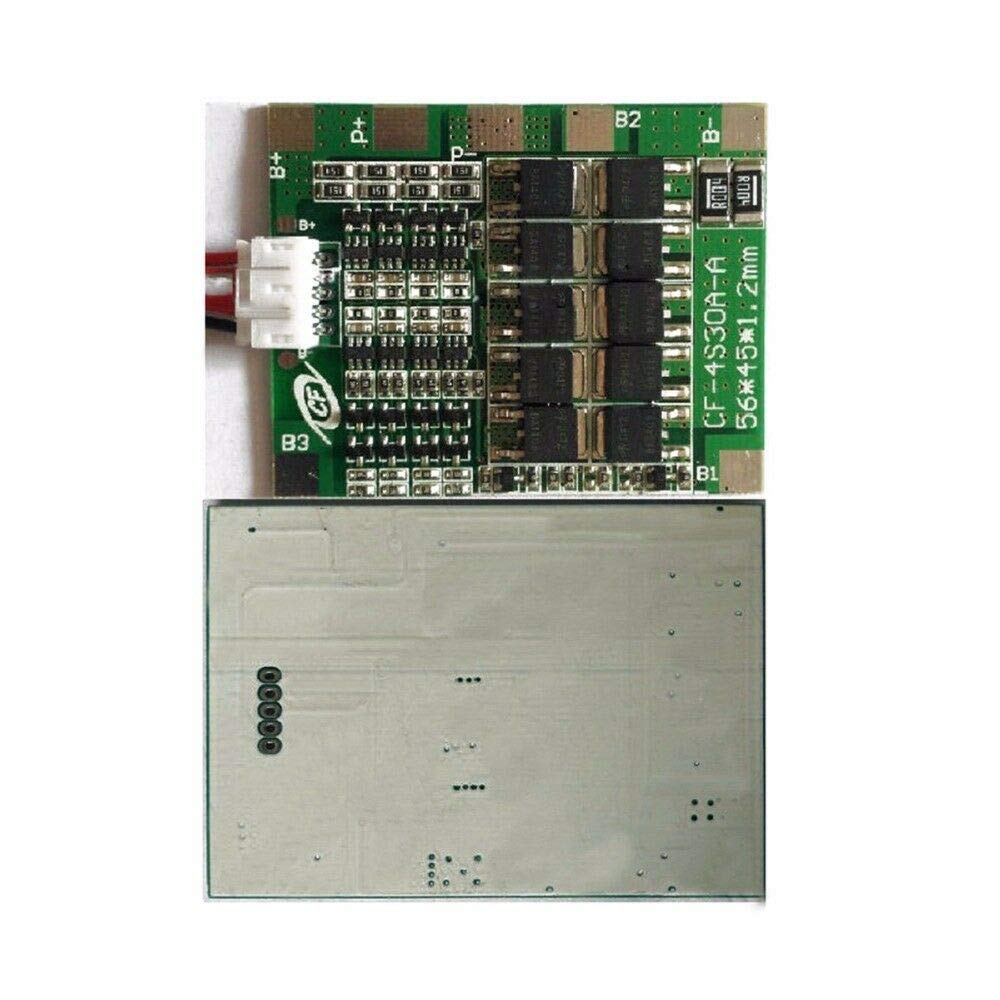

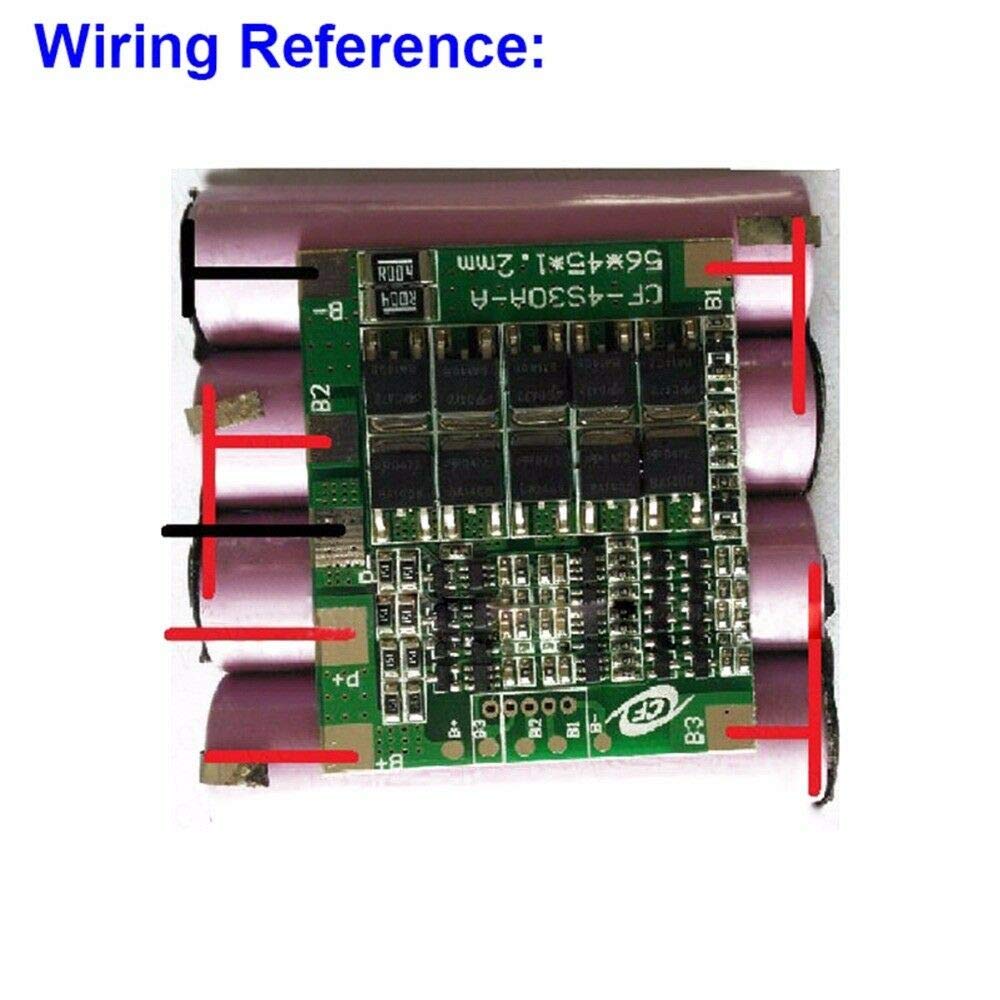

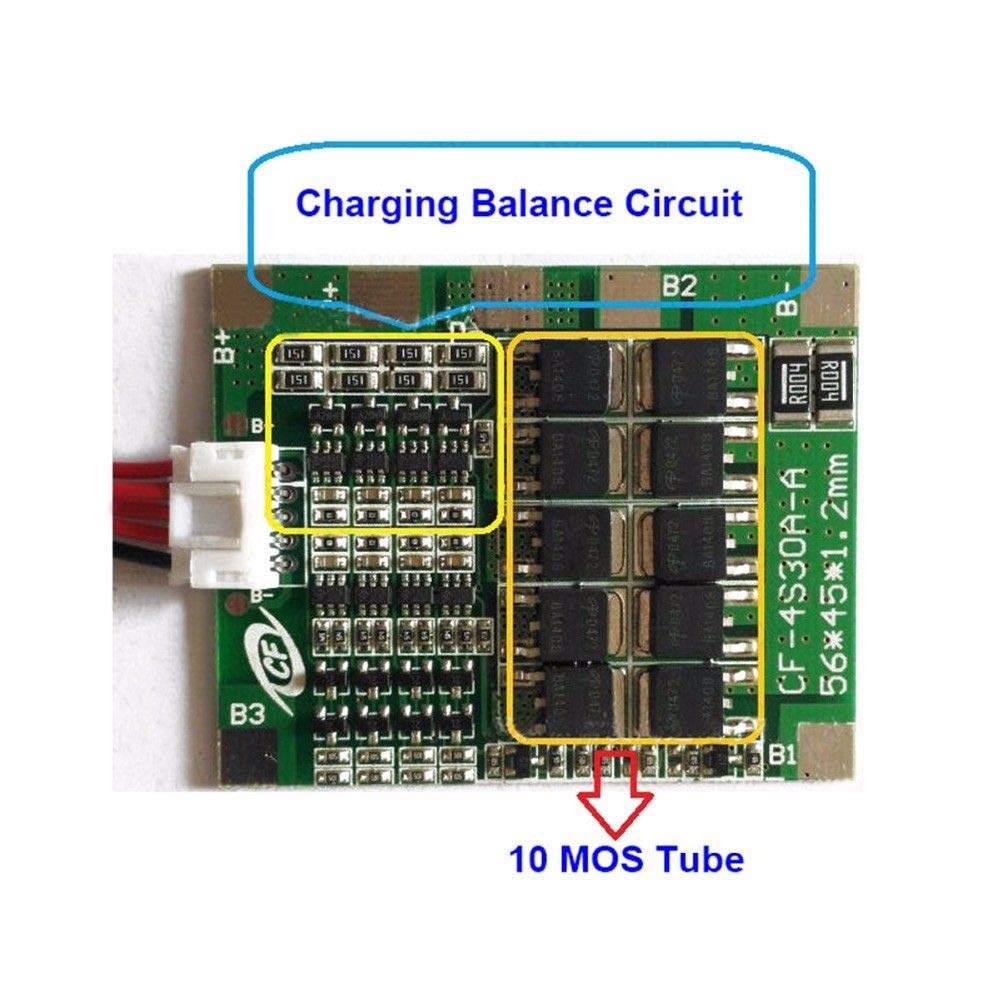

x2pcs 4S 14.8V 30A BMS PCB Protection Board For 18650 Li-ion Lithium Battery Cell Module Over Current Protection Board Balance Specifications : Size: approx.45x56mm Working current: 30A Balanced current: 60mA Over current: 60A Temperature range: -30 - +80degree Over charge detection voltage: 4.28+ 0.05 V Over charging voltage: 4.095-4.195V Over discharge voltage: 2.55+-0.08 Over charge detection delay time: 0.1s Short circuit detection delay time: 100ms Over current detection delay time: 500 ms Short circuit protection function: there is, disconnect the load can be self recovery. Fine workmanship and durable. Main function: Over charge protection, over discharge protection function and short circuit protection. Over current protection function, band balance. Interface Definition: Charging port of the plate and the discharge port is the same, both positive and B- connecting. Battery '-', P- charging port and port on the negative electrode. B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm. The battery charging detection interface with DC output in the form of needle. Do the same mouth. When the N- is not wiring. Packet Contains: 2pcs x 4S 30A 14.8V PCB BMS Protection Board
