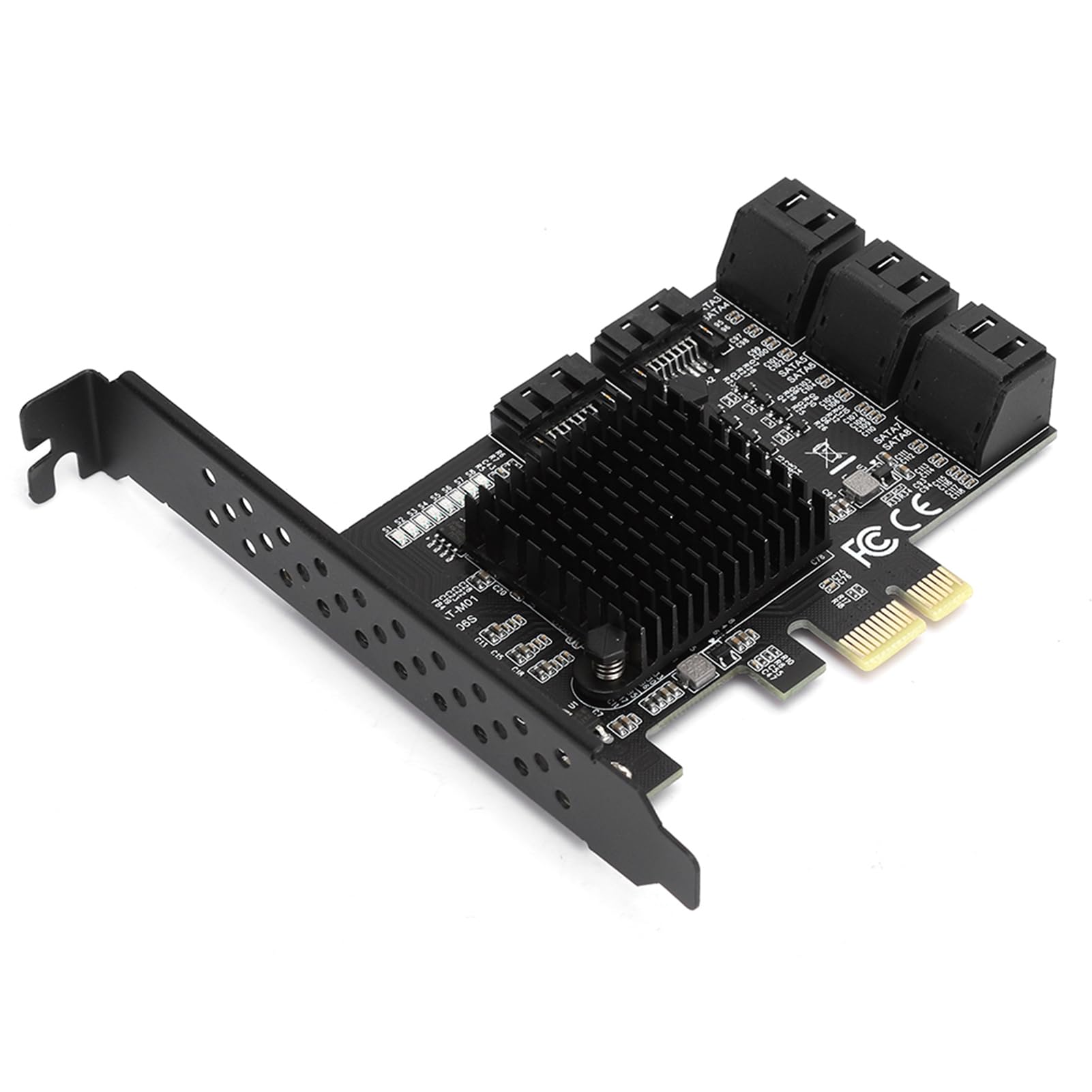

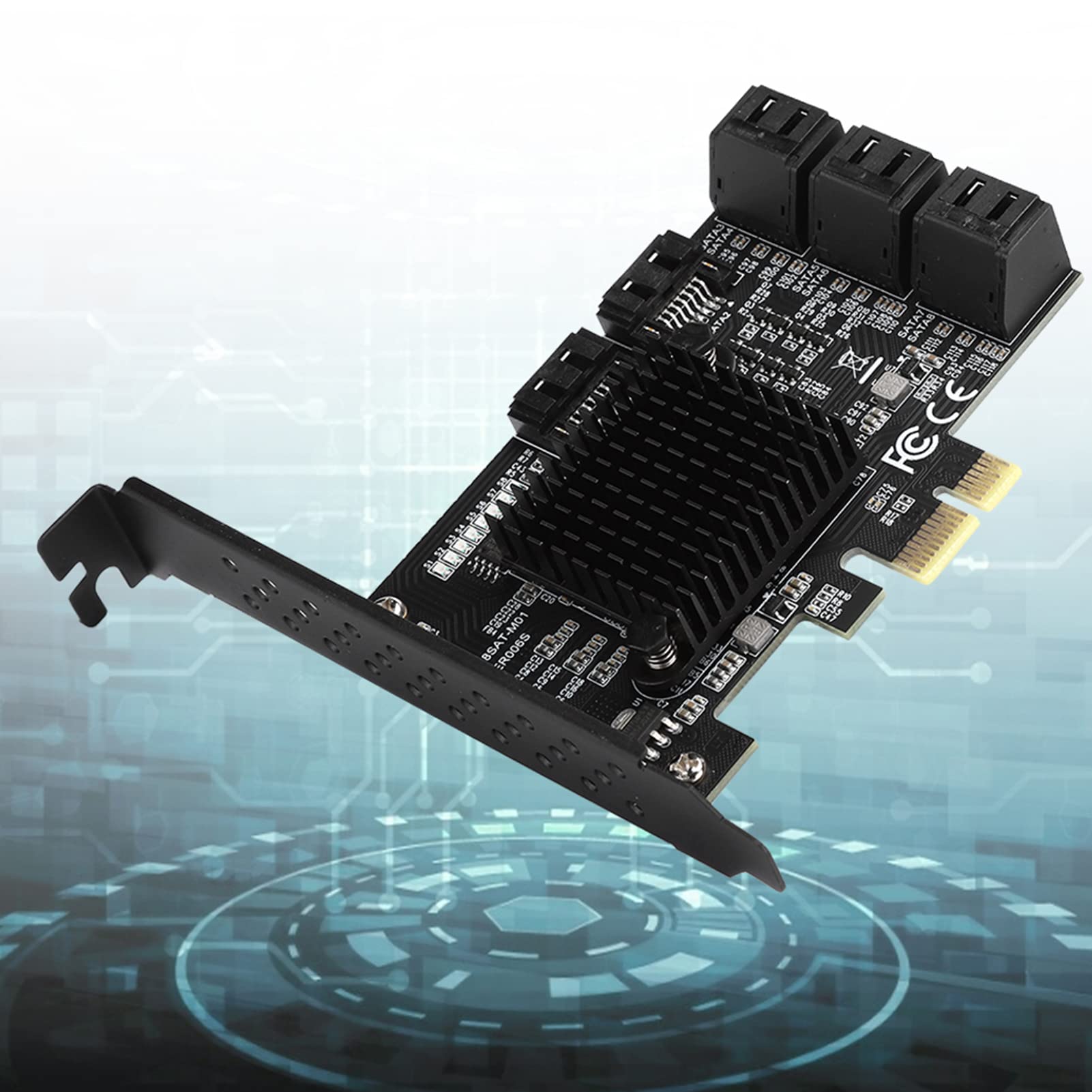

Tbest Adapter PCI - E 8 Port Expansion Card PCI - E to SATA3.0 SSD RAID Expansion Card with SAS 6 IBM M1015 Controller Expansion Board 8 Port SATA3.0 Interface Expansion Card

• Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug.
• 【Compliant with】: Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v2.0 compliant, backward compatible with PCI-Express v1.0
• 【6.0 Gbps SATA 3.0 PCIe Card】Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
• 【Tips】User with SATA3.0 data cable for best results.Any questions,Please feel free contact us,we will provide you with high quality after-sales service.

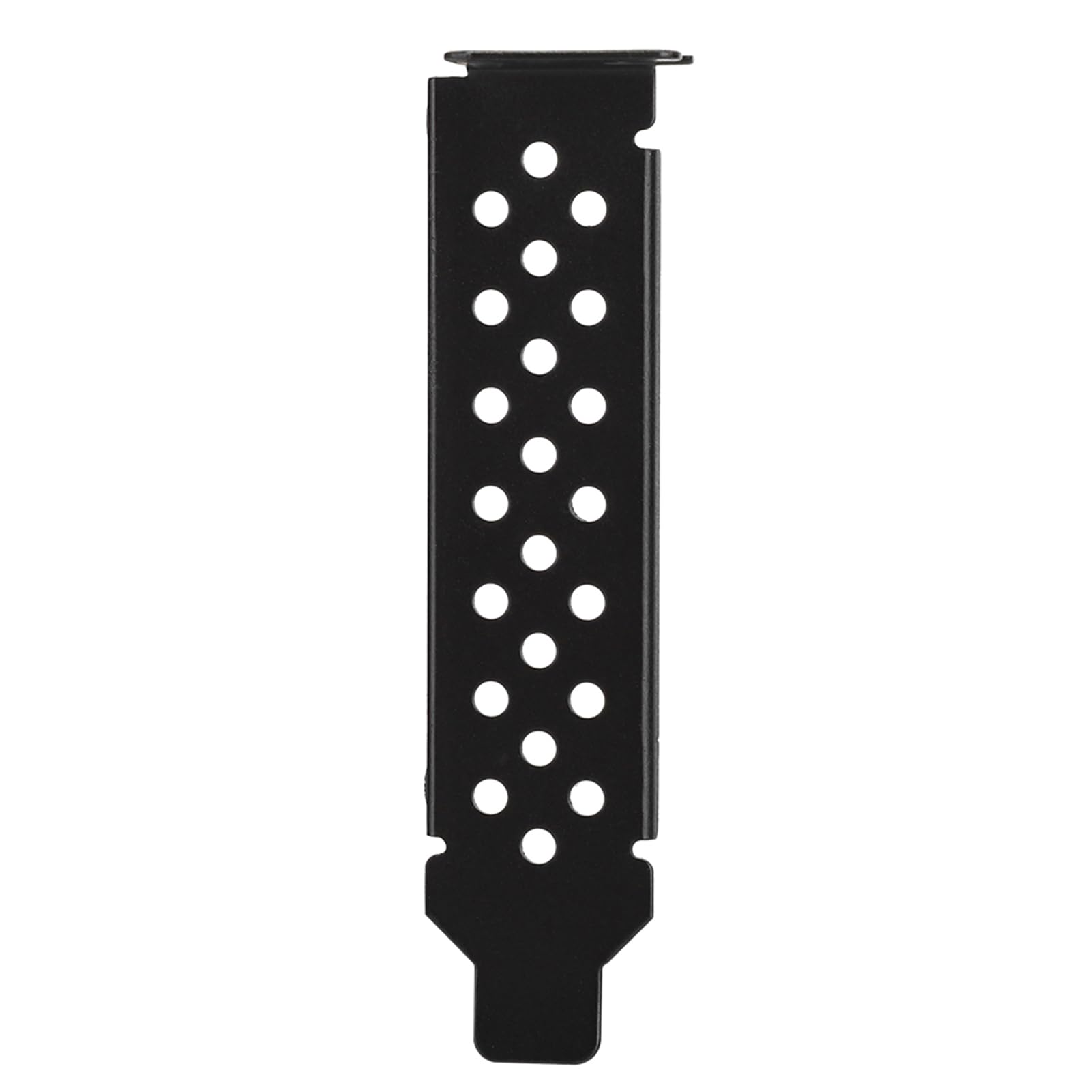

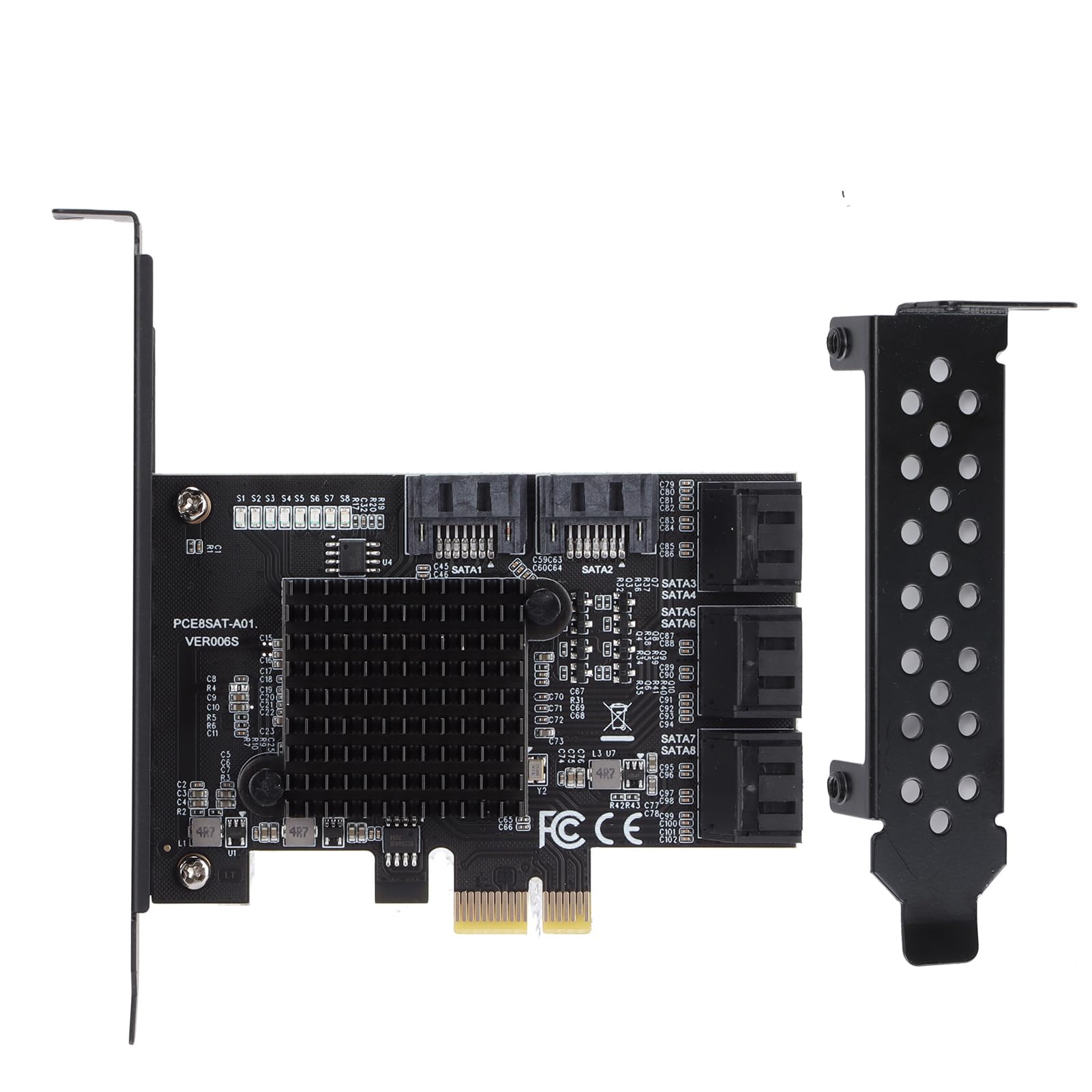

Spec: Item Type:PCI-E to SATA 3.0 Card Model:PCE8SAT-A01 Master: Fit for Marvell 88SE92xx+JMB5XX Interface: PCI-E 1X 2X 4X 8X 16X Support System:Fit For Windows 7/8/XP/10 Fit For Ubuntu Expansion Interface: 8 x SATA3.0 Interfaces PackageList: 1 x Expansion Card 1 x Semi-High Baffle 1 x Drive disk Notice: 1. PCI‑E must have a slot above V2.0, V1.0 will not exceed 250M, PCI‑E can be X1 orX16 as long as it is V2.0 version, there is spare X16 slot directly into X16 slot on. 2. BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high‑speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI‑E 1.0 mode, only 200‑ 250M, 2.0 mode is below 350‑400M. If you don't accept it, change the motherboard. 3. When the SATA port is used at the same time, it will slow down. It is not suitablefor users who are pursuing speed. It is only used for the extended hard disk interface.
