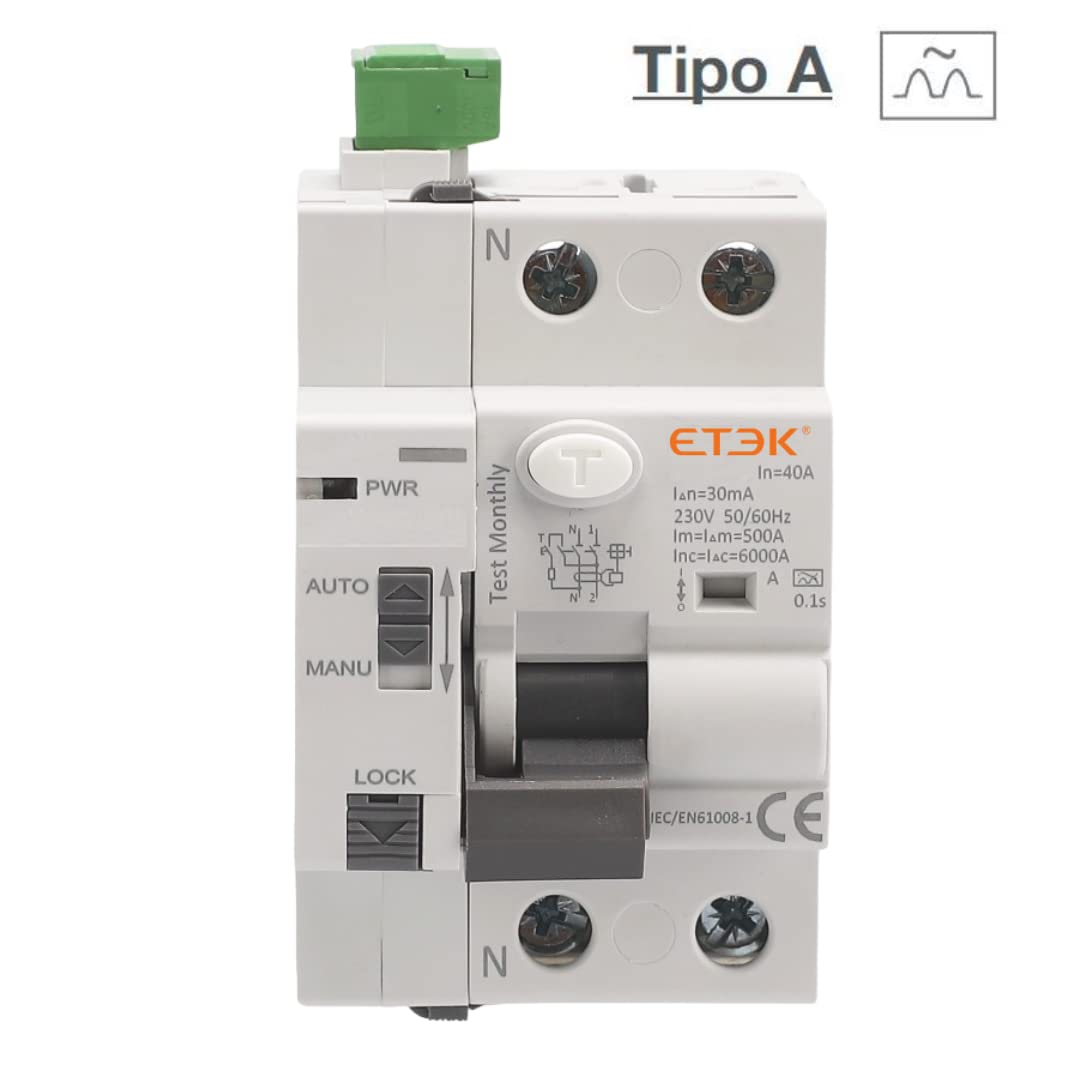

LE GARAGE Superimmunized Automatic Rearmable Differential Switch 40A 30mA 2P 40A 30mA 6Ka TYPE A

• AUTOMATIC RESET TYPE A: The 2 Pole Superimmunized Differential Switch is a useful element within the electrical installation. Reset the differential switch automatically, so its function is more important when protecting the electrical installation.

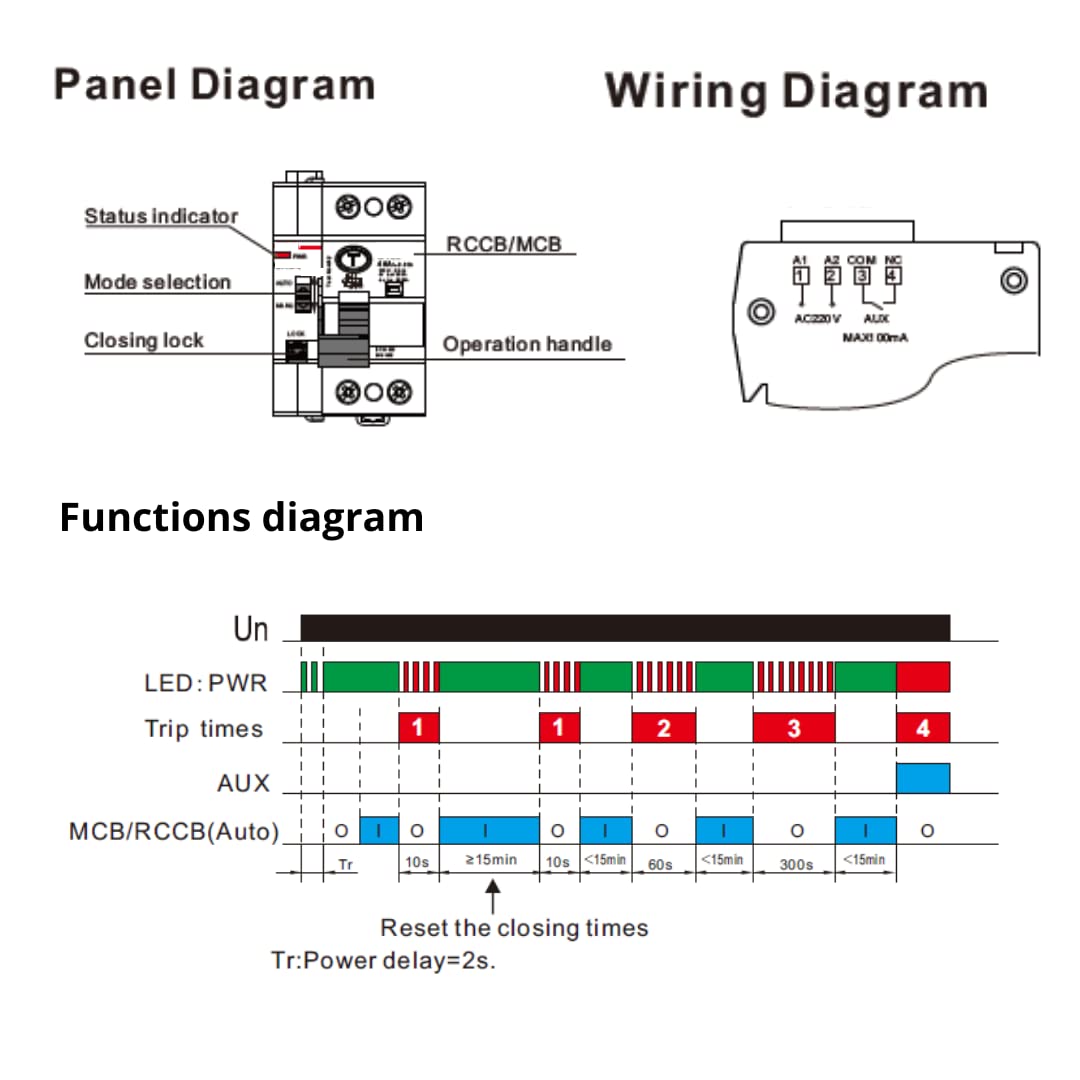

• UP TO 3 AUTOMATIC RECONNECTION ATTENTS When the light goes out and the differential jumps, he makes 3 attempts to reset, 10 seconds after the cut, then at 60 seconds and another at 300 seconds. If after the three attempts you do not manage to rearm the differential, it is considered that there is an electrical problem and do not try again. To unlock the rearm, the AUTO-MANU tab must be raised and lowered twice in a row.

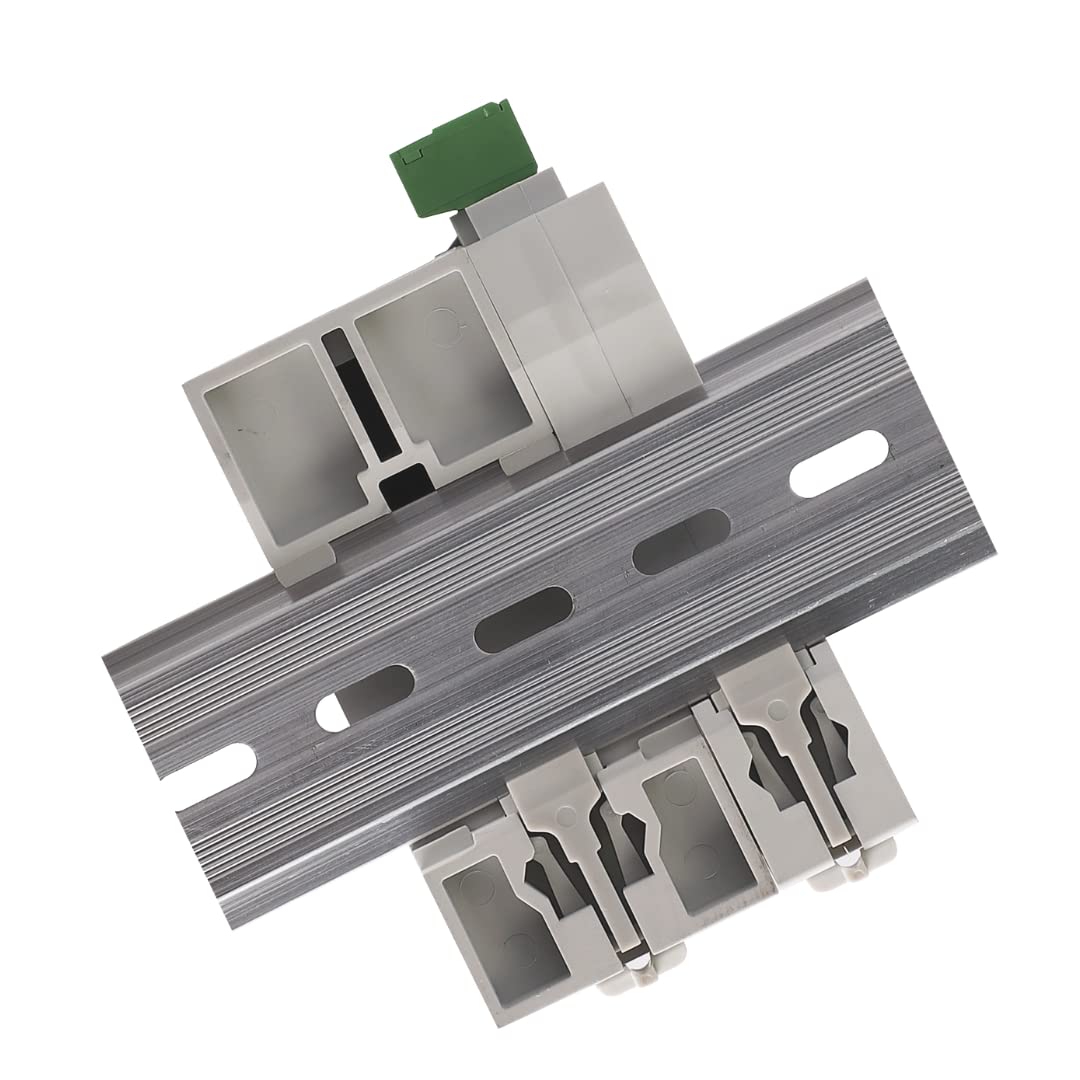

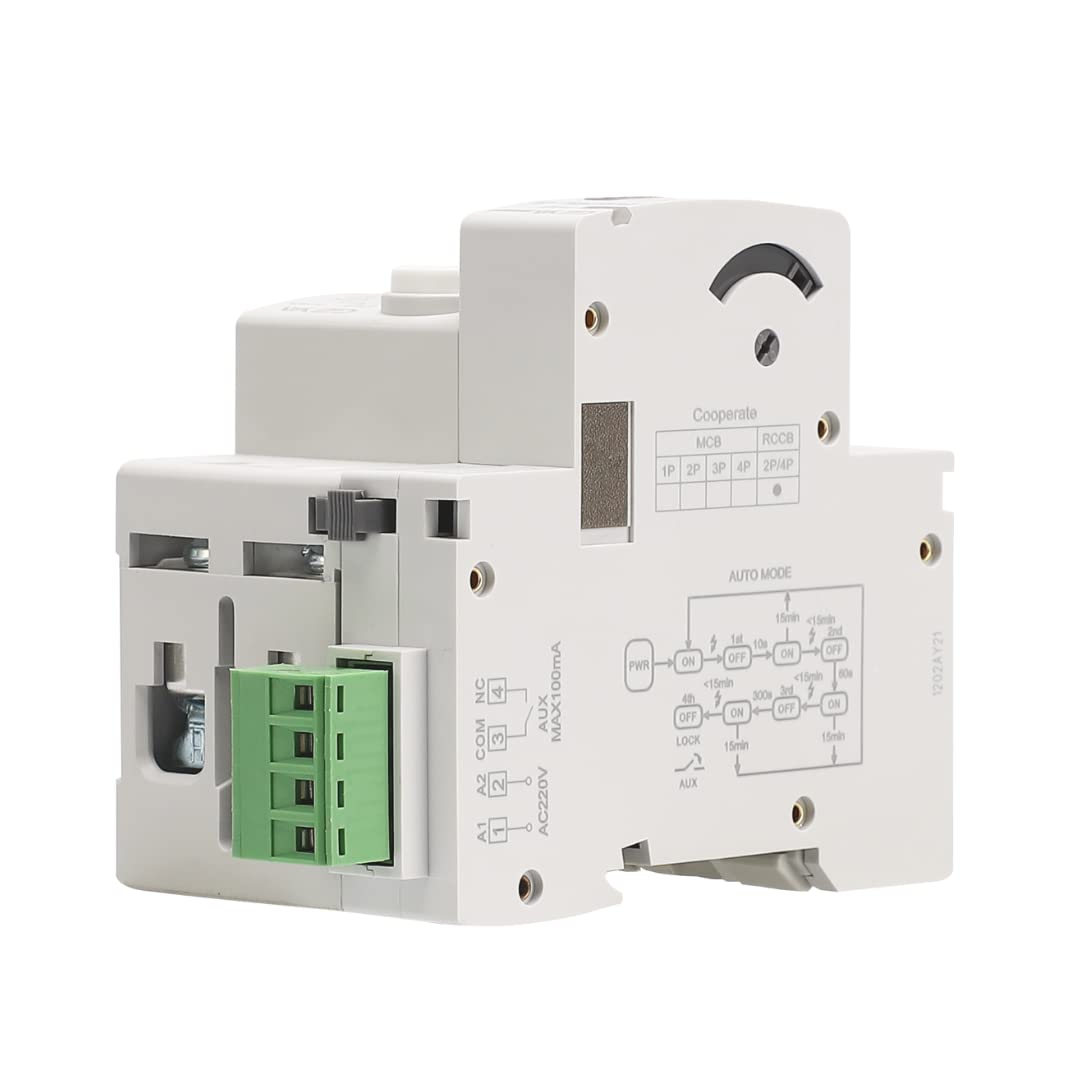

• SIMPLE INSTALLATION, like any other differential of the light box, in rail. You have to power the autorearm, you have to feed in the green strip the terminals of L and N by putting them in parallel with the top of the differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The resettable differential has a locking system with which you can choose the operation of manual, automatic and closed mode.
• Complies with IEC61008, EN61008 and CE standards. Protect your electrical installation with the resettable differential reconnector.
• SUPERIMMUNIZED AUTO REARMABLE DIFFERENTIAL 2P SI CURVE A OF 40 AMPS AND 30MA. Maximum short circuit current 6Ka, 220/230v.

Superimmunized differential switches are used in the domestic, tertiary and industrial sectors, they are indicated for untimely shooting caused by lightning, fluorescent lighting, sharp maneuvers in the network and when there are high frequencies and continuous components. Superimmunized differentials incorporate high-frequency filters that prevent untimely firing in the presence of non-linear charges (electronics), as well as an energy accumulation circuit against untimely triggering caused by transient pulses. Applications : This equipment is specially designed to be installed in all installations where a full guarantee of service continuity is required in unforeseen situations that cause differentials to fire for reasons other than electrical insulation. Housing sector: fridges, alarm systems, garage doors... Services sector: air conditioning systems, cold rooms, lighting, SAIS…. Industrial sector: control of critical production processes. Why is it advisable to install a differential with automatic reset? The reasons for installing a rearmable differential are fully supported by the advantages they entail and that we have compiled in the following points: Easy installation and low cost: although physically they take up a little more than normal differentials, their installation is still fairly simple or can be easily referred to specialized professionals at an affordable price if you balance the cost of installation and compare it with the peace of mind and security they bring.
