Superimmunized Auto Rearmable Differential Switch 2P 40A 30mA 6Ka, Trip Switch Circuit Breaker. Automatic Rearme Differential Class A. Super Immunized Auto Reconnect RCCB

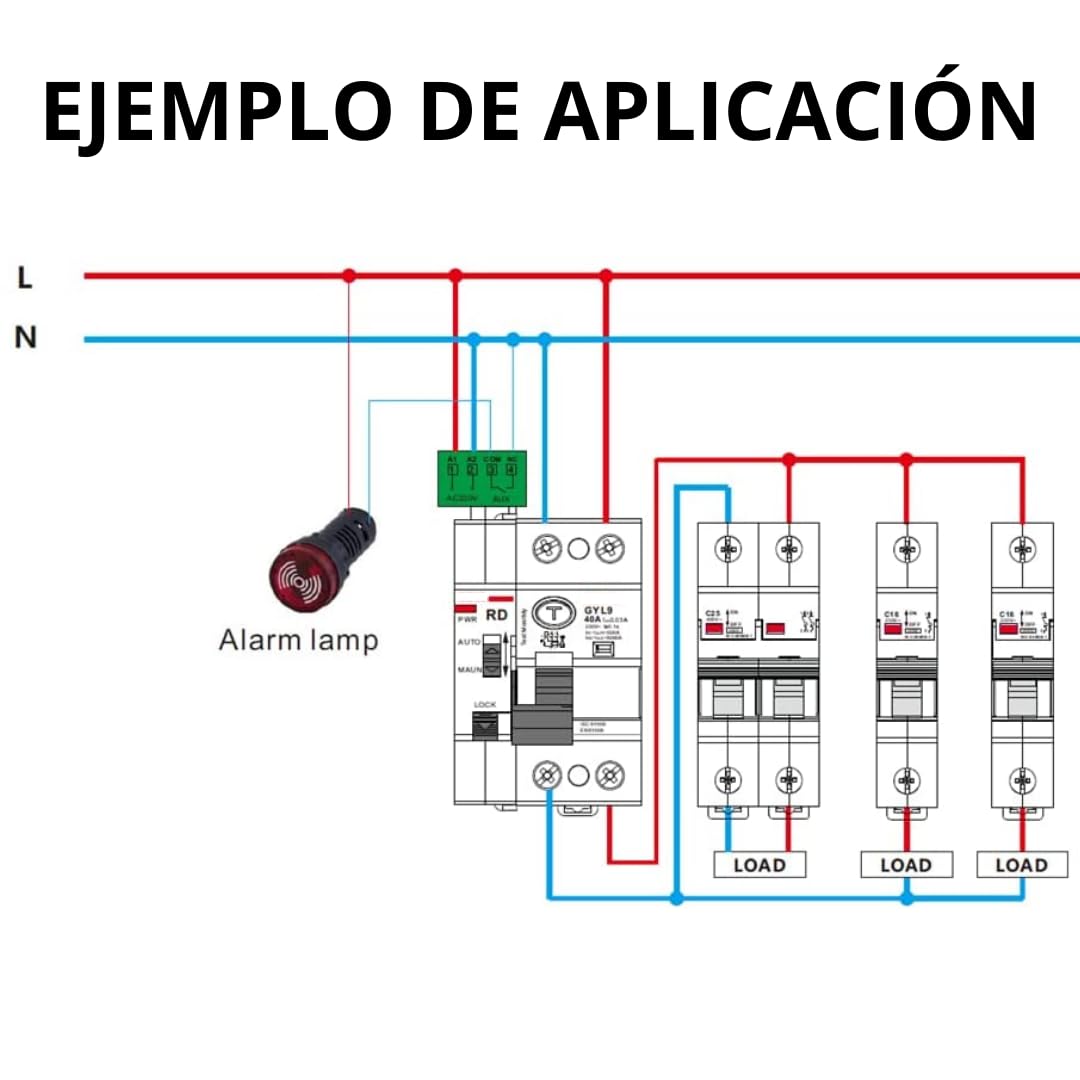

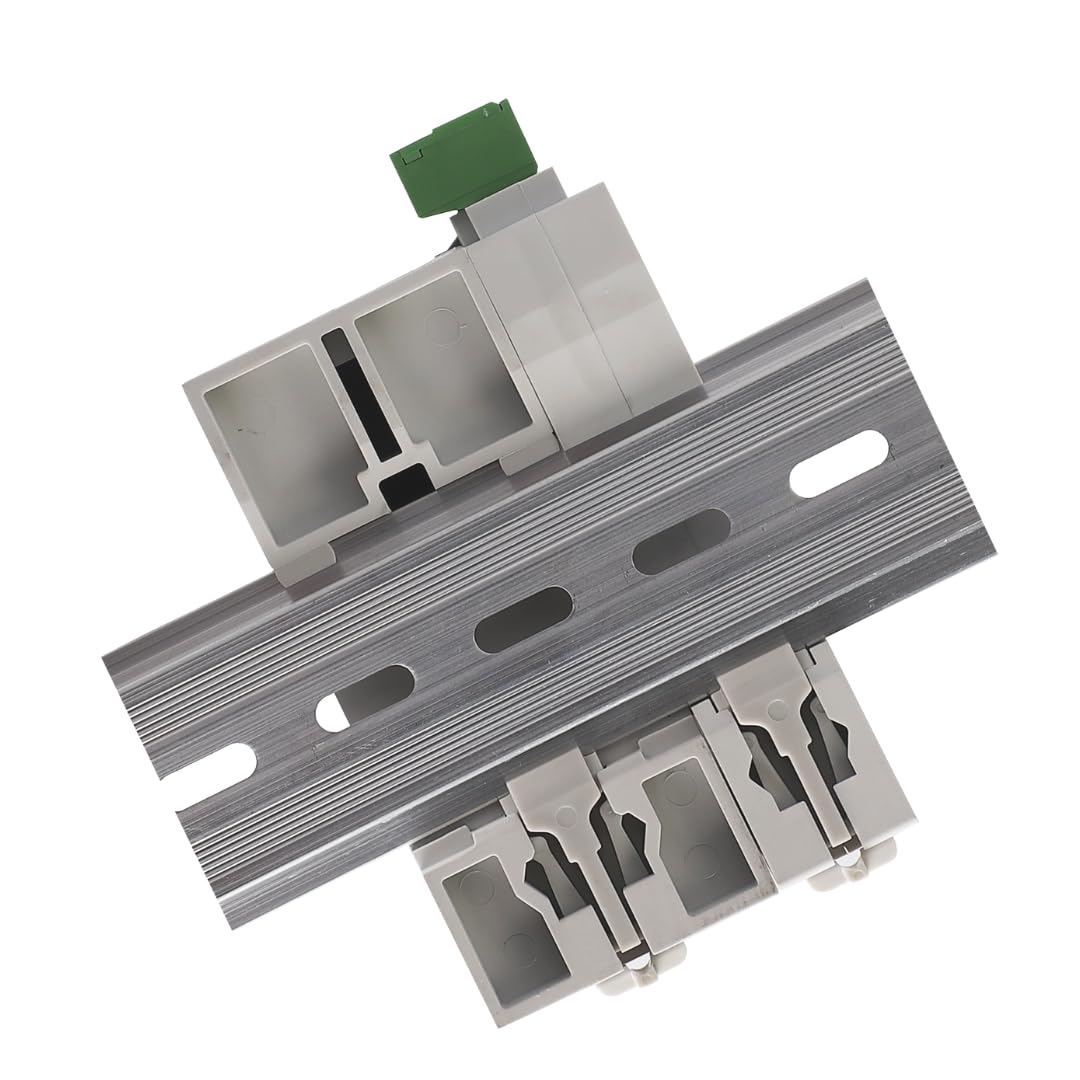

• ⭐ EASY INSTALLATION: Installs like any other differential in the light box, in rail. The auto-reset has to be powered electrically, the terminals of L and N must be fed into the green strip by putting them in parallel with the top of the differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The resettable differential has a locking system with which you can choose the operation of manual, automatic and closed mode.

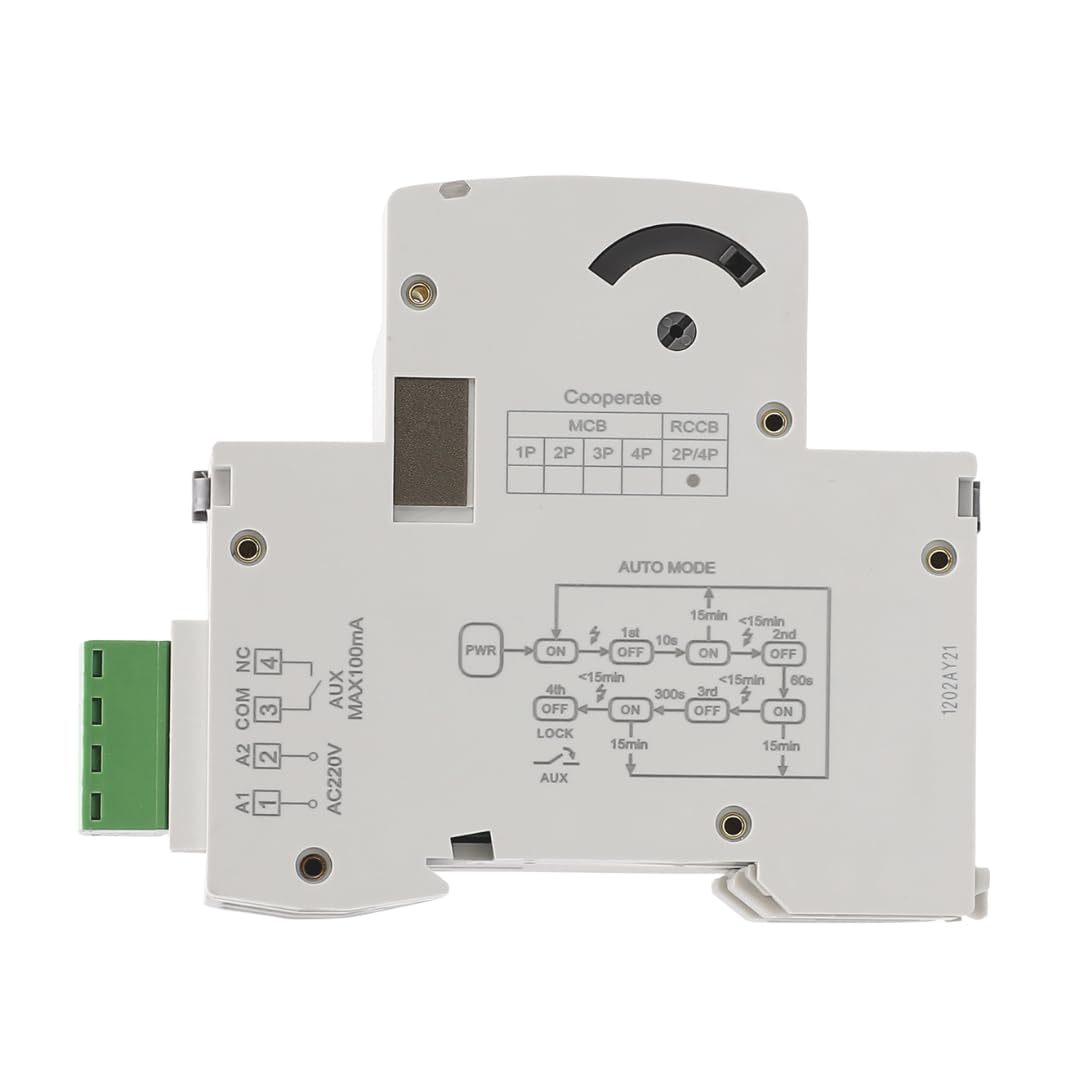

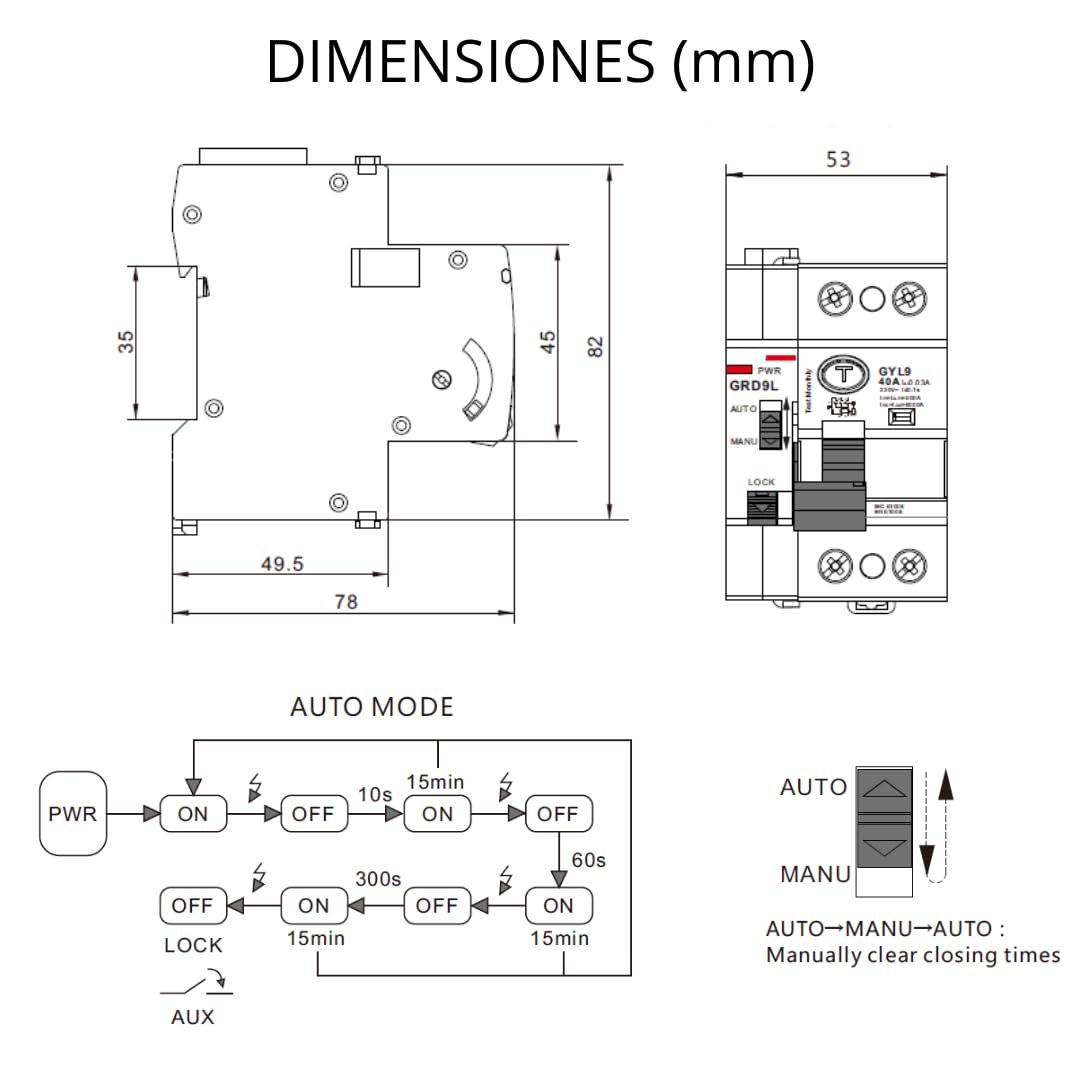

• ⭐ 3 RECONNECTION ATTENTS: When the differential jumps, the differential makes 3 attempts to reset, usually at 10 second time intervals from the cut, then at 60 seconds and another at 300 seconds. If after the three attempts you do not manage to rearm the differential, it is considered that there is an electrical problem and do not try again. To unlock the rearm, the AUTO-MANU tab must be raised and lowered twice in a row.
• ⭐ AUTOMATIC RESET TYPE A: The 2 Pole Automatic Rearme Superimmunized Differential Switch is a useful element within the electrical installation. Reset the differential switch automatically, so its function is more important when protecting the electrical installation.
• ⭐ DO NOT STAY OUT OF LIGHT: Our Superimmunized Rearmable Differential is a device that allows you to reset the light, automatically, when the differential jumps due to a transient incidence. Conforms to IEC61008, EN61008 and CE standards.
• ⭐ Super Immunized Self-Reassemblable Differential 2p Si Curve at 40 Amps and 30ma. Maximum short circuit current 6Ka, 220/230v.

What is a resettable differential for? Current leakage detection Protection of the electrical system in the event of a short circuit or possible fire. System of protection of people from the risk of electric shock. Why is it advisable to install a differential with automatic reset? Easy installation and low cost: although physically they take up a little more than normal differentials, their installation is still fairly simple or can be easily referred to specialized professionals at an affordable price if you balance the cost of installation and compare it with the peace of mind and security they bring. Economic savings: given the type of accidents that a differential with reset avoids (fires, short circuits, electric shocks) and possible losses derived from them (breakage of the cold chain in refrigerated or frozen foods, stop the continuous cleaning of water in swimming pools, fish tanks…). Convenience: for example, avoids having to search the electrical panel of the house in the dark when the differential jumps. In just a few seconds the reset will do its job without you having to move from where you are. Increased productivity: especially for IT equipment that is constantly operating and which the differential with reset allows you to continue working continuously your productivity over a long period of time. Increased security of home automation and control systems: in those homes or premises that have home automation or security systems (alarms, security videos, etc.) it is key when it comes to returning to the normal supply situation and not leaving malefactors possible security gaps due to lack of supply.
