KOHNEASO Sprinter Brake Light Backup Rear View Camera for Benz Sprinter/VW Crafter Van Backup Camera

• Easily replace the factory third brake light,no need to drill holes.
• 6 infrared lights,which auto activates at night to excellent night vision.
• 100% Waterproof with an IP68 rating to withstand all weather conditions.

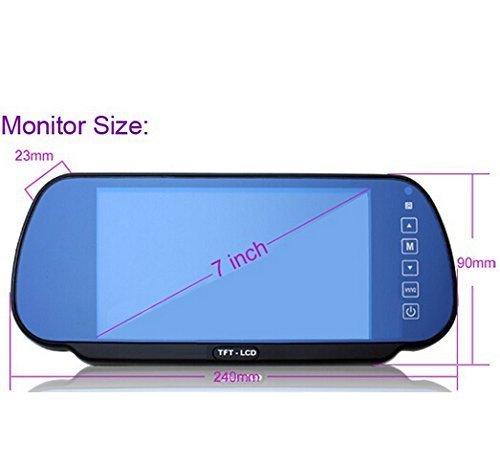

• Part of this backup camera system, this 7 inch TFT LCD mirror monitor features 800X480 resolution, which is great to display backup camera image. It’s designed to attach to your existing rear view mirror for a quick installation and will not take up room on your dash. Click here if you need a camera only.
• Easy to operate,Screen rotatable,16:9/4:3. Comes with an IR remote controller for a easy operation.
• With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
• We provided a professional instruction in package, 1 year provide tech support and replacement service
• Connector type: RCA

Application:Mercedes/Dodge Sprinter (W906) from 04/2006-VW C rafter (2EC1 / 2EC2 / 2EKE1 / 2EKE2 / 2EKZ) from 04/2006 -2016Backup camera is designed to completely replace the van’s third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.Camera Specification:Image sensor :1/3 Color CMOSResolution :756(H) X 504(V)TV line :600TV linesTV System :NTSCLens:2.5mmMin illumination :0Lux (LED ON)Viewing angle:170°Operation Temp. :-20℃~+70℃White Balance :Auto 7inch Clip-on Monitor Specification:Monitor size :7 inch(800 X 480)Contrast :16:9TV System :PAL/NTSCVideo input :AV1/AV2Power : DC12V-24VBrightness :400cd/㎡Installation way: Clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor)In The Box1 * Rear mirror monitor 1* Backup Camera1*10M Extension Cable1*Power Cable1 * ManualFQA1. How to wire it ?It is very easy for wiring.Backup camera wiring: The camera is 4PIN plug ,please connect it directly to AV input wiring of monitor power cable.Rear view monitor wiring :Red wire for power source, green wire for reverse, black for ground.2. Is it ok if I want this rear view camera to always be on ?Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter)that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
