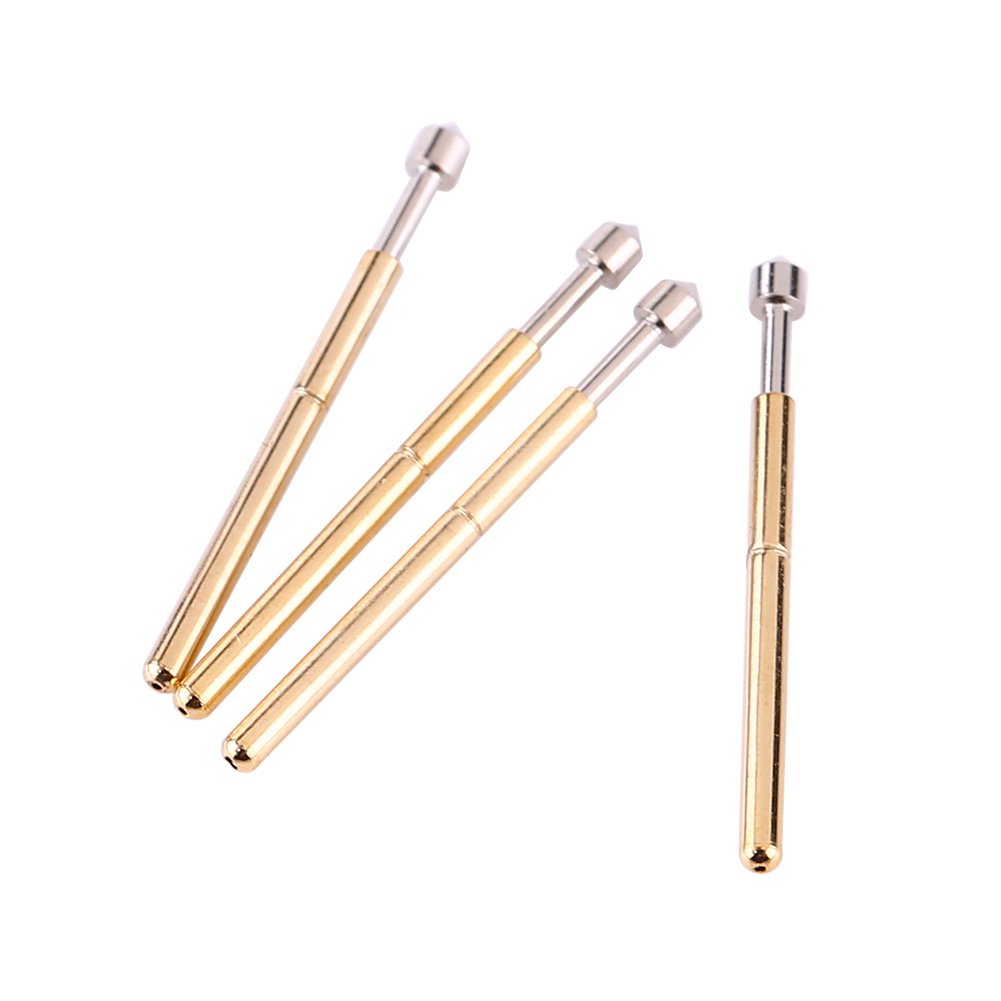

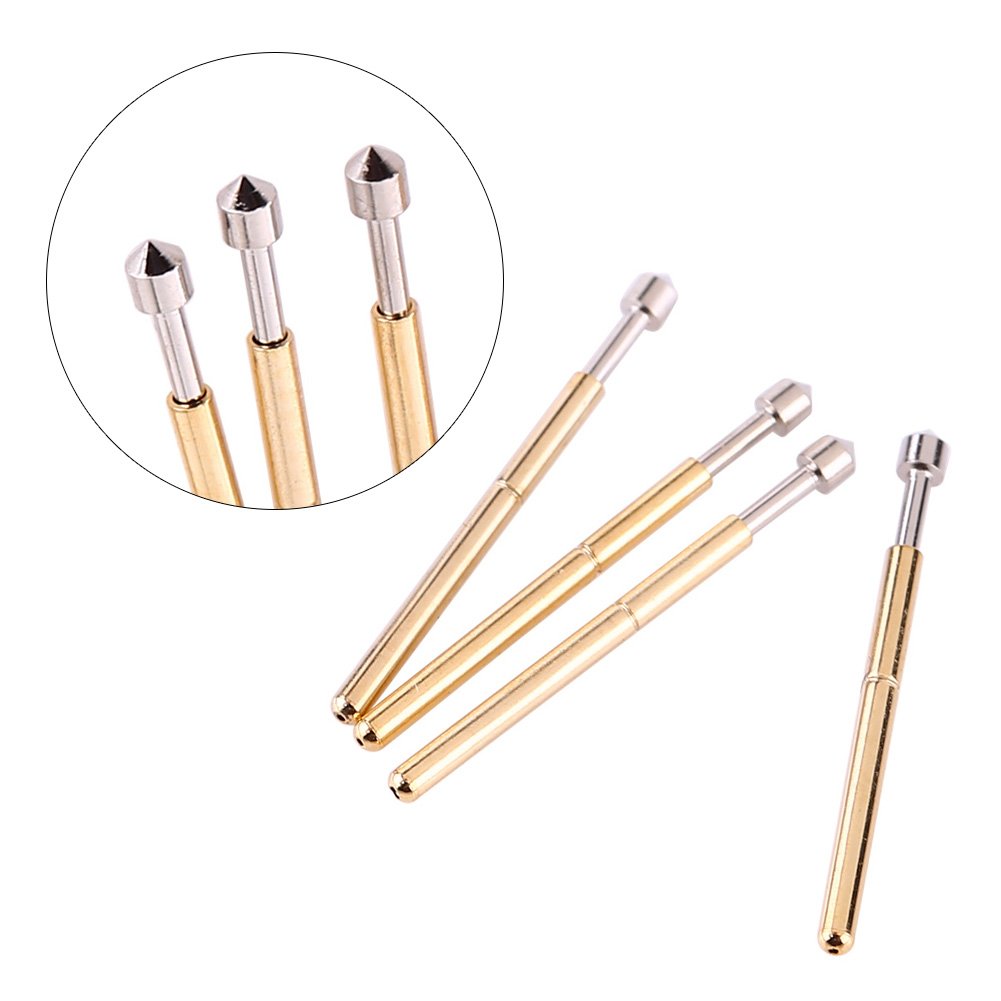

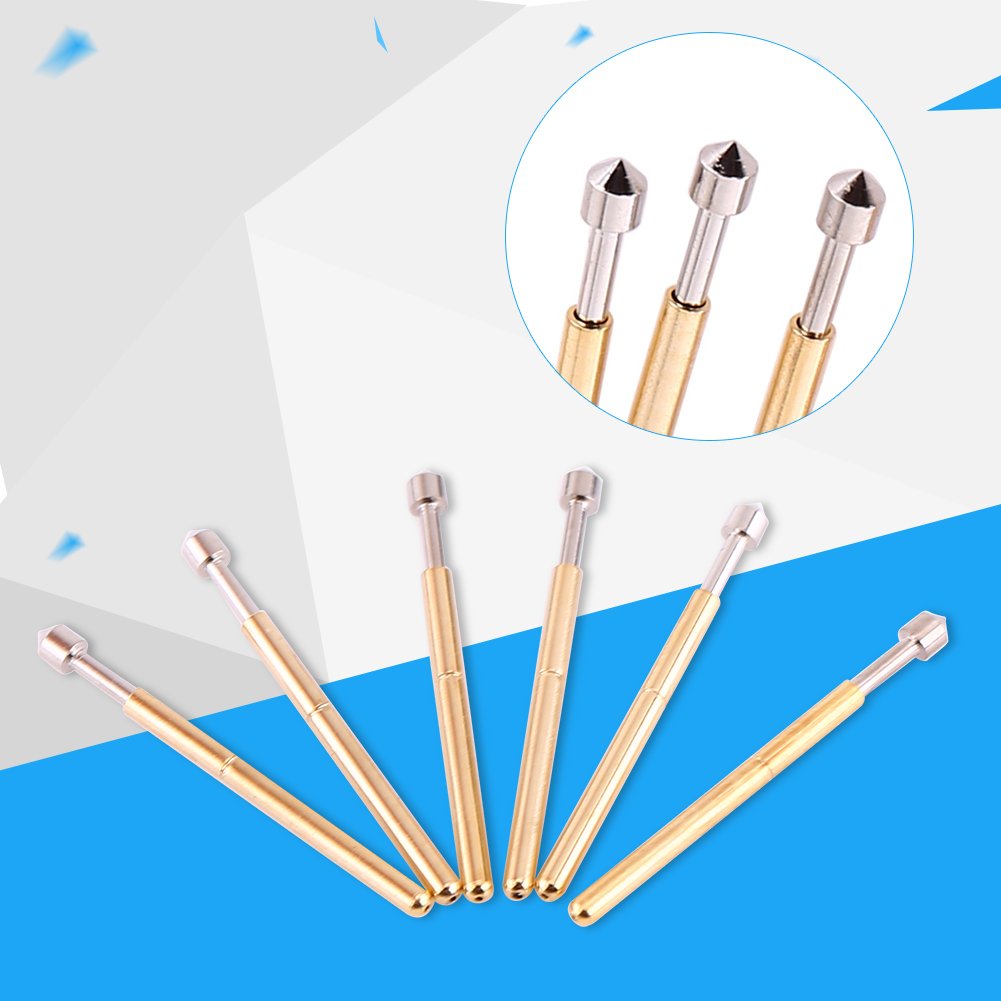

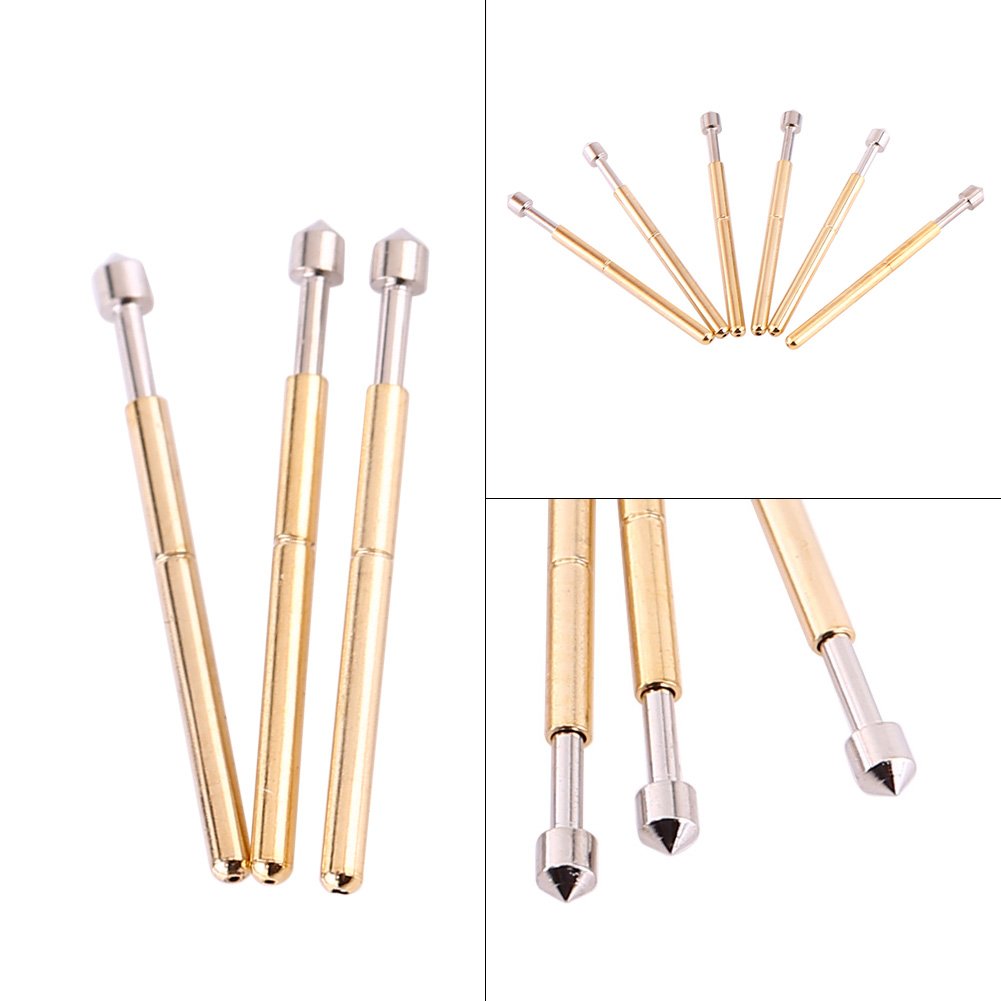

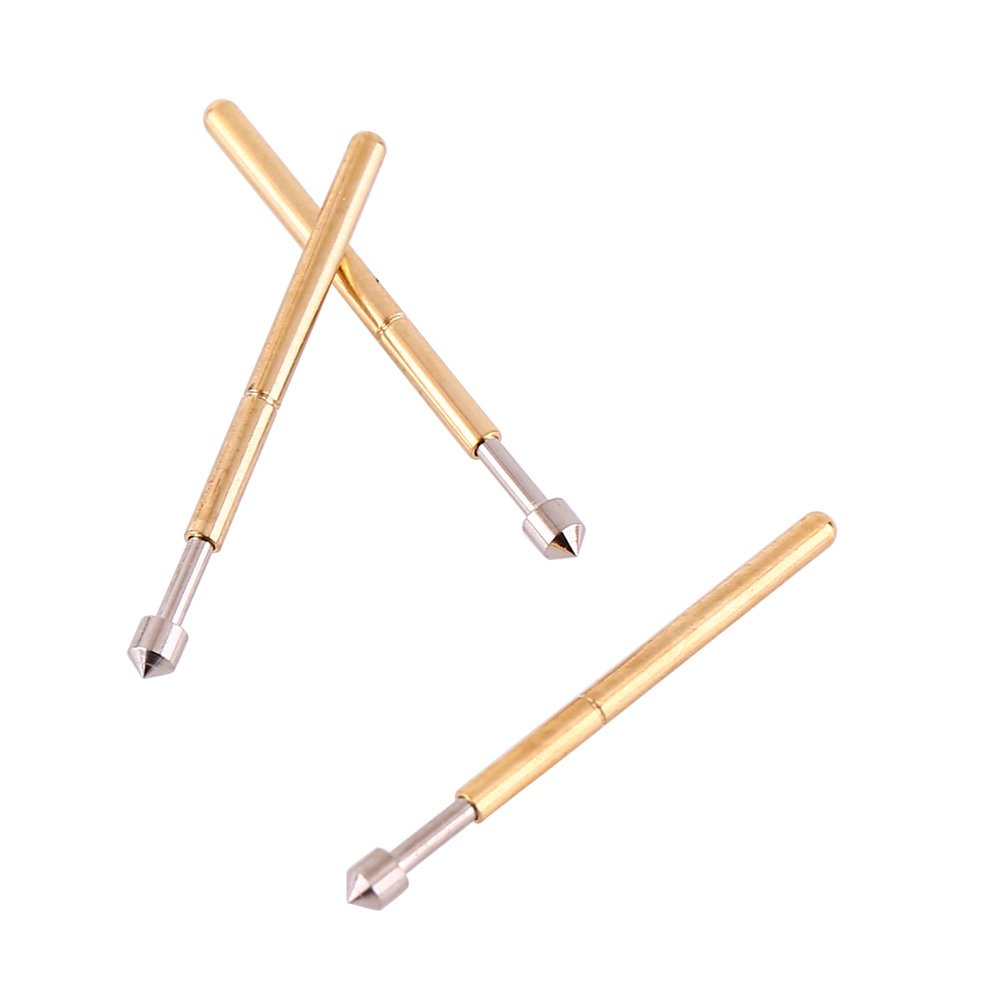

Spring Test Probe Pin 100 Pieces P75-E2 Cone Head Dia 1.02mm Spring Test Probe PCB Testing Pin Electrical Test Meters PCB Test Probe

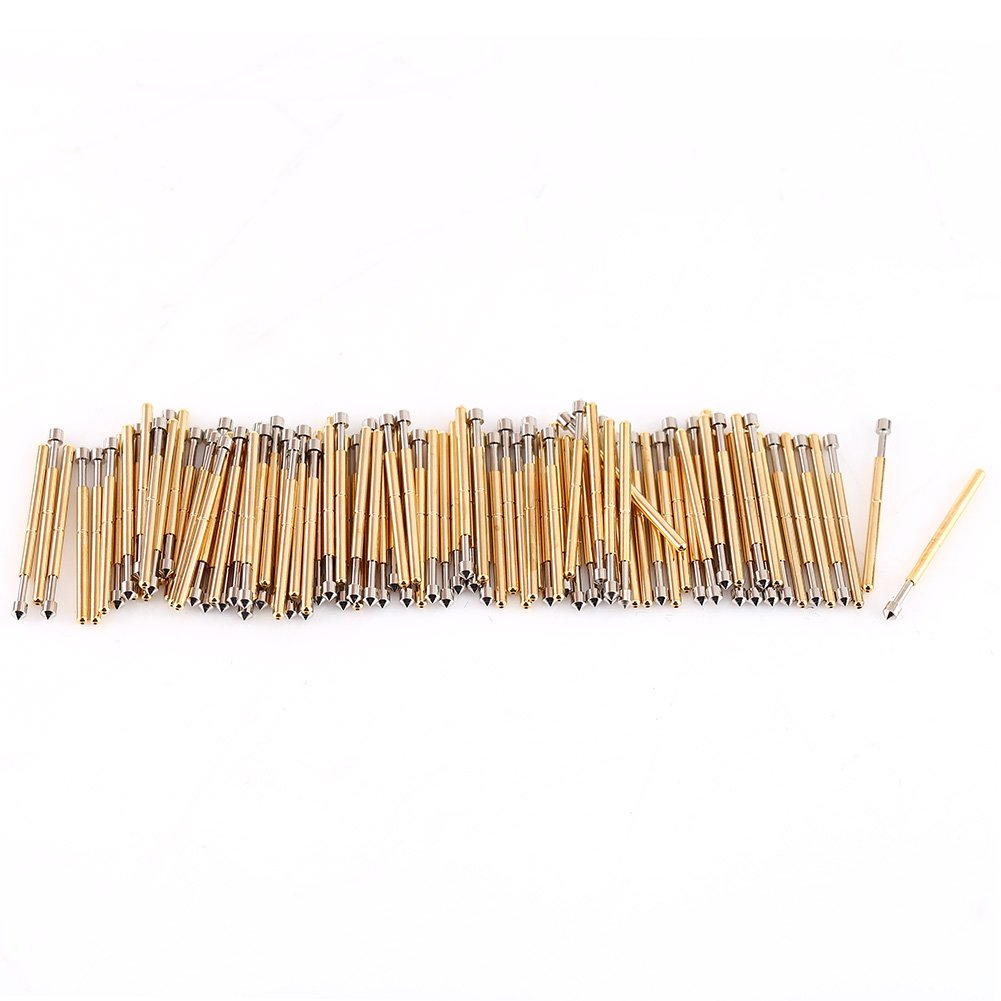

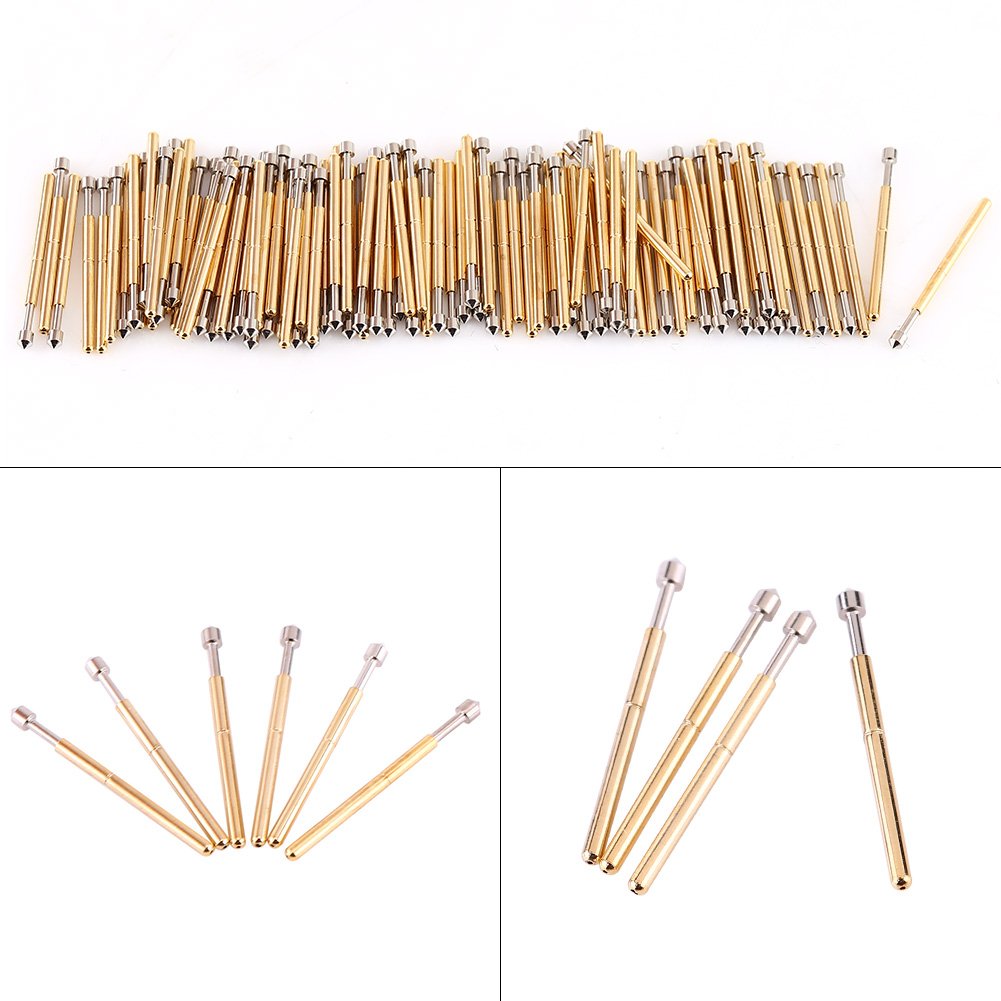

• Spring Test Probes: Type :100pcs P75 E2 Cone Head Spring Test Probes .Total 100 pcs spring test probes in one set for long time service! Great replacement probes to extend the life of your test station .

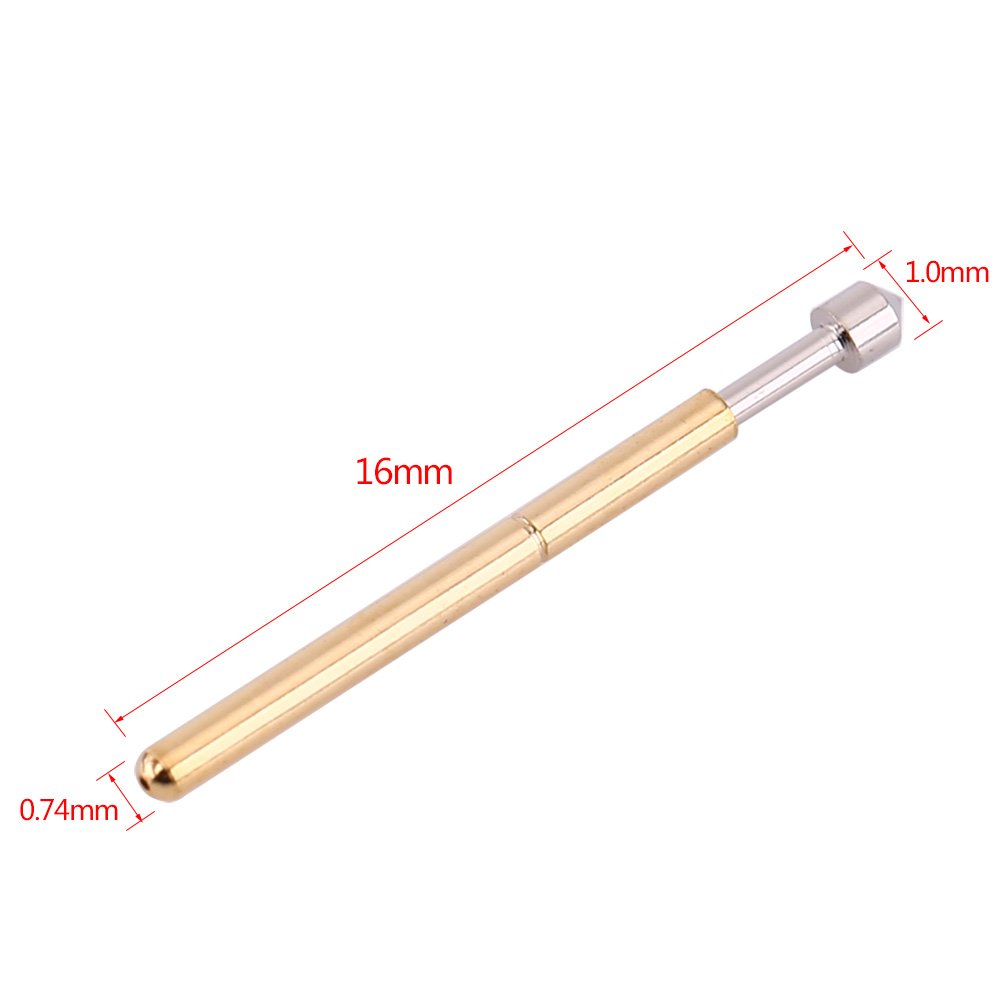

• Important Parameters: P75 E2 Cone Head; Head Shape :Cone; Current Rating :3A; Resistance :50mΩ; Stroke :2 . 5mm; Probe Tube Diameter :1 . 02mm; Probe Rod Diameter :0 . 74mm; Probe Length :16mm; Boring Size :1 . 4mm; Min .Test Interval :1 . 91mm .
• Testing Components: Necessary probe kits for PCB conductive testing to access components on printed circuit assemblies ,and test stability and durability .
• Premium Quality: Made of high quality material ,heat treated beryllium copper plunger ,gold plated phosphor bronze barrel and gold plated stainless steel wire spring ,good contact and to use .
• Widely Applications: Widely used for testing through hole components ,gold fingers(edge connectors) PCB and welding pads .They are great replacement probes if you need to change broken or old test probes .

Features: Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies. There are total 100 pieces spring test probes in one set that you can use for a long time.Cone shape head can be used for testing through-hole components. Widely used for testing PCB gold fingers(edge connectors) and pads. They are great replacement probes if you need to change broken or old test probes. Specifications: Head Shape: Cone Current Rating: 3A Resistance: 50mΩ Stroke: 2.5mm Probe Tube Diameter: 1.02mm Probe Rod Diameter: 0.74mm Probe Length: 16mm Boring Size: 1.4mm Min. Test Interval: 1.91mm Quantity: 100pcs Package Includes: 100 x Probes
