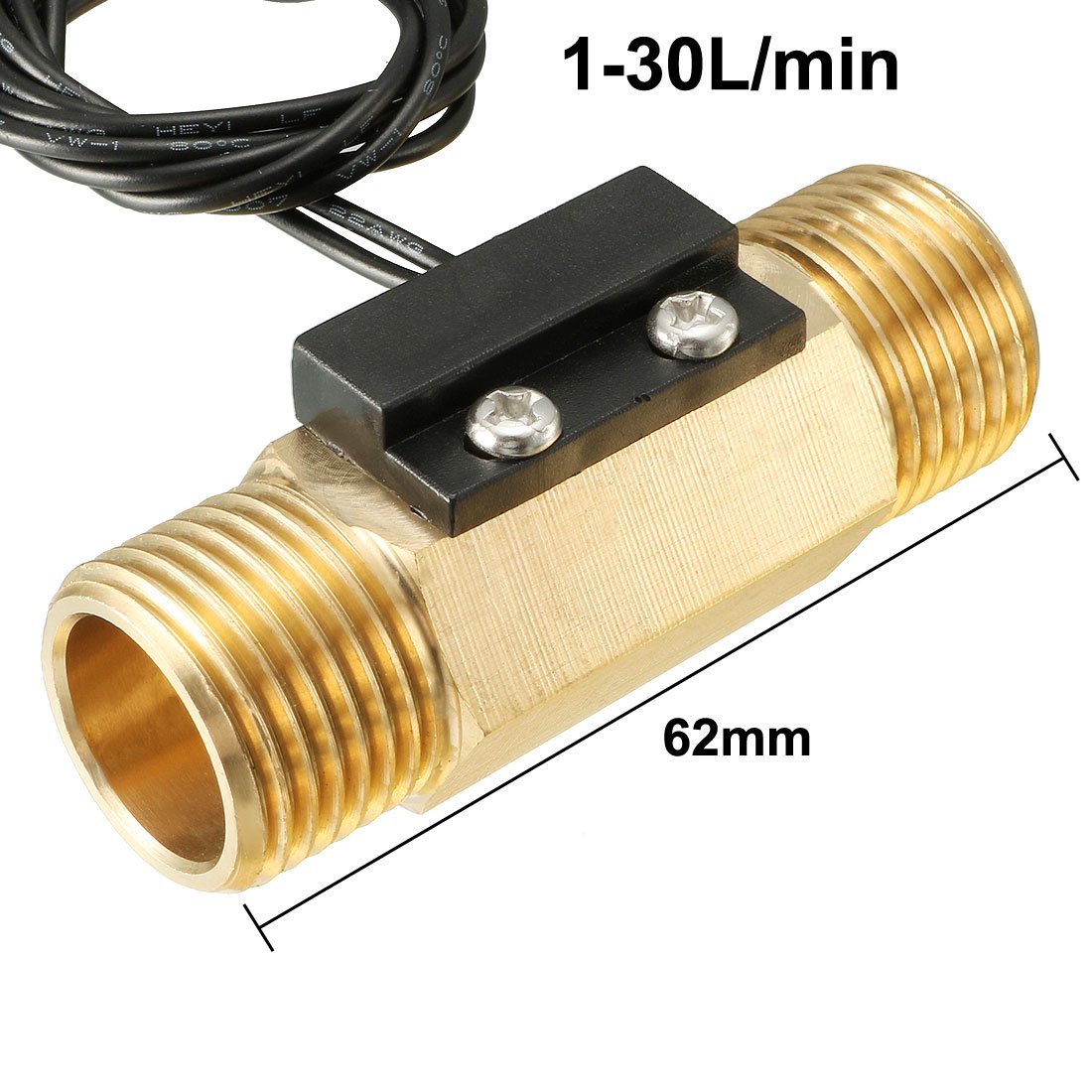

Sourcingmap G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter 1-30L/min SEN-CL21W

• Stable, high temperature, low water pressure start.
• Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• All materials are in line with SGS testing standards.
• Flow Range: 1-30L/Min; Maximum Water Pressure: 1.75MPa

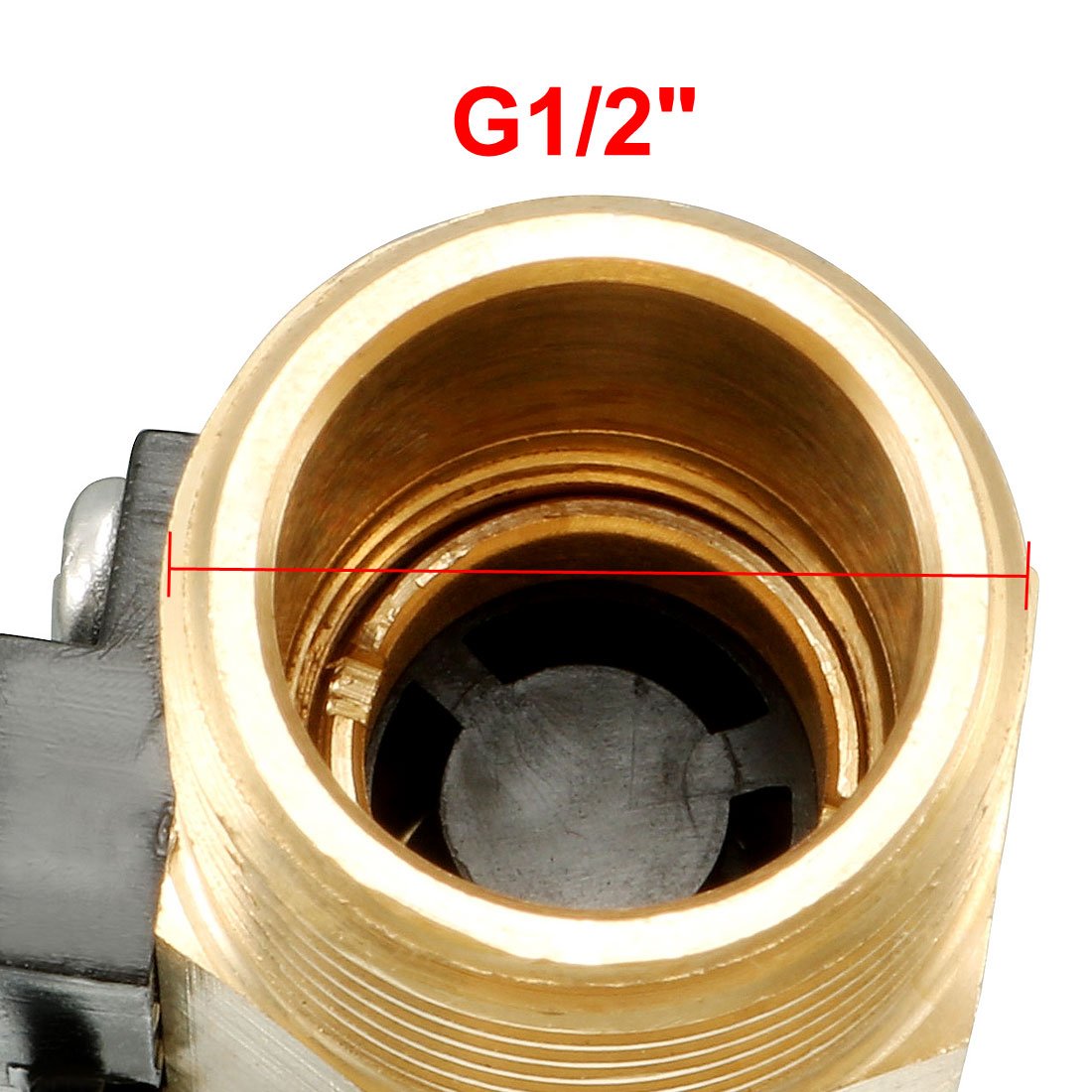

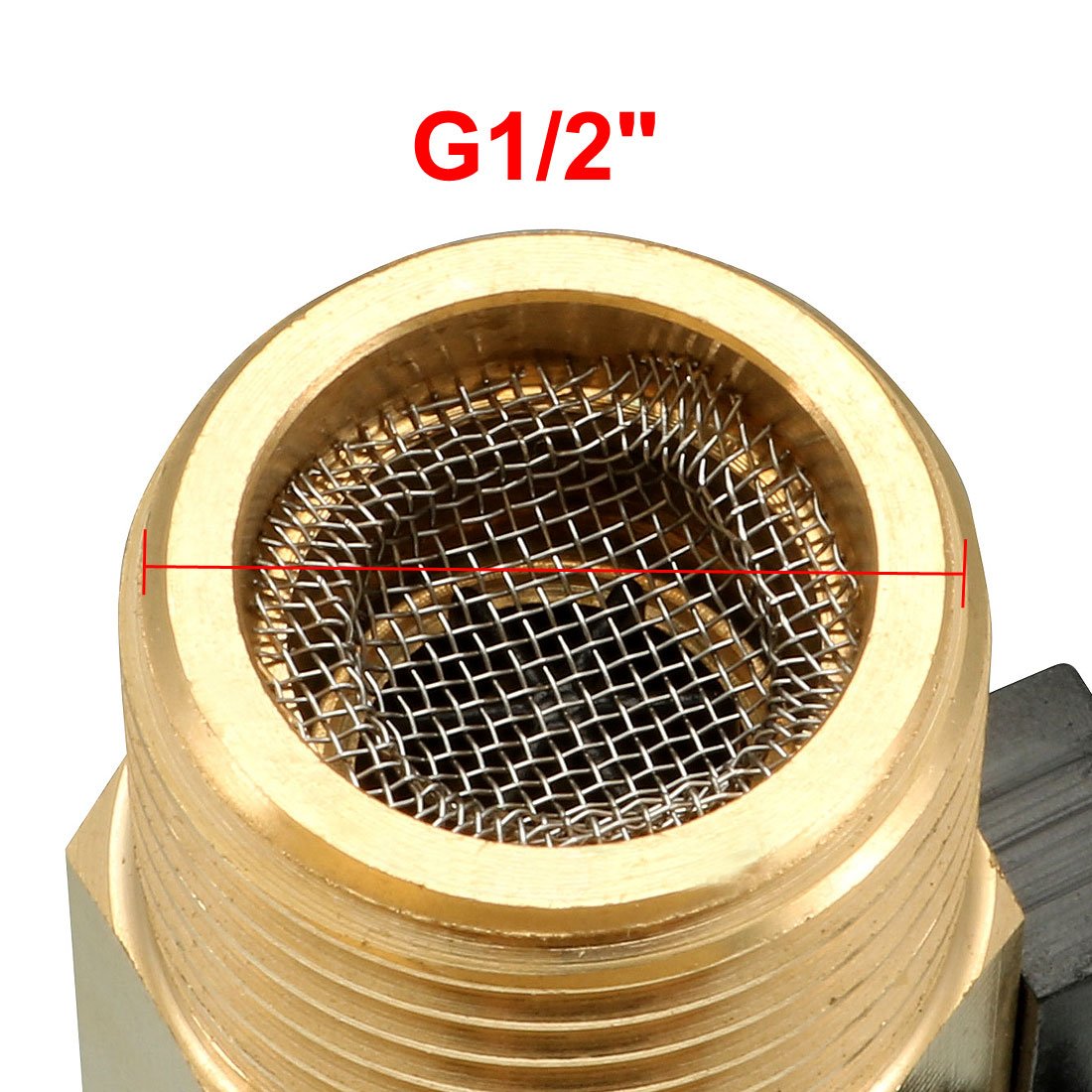

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end. Equipped with filter water entry. 2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation. Specifications: Product Name: Water Flow Sensor Material: Brass(Shell) Liquid Temperature: Not More Than 60C External Thread Diameter: G1/2 Tube Length: 62mm Flow Range: 1-30L/min Max Switch Voltage: DC250V Max Contact Rating: 70W Max Current: 0.3A Maximum Water Pressure: 1.75MPa Cable Length: 33cm Size: 62mm x 24mm x 26mm(L*W*H) Ingress Protection Rating: IP65 Color: Brass Tone Net Weight: 114g Package Included: 1 x Water Flow Sensor Note: 1. Installed in accordance with flow direction in the product, otherwise there is no signal output. 2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
