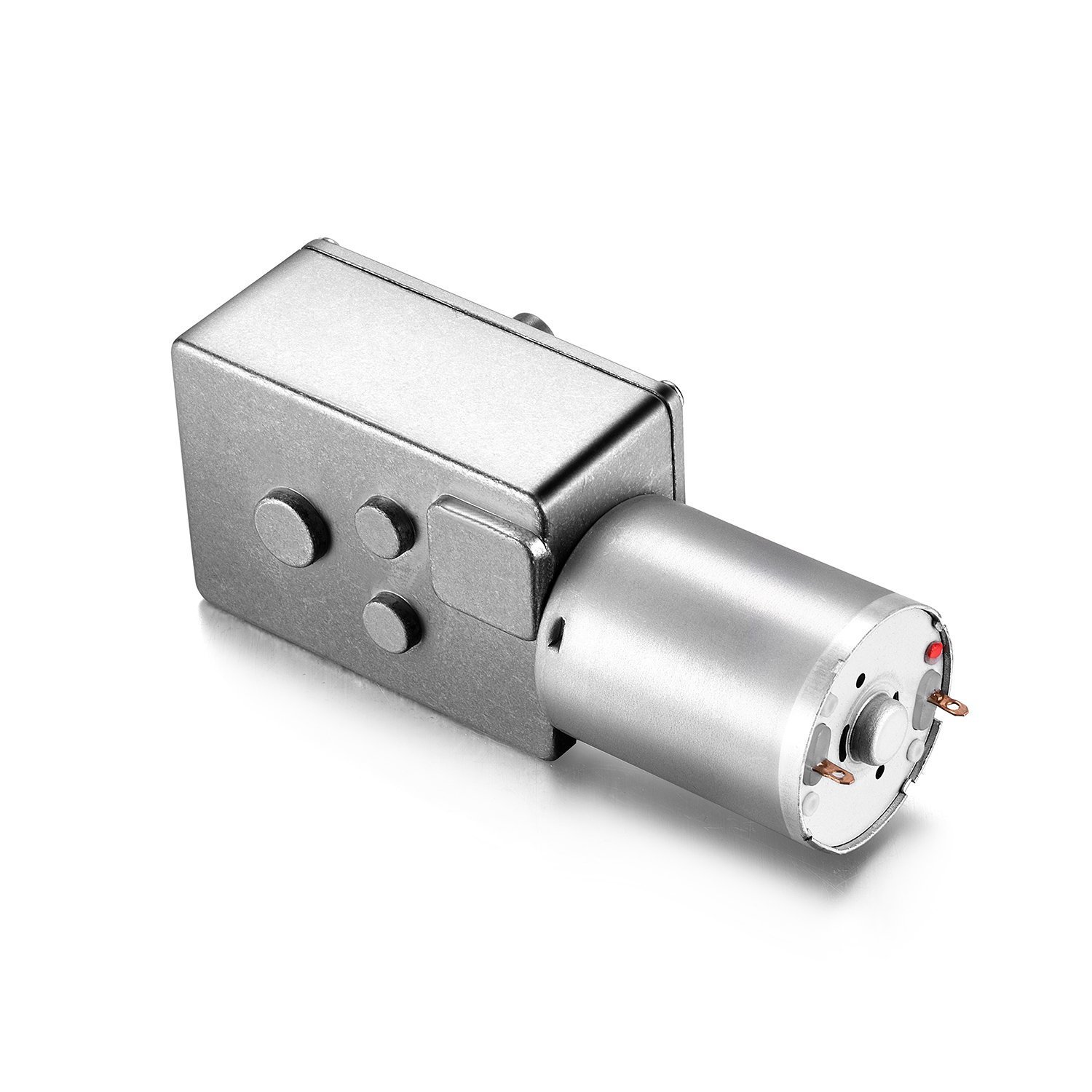

Sourcingmap DC 3V 3RPM Worm Gear Motor 6mm Shaft High Torque Turbine Reducer

• Technical Specification: Rated Voltage: DC 3V;Gear Box No-load Speed: 3RPM; Rated Torque: 2.5kg-cm(2.2lb-in); Motor Pins Numbe: 2.

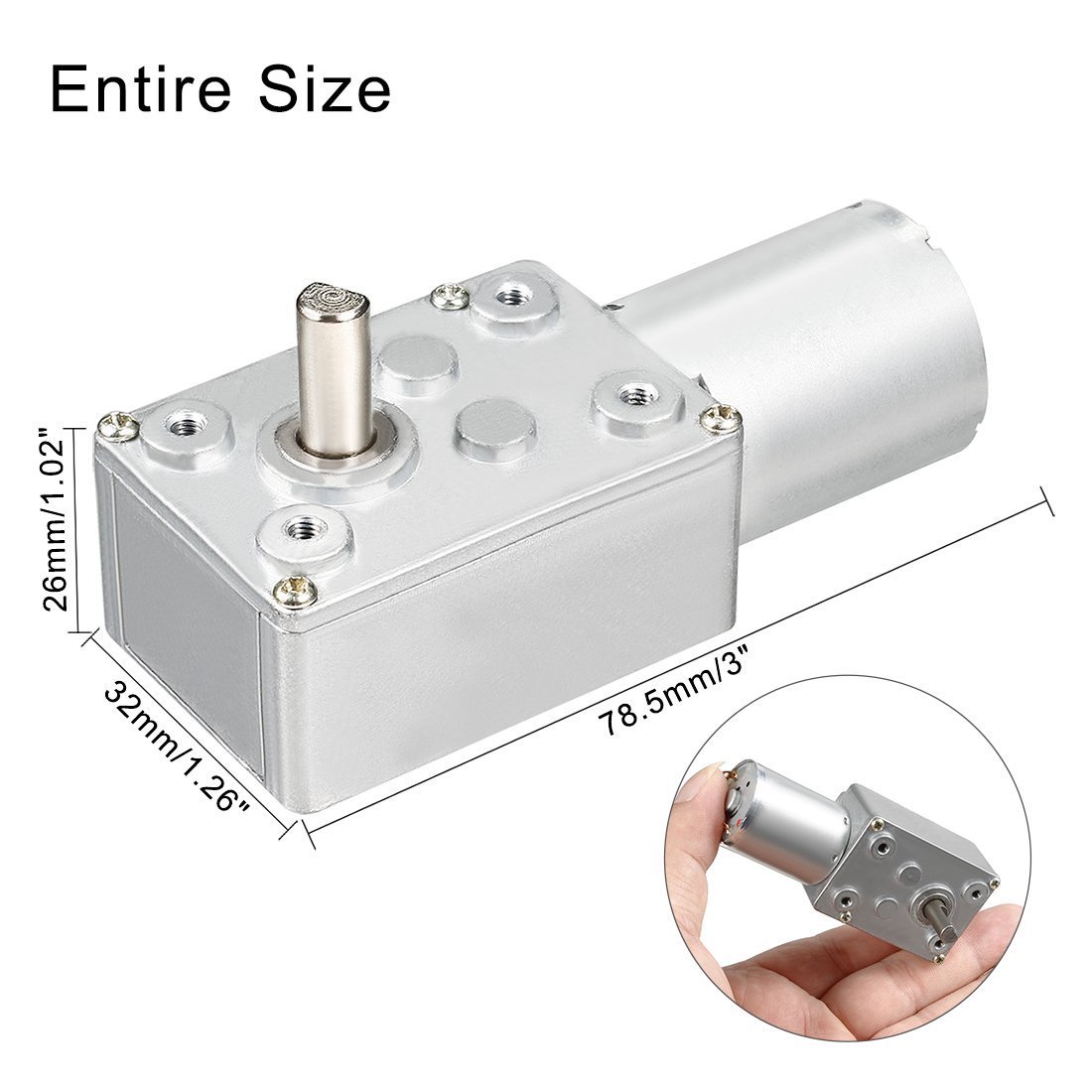

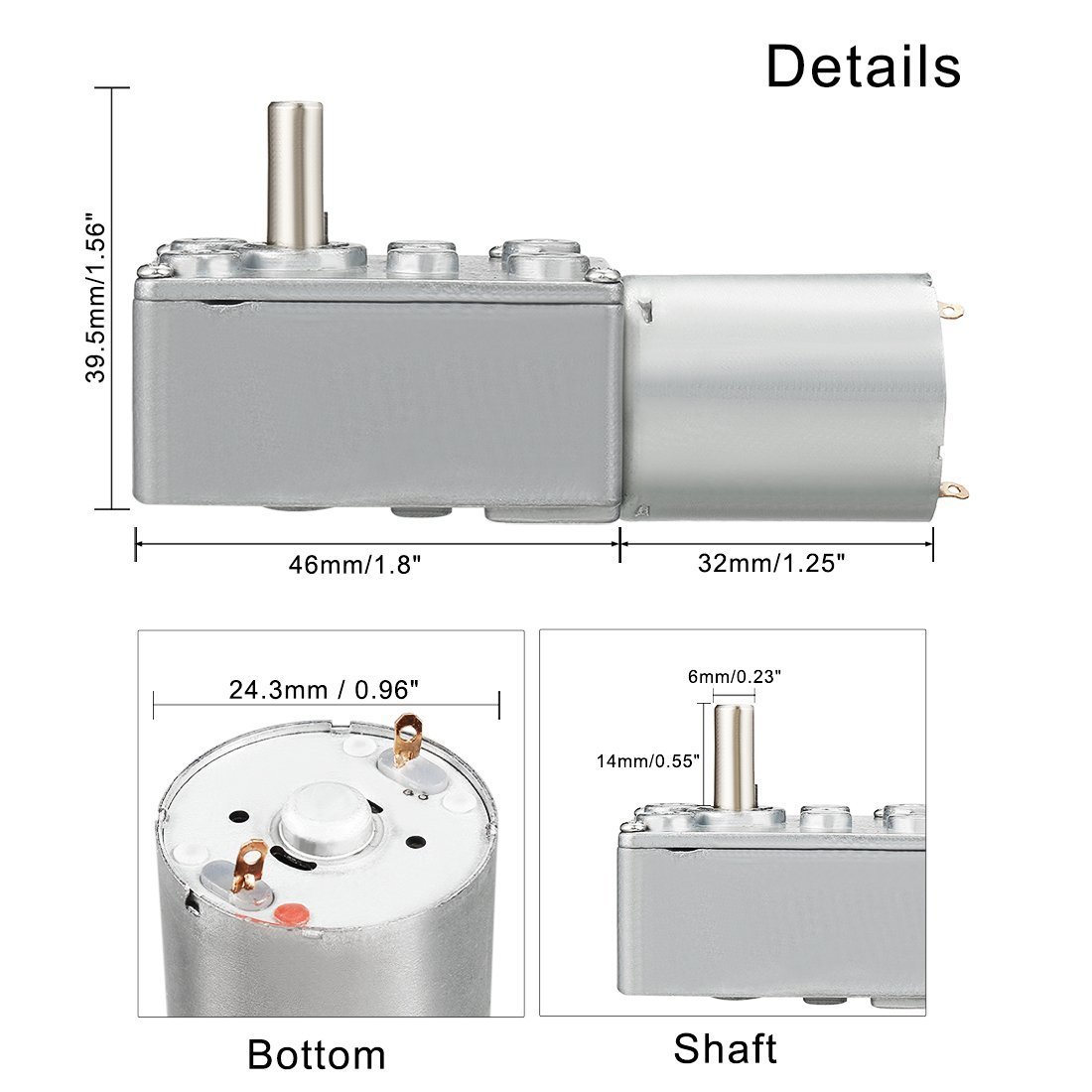

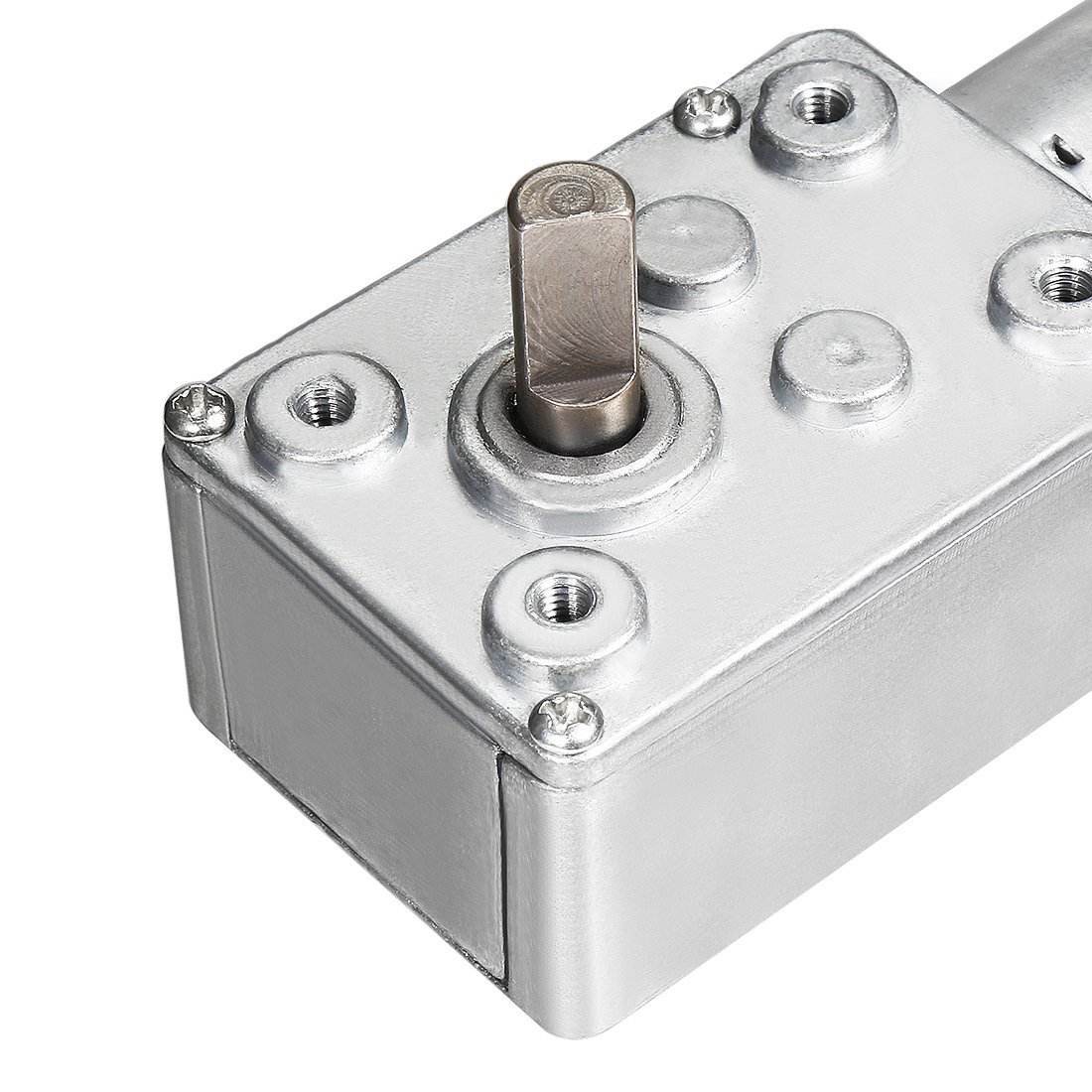

• Size: Main Body: 78 x 31 x 25mm/ 3inch x 1.2inch x 1inch (L*W*H); Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L); Net Weight: 158g; .
• Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
• Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
• Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.

Description: *This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed. *It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle. *It is widely used in various of ocns that require special install size. Specifications: Product Name: DC Motor Model: JSX1650-370 Rated Voltage: DC 3V Color: Silver Gray Net Weight: 158g Material: Metal Gear Box No-load Speed: 3RPM Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L) Main Body Size: 78 x 31 x 25mm (L*W*H) Shaft Shape: D shaped shaft Motor Pins Numbe: 2 Package Contents: 1 x DC Motor
