Sourcingmap AC-AC Relay 40A 90-250VAC to 40-440VAC Thermal Compound 3 Phase Solid State Relay + Heat Sink

• Material: Metal,Electrical Parts
• Net Weight: 899g

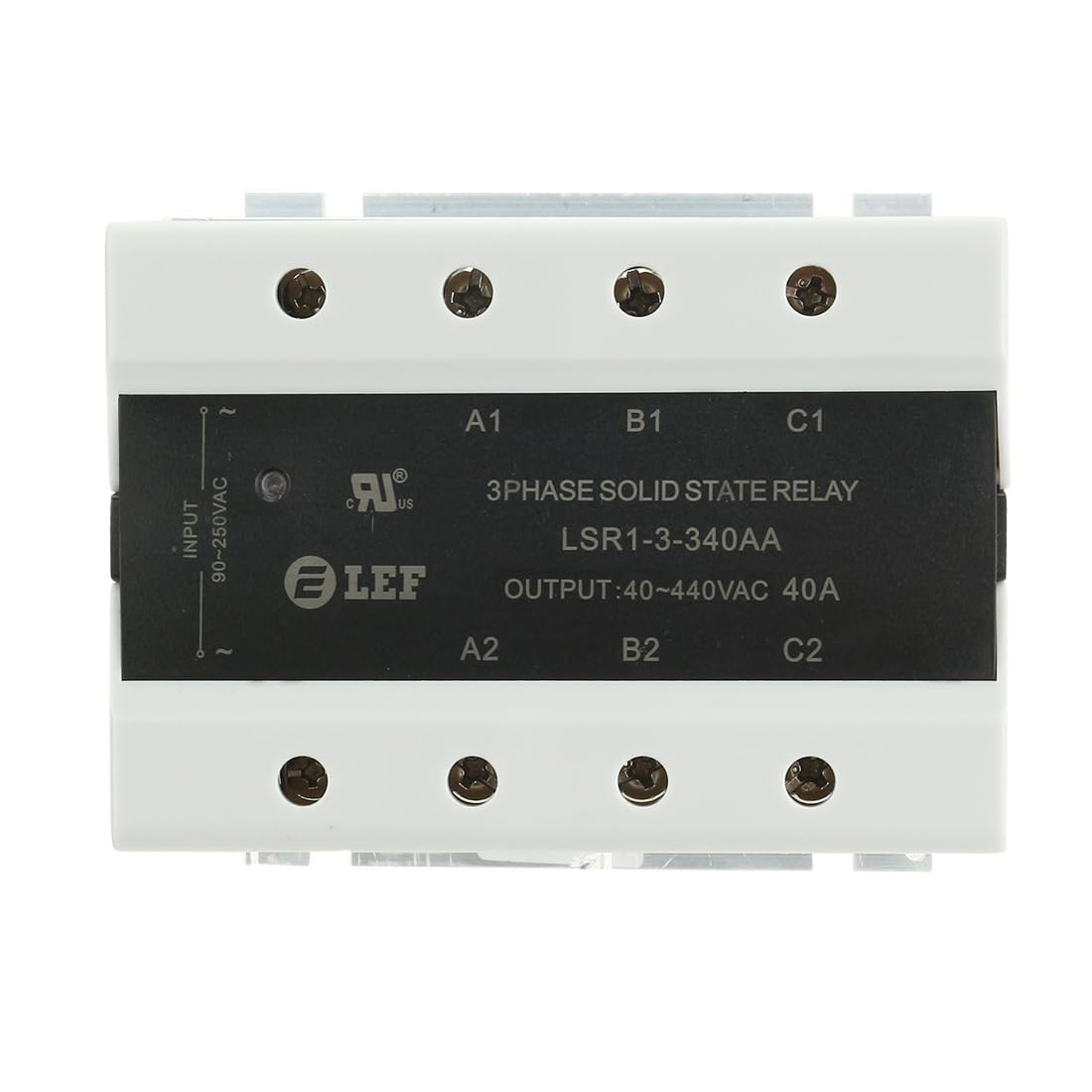

• Model: LSR1-3-340AA Three Phase Solid State Relay, 40A
• Input voltage: 90-250VAC; Output voltage: 40-440V AC; Max Load Current: 40A. Package Content: 1 x SSR, 1 x heatsink
• Widely used in computer external link devices, high-power thyristor triggers, and industrial automation devices. Such as thermostat and resistance furnace control, AC motor control, solenoid valve control, copier and fully automatic washing machine control, lighting, and stage lighting control, CNC mechanical remote control system, etc.

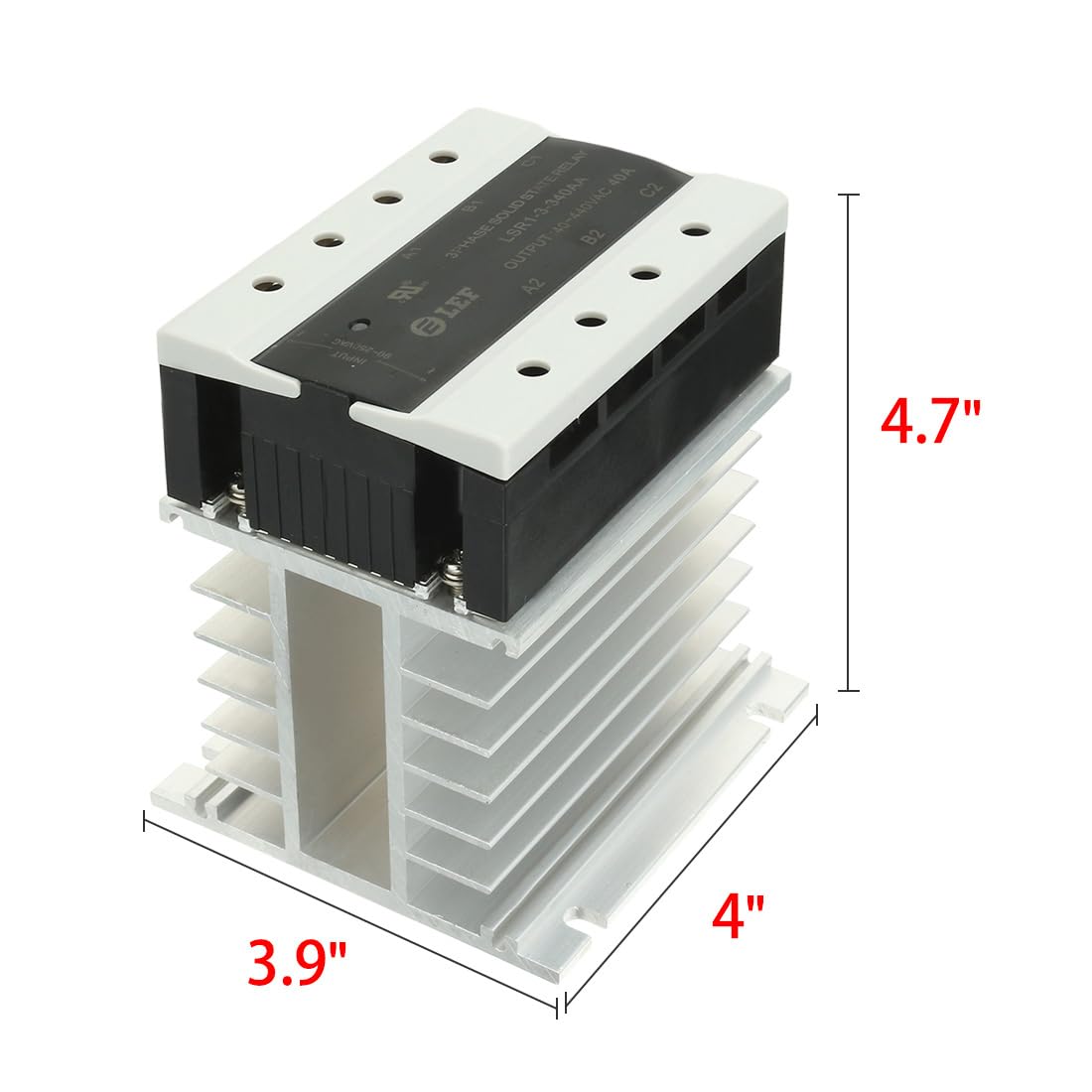

Feature: 1. High reliability, high efficiency and long lifespan 2. No electric spark, no noise and no contact 3. Fine electro magnetic interference, high sensitivity and fast switching speed 4. Low drive voltage and current 5. Especially suitable for corrosion, moisture, dust resistant and other harsh environments 6. Widely used in many automatic control systems Specification: This is a 3 phase solid state relay LSR1-3-340AA Model: LSR1-3-340AA Input voltage: 90-250AC Output voltage: 40-440V AC Output current: 40A Total Size: 10.5 x 10 x 12cm/ 4 x 3.9 x 4.7inch (L*W*H) Package Content:1 x Solid State Relay LSR1-3-340AA 1 x HeatSink Matters Needing Attention: 1. The current on the product is the maximum load current, not the rated current. 2. On the basis of the difference of the load character, you should keep the different on the level of the current when you choose the product.(When the load is resistive, the load current should be 1/2-1/3 times of the max load current. When the load is inductive or capacitive, like motor， transformer， the load current should be 1/4-1/6 times of max load current.) 3. When Installation,solid state plate and radiator with smeared thermal conductivity silicone grease 4. ≥20A With radiator, ≥30A with radiator and fan strong cold. 5.The thermal compound has been applied evenly between the heatsink and the SSR, MAYBE IT LOOKS LIKE Spots AND IS NOT CLEAN MUCH, but it is for better heat dissipation, please note.
