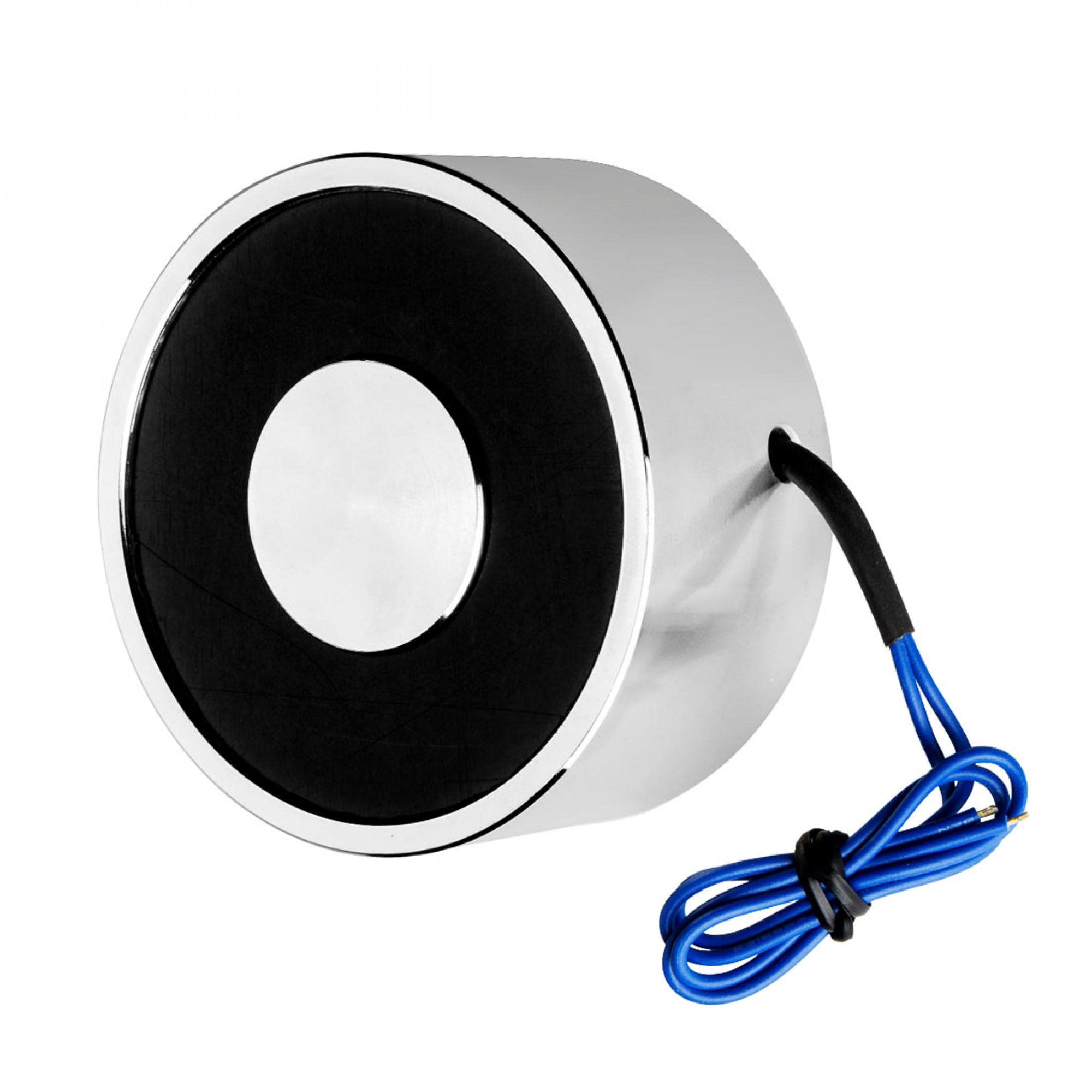

sourcingmap 12V DC 1400N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

• Input Voltage: 12V DC;Peak Force :1400N Holding Force : 1050N Duty-cycle (ED%) : 50%; Electric time:Less than 7 minutes ; Thread Size : M8*12;Material: Pure Iron

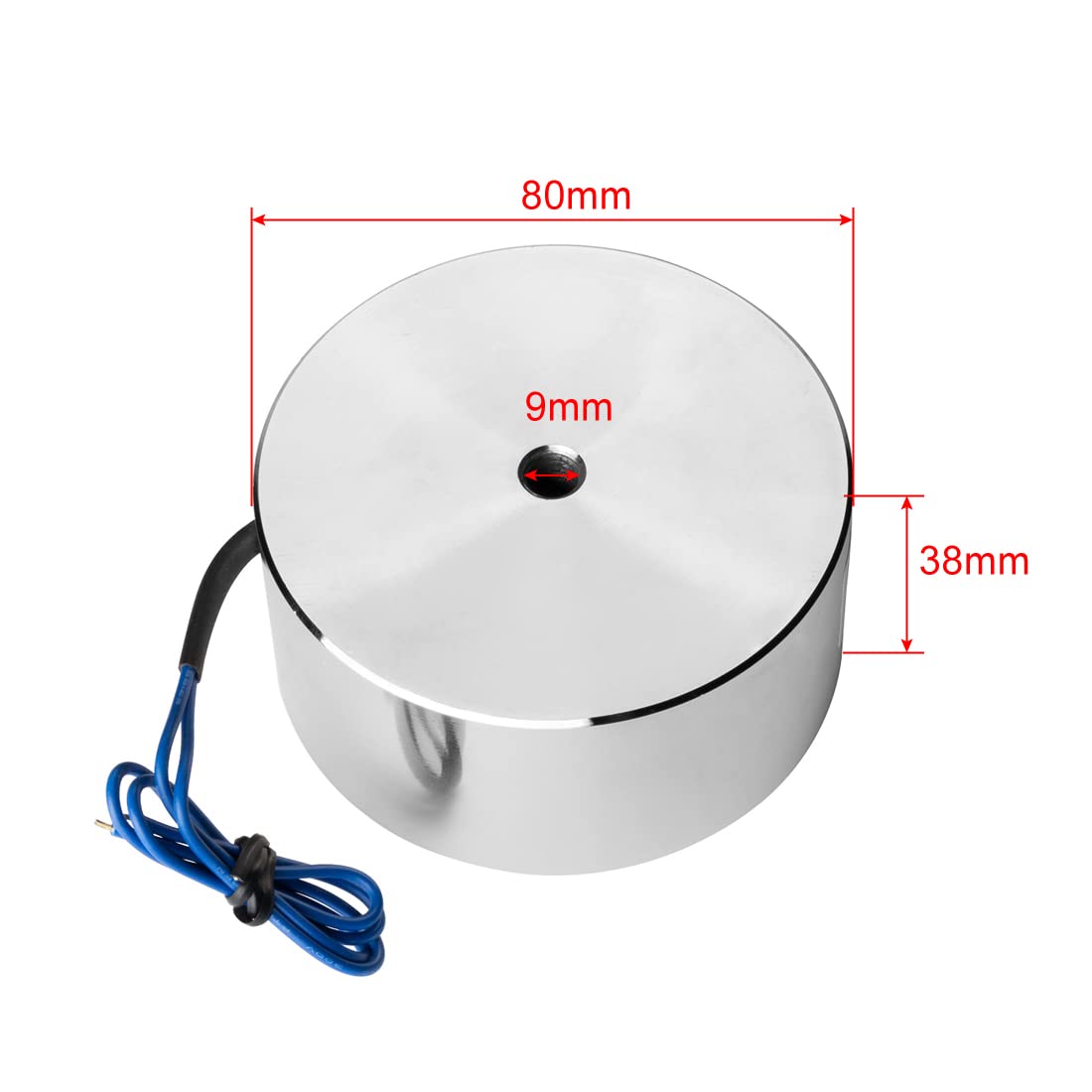

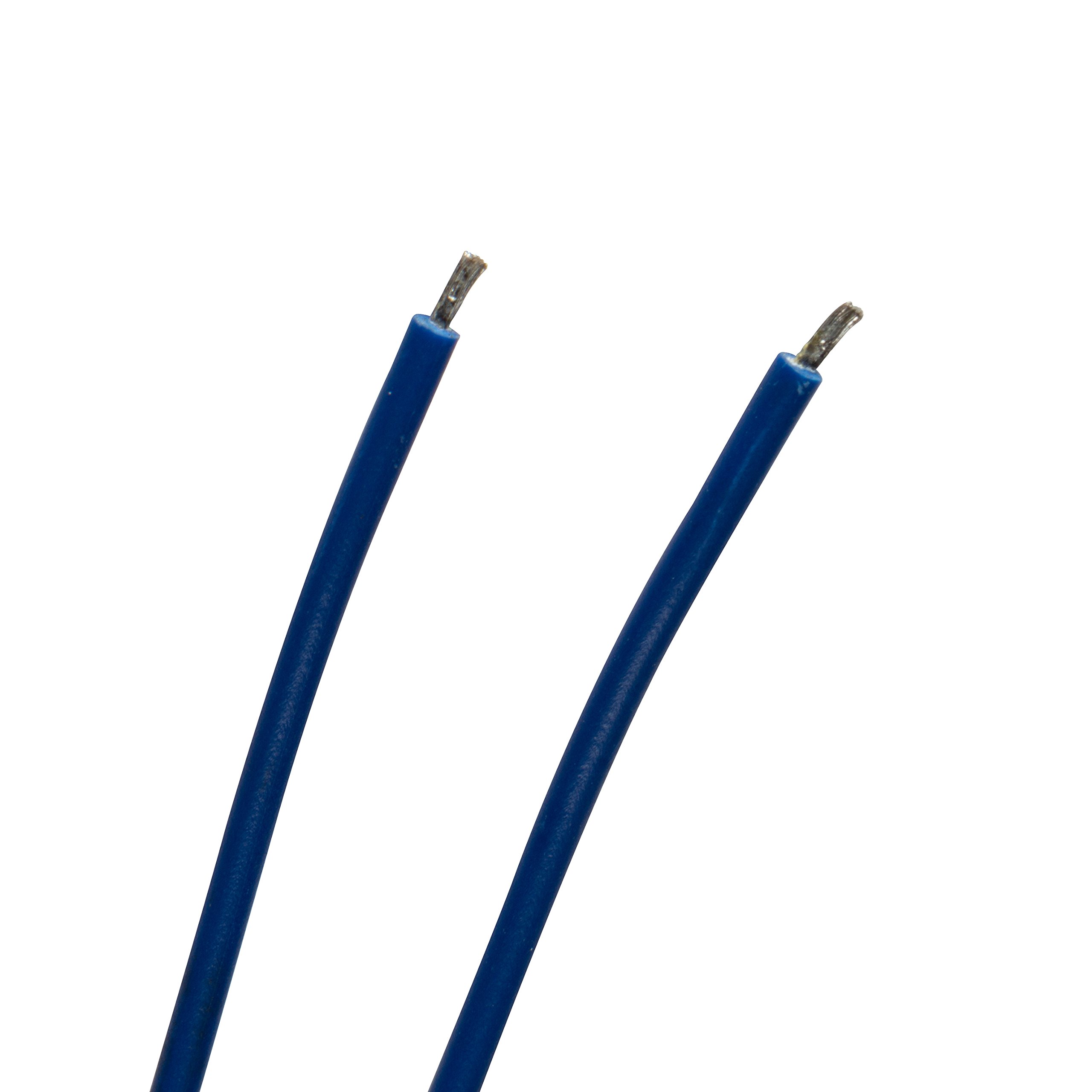

• Overall Size : 80 x 38 mm / 3.1 x 1. 5inch(Dia. *T) ;Lead Length : 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Feature: Electric lifting magnet Powerful and compact Smooth and flat surface Low consumption and reliable Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect. It is recommended that the actual force is less than 80% of the sucked force on the name plate. Specification:Material: Metal Input Voltage: 12V DC Peak Force :1400N Holding Force : 1050N Duty-cycle (ED%) : 50%; Electric time:Less than 7 minutes ; Overall Size : 80 x 38 mm / 3.1 x 1. 5inch(Dia. *T) Thread DIA : 9mm Lead Length : 24cm/9. 5 inch Package Includes: 1 x Holding Electromagnet
