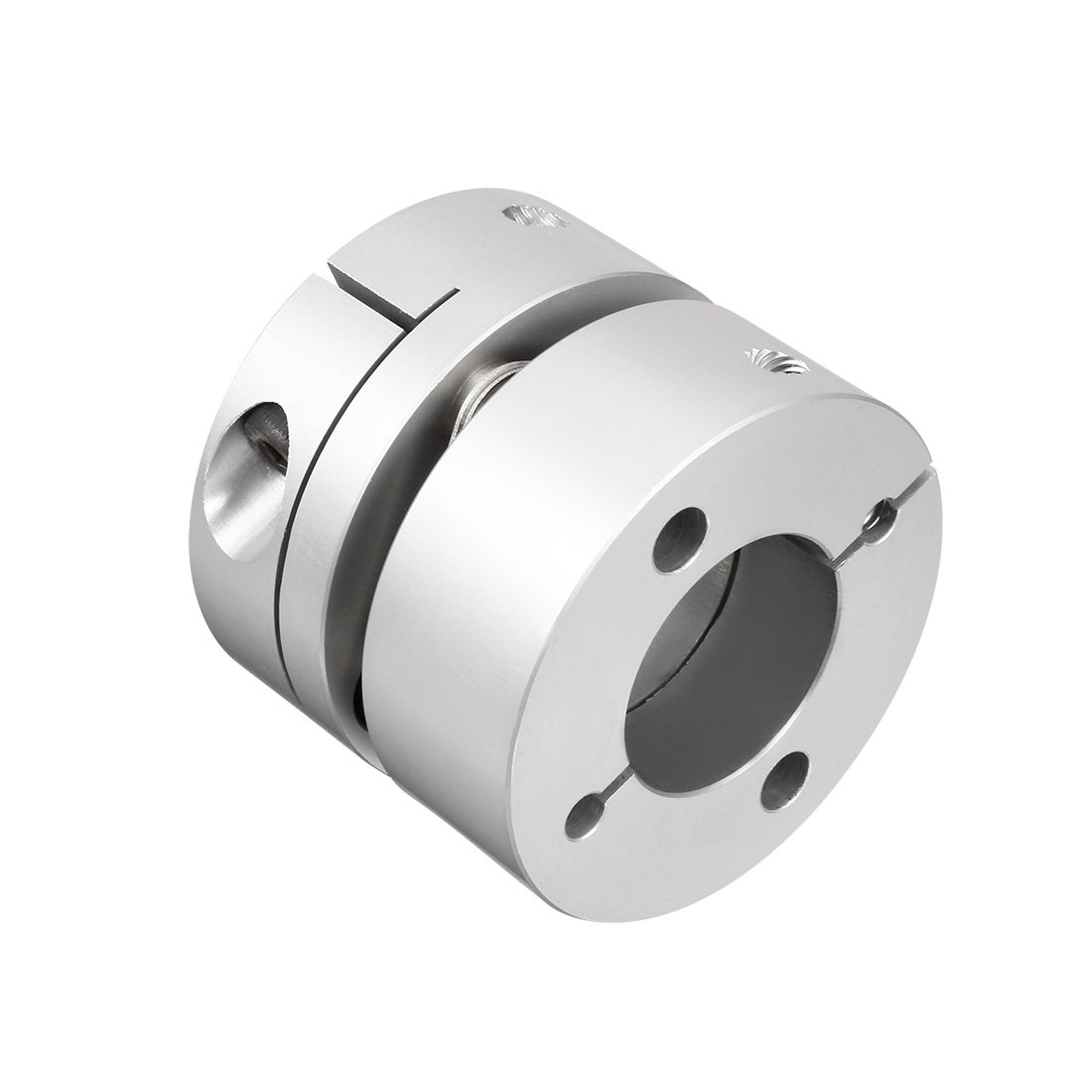

sourcingmap 12mm to 19mm Bore One Diaphragm Motor Wheel Flexible Coupling Joints

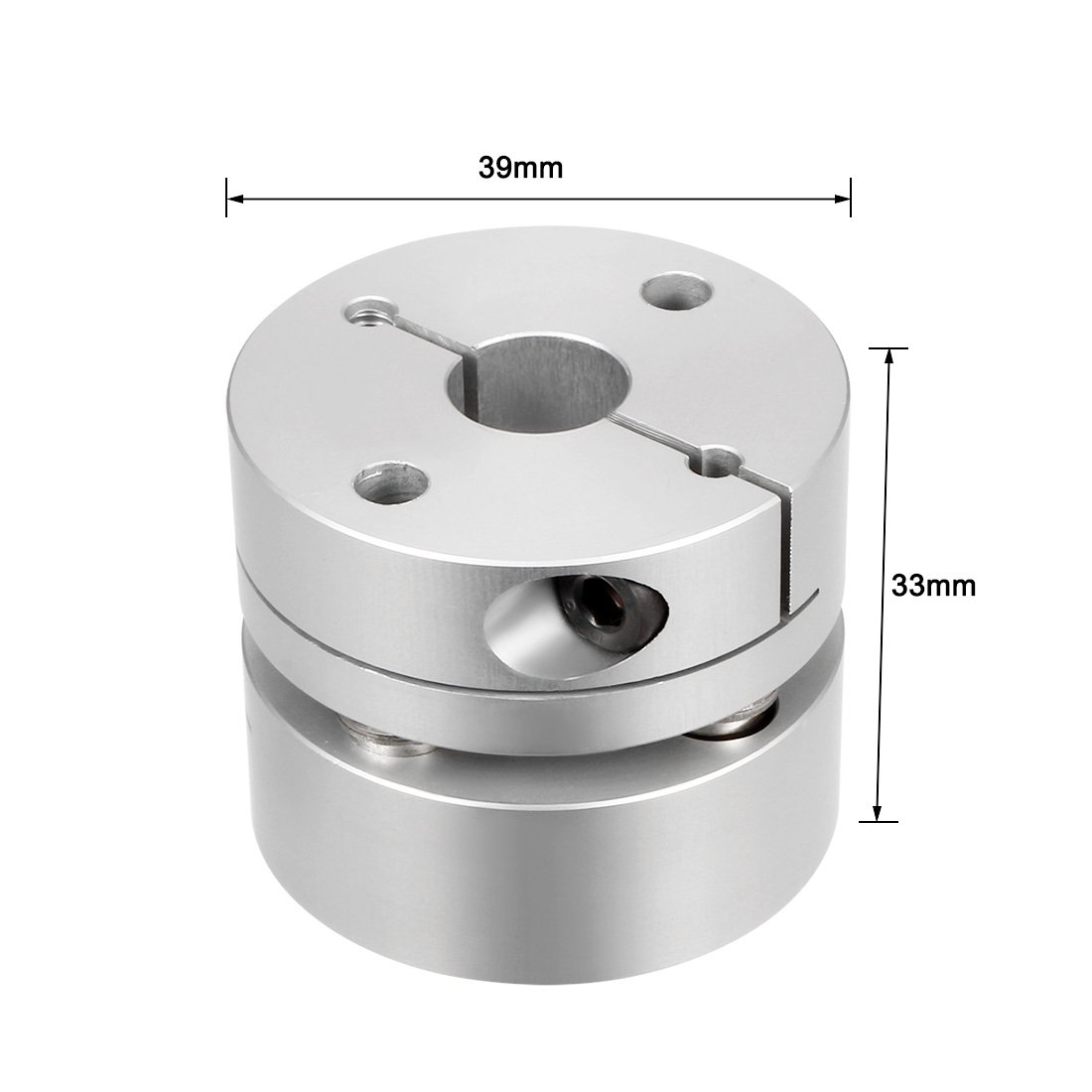

• 39mm Diameter X 33mm Length; 10000RPM rotational speed

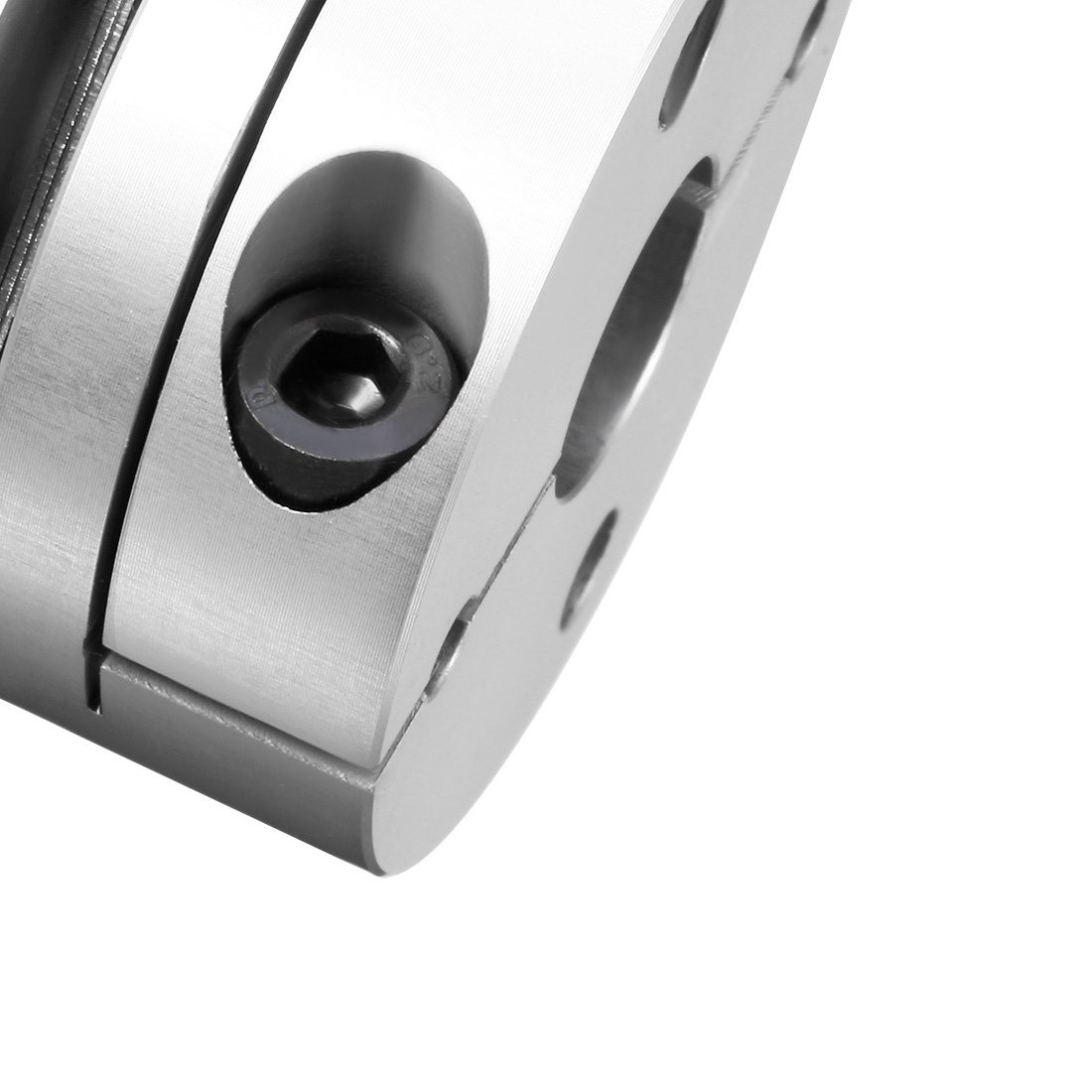

• Clamp-style mount for secure attachment to shaft
• Accommodates angular, parallel misalignment

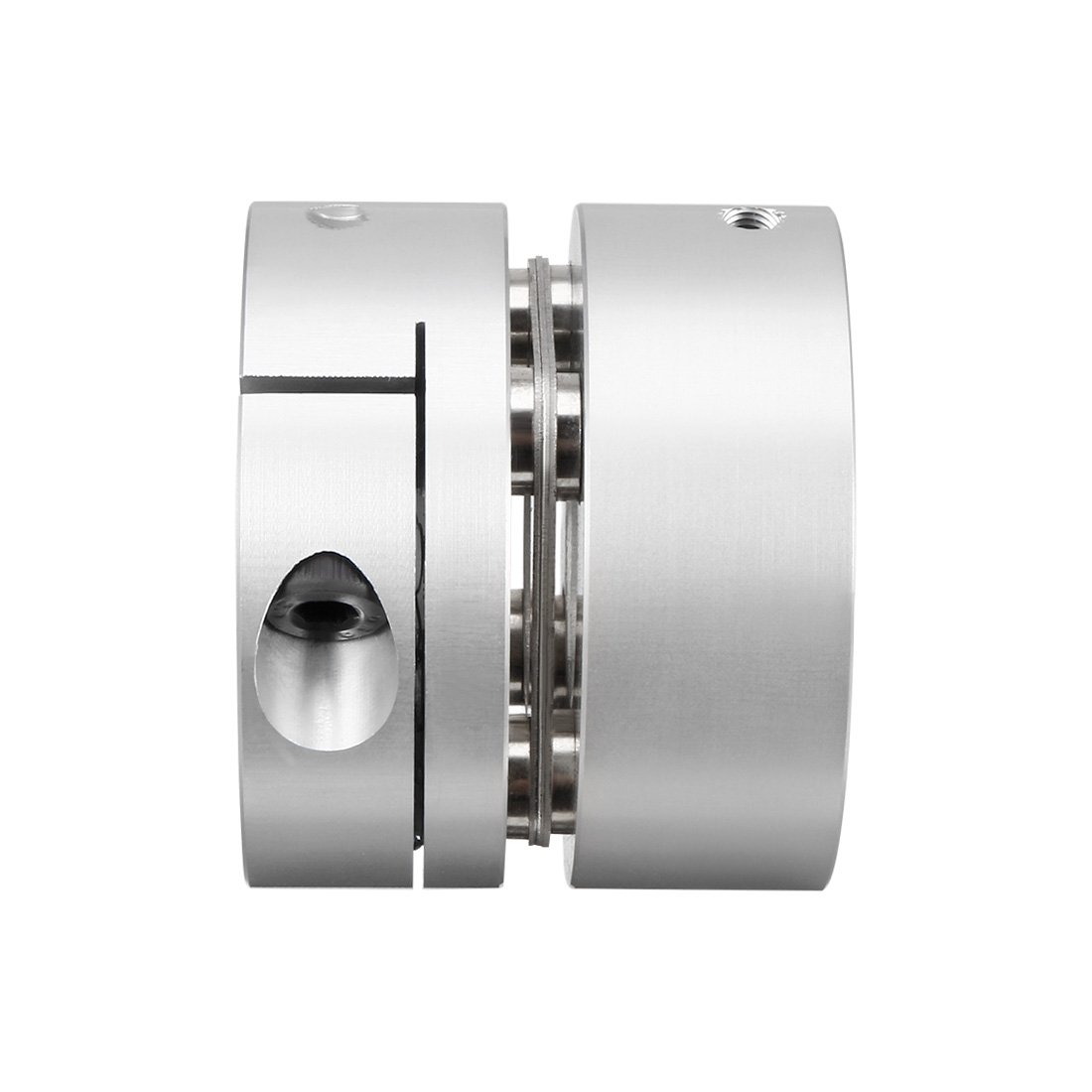

• Aluminum hubs for light weight, stainless steel discs for strength
• Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.

Flexible couplings are used to link 2 rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from 1 shaft to the other. Most flexible couplings consist of 2 hubs and 1 middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the 2 shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from 1 shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from 1 type of misalignment to another. Flexible couplings are used in a broad range of applications, such as conveyors, escalators, agricultural, forestry, mining equipment. Specification: Length: 33mm Outside Diameter: 39mm Bore Diameter: 12mm to 19mm Max. Torque Range: 5.8N.m Maximum Rotation Speed: 10000 RPM Material: Aluminium Alloy and Stainless Steel Feature: Simple structure, inspection, installation is convenient; Mini disc coupling assembly for use in applications requiring high torsional stiffness and torsional integrity; Note: The adapted shaft diameter tolerance is +0~-0.04mm Package: 1 x Diaphragm Coupling
