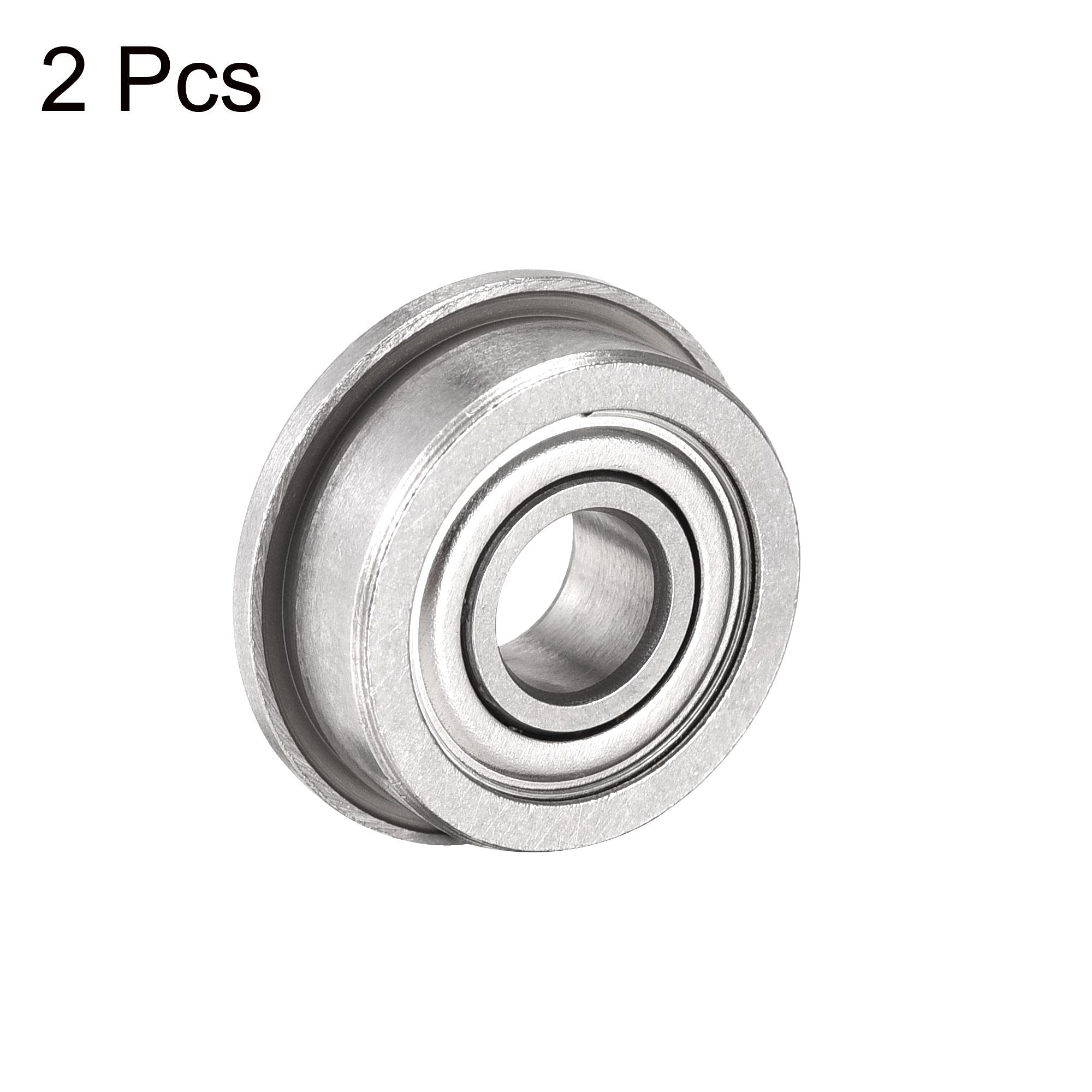

sourcing map SF605ZZ Flanged Ball Bearing 5x14x5mm Double Shielded Stainless Steel Bearings 2pcs

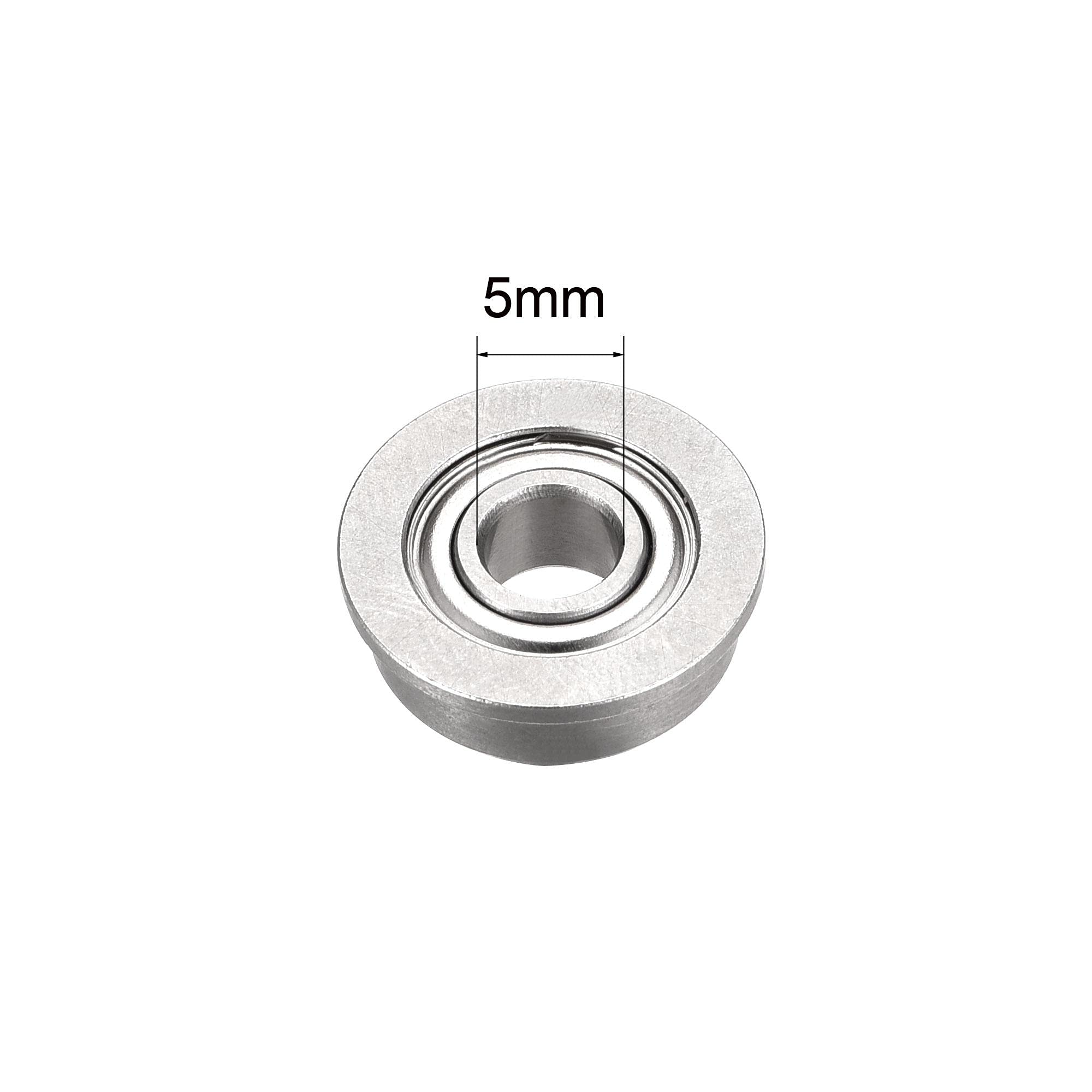

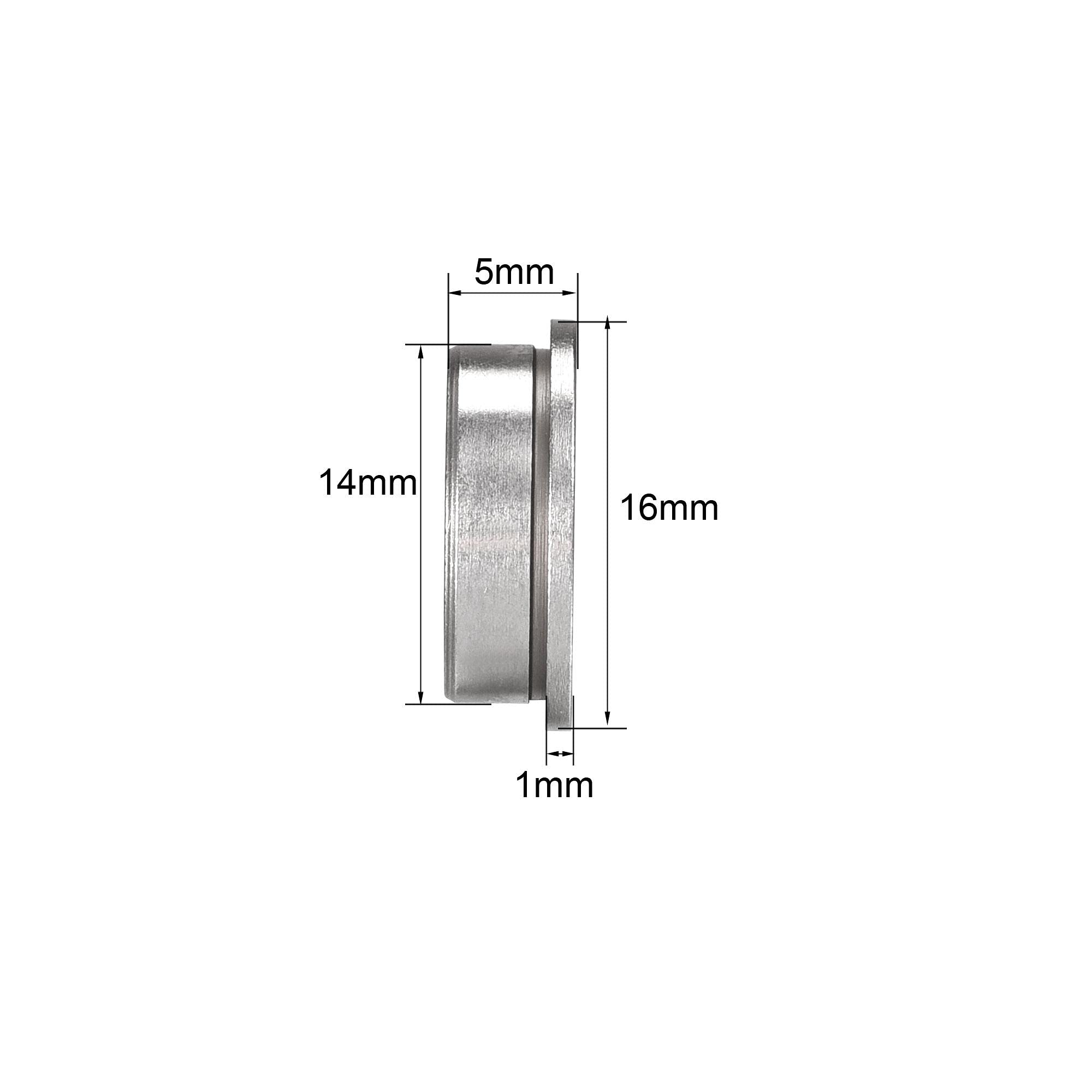

• [Size] - SF605ZZ bearing (I.D.=5mm, O.D.=14mm, Thickness=5mm, Flange Dia=16mm).

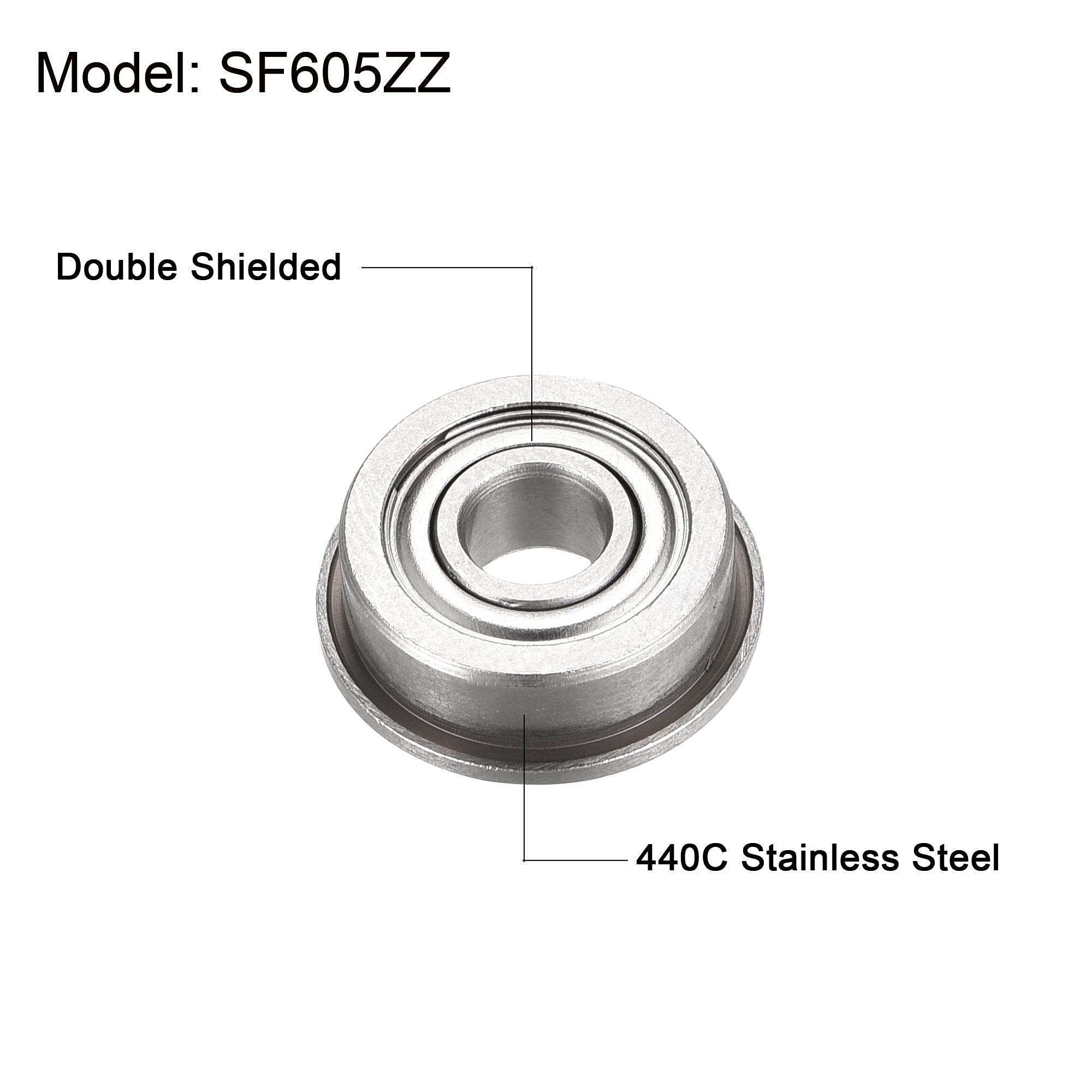

• [Magnetic] - 440 Stainless Steel provides higher resistance to rust and corrosion than chrome steel, and it is magnetic.
• [Easy to Maintain] - Shields on Both sides to keep lubricant in. P0 grade (ABEC-1) for most general use.
• [Load & Speed] - Dynamic load rating of 1.05kN and static load rating of 0.5kN. With small friction and high-limit speed.
• [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other projects.

Note Please refer to the picture and select the right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Selection Guide Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris. Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings. DescriptionSingle-row, pre-lubricated, normal accuracy. Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial loads. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Stainless steel bearing features stronger rust and corrosion resistance ability. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on Specification Shield Type: Double Shielded Inner Race/Outer Race Material: 440C Stainless Steel Cage Material: Stamping Steel Inner Diameter (d): 5mm Outer Diameter (D): 14mm Thickness (B): 5mm Flange Dia.: 16mm Flange Thickness: 1mm Dynamic Load Rating (Cr): 1.05 kN Static Load Rating (Cor): 0.5 kN Accuracy Class: P0 (ABEC1)
