Soundcraft Notepad-5 Small-Format Analog Mixing Console with Usb

• Get legendary sound craft quality from professional microphone preamps
• One combo xlr-1-4" mic-line input
• Two 1-4" line inputs and two rca inputs
• 2-in-2-out usb audio interface
• Master xlr outputs

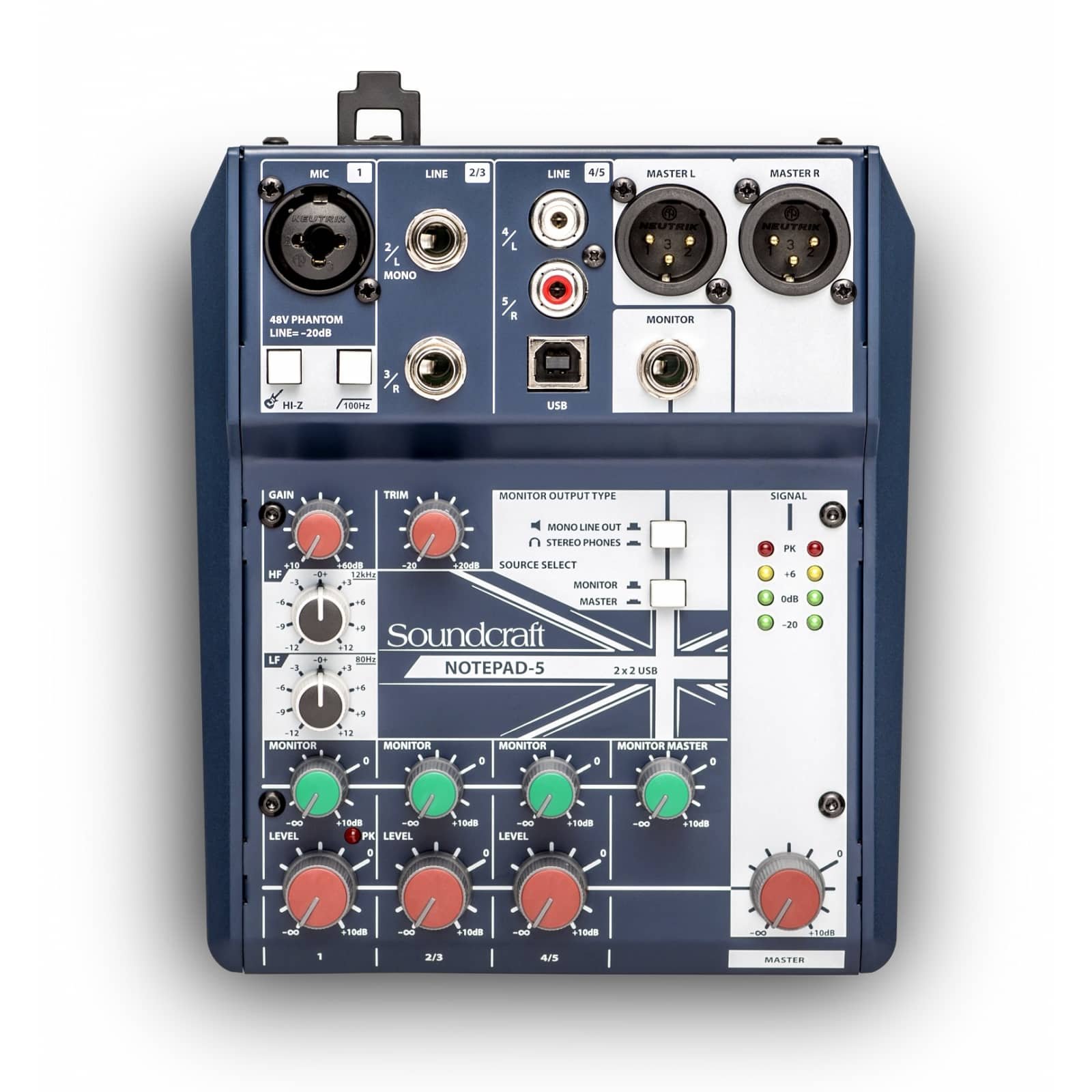

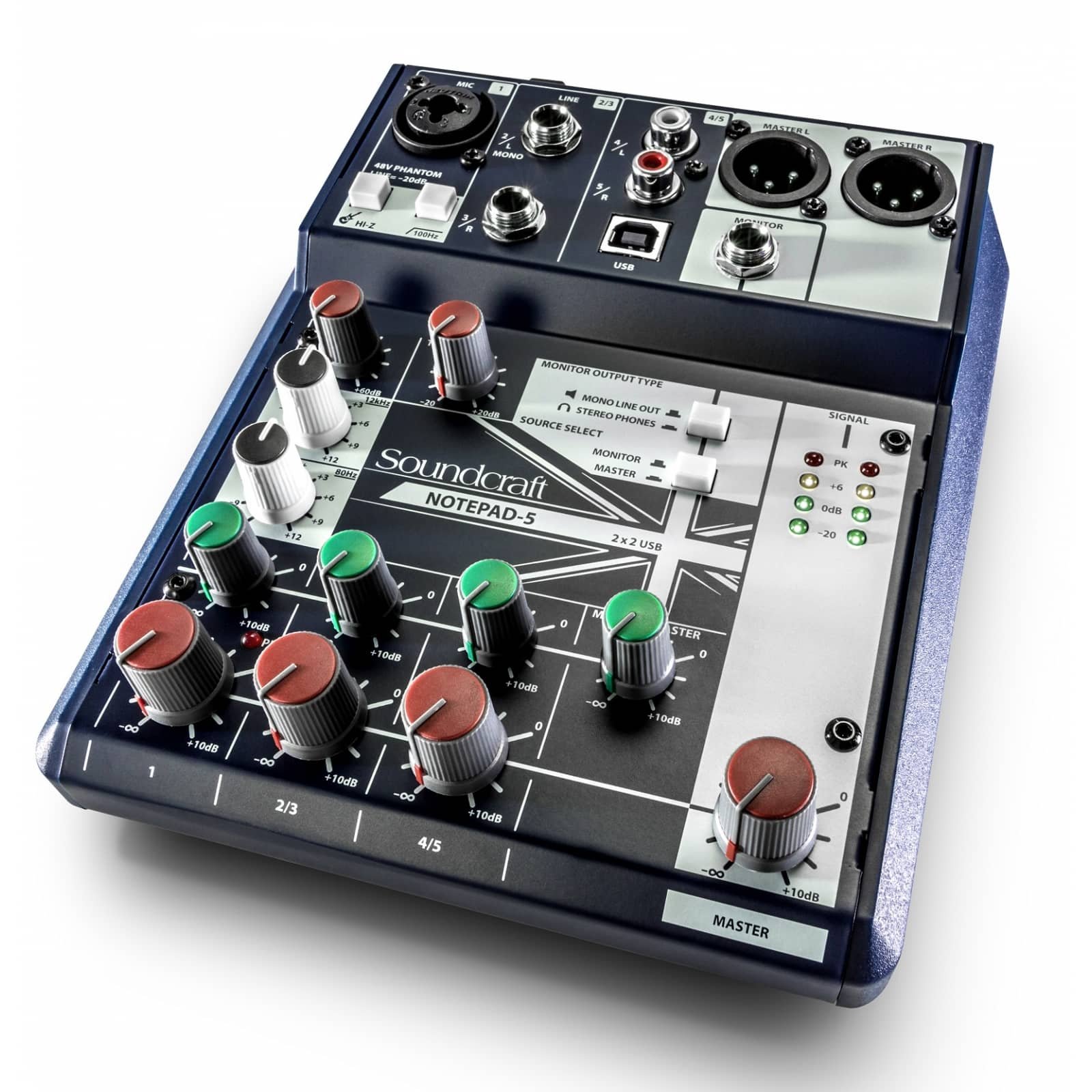

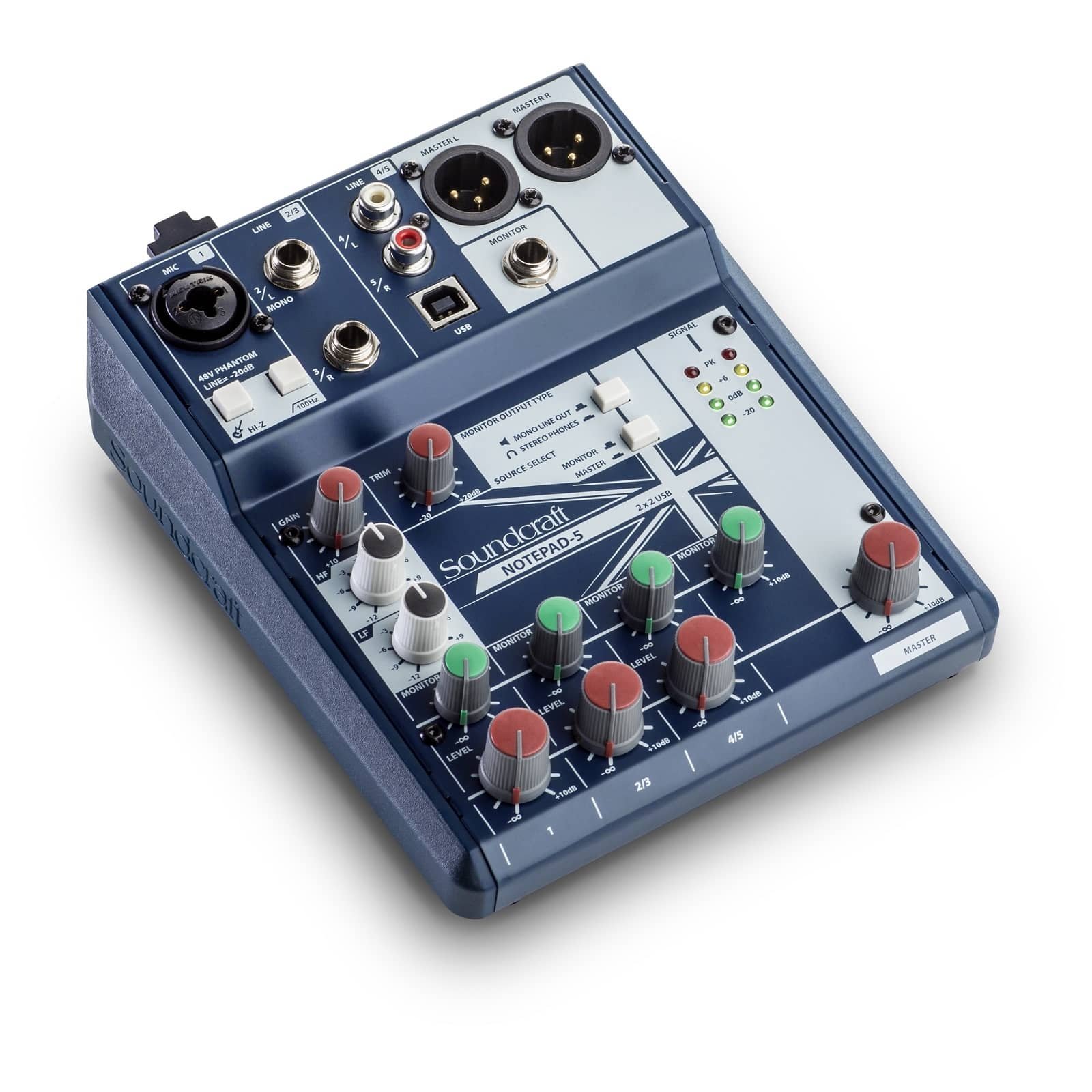

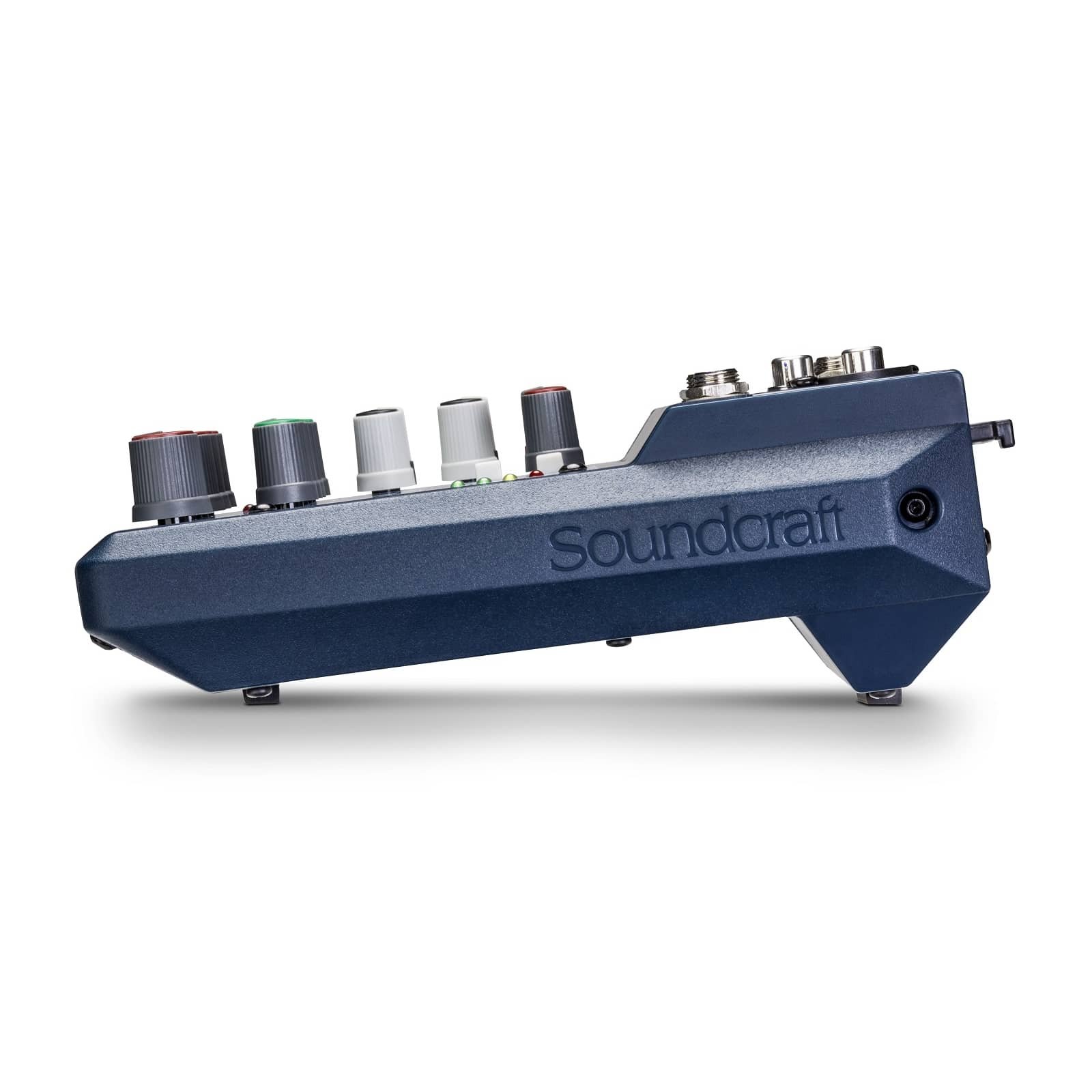

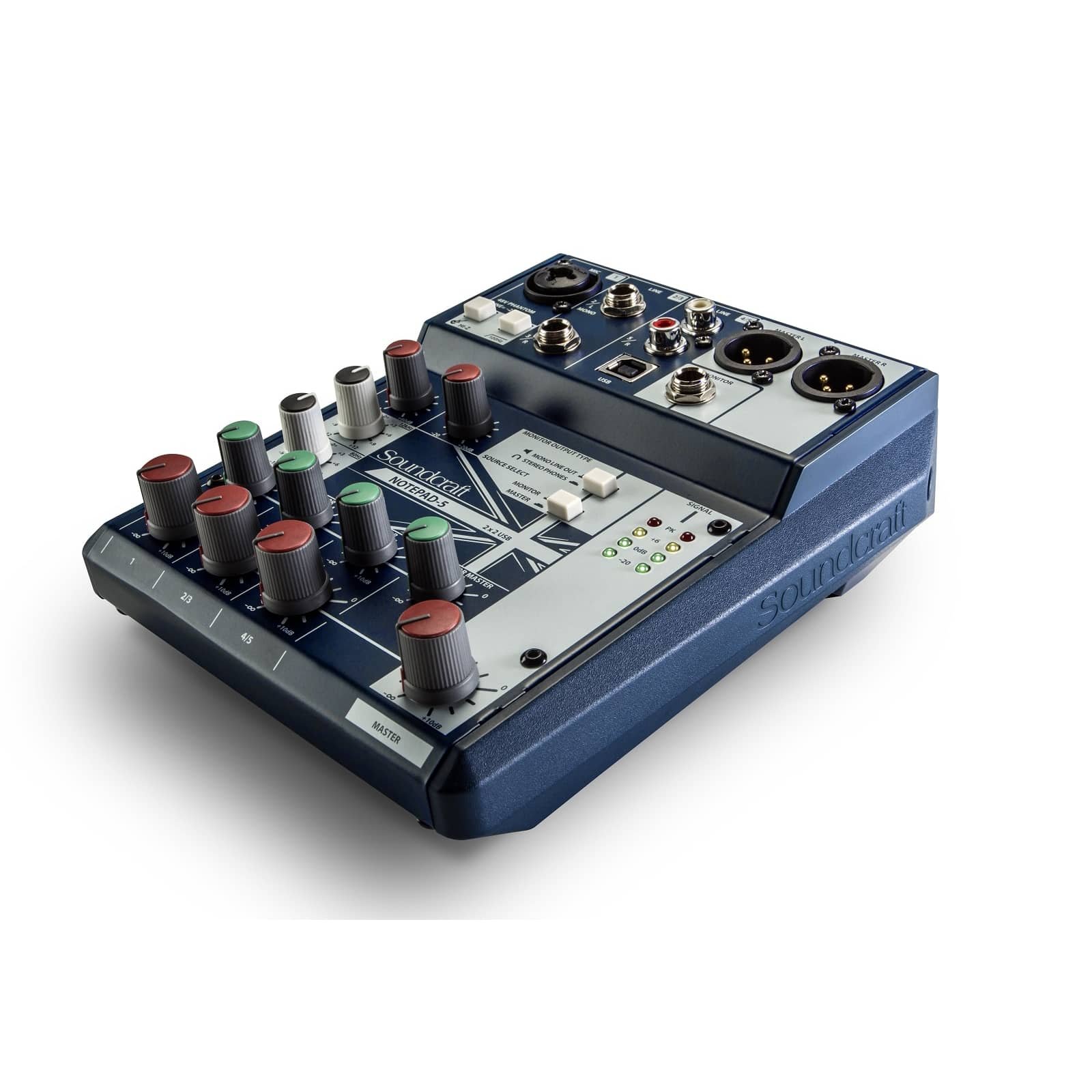

The Notepad-5 from Sound craft is a small-format, 5-channel analogue mixing console with an integrated 2x2 USB audio interface, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analogue components such as a microphone preamp with a combo XLR-1-4" input, 2-band EQ, and a 100 Hz high-pass filter. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments. Channels 1-3 include gain/trim controls, a monitor send, and level controls. Channels 2/3 utilize 1/4" line-level inputs, while channels 4-5 include stereo RCA inputs. Outputs include Master L-R on XLR, a 1-4" monitor send, and a dedicated 1/4" monitor output button to select between mono line output or stereo headphone output. The master section offers a master control knob and four LED meters with -20, 0, 6 dB, and peak settings. The Notepad-5 features a durable metal enclosure and ships with an external power supply.
