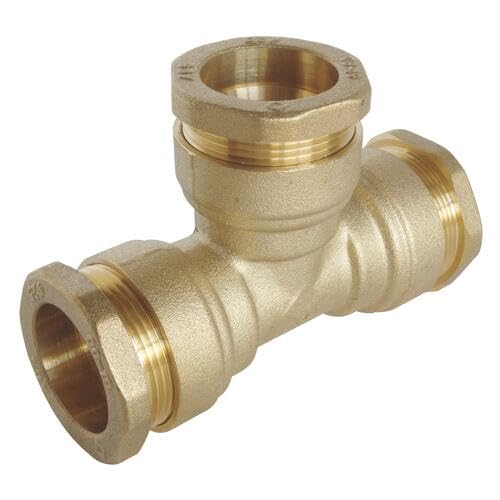

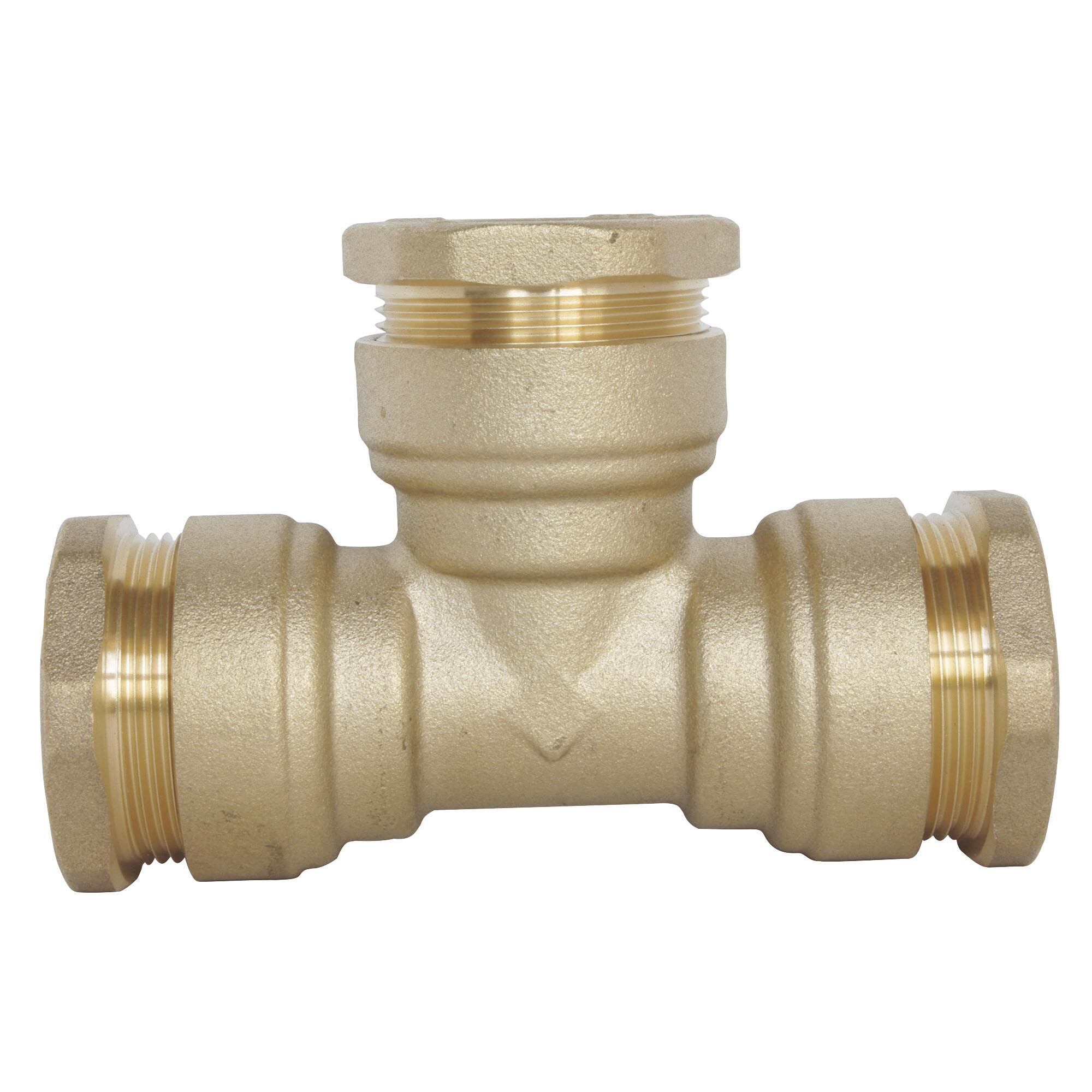

SOMATHERM FOR YOU 848-32S Tea PE32 Equal Brass T-Piece D32 PE Pipe-Mount Technology a Way to Ensure The Correct Installation of The Connection, Gray, Klein

• Brass fitting for PE accompanying mounting pipe: no error due to conical toothed ring made of brass EPDM sealing ring for optimal seal Anti-scalp: raised It makes a bypass installation in a PE pipe
• It allows the installation of a fault fittings PE circuit safely in the mounting direction
• Approved for use in drinking water networks
• Always rotate the PE pipe with a pipe cutter to ensure that the pipe section is clean and deburred. Marks the pipe to detect the length of the pipe coupling in the fitting. During insertion of the pipe into the fitting to the stop. The nut on the fitting body with the help of two buttons without exceeding a torque of 20 Nm.
• It supports a maximum pressure of 20 bar. Maximum operating temperature from -10 °C to + 80 °C

PE32 Equal Tea Brass body and nut cw617n, (European standard). O-ring in EPDM. Cannot be mistaken, meaning with the tapered ring. Anti-tear thanks to the crimping of the ring which ensures a good grip of the tube.
