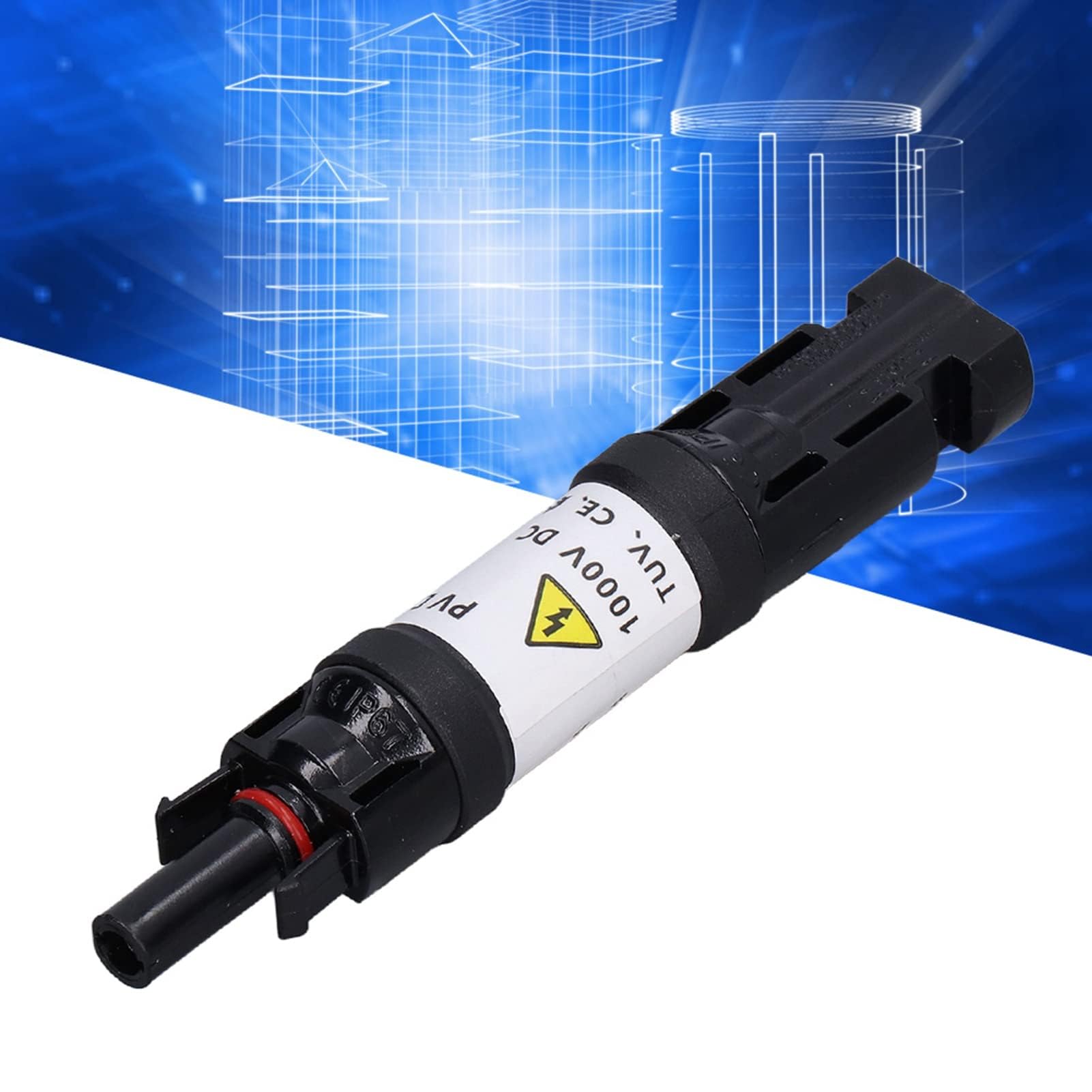

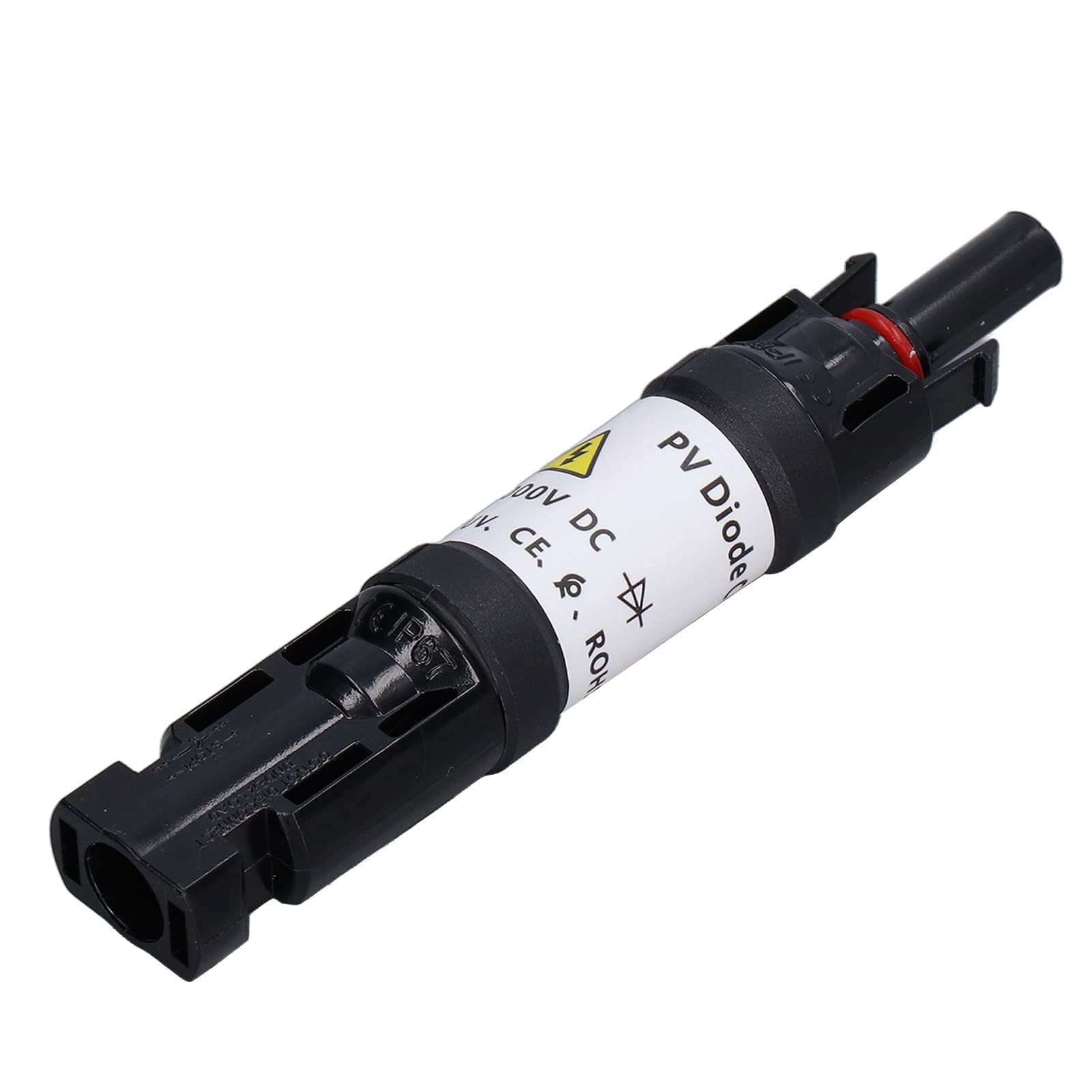

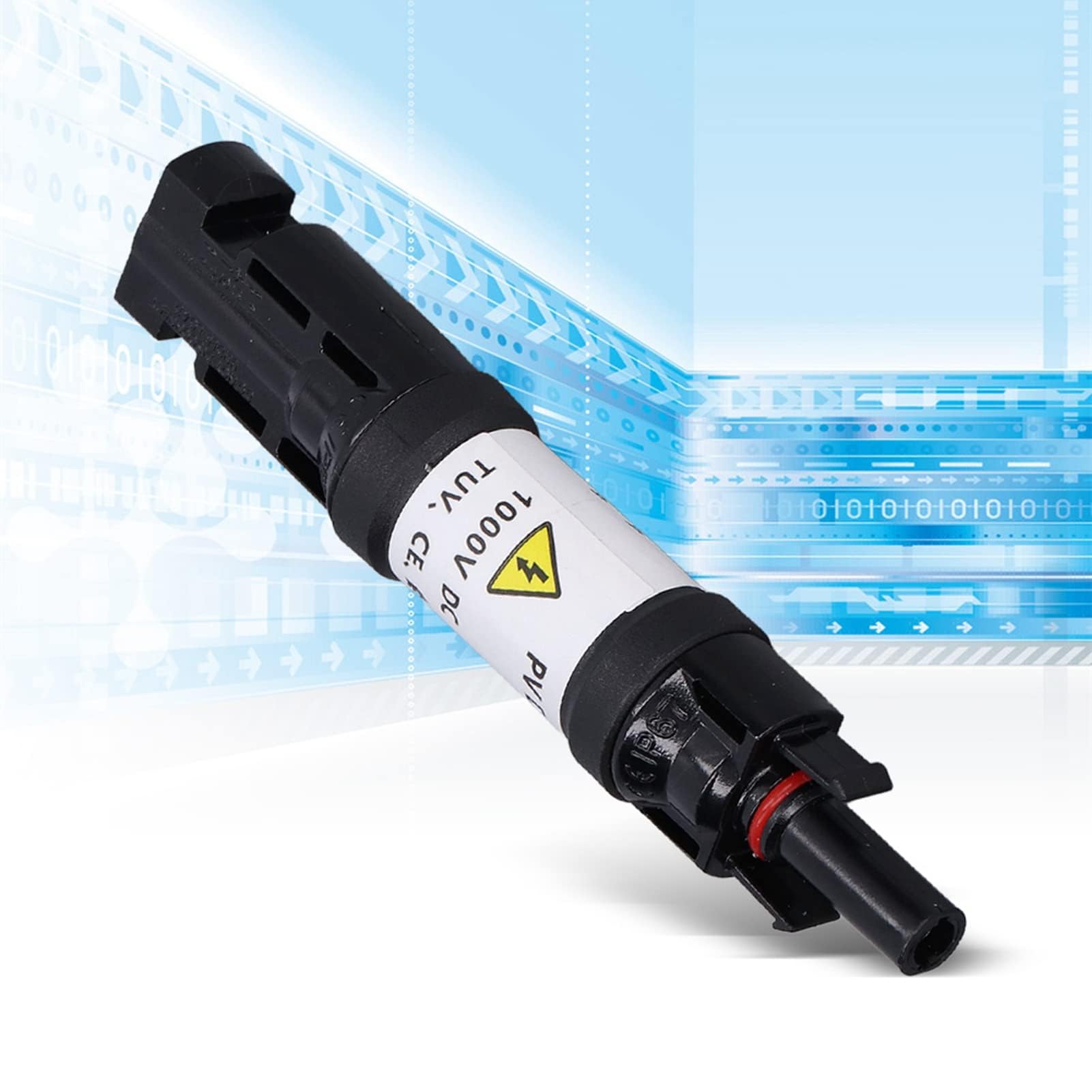

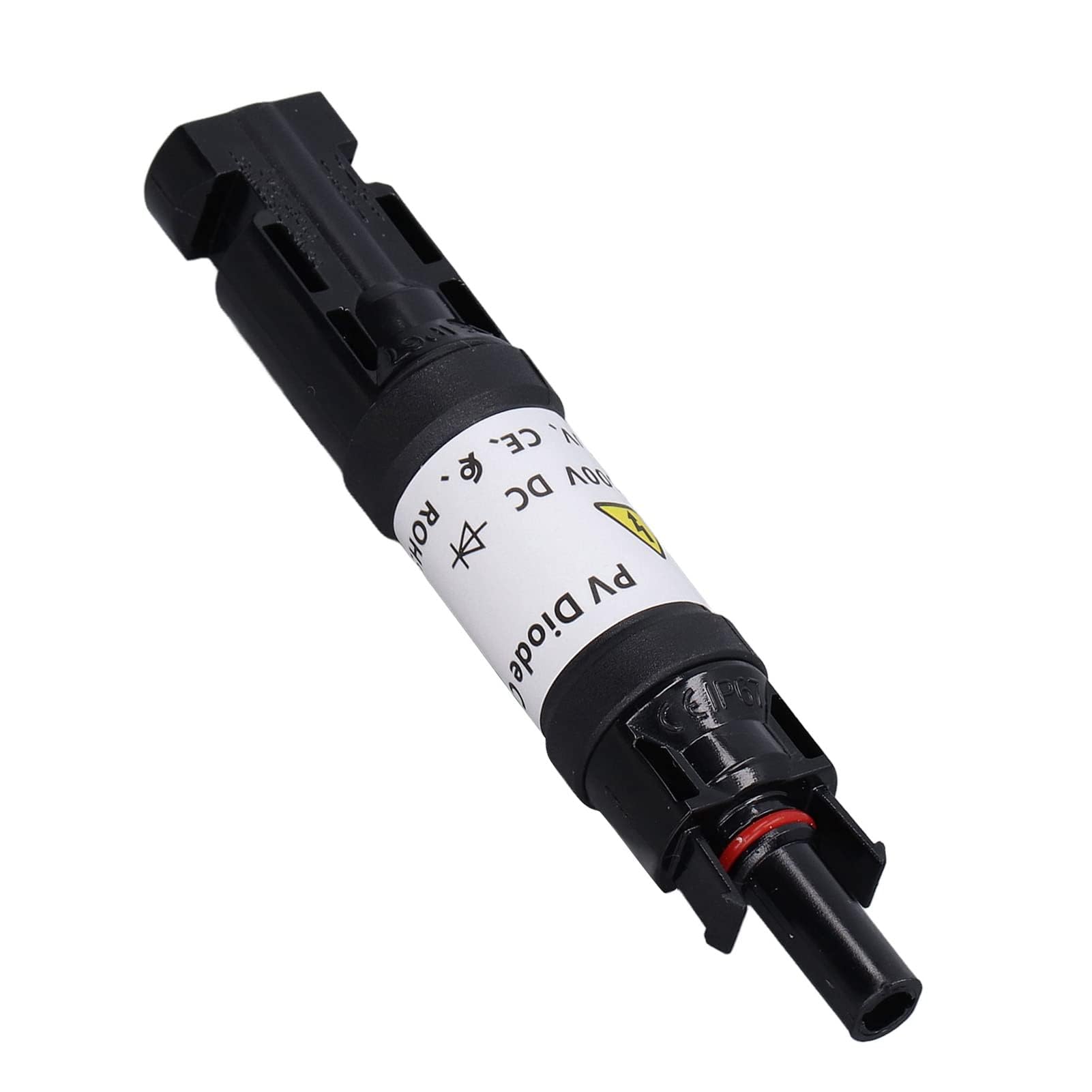

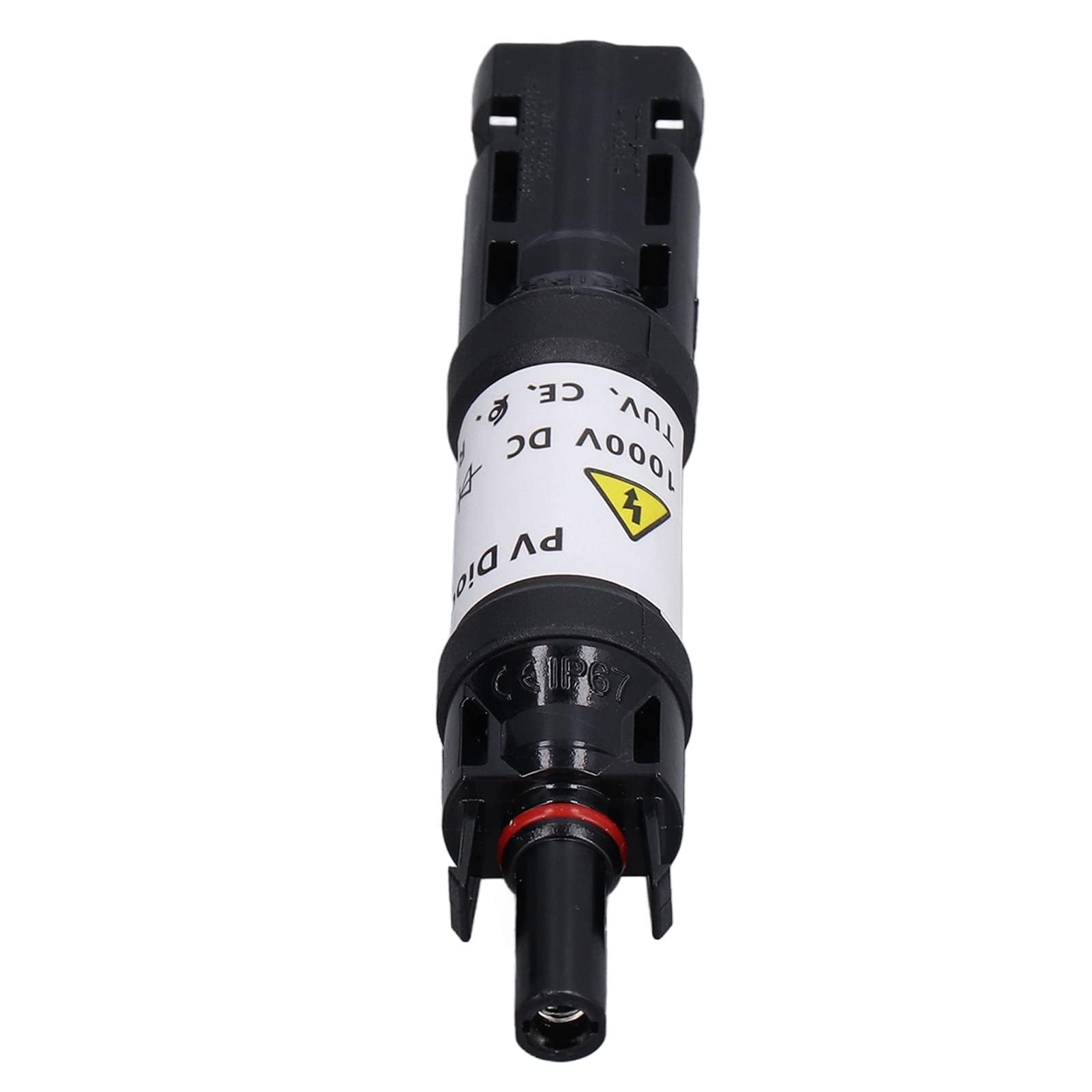

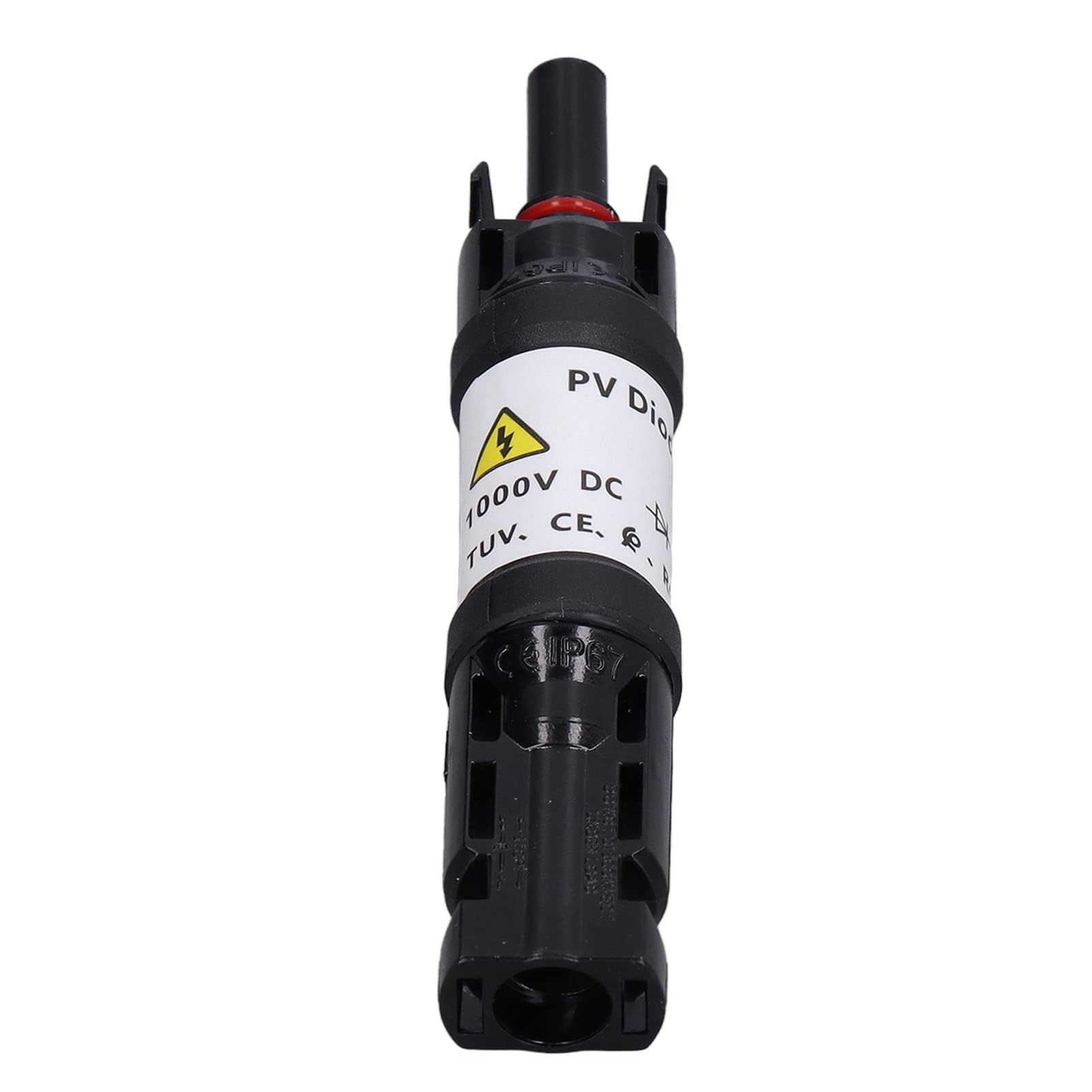

Solar PV Connector Male Solar Holder, Solar Female IP67 Waterproof Panel Cable Blocking Diode Holder 1000V PPO Copper In-Line Connector (30A)

• FEATURES: PV connector is made of PPO material, possess high rigidity, high heat resistance, flame retardant, high strength, and excellent electrical properties, small in size, light in weight, convenient to use

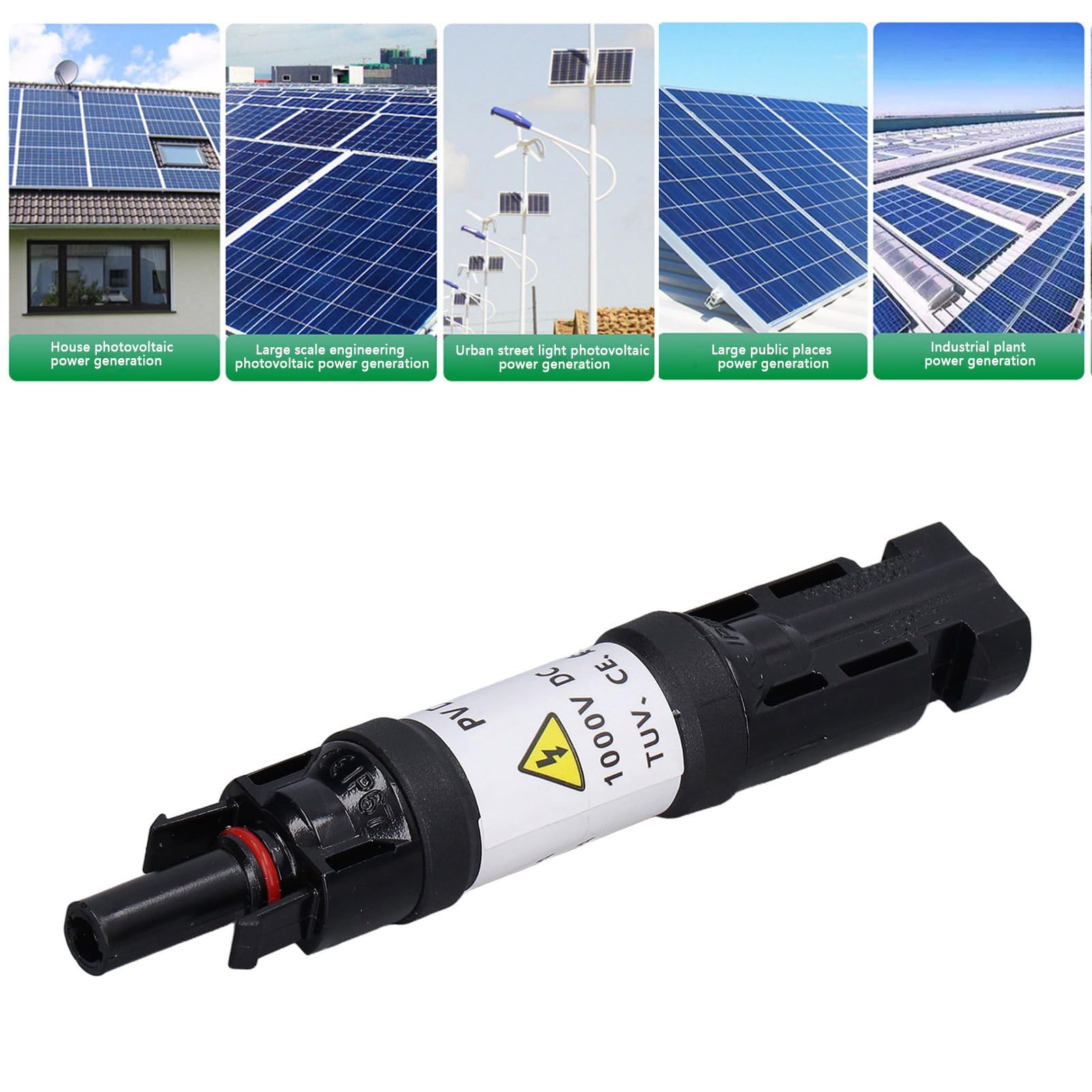

• APPLICATION: Solar PV connector possess excellent aging resistant and ultraviolet proof ability, can be used in harsh environments, can meet your using requirement
• FUNCTION: PV connectors can be closed and disconnected with load, double electric shock protection, can meet fast link and non vibration function, adaptation wire diameter is 2.5-6.0mm²
• WATERPROOF DUSTPROOF: The solar connector carefully select materials and adopt high strength waterproof ring design to provide good waterproof and dustproof effects, operating temperature range is -40℃~+90℃
• GUIDING INSULATION: The hole contact head of the connector equipped with a guiding insulation , which plays a role of guiding insulation

Feature: 1. USED IN HARSH ENVIRONMENTS: Solar PV Diode connector possess excellent aging resistant and ultraviolet proof ability, can be used in harsh environments 2. GOOD WATERPROOF AND DUSTPROOF: The product carefully select materials and adopt high strength waterproof ring design to provide good waterproof and dustproof effects 3. GUIDING INSULATION FUNCTION: The hole contact head of the product equipped with a guiding insulation , which plays a role of guiding insulation 4. DOUBLE ELECTRIC SHOCK PROTECTION: Can be closed and disconnected with load, double electric shock protection, can meet fast link and non vibration function 5. EXCELLENT ELECTRICAL PROPERTIES: Made of PPO material, possess high rigidity, high heat resistance, flame retardant, high strength, and excellent electrical properties Specification: Item Type: Solar PV Diode Connector Material: PPO + copper Purpose: Thunder connector Colour: Black Rated Voltage: 1000V DC Test Voltage: 6000V (50Hz, 1min) Connector Contact Resistance: ≤0.5mΩ Connector Conductor Material: Copper, tin plated Protection Level: IP2xIP67 Flame Retardant Rating: UL94-VO Operating Temperature Range: -40℃~+90℃ Adaptation Wire Diameter: 2.5-6.0mm². Package List: 1 x Solar PV Diode Connector
