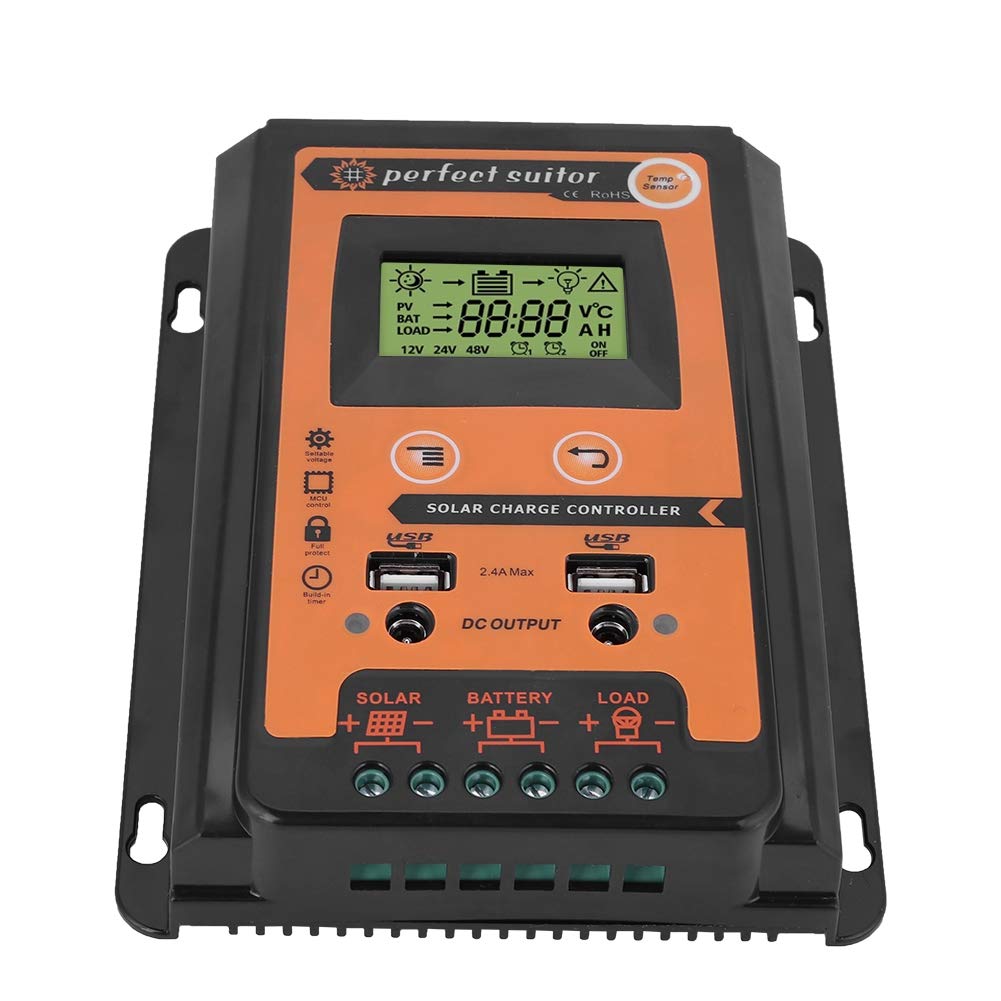

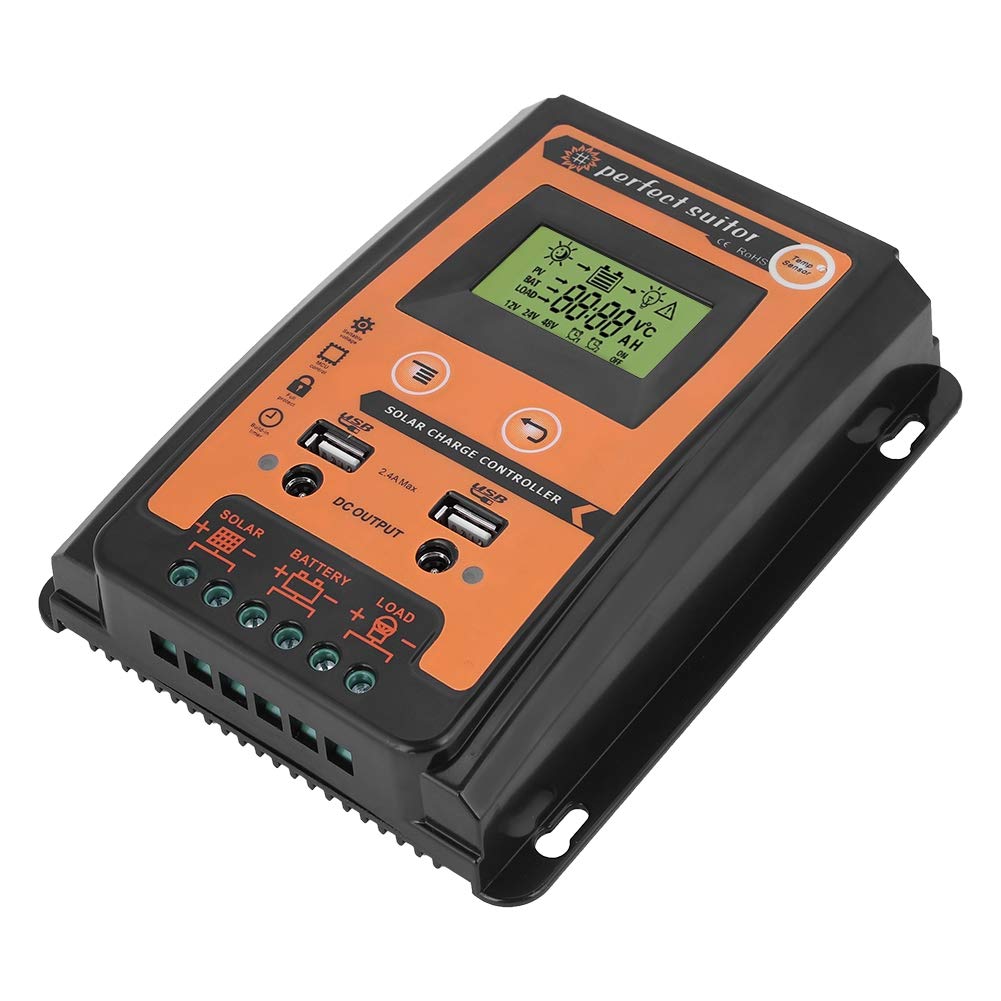

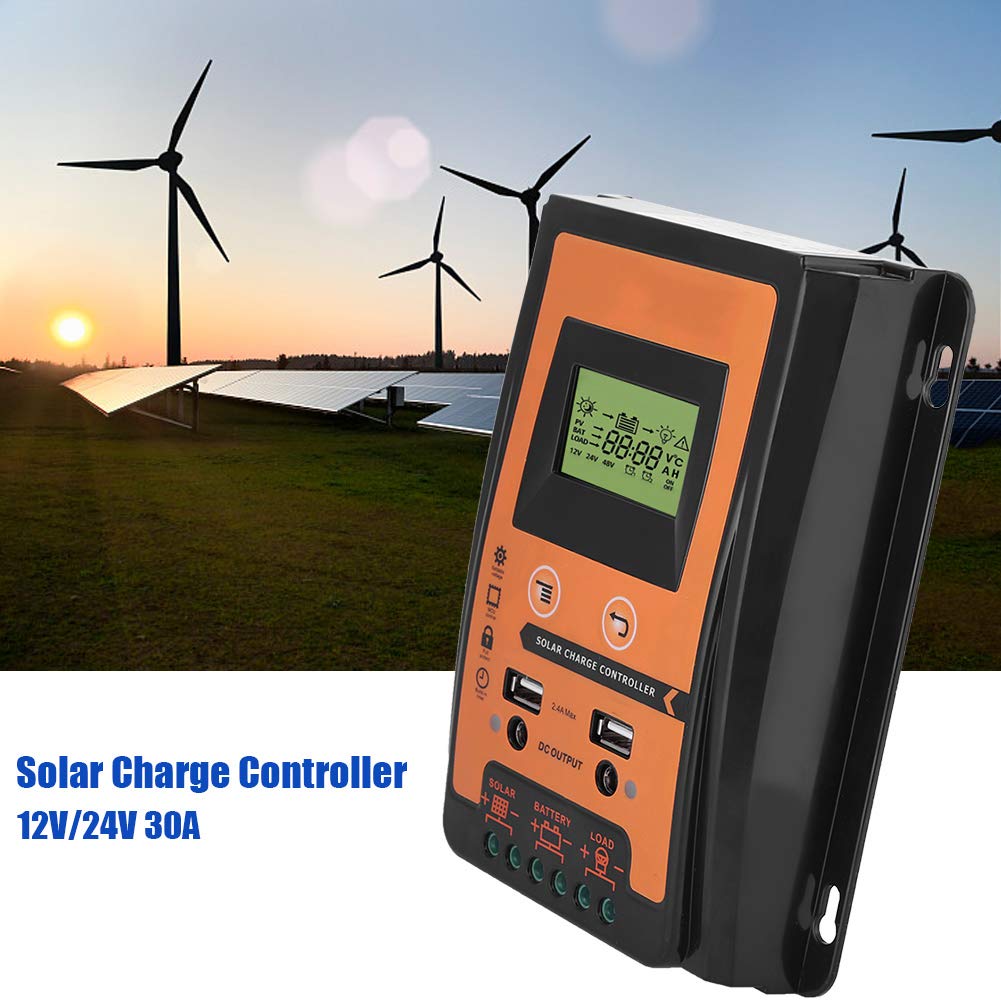

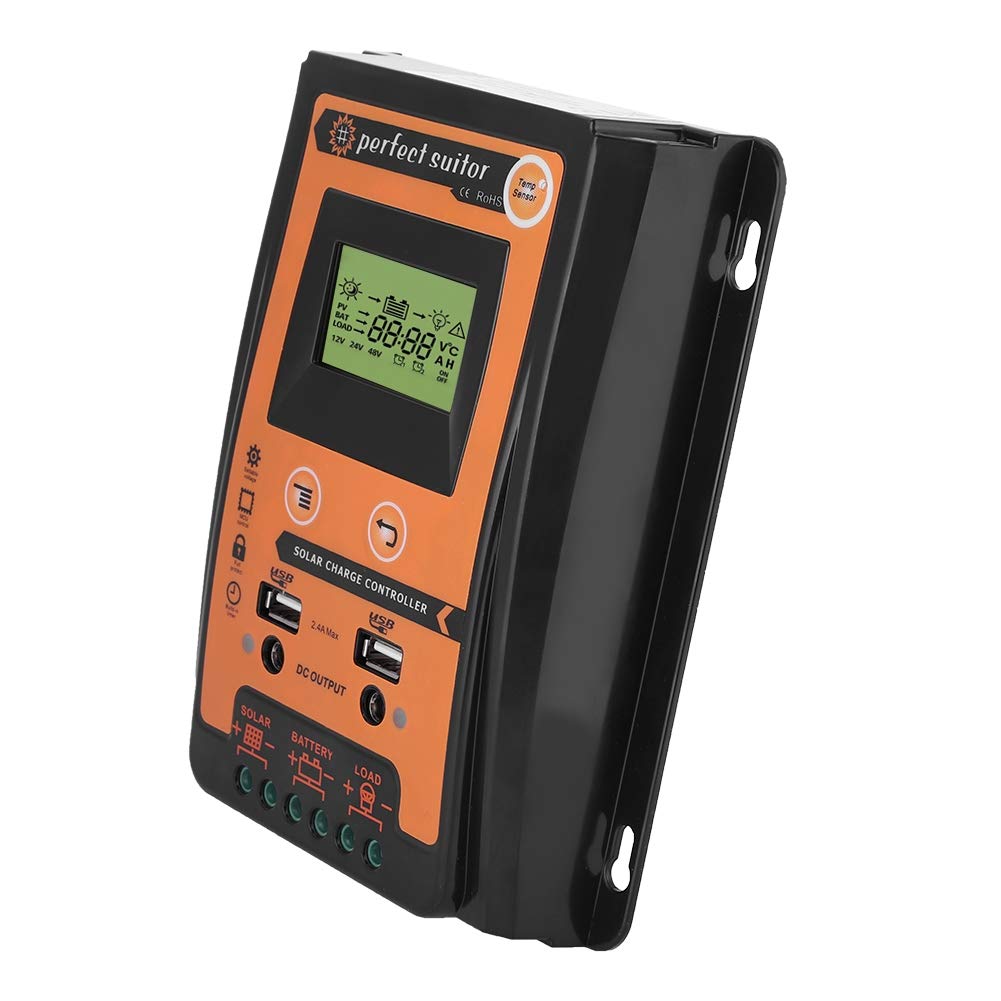

Solar Controller, Plastic IP32 12V/24V 30A 50A MPPT Solar Controller Solar Panel Battery Regulator Dual USB LCD Display(30A)

• 【Automatic Identification Controller】Automatic identification system voltage, 12/24V auto recognition. It is a discharge counter of ampere hour, too. Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery.

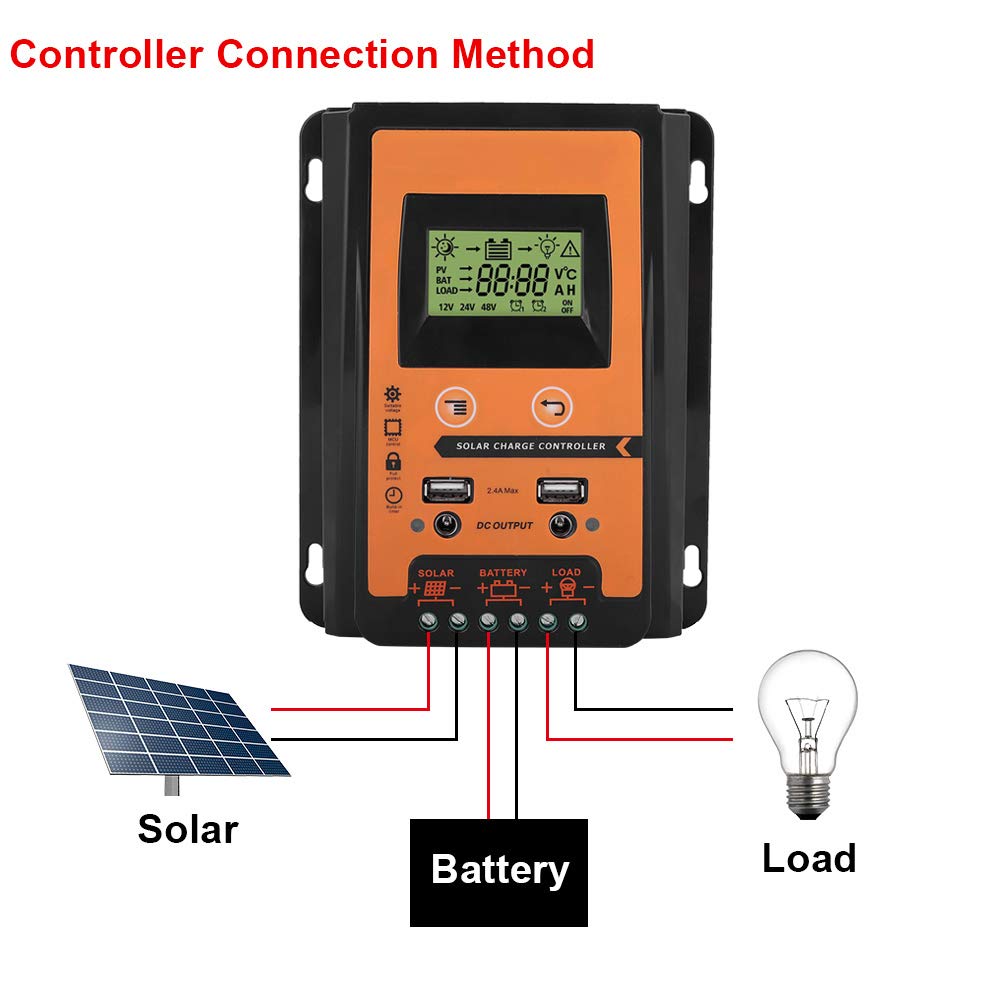

• 【Humanized Design】Humanized LCD displaying and double button operation of man-machine interface. Solar panels, battery, solar controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
• 【Multiple Protection】Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection. Completed technical data for setup and modify. The load control mode can be selected, the timer function can be reset for street light at night.
• 【Improving The Battery Lifetime】High efficiency intelligent MPPT 3-stage charging mode. Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
• 【Best Care Service】 Current: 30A, 50A, 70A (optional). Our main goal is to make you have a happy experience. If you have problems, please tell us, and we will solve it as soon as possible.

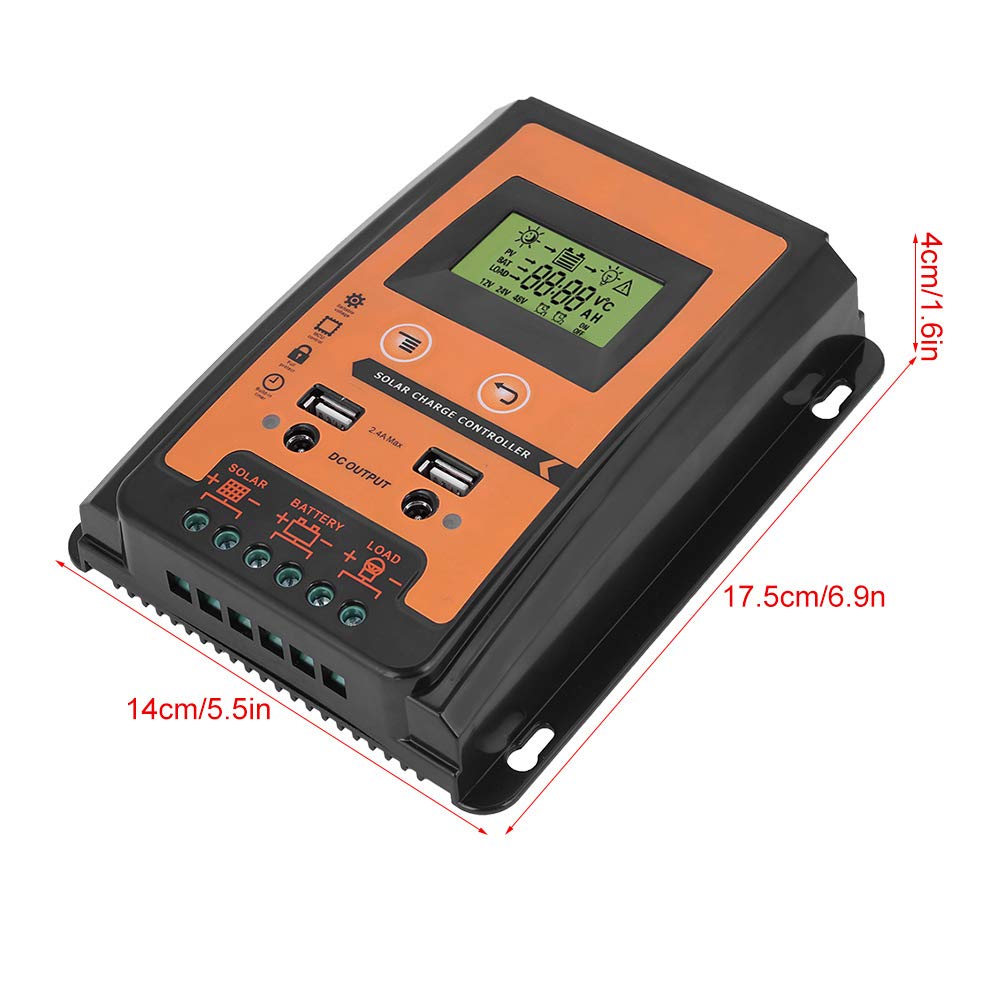

Specifications: Current: 30A, 50A, 70A (optional) Rated Voltage: 12/24V USB Output: 2.4A *2 Over Charge Current(V): 13.7V/*2 24V Over Discharge Current(V): 10.5-11V/*2 24V Temperature Compensation: -3mv/℃/cell Empty Load Wastage: <45mA Loop Voltage Drop: <200mv Display: LCD Display Charging Type: MPPT Waterproof Grade: IP32 Material: Plastic Color: Black + Orange Size: 17.5 * 14 * 4cm/6.9 * 5.5 * 1.6in(30A), 21 * 19.2 * 5.5cm/8.3 * 7.6 * 2.2in(50A), 22.8 * 20 * 5.5cm/9 * 7.9 * 2.2in(70A) Package Weight: 480g-1284g Package List: 1 * Solar Charge Controller 1 * User Manual
