SolaMr 50 Pairs Solar Panel Cable Connectors IP67 Waterproof Male/Female Solar Panel Connectors with Spanners

• 【Compatible Cable】Compatible with PV cables with different insulation diameters (1.5m㎡~6m㎡/14AWG ~10AWG).
• 【Premium Material】PPO/PPE insulation material With excellent aging resistance and UV endurance,can resist severe weather for a long time.
• 【UL certification Solar Connectors】 UL certification fastness of male and female points with stable self-locking system which is easy to lock and open.

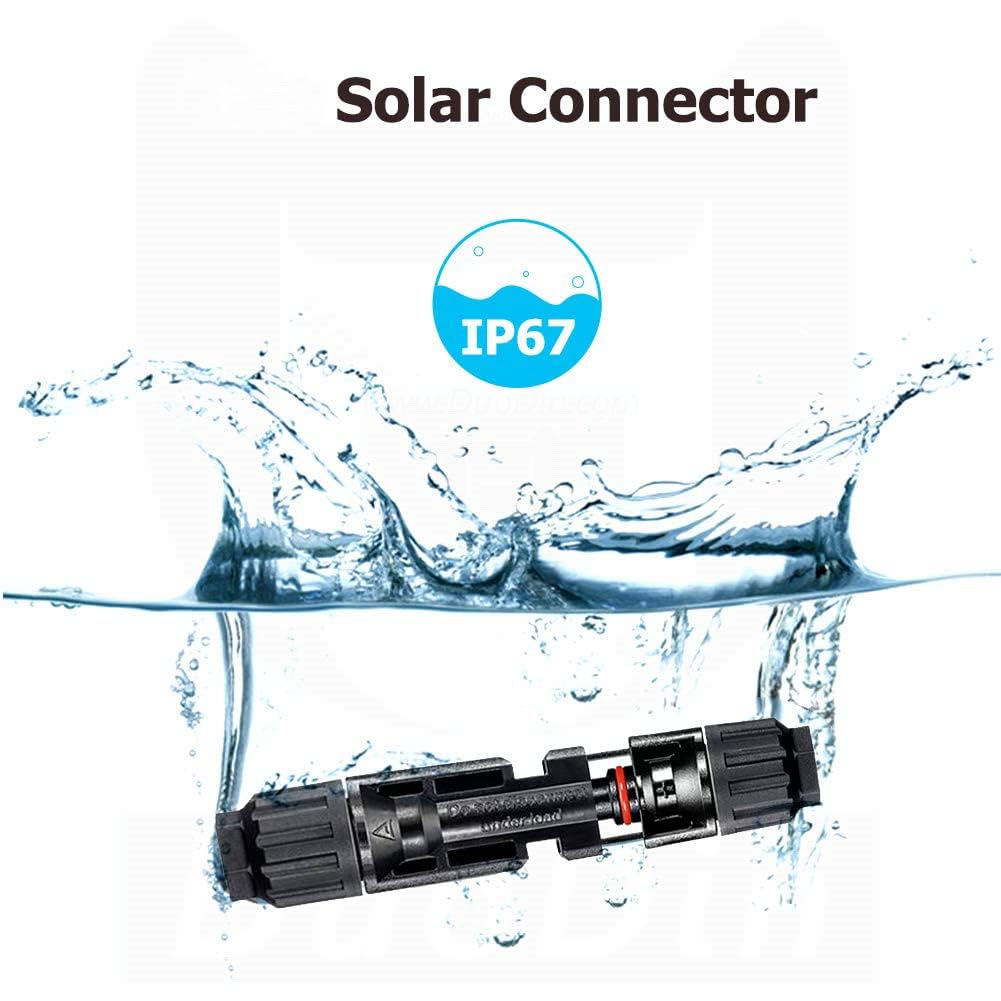

• 【Waterproof desige】 IP67 water proof level ,the waterproof ring on the connection is perfect to seal out water and dust to prevent corrosion.
• 【Package List】5 pairs solar panel cable connectors (5pcs Male + 5pcs Female) and 1 pair of spanners.

★Features ●Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. ●Compatible with PV cables with different insulation diameters. ●Resistance of extra high & low temperature and fireproof. ●Load capability with big current and high voltage. ●Double seal rings for better waterproof effect. ●Connection by the crimping tool ●Insulation Material: Made of PPO + PA material. ★ Specifications: ●Maximum working voltage: DC 1000 V ●Rated Current: 20A (4 mm²), 30 A (6 mm²) ●Suitable for: 1.5 mm² - 6 mm²(14AWG-10AWG) ●Contact resistance: ≤0.5mmΩ ●Temperature Range: -40 ℃ ~ +105℃ ●Flame class: UL94-V0 ●Waterproof Class: IP67 ●Insertion force: ≤50N ●Withdrawal force: ≥50N ★ Package including: 50 x solar panel cable connectors (50 pcs Male + 50 pcs Female) 1 x pair spanners
