Risegun 2 Wire Slip Ring, 22mm Conductive Slip Ring Collecting Ring 30A 150RPM 0~600V AC/DC for Wind Turbine Power Generator

• Premium Material: Our slip ring is made of rotating contact surface and the precious metal contact ensures extremely long service life; The smooth and unlimited rotation fully meets the image and data transmission, the service life is 10 million revolutions and the rated speed is 150 rpm.
• Usage: This type of collector ring is an electromechanical component that can transmit power and data signals from a stationary device to a rotating device and can also be called a conductive ring, brush, collector ring, electric rotary joint or electric rotor.
• Working Principle: The lip rings can be used in electromechanical systems that require the transmission of power or data signals with unlimited continuous rotation, which improves mechanical performance, simplifies system design and avoids possible damage to wires during rotation.
• Strong Performance: This rotary connector commutator has low torque, low noise, wide range of applications, can meet the needs of different industries, and can be customized to meet customer needs with compact structure and smooth operation.
• Wide Applications: The rotary connector is suitable for PTZ, electrical test equipment, rotary tables, medical equipment, security monitoring equipment, robots, exhibition display equipment, manufacturing and processing control equipment, small wind turbines, radar antennas, etc.

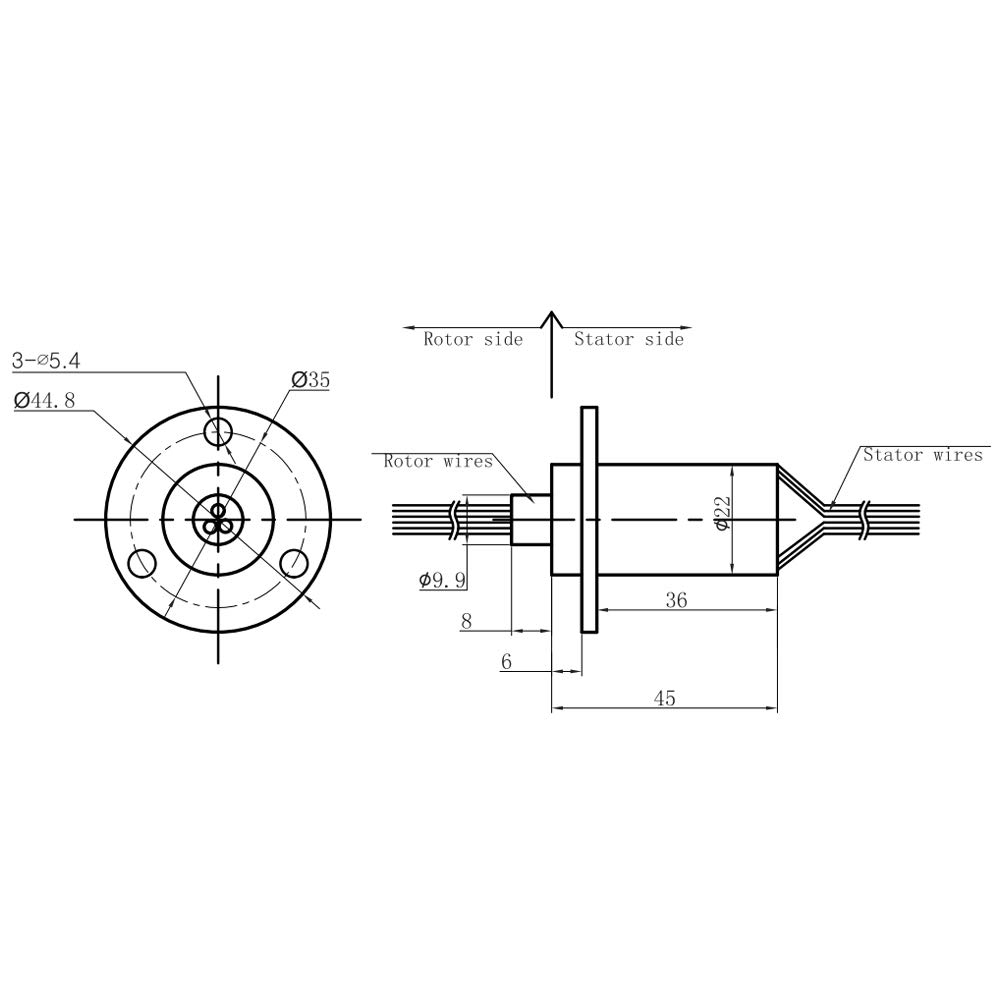

Specification: Item Type: Slip Ring Model: MW1230 Number of Rings: 2 Rated Current Per Ring: 30A Outer Diameter: 22mm / 0.87in Length: 45mm / 1.77in Working Life: 10 million revolutions Rated Speed: 150RPM Working Temperature: -30℃~80℃ Working Humidity: 0~85%RH Contact Material: Precious Metal Housing Material: PBT Moment of Rotation: 0.1N/m; +0.03Nm/6 ways Protection Level: IP51 Rated Voltage: 0~600VAC/VDC Insulation Resistance: ≥1000MQ/500VDC Wire Specification: 10A=AWG#16 20A=AWG#14 30A=AWG#12 Wire Lead Length: 300mm / 11.81in Insulation Strength: 500VAC@50Hz, 60s Dynamic Resistance Change Value: <0.01Q Package List: 1 x Slip Ring
